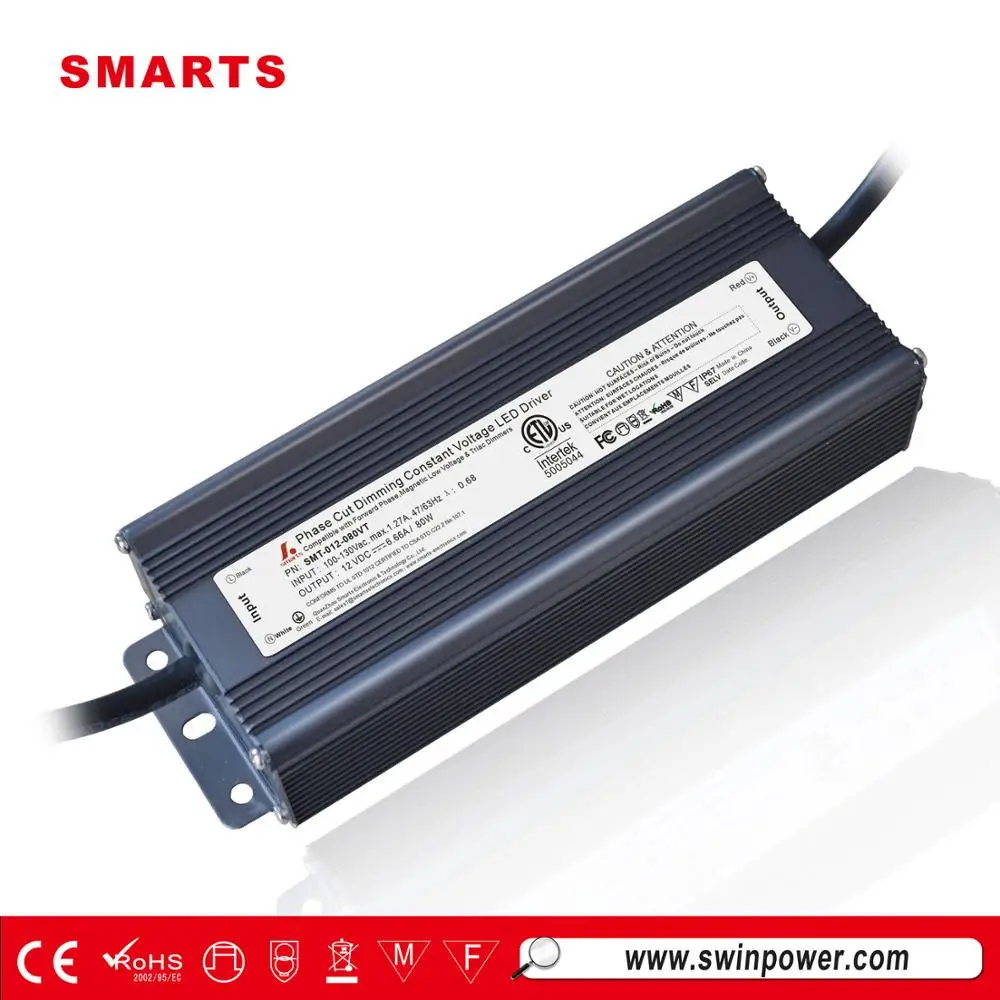

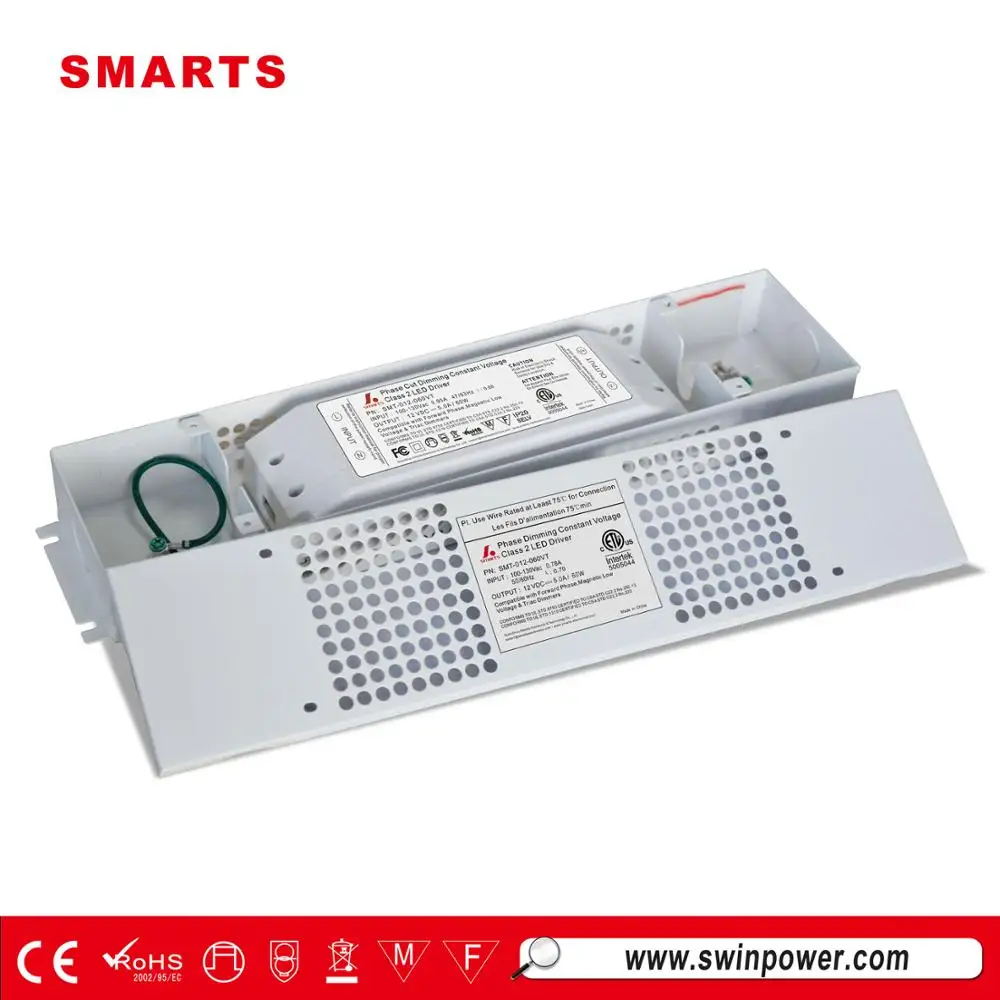

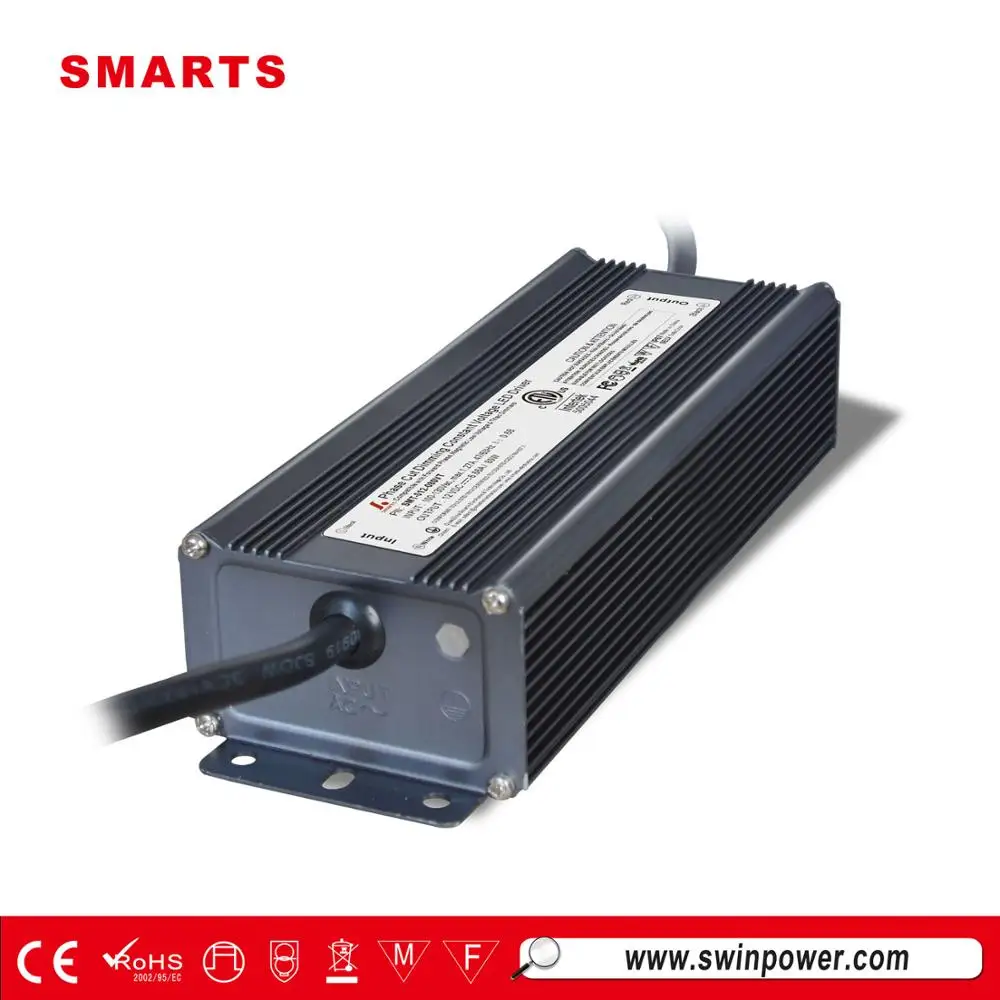

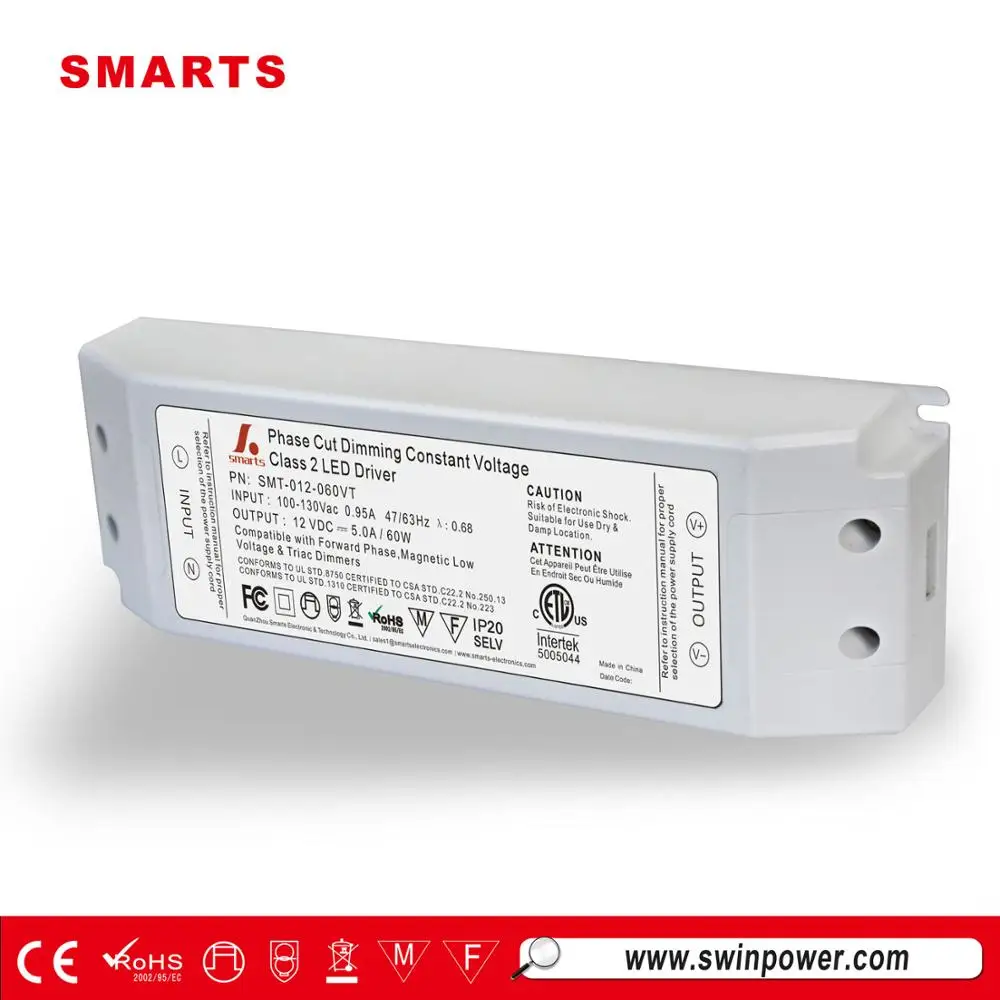

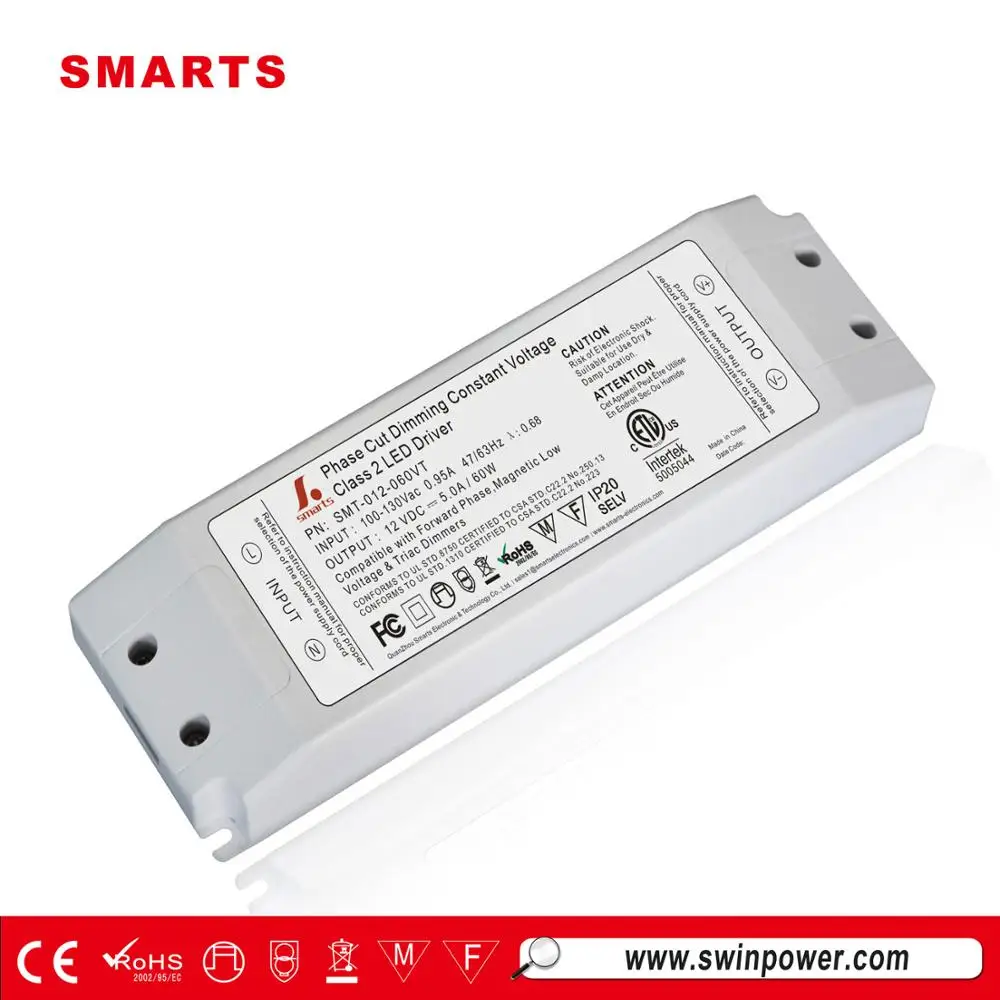

Triac constant voltage dimmable led driver 60w 12v 5a power supply

Model		SMT-012-060VT	SMT-024-060VT
Output	DC Voltage	12V	24V
	Rated current	5A	2.5A
	Rated Power	60W	60W
Input	Voltage Range	180~265VAC	180~265VAC
	Frequency Range	50~60HZ	50~60HZ
	Power Factor	PF≥0.70	PF≥0.70
	Efficiency	>83%	>83%
	AC current	0.95A@120VAC	0.48A@120VAC
	Leakage current	less than0.5mA/110VAC  / less than0.65mA/220VAC
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over Current	≤1.2*I out
	Over Loading	≤120%
	Over temperature	100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery) automatic
Environment	Working temp.	-40~+60℃
	Working humidity	20~90%RH, non-condensing
	Storage TEMP. Humidity	-40~+80℃,10~95%RH
	TEMP .coefficient	±0.03%/℃(0~50℃)
	Vibration	10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC	Safety standards	GMA-505354-EA
	Withstand voltage	I/P-O/P:1500KVAC
	Isolation resistance	I/P-O/P:100MΩ/500VDC/25℃/70%RH
	EMC EMISSION	FCC Part 15 B
other information	Warranty	5 years
	Case material	plastic
	Cetificate	CE/ROHS/FCC/SAA
	Waterproof rate	IP 20
100-130Vac ETL\\FCC\\IP20
180-265Vac\\SAA C-TICK\\IP20
170-265VAC CE\\FCC\\IP20
100-130Vac UL(E507826) IP67

click for more information

 Company Information

• 1.Indoor LED illuminating lights
• 2.LED Neon, LED urban Decoration
• 3.LED Lighting Advertising,LED Display
• 4.Safety Protection Apparatus
• 5.Telecommunications, Networks
• 6.Vehicle Lights, Controller Panels



  click for more information



 Our Market

Our major markets are in EU & North America,it takes about 85% markets share. view transaction history

 Certifications

 Our Services

What Service we can supply??

• 1.All inquiries will be replied within 24 hours
• 2.Professional manufacturer,welcom to visit our website
• 3.OEM/ODM avaliable:
•      A.Print logo on our product;
•      B. Customized specification;
• 4.After Sales-Service:
•      A. All products will have 100% burn-in test and strictly quality test before shipping;
•      B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
• 5.High efficiency,long life span,reasonable&competetative price,fast lead time;
• 6.We have our engineer team, if you have any question about your LED applications, let us know freely.

 FAQ

Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.

Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.

Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.

Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)

Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.

Q10.How to contact with me??
A9:   Skype: steven821228

Send your inquiry details in the bellow for professional reply.
