Product Overview
Description

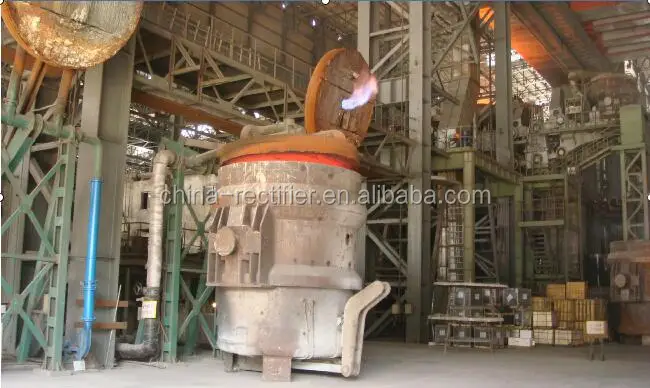

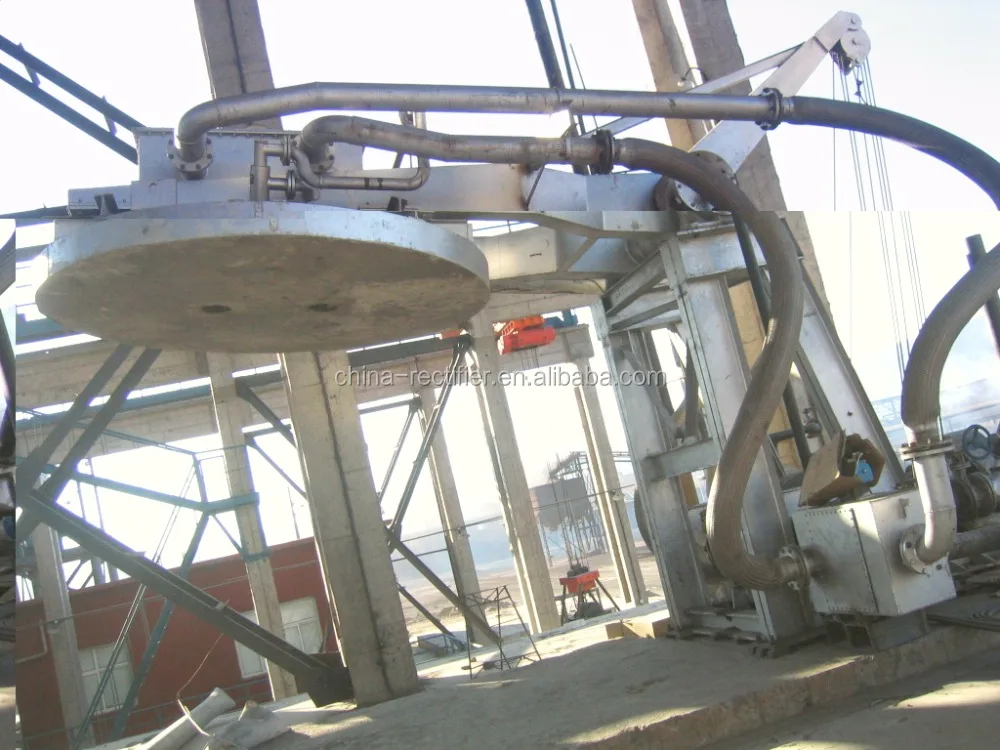

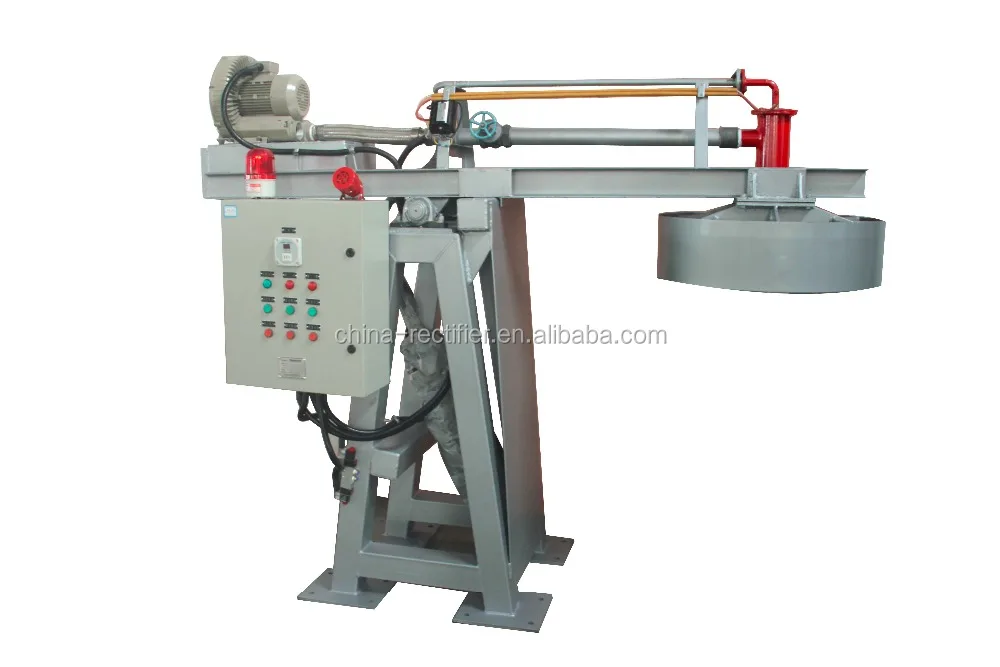

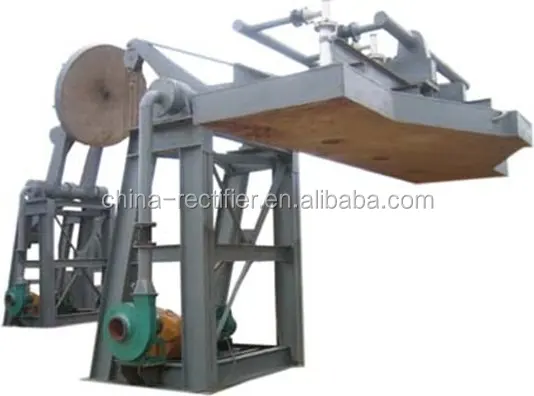

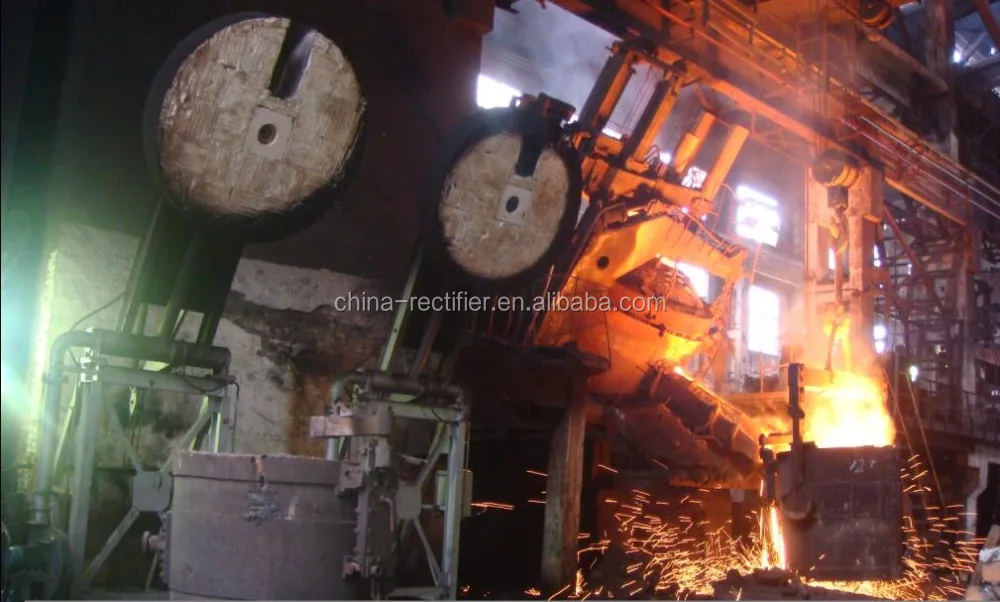

Steel ladle roastor/ Ladle preheating system
We manufacture two kinds of steel ladle roastor: vertical type roastor and horizontal type roastor, composing of the mechanical structure, the combustion system and control system. It is durable, stable with rational designand reliable performance. Raise the heating temperature quickly and operate easily. The heating curves is controlled available with widely adaptability to fuel, especially solving the stability of low calorific value of fuel, such as the blast furnace gas.
Feature: We manufacture two kinds of steel ladel roastor: vertical type roastor and horizontal type roastor, composing of the mechanical structure, the combustion system and control system. It is durable, stable with rational designand reliable performance. Raise the heating temperature quickly and operate easily. The heating curves is controlled available with widely adaptability to fuel, especially solving the stability of low calorific value of fuel, such as the blast furnace gas.
Fuel applicaton: The product is widely applicable to a variety of different gas and liquid fuels, such as blast furnace gas, converter gas, producer gas, mixed gas, natural gas, liquefied petroleum gas, heavy oil, diesel oil and so on. We can design a variety of different burner to ensure the roasting rerquirement according to the fuel provided from user.
Blast furnace gas: calorific value 2900-3500KJ/Nm3 Rated pressure≥2KPa
Converter gas: calorific value 6300KJ/Nm3 Rated pressure≥2KPa
Coke oven gas: calorific value 16700KJ/Nm3 Rated pressure≥1KPa
Producer gas: calorific value5400KJ/Nm3 Rated pressure≥1KPa
Mixed gas: calorific value8300-13000KJ/Nm3 Rated pressure≥1KPa
Liquefied petroleum gas: calorific value42000KJ/Nm3 Rated pressure≥1-1.5KPa
Diesl oil: calorific value37800KJ/Nm3 Rated pressure≥1-1.5KPa
Heavy oil: calorific value33500-37800KJ/Nm3 Rated pressure≥1-1.5KPa
