High precision 2 Color conveyor belt pad printing machine for CD Toys

Share on:

Price:$3,502.00 - $4,120.00
Price in USD:Details


Product Overview


Two  Color ink tray conveyor belt plastic pad printing machine  LC-SPM2-150/10

Product Description



1. Model No-- LC-SPM2-150/10
2. Operation_pneumatic
3. Printing Colors_2
4. Plate area--100*150 mm
5. Max printing area_80*130mm
6. Max printing speed--1600PCS/H
7. Conveyer station--10/PCS
8. Wattage--220V/ 50Hz 110V/60Hz
9. Air pressure--0.4-0.6Mpa
10. Machine size--860x760x1400mm(LxWxH)
11. Machine weight--130KG



2-color pad printer with conveyer
1.2-colour pad printer with shuttle driven by cylinder
2. Each function controlled by microprocessor for easy operation
3. Four-digit auto counter built in
4. High quality aluminum alloy is used to make structure solid and light weight
5. Ink roller is used for ink covering, so it is easy to clean, install and uninstall
6. Independent pad up/down stroke and speed adjustment
7. Auto balanced doctor blade available for efficient ink scraping
8. Printing speed adjustable to fulfil various requirements
9. Inking twice, printing once" function for thick ink film
10. Able to sweep forward/backward without lowering pad to avoid ink drying at intervals
11.2-colour and 1-colour printing available
12. Drying with auto air blowing for easy color registration
13. All printing machines can be equipped with ink cup as customer requires

Free match:

1. One pcs steel plate
2. Two pcs rubber pad
3. Work box
4. English operating instruction

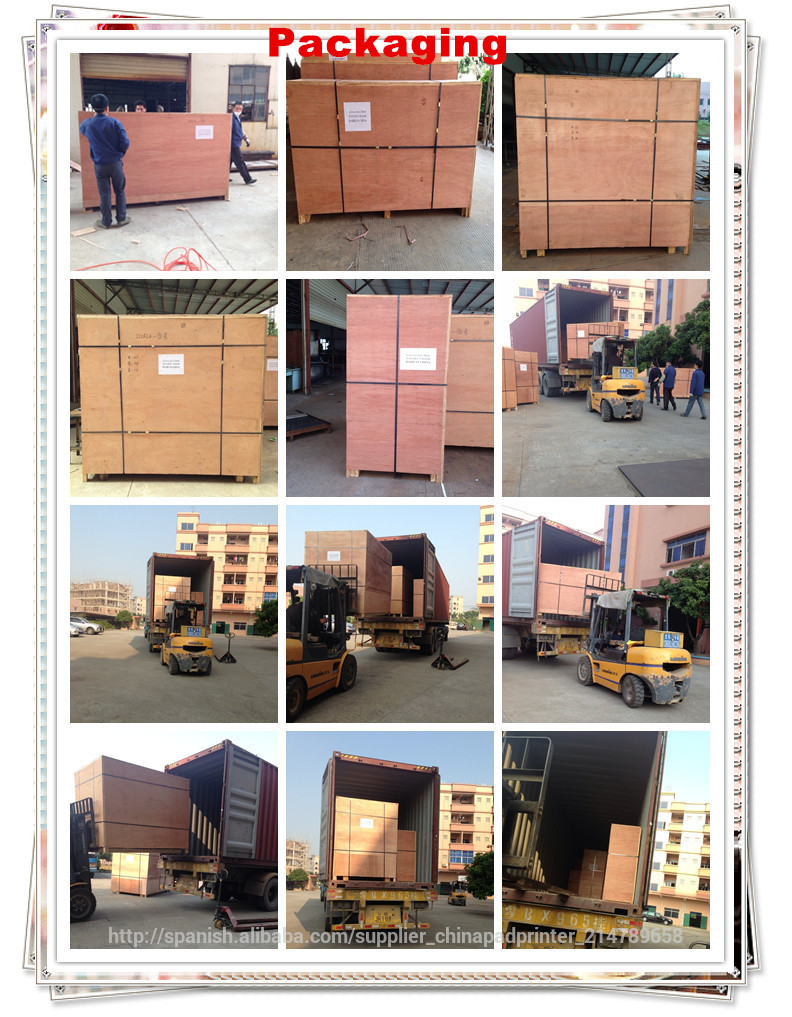

Packaging & Shipping






Company Information

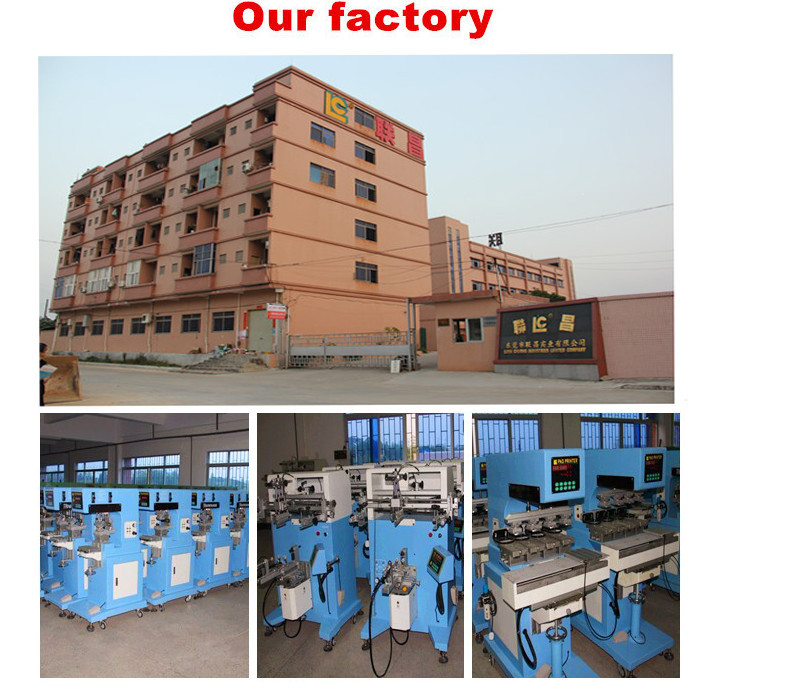

Luen Cheong Printing Equipment Group Limited has manufactured LC brand color printing machines for more than 25 years, including various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines and cliche making machine and pre-post printing machine.We have passed ISO-9001-2000 certification in 2001 and are a member of SGIA and all of our industrial printers have EURO'S CE standard.



Our Services


1 The guarantee time is 1 years, and maintain is lifelong. During this time, if any work piece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, but the carrier cost must be in buyer's side. And the machines have matched an urgent foot switch.

2 The supplier must sure the machine all work well before package.

3 we will provide the working video after delivery the machines.

4 Welcome your engineers to come to our factory for training.
