C6246 high precision manual metal lathe machine price for sale

Product Overview

Description

C6246 High precision manual metal lathe machine price for sale



Main Features:



1.2 Axis digital readout system
2.Quick change toolpost with 5 holders
3.Concertina leadscrew cover

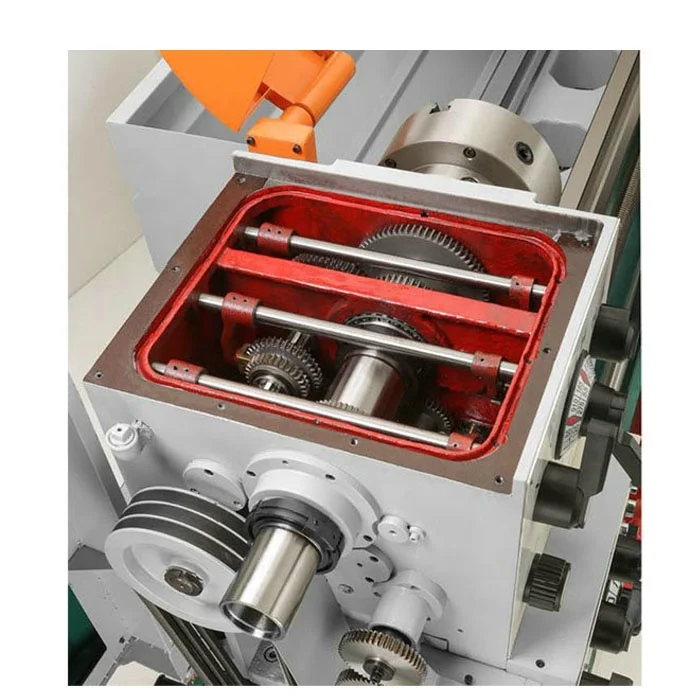

4.Gear drive headstock for quick change of spindle speeds
5.Precision V-beds are hardened and ground, incorporating a rigid webbed casting
6.Foot operated spindle brake with safety cut out switch

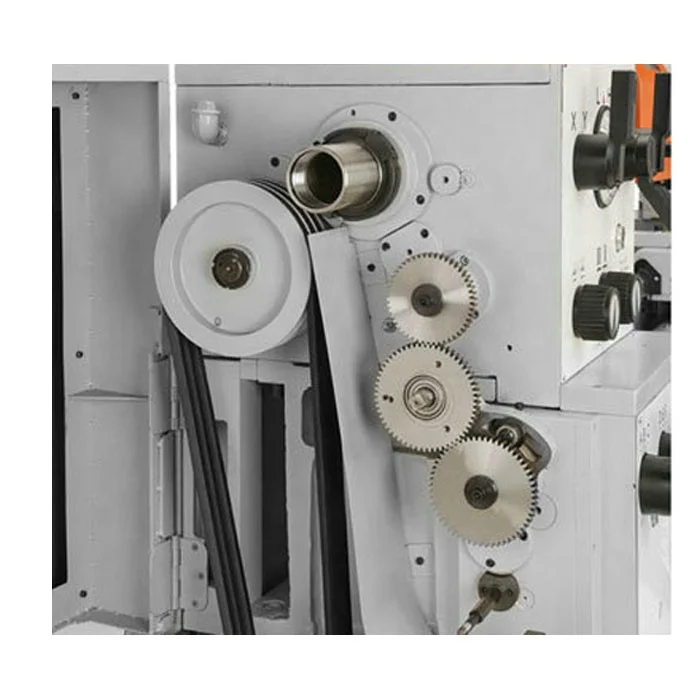

7.Change gears for metric and imperial thread cutting
8.Adjustable taper roller bearings support the spindle

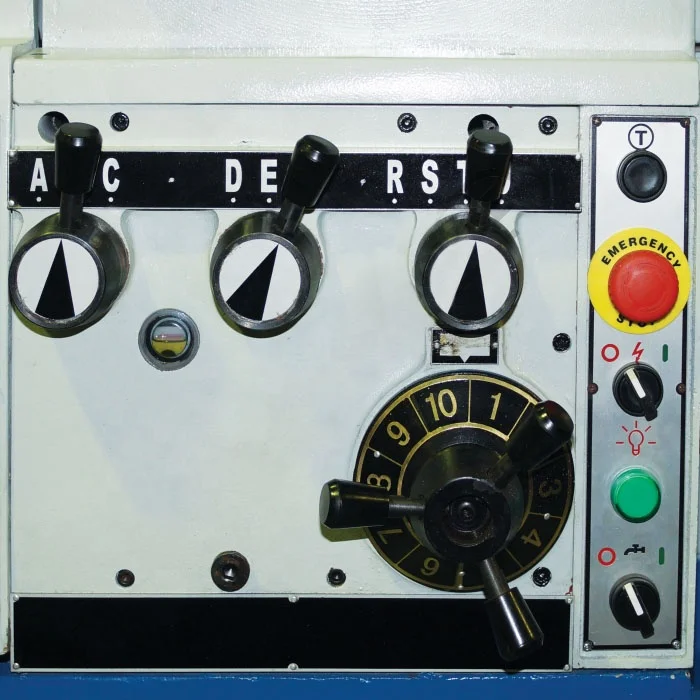

9.Inching button is incorporated on the control panel for convenient spindle speed selection
10.Enclosed quick action gearbox for thread cutting and auto feeding
11.Powered longitudinal and cross feeds
12.D1-5 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
13.Removable gap bed-way for larger diameter jobs





Specification:

Model	C6246/1500
Max swing over bed	460mm(18")
Max swing over cross slide	274mm(10 3/4")
Max swing over gap	690mm(27 1/8")
Length of gap	155mm(6 1/8")
Max length of workpiece	1500mm(60")
Width of bed	300mm(11 13/16")
Spindle nose	D1-6
Spindle bore	58mm(2-1/4")
Taper of spindle bore	M.T.#6
Range of spindle speed	12changes25-2000r/min
Max travel of compound rest	120mm(4 3/4")
Maxtravel of cross slide	290mm(11 3/8")
Leadscrew pitch	metric 6mm
Maxsection of tool	25mm×25mm(1×1")
Range of longitudinal feeds	42kinds 0.031-1.7mm/rev (0.0011"-0.0633"/rev)
Range of cross feeds	42kinds 0.014-0.784mm/rev (0.00033"-0.01837"/rev)
Metric threads range	41kinds 0.1-14mm
Inch threads range	60kinds 2-112 T.P.I.
Diametrical pitches range	50kinds 4-112D.P.
Module piches rang	34kinds 0.1-7 M.P.

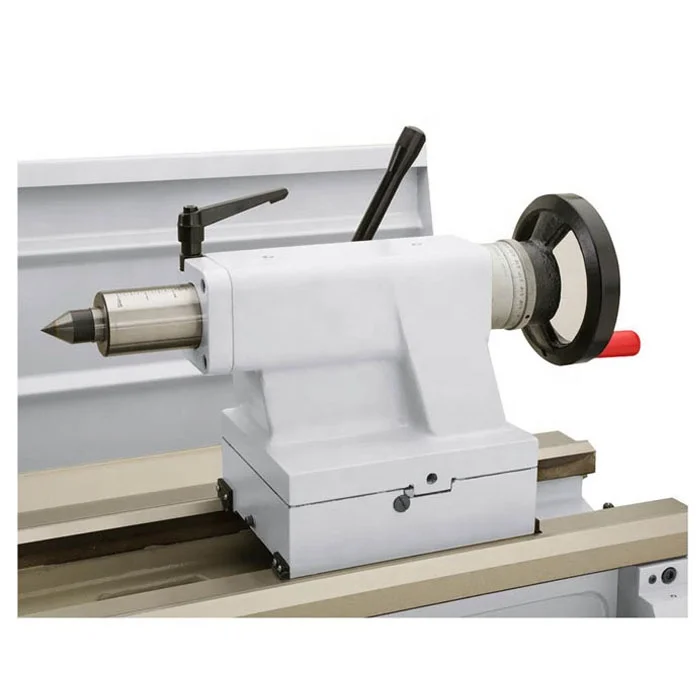

Dia. of tailstock sleeve	60mm(2 5/16")
Travel of tailstock sleeve	120mm(4 3/4")
Morse taper of tailstock sleeve	M.T.#4
Power of main motor	4kw(5.4HP),optional 5.5kw(7.5HP)3PH
Power of coolant pump	40w
Packing size	2775x1110x1575mm
N.W./G.W.	2010/2355 KGS





Standard Accessories:

3-jaw &4-jaw Chuck

Change Gear Set

Reduction Sleeve

Dead Centers

Coolant system

Brake system

Tool box & tools 1 set

Follow Rest

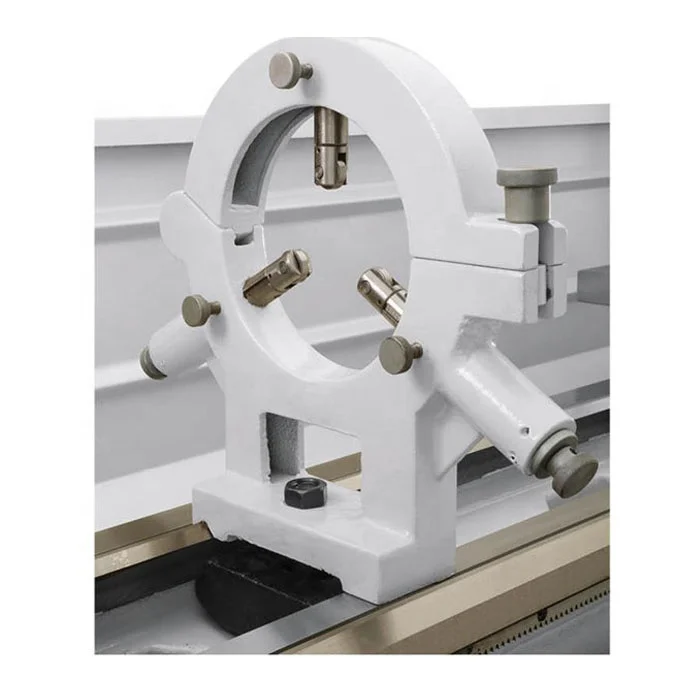

Steady Rest

Optional Accessories:

--DRO

--Quick change tool post

--Chuck Guard
