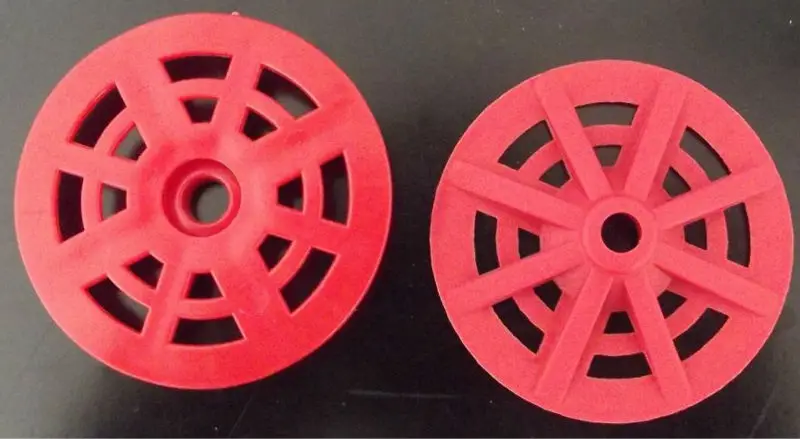

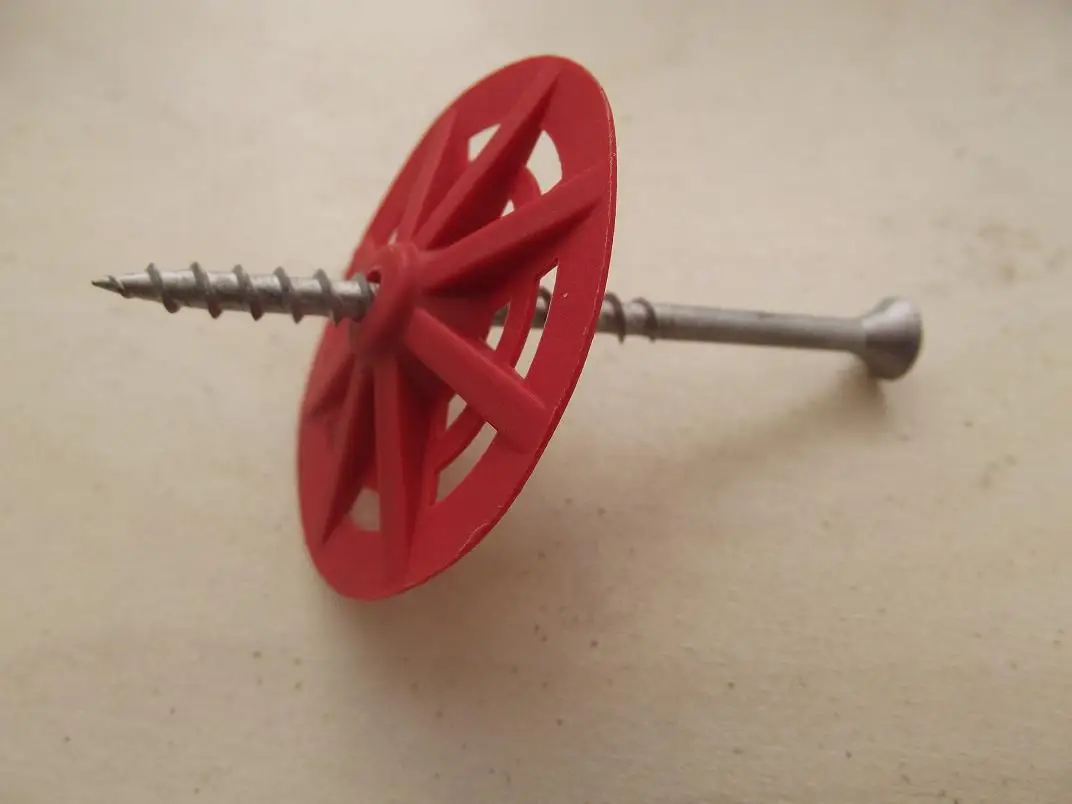

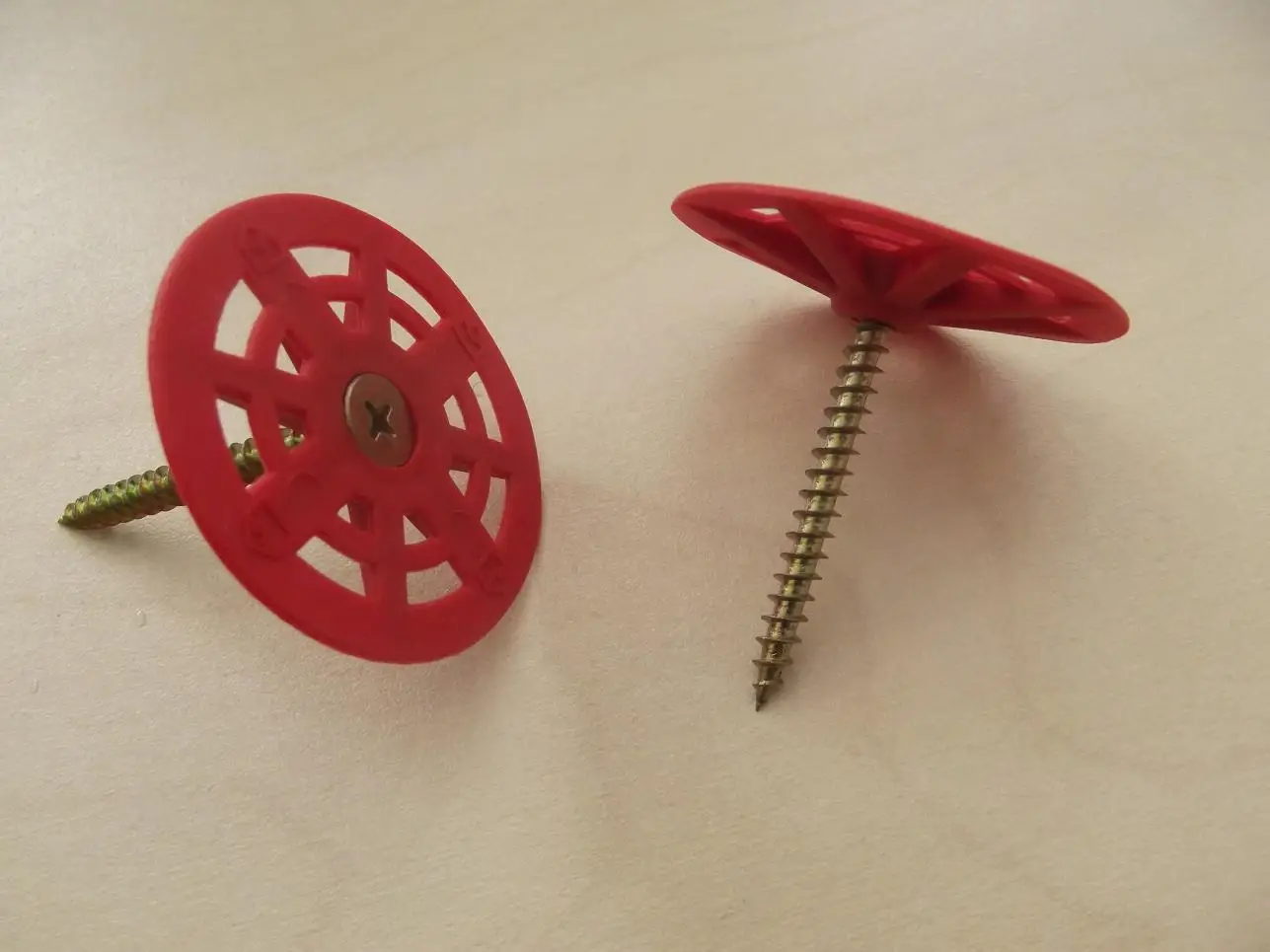

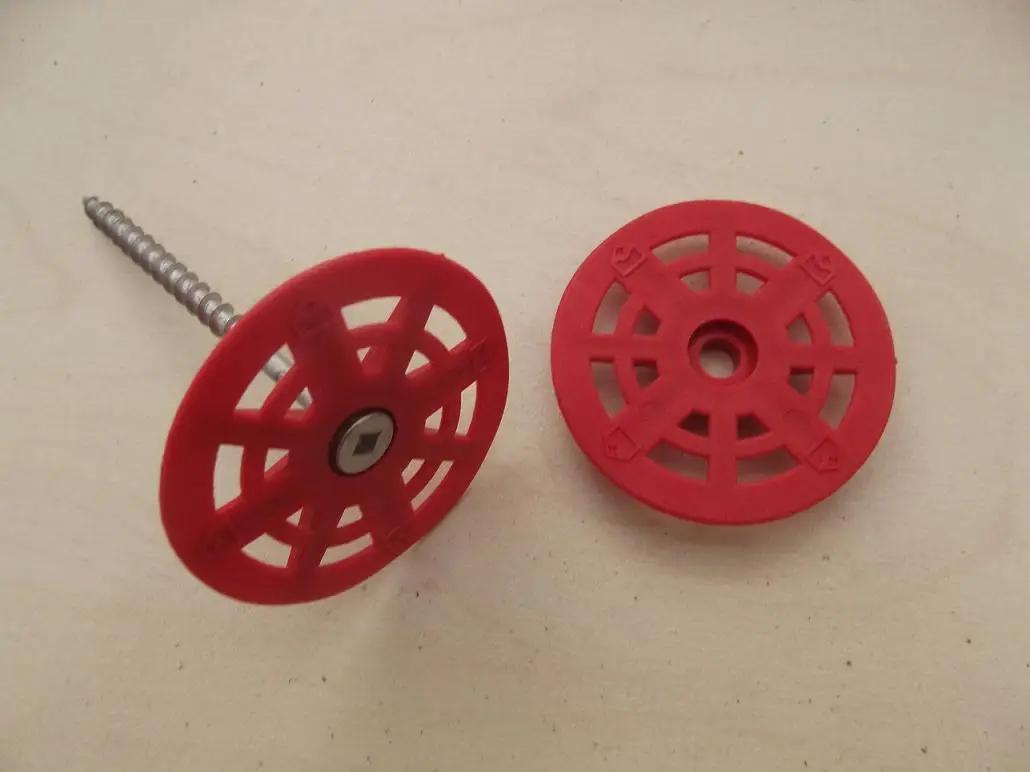

The insulation Fastener is made of steel nail and plastic washer.
It can be applied on the wall such as claybrick, normal concrete, concrete block, light-concrete or pore-concrete-block, aerated concrete etc
Product Packaging
Bags or cartons
Standard: JG158-2004, JG149-2003
Product Advantages
·Suitable for all kinds of wall
·High pull-off strength for a higher security of the system
·Low thermal conduction addition value to avoid thermal bridge

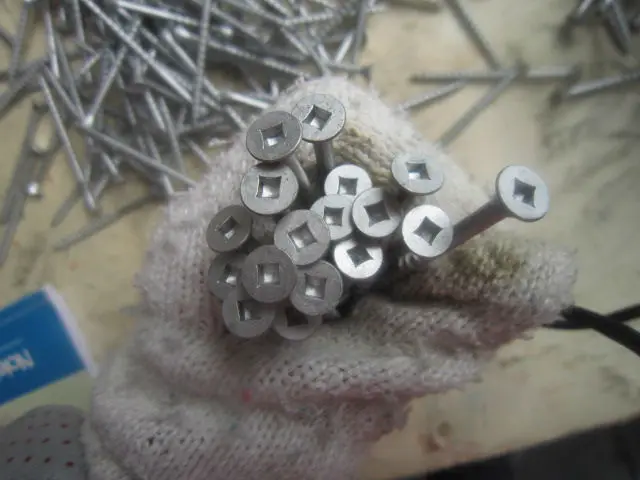

·Galvanized layer on the steel nail to protect the nail from alkali
Field of application
It is fixed on the position where there is significant wind-suction-force or if the height is more than 20m or if the finishing coat is tile etc
Remarks
• Start drilling after sufficient hardening of the glue (min 24h later)
• Clean the drilled hole
• Make sure that not any damage to the thermal insulation layer or substrate were made during fixing the anchor
• Make sure that the depth of drilling is deeper than 40mm and the anchoring depth is min. 30mm
• The top of anchor can not be protrudent out of the surface of the thermal insulation layer
• For the tile system the anchor must be fixed through the thermal insulation layer, the alkali-resistant glass-fibre-mesh and fresh base coat; for the plaster system the anchor can fixed directly through the thermal insulation layer
Arrangement diagram of anchor fixing (1. 4pcs/m2 2. 6pcs/m2)
Product specification
Tools
Percussion drill, Hammer
Substrate requirement
The substrate should be sound, dry, flat, clean and durable
Application environment
Temperature:5°C~35°C
Avoid raining, high temperature and frost
Avoid direct sunlight and class 5 wind
SA EPS system is a lightweight, low density system employing expanded polystyrene insulation with adhesive and mechanical dowel fixings
Screw and fastener is a part of SA - external wall Insulation systems of external building walls,The finishing coat can be tile
