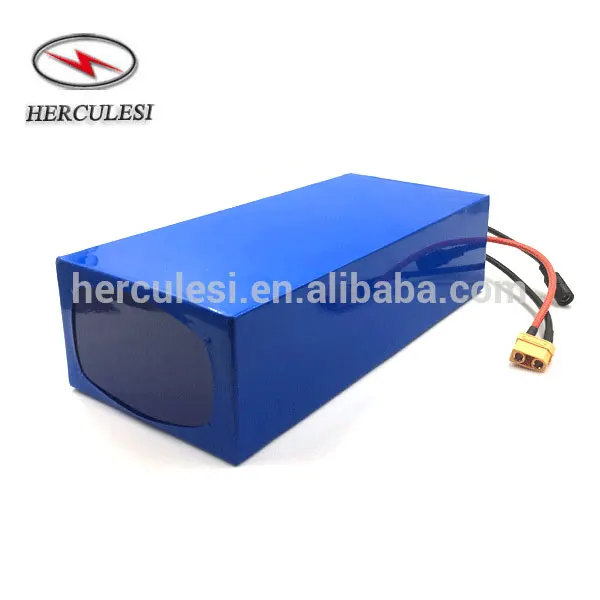

Rechargeable 36V 8Ah Li Ion Battery for Electric Bike Scooter Motorcycle Golfcart with 2A Charger
- Category: >>>
- Supplier: Shenzhen Herculesi Technology Co. Ltd.
Share on (60583932860):
Product Overview
Description
Rechargeable 36V 8Ah Li-Ion Battery
for Electric Bike Scooter Motorcycle Golfcart with 2A Charger
Specifications
What's the Specifications of our Lithium Battery Pack 36V 8Ah ?
Notice: This 36V 8Ah Lithium Battery Pack Applys To The Motor Within 540W
Parts included: Lithium Battery + PVC Case + Built in BMS Board + Charger
| Battery Model | 36V 8Ah Lithium Battery Pack |
| Nominal Capacity (Ah) | 8Ah |
| Nominal Voltage (V) | 36V |
| Source Resistance (mΩ) | within 40 |
| Cell Specification | 3.7V 2.0Ah 18650 |
| Cell Combination | 4 parallel with 10 series |
| Cell Quantity (parallel*series) | 40PCS |
| Discharge Cutoff Voltage | 30 + /- 1V |
| Charge Cutoff Voltage | 42V |
| Rated Discharge Current | 15A |
| Instantaneous Maximum Discharge Current | 30A |
| Maximum Continuous Discharge Current | 15A |
| Maximum Continuous Charge Current | 5A |
| Charge Model | CC/CV |
| Standard Charge Current | 2A |
| Charge Time under Standard Charge Current | 4 Hours |
| Fast Charge Current | 5A |
| Charge Time under Fast Charge Current | 2 Hours |
| Charge Temperature Range | -20-60℃ |
| Discharge Temoerature Range | -20-60℃ |
| Cell Size | 70mm*75mm*195mm |
| Chargeing Cycles | >1000 times |
| Recommender for Moto | Within 540W |
| Battery Net Weight | 2.0Kgs |
| Battery Gross Weight | 3.5Kgs |

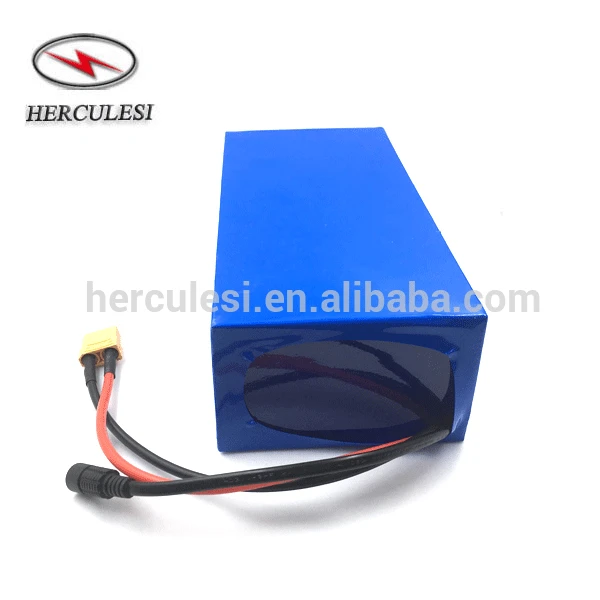

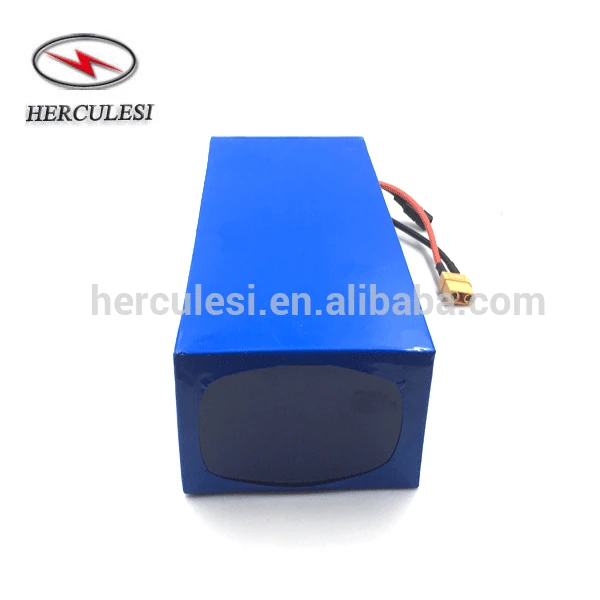

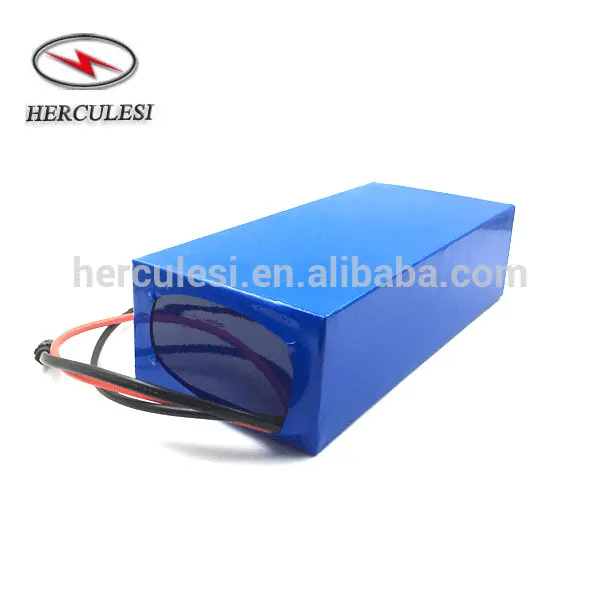

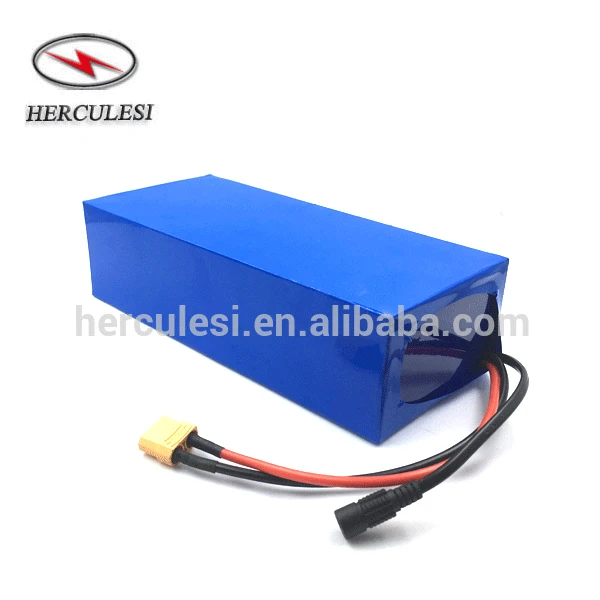

Details Images
What's the Details of our 36V 8Ah Lithium Battery Pack?
Applications
Where the Battery can be used ?
Quality Control
What Test We do Before Shipping?
1, We are not only sell batteries but also provide expertise to help customer design their own custom batteries.
2, For the raw material: We used Ni1/3Co1/3Mn1/3 positive pole material for electric bike battery. The name is ternary Li ion battery(Li-NiCoMn). It has high energy density, deep cycle performance, long cycle life (>1000times 1.0C, IEC standrad) and with lower cost. It is the newest generation Li-ion rechargeable battery for high power applications, such as EV car, E-scooter and E-bike.
3, Strict Quality Control: Cell test and battery pack test before producing & delivering.
As usual, we produced a batch of cells, and need do below test firstly.
a) capacity test, b) high current discharge test, c) low temperature test, d) cycle performance test, e) short circuit test, f) overcharge test, g) crush test, h) impact test, i) vibration test, j) hot test.
After the cell is passed test, we will build the pack as below procedure.
a) inner resistance test, b) capacity grading, c) cells welding, d) cells combination, e) welding BMS & cable, f) high & low temperature test, g) charging & discharge test, 10times cycle. h) packing, i) drop test, j) delivery.
Certifications
What Certifications we passed?
About Us
What About Our Manufactory ?
We are specialized in Li ion battery, LiFePO4, Li-NiCoMn, LiCoO2, LiNiO2, and LiMn2O4 battery with 12 year experience.
We are not only sell batteries, but also provide expertise to help customer design their own custom batteries. Our sales and engineers have more than 10 years experience, if you have any design or inquiry, please just message us, our engineers will work with you to provide you best solutions.
