portable water well drilling rig for sale 80m,100m,120m,150,180m,200m
- Category: >>>
- Supplier: Dongying Jintan Petroleum Technology Equipment Co. Ltd.
Share on (60584005704):
Product Overview
Description
Product Description

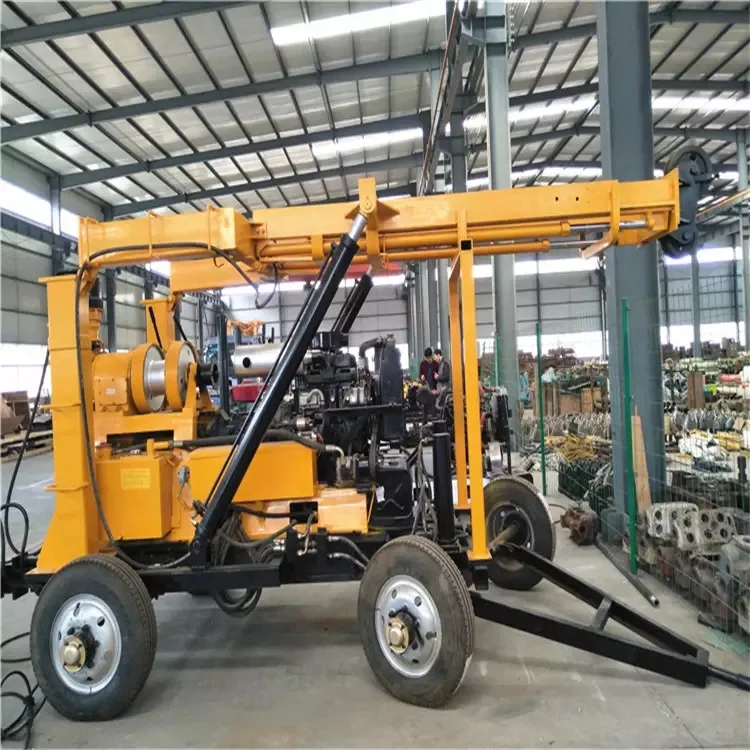

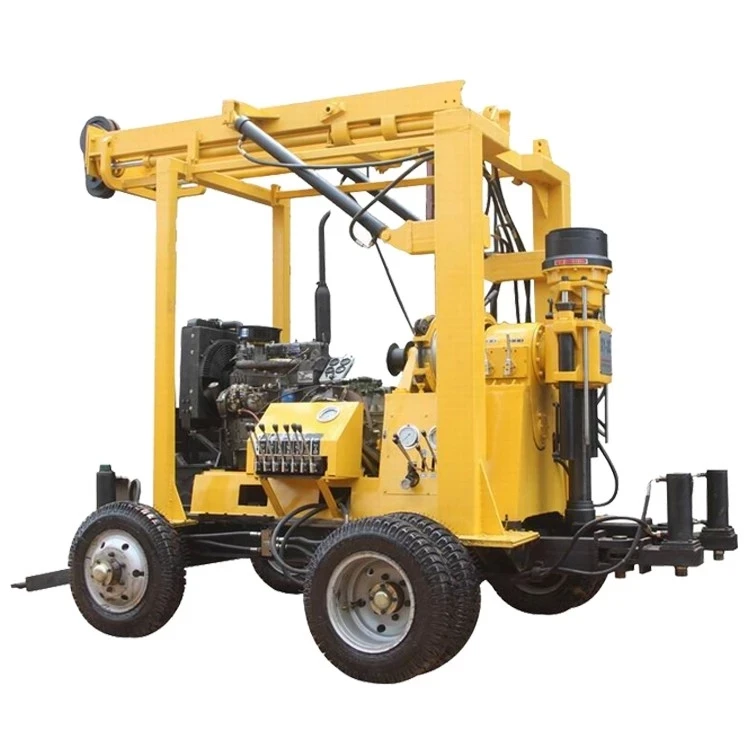

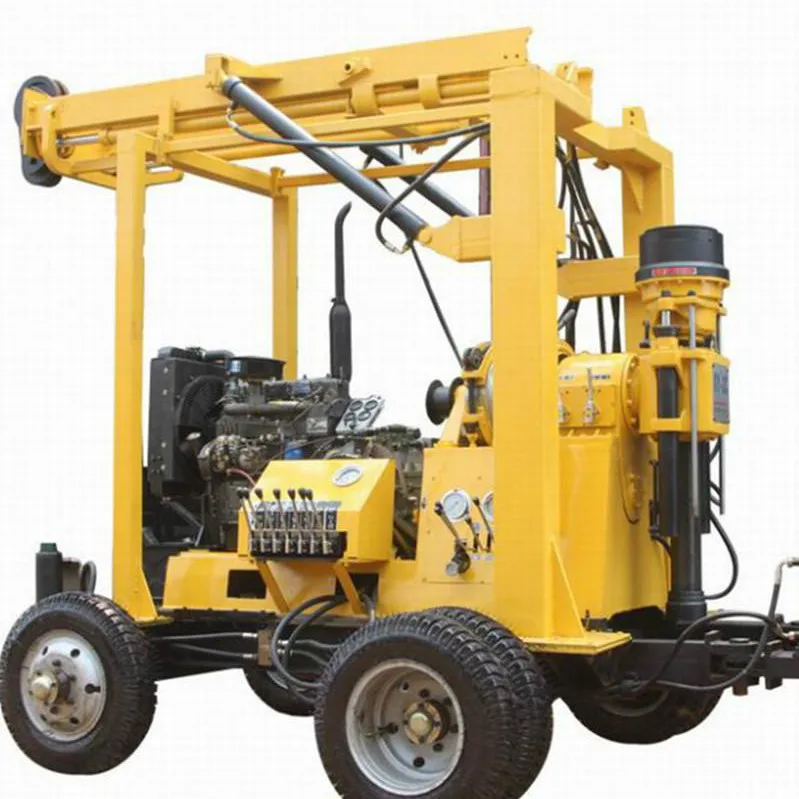

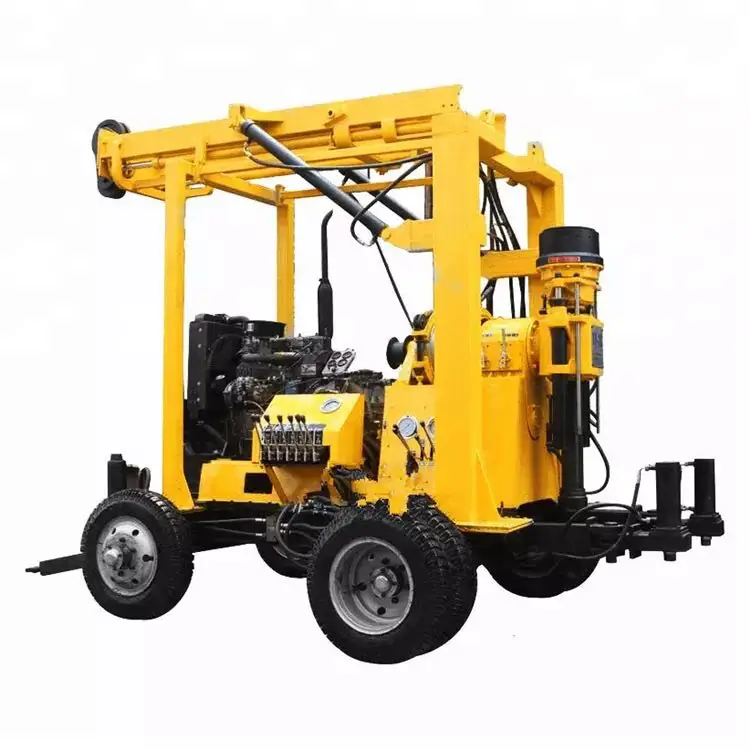

200m trailer mounted water well drilling rig
1.Technical parameters
Unity machine parameter | |
Drilling depth | 30-200m |
Drilling caliber | 500-75mm |
Drill rod caliber | 50mm |
Drilling angle | 90 °~75 ° |
Drill weight (No include power) | 910kg |
Unity machine dimensions | 2.75×0.95×1.6m |
Spindle | |
Spindle speed | 64. 128. 287. 557r/min |
Spindle stroke | 450mm |
Hoist | |
Max.single line hoisting capacity | 2000kg |
Reel lifting speed | 17. 35. 75. 151r/min |
Reel caliber | 140mm |
Tightrope caliber | 12.5mm |
Tightrope cubic measure | 35mm |
Hug floodgate caliber | 245mm |
Hug floodgate belt width | 70mm |
Distance between drill and hole | 400mm |
Mud pump | |
Type | Horizontal single urn twin action |
Displacement | 170L/mim |
Power | |
Diesel engine | S1105 18HP |
Electric motor | Y160M-4 15kw 1440r/min |
Maximum pressure | 1.5Mpa |
Work pressure | 0.7Mpa |
Water inlet caliber | 40mm |
Water to exit caliber | 30mm |
Triangle conveyer belt |
|
Specification
1.drill 200m deep
2.trailer gelological investigation water well
3.The machine could drill hard rock under the ground
4.Diesel engineer s1105 18HP
Ⅲ . Application
It is widely used for the projects such as engineering geological investigation Geophysical investigation . small grouting hole. shot hole and water well.
MT-180Y water well drilling rig machinegained 3 national practical new type patents invention.
