New Design and Direct Factory Lifting Crane Hoist
- Category: Other Material Handling Equipment >>>
- Supplier: Henan,Mapoton,Industrial,Co.,Ltd.
Share on:
Product Overview
Description
New Design and Direct Factory Lifting Crane Hoist
The Electric Motors Can Be Matched With the 08-Type Outdoor Lifting Crane
Product Description

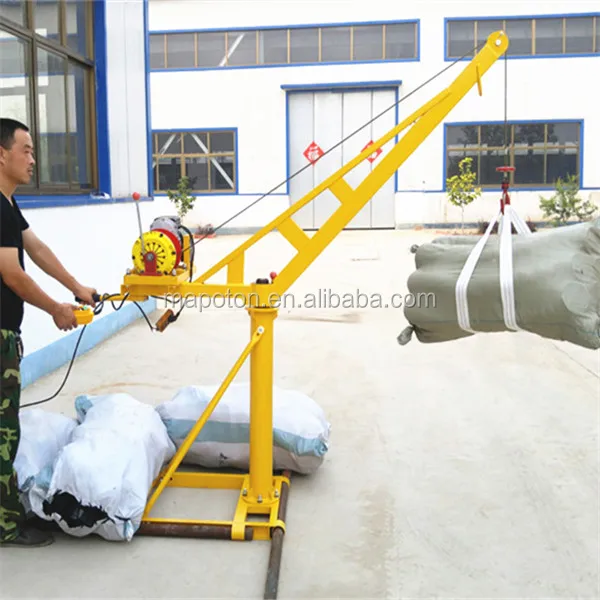

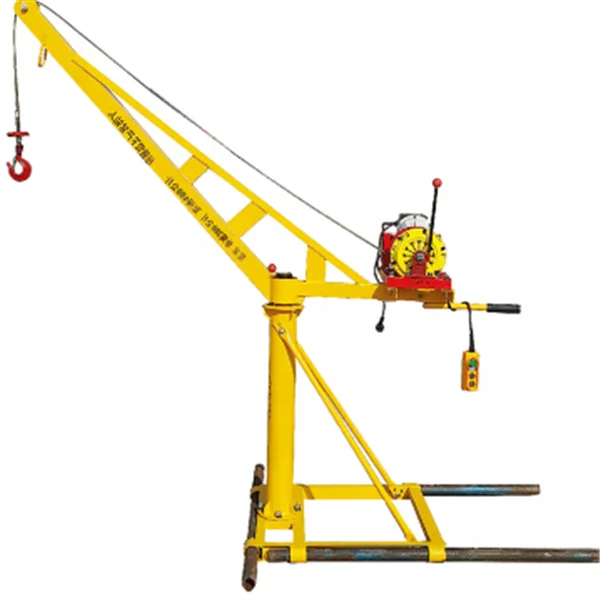

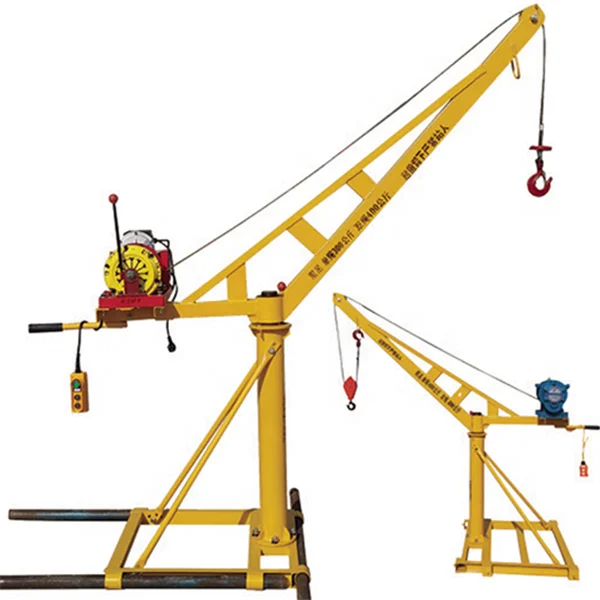

Outdoor 360 Degree Rotation Lifting Crane 08 Type
This type of new crane was designed and produced in 2008, the advantages are as below,
A. This type of crane can be rotated for 360 degrees which can solve the problems of the rope twisting and difficulty in rotation during the work.
B. The winching part changes the disadvantage of the short lifespan of the turbine reducer to make the electromagnetic braking motor much more powerful.
C. This crane can be used for 220v and 380v electricity. And the main engine can be take off for sole usage.
D. The 220v electricity type is designed with the clutch device to win the fast speed when falling down to improve the efficiency.
E. The most important is that the rotation part is installed with the automatic positioning device which will be much more safe.
Product Data
 |
Voltage | 110V-460V |
| Power | 1.35/1.85/2.3/1.5/1.8/3.0KW | |
|
Lifting Speed (M/Min) |
13/15/24/36 | |
|
Length of Steel Wire (M) |
25 Or Increasing | |
|
Type of Steel Wire (MM) |
Oily Airline Steel Rope 6.0 Galvanized Airline Rope 6.0 Oily Steel Rope7.7 |
|
|
Weight of Engine (KG) |
35 | |
|
Package Size (MM) |
500*250*280 630*350*350 |
Company Information
Located in Zhengzhou City, Henan Province, Henan Mapoton Import&Export Co., Ltd is affiliated to Hebei Tianyu Hoisting Machinery Manufacturing Co., Ltd. We are also the exclusive foreign business department of our factory.
Our factory was established in 1993 and restructured in 2006. After many years of experience accumulation and technical innovation, based on the principles of high starting point and producing high-quality equipment, we have stepped into the forefront of the domestic crane and lifting industry and developed into one of the domestic largest manufacturers of designing and producing indoor lifting machine and outdoor lifting machine. Besides, we also have been famous for manufacturing hand chain hoists, electric lifting cranes and high-altitude operation pedal baskets.
Over years of continuously adhering to the people-oriented and producing safe lifting equipment. We have researched and developed full series (covering 18 categories, total 60+) indoor & outdoor hoists with payload capacity ranged 100kg-800kg. The machines secure smooth loading, safety for operators working in construction and decoration.
All our machines have obtained the quality inspection reports and underwritten by the CLIC(China Life Insurance Company), which is state-owned largest insurance company in China. Varieties of products have been possessed the intellectual property rights and declared the national patent. Thanks to full-blown sales network, products have been exported to Southeast Asia, Middle East. Furthermore, we have embraced a high reputation among customers. Our customer service department consists of technique support and 2-grade service system which provide professional supports in the process of pre-sale, mid-sale and after sale.
Product Details
| 1. Item | New Design and Direct Factory Lifting Crane Hoist | ||||
| 2. H.S Code | 8426990000 | ||||
| 3. Market |
Africa: Nigeria, Zambia, Uganda , Kenya,Zimbabwe,Angola,Ghana , Algeria etc. Europe: UK,Spain, Portugal, Turkey , Roumania etc. Asia: Singapore , Thailand , Malaysia , Pakistan etc. |
||||
| 4. Advantage |
A. We apply with the standard channel steel and weld together, the standing column position is designed in the right front of the bottom seat, which can guarantee the stability of the bottom seat and make the rotation arms spread much more longer. B. We guarantee each connection point has 3 welding points at least, all the balancing pressure pipes become much more thicker and longer. C. We use the high quality steel pipe with the thickness of 3.25-3.5mm, the 2 pieces of the flange plates located up and down the column are all use the low carbon steel material with the thickness of 10mm. D. All the accessories get together after the precision punching and processing, which apply with the fully automatic welding equipment and weld together in one time. It guarantees the vertical degree of the standing column, what’s more, it also make all the welded accessories get to the highest welding density and has a even and beautiful welding points. E. The main bearing adopts the precision processing of numerical control lathe, the top threaded part is equipped with 2 pieces of high-density screws, so it will be much more safe. |
||||
| 5. Material | National Standard Seamless Steel Wire 3.25-3.5MM | ||||
| 6. Type of Matched Engine | With Clutch, Without Clutch, Aluminum Type and So On. | ||||
Factory Technology

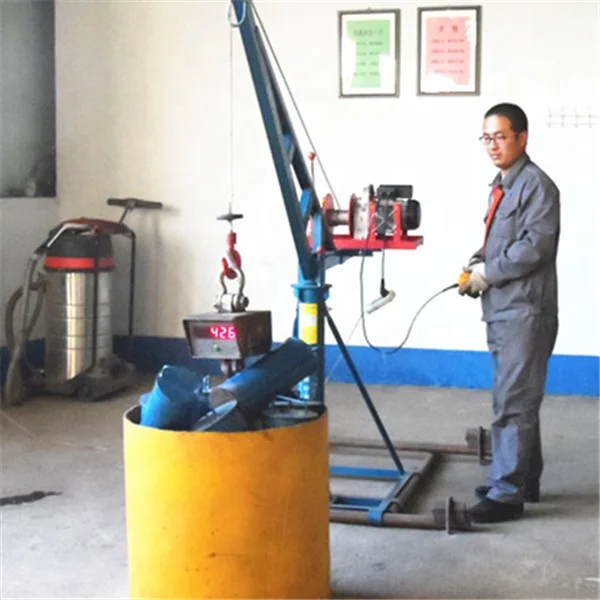

Product Test
Packaging & Shipping
FAQ
1.Q: Are you the direct factory?
A: Yes, we are the factory for 24 years.
2.Q:MOQ?
A:One set is ok.
3.Q:Can you accept payment terms?
A:T/T, Western union, Paypal, Escrow,Trade assurance,etc.
4.Q:Delivery time?
A:If in stock,1~3 days; If not in stock,normal 5~15 days ;
4.Q:Can you provide OEM/ODM?
A:Allowed OEM/ODM;
5.Q:Warranty?
A:One year for the whole machine .
6.Q:Do your products can be customized?
A:Yes,our all kinds of electric winch can be customized design according to each client's demands.
7.Q:What kinds of certificates about your products?
A:Normally,we have CE, SGS, PVOC, COC certificates,of course our products make some other certificates according to our clients' specific requirements.
