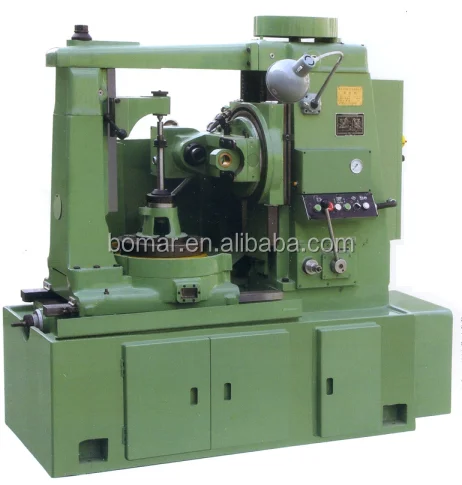

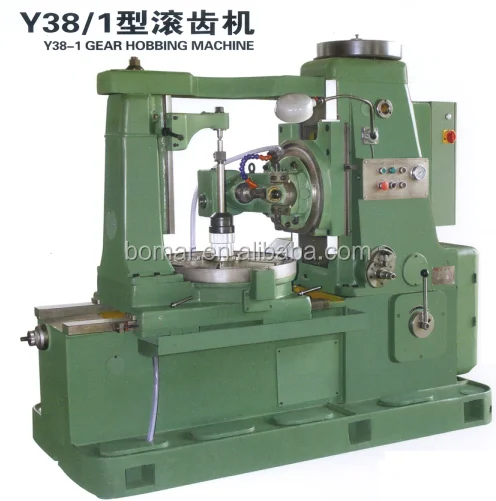

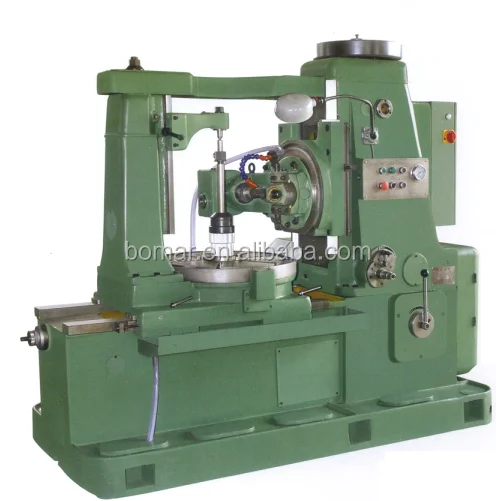

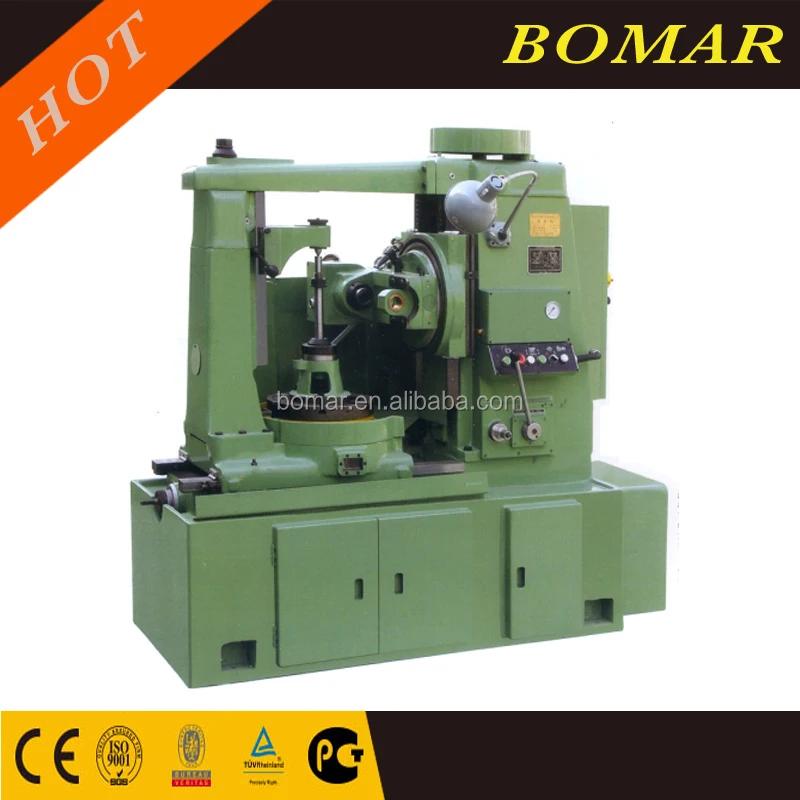

Y38/1 Gear Hobbing Machine for sale, Max Dia of Hob 800mm

 Main Technology

 YK3150/3

 Max Mould

 Steel(mm)

 6

 Foundry Iron(mm)

 8

 Maximum outside diameter of cylindrical gear

 With outer support(mm)

 450

 W/O outer support(mm)

 800

 Maximum outside diameter of cylindrical helical gear

 When the helix angle is 30°(mm)

 500

 When the helix angle is 60°(mm)

 190

 Maximum vertical travel length of hob(mm)

275

 Max Diameter of Hob (mm)

120

 Distance between hob spindle and gear hypocotyl

 Max(mm)

55

 Min(mm)

30

 The minimum distance from the table top to the spindle axis of the hob(mm)

 195

 Diameter of hob change mandrel(mm)

 22  27  32

 Maximum diameter of hob (mm)

120

 Table bore diameter (mm)

 80

 Table mandrel diameter (mm)

 35

 Hob spindle speed

 Grade

47.5

 Range (rpm)

192

 Vertical feed per hob of workpiece(mm / RPM)

 0.25-3

 Main Motor Power(kw)

 3

 Main motor speed (Rev / min)

 1420

 Weight of Machine (kg)

 3300

 Dimension (mm)

 2290×1100×1910
