CE,ASTM, SGS, IAAF product certified, IAAF class 1 athletics facility certified, ISO 9001, ISO 14001
We are the supplier of 2014 Incheon Asian Games rubber track
2014 Winter Olympic Games Ceremony rubber mat
HDDD/HDPD type Specification
EPDM synthetic rubber vulcanization of the further strengthen of the materials of polymer, the good performance for Aging resistance, weather resistance, electrical insulation, corrosion resistance, impact resistance etc.
Natural rubber has excellent properties of high elastic insulation, waterproof, low specific gravity, after appropriate treatment with alkali, heat, cold, pressure. Full solid be consistent from beginning to end, and has maximum compression deformation. Its advanced partition design maximizes absorption and recovery of energy.
HDPD-A
Professional type: for athletic field of Olympic, continental championship, professional training
HDPD-B
Standard type: for athletic field of high school, university, physical college, sports center, stadium
HDPD-C
Conventional type: for athletic field of primary school, high school, college, university, gymnasium
HDDD

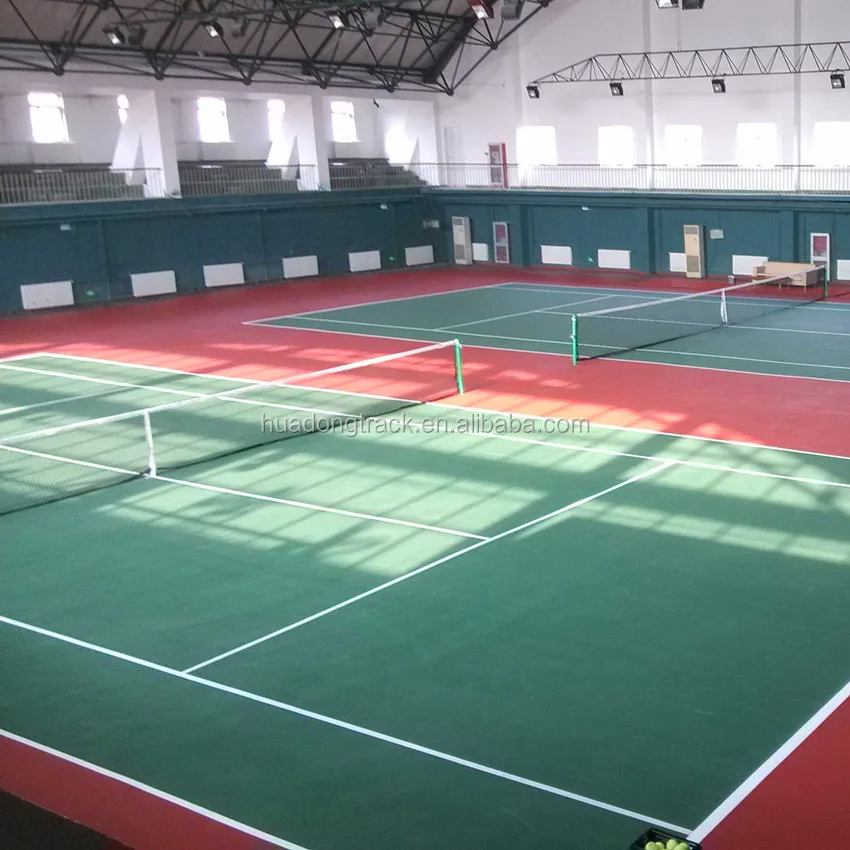

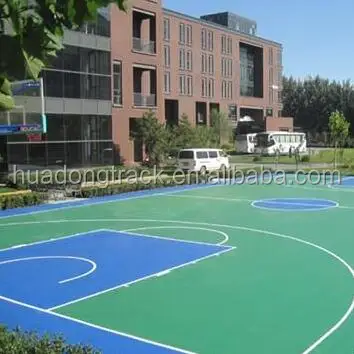

Indoor, outdoor table tennis, basketball, badminton and other kinds of course
HDPD-F
Auxiliary Road venue ground
Product details
Properties
References
Standard data
Inspection result
Tensile strength
IAAF
≥0.5Mpa
≥0.8Mpa
Elongation at break
IAAF
≥40%
≥180%
Hardness shore A
GB/T14833-2011
45-60°
52°
Fire Rating
GB/T14833-2011
1°
1°
Force reduction
IAAF
35-50%
45%
Skid resistance value
IAAF
≥47BPN20℃
≥49BPN20℃
Vertical deformation
IAAF
0.6-1.8mm
1.2mm
Feature
Thickness
6 mm
Width
1.22m
Length
30m/roll
> > > thickness: 5-14mm; Customized Colors are accepted
