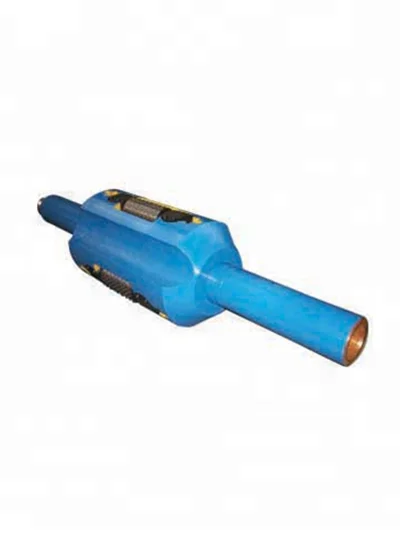

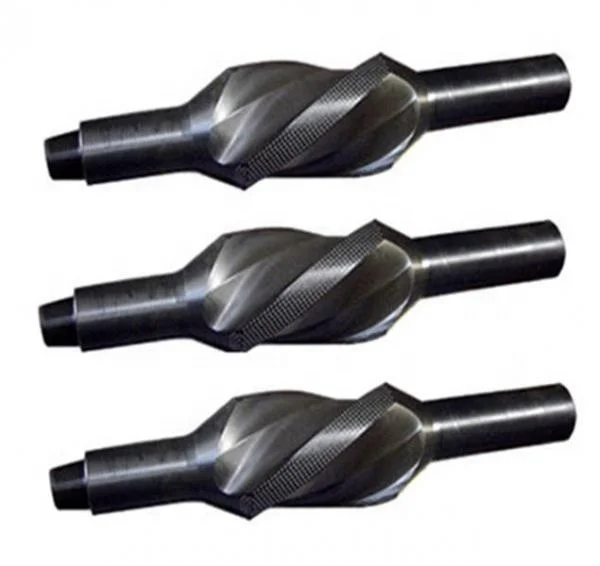

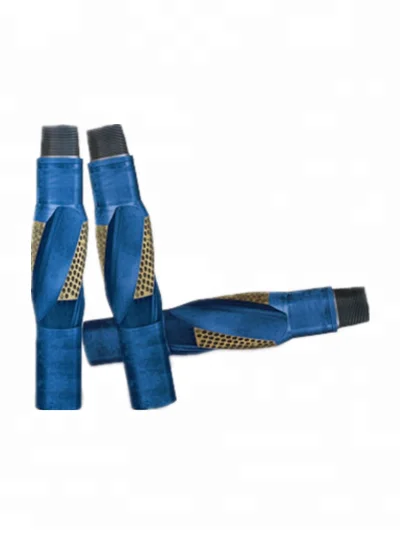

API spec 7-1 HF3000 spiral drilling string integral blade stabilizer
Product Description
Integral Blade Stabilizer (IBS) is a one piece construction manufactured from high strength alloy steel (non-magnet steeloptional). It prevents differential sticking of the drillstring by stabilizing the BHA and keeping drill collars and drill pipes away from the borehole wall. This reduces vibration, drill pipe whirl, and wellbore tortuosity; furthermore, the stabilization maintains drilling trajectory whether drilling straight, horizontal, or directional wells.
Optional Stabilizers: We offers several options for IBS, in both alloy steel and non-magnet materials: Spiral Integral Blade Stabilizer; Straight Integral Blade Stabilizer; Non-Magnet Integral Blade Stabilizer; When Ordering Please Specify: Hole size or required blade O.D.; Number of blades required (3 or 4 are standard styles); Straight or spiral blades; Hardfacing type ; Top and Bottom Connections; Body diameter required; String or Near Bit application; Alloy steel or non-magnet materials ; Special features SRG on connections, bored for float etc.
Specifications - Integral Blade Stabilizer:
t size (in)
O.D. (mm)
O.D. of body (mm)
I.D. (mm)
Length (mm)
String type connections
Near bit type connections
Top
Down
Top
Down
6
152.2
121
51
1200
NC38
NC38
NC38
3 1/2 REG
6 1/4
158.7
121
51
1200
NC38
NC38
NC38
3 1/2 REG
6 1/2
165.1
121
51
1200
NC38
NC38
NC38
3 1/2 REG
7 1/2
190.5
159
57
1600
NC46
NC46
NC46
4 1/2 REG
7 7/8
200
159
57
1600
NC46
NC46
NC46
4 1/2 REG
8 1/2
215.2
165
71
1800
NC50
NC50
NC46
4 1/2 REG
9 1/2
241.3
197
71
1800
NC50
NC50
NC50
6 5/8 REG
12 1/4
311.2
203
76
1800
6 5/8 REG
6 5/8 REG
6 5/8 REG
6 5/8 REG
16
406
229
76
2200
7 5/8 REG
7 5/8 REG
7 5/8 REG
7 5/8 REG
17 1/2
444.5
241.3
76
2200
7 5/8 REG
7 5/8 REG
7 5/8 REG
7 5/8 REG
24
609.6
241.3
76
2540
7 5/8 REG
7 5/8 REG
7 5/8 REG
7 5/8 REG
26
660.4
241.3
76
2540
7 5/8 REG
7 5/8 REG
7 5/8 REG
7 5/8 REG
28
711.2
254
76
2540
7 5/8 REG
7 5/8 REG
7 5/8 REG
7 5/8 REG
Packaging & Shipping
Packaging:Standard seaworthy packaging or as per requirement.
Shipping:By air or sea
Company Information
Dongying Xincheng Petroleum Technology Co., Ltd. was established in 2003 and located at the second oilfield of China—Shengli Oilfield. We have the specialized technicians, senior engineers and professional marketing team. The company is committed to develop, manufacture and supply a variety array of oilfield equipments, the main products include : Petroleum equipments & tools such as drilling equipments, production equipments, tubular goods, wellhead equipments, downhole equipments, well control equipments, cementing tools etc.; Petrochemicals.
We have established a complete quality control system, all products& equipments manufactured as per international standard and API standard.
