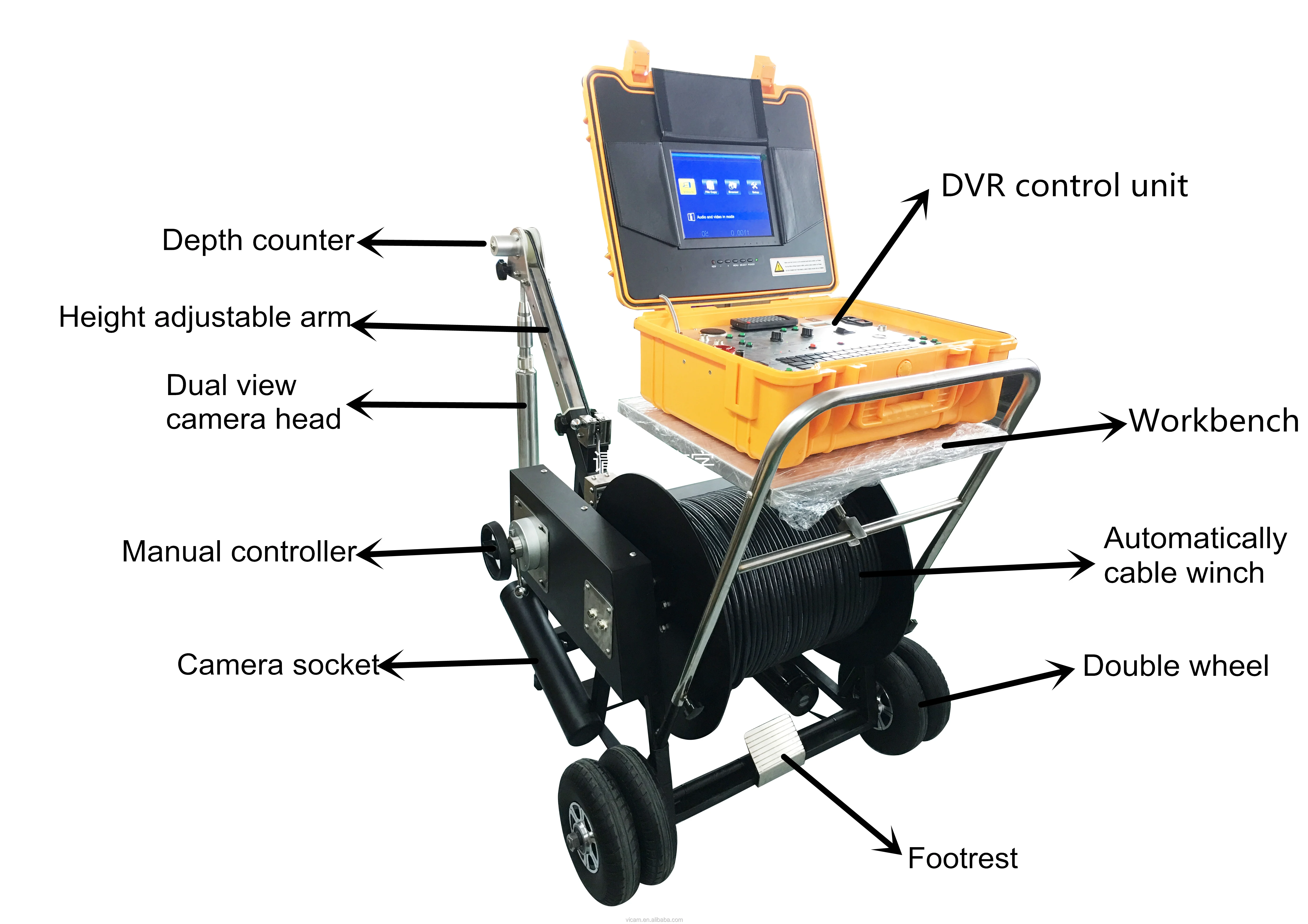

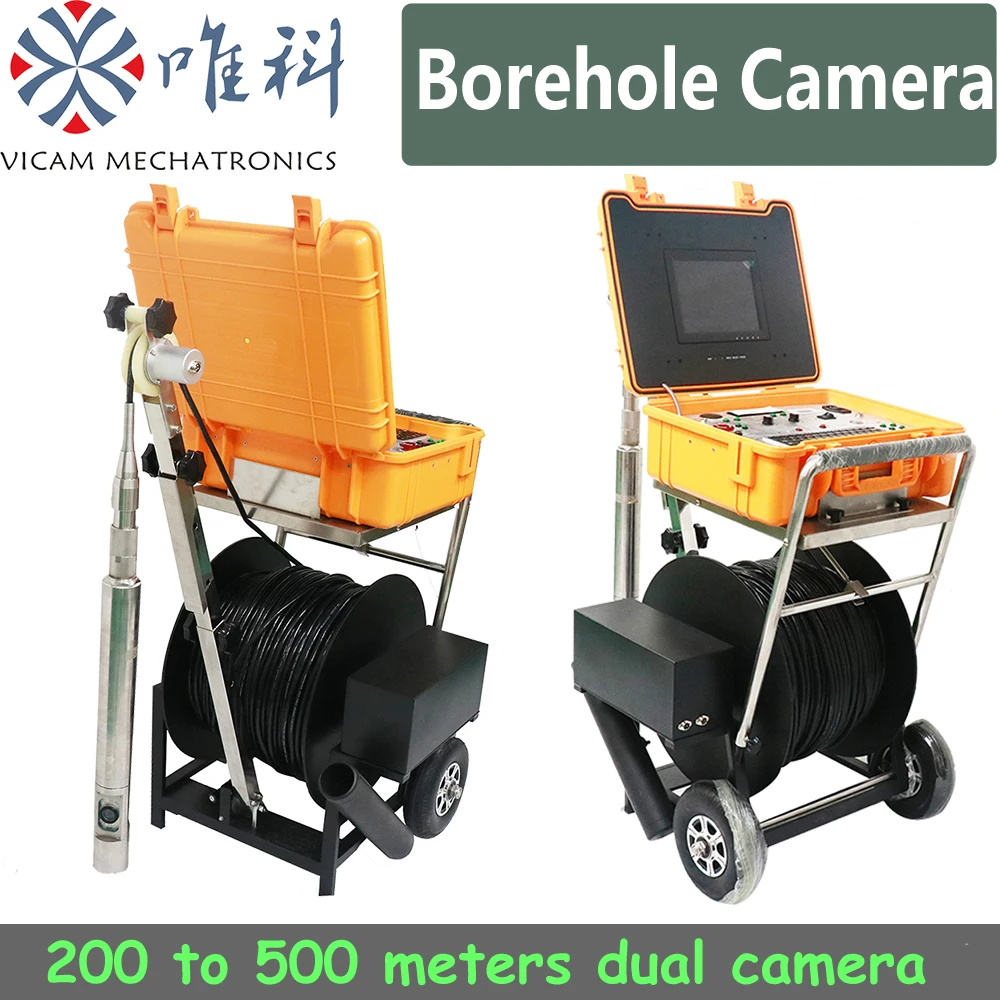

Vicam manufacturer of underwater 360 degree Rotary deep well soft cable pipe inspection Camera Dual View
- Category: >>>
- Supplier: Shenzhen Vicam Mechatronics Co. Ltd.
Share on (60584243905):
Product Overview
Description
Product Description
Specification
item | 200m to 300m borehole camera |
Place of Origin | China |
Guangdong | |
Brand Name | VICAM |
Model Number | V10-BCS |
Warranty | 1 Year |
Certification | ce |
Data Storage Options | DVR |
Application | Borehole inspection |
Camera diamter | 63mm |
camera weight | 6kg |
Waterproof | 50bars |
screen size | 10 inch |
Depth counter | Yes |
Compass | Yes |
Product Specification

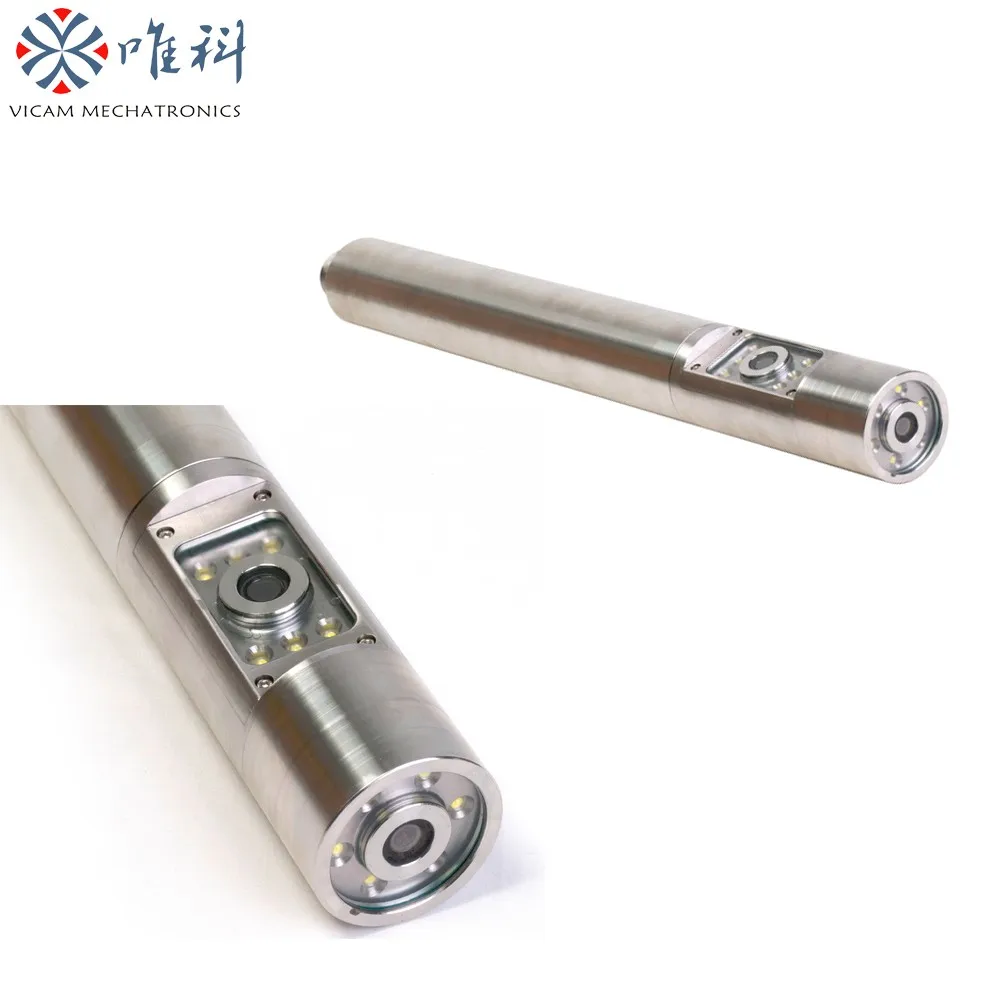

Part 1: 63mm dual view camera head
Φ63mm L570mm Stainless steel casing
Waterproof IP68 Operating depth 50 bars (725 PSI)
Dual Camera Down & Side viewing
Pan 360° rotate endless
View angle 120°
Sensor resolution PAL 720H×576V NTSC 720H×480V
Horizontal resolution 700 TVL
6 pcs high light LED (down view)
6pcs high light LED (side view)
Camera weight 6KG
Waterproof IP68 Operating depth 50 bars (725 PSI)
Dual Camera Down & Side viewing
Pan 360° rotate endless
View angle 120°
Sensor resolution PAL 720H×576V NTSC 720H×480V
Horizontal resolution 700 TVL
6 pcs high light LED (down view)
6pcs high light LED (side view)
Camera weight 6KG

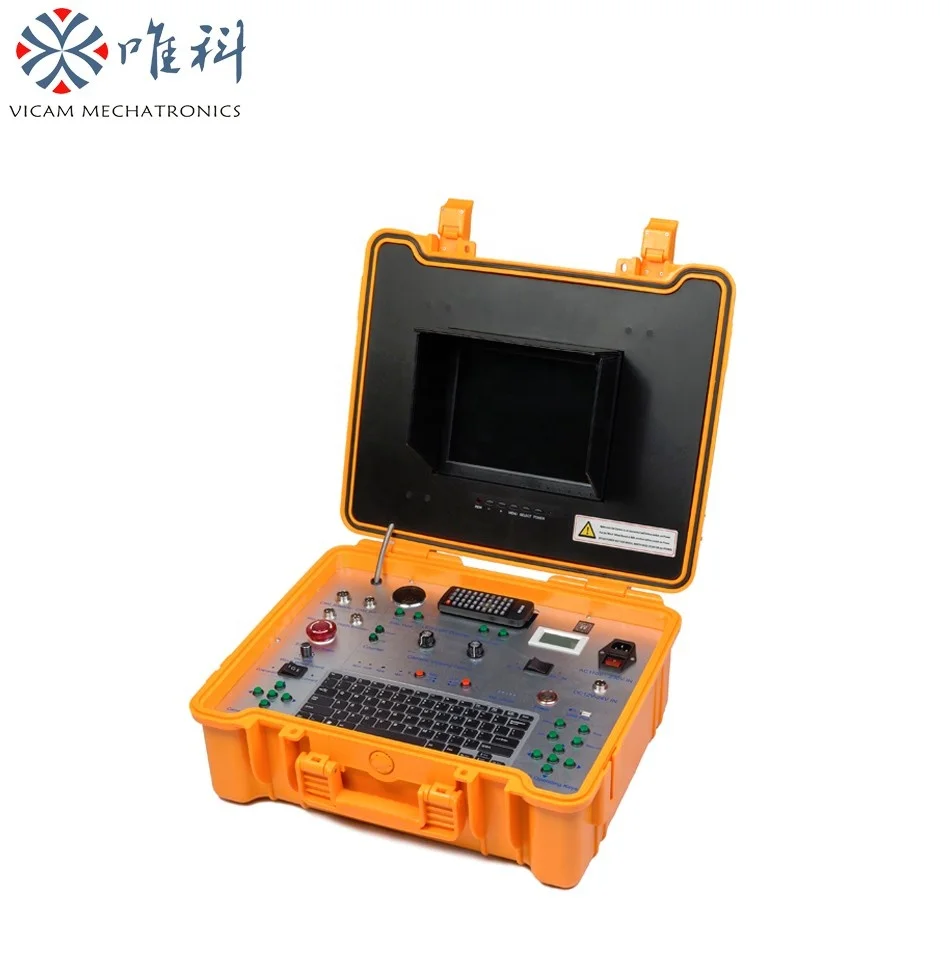

Part 2: DVR control unit
Monitor
* 10" industrial color monitor
* Display model 4:3
* Resolution 1024*768
* Menu language 9 languages optional

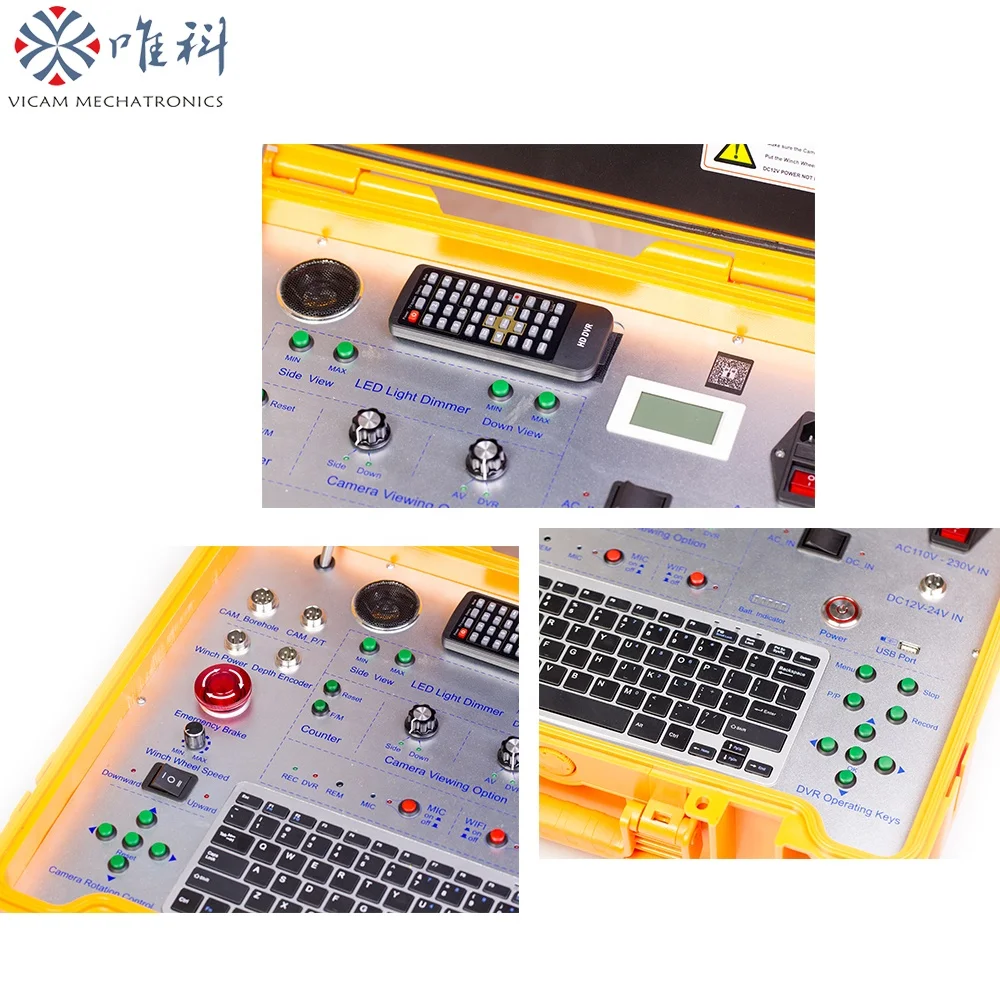

Control Panel
* Video input option: Borehole Camera or Pan & Tilt Camera
* Winch operating knob（adjusting speed, cable up and down, brake）
* Camera rotation control button (clockwise and counterclockwise)
* Down and side camera select button and LED brightness control button
* HD DVR Audio/Video recording & playback
* Video storage Medium: Built in 128GB SSD or USB device
* Video storage Medium: Built in 128GB SSD or USB device
* On-screen depth encoder, temperature and direction
Built in WIFI transmitter
* Using intelligent terminals as display and recording device
* Transmitter distance 30m
* Through WIFI wireless transmit video to Android, Apply OS or MID terminal
* Using intelligent terminals as display and recording device
* Transmitter distance 30m
* Through WIFI wireless transmit video to Android, Apply OS or MID terminal

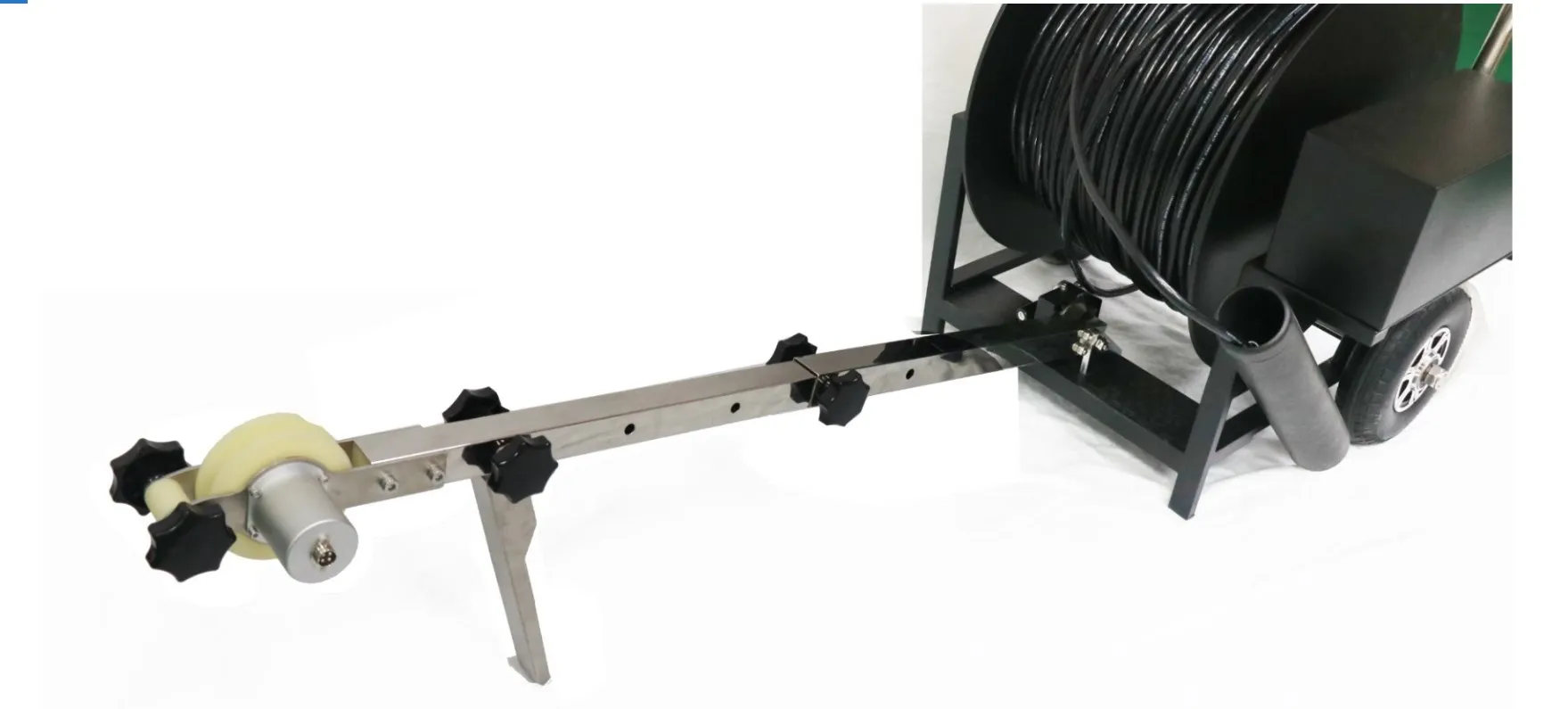

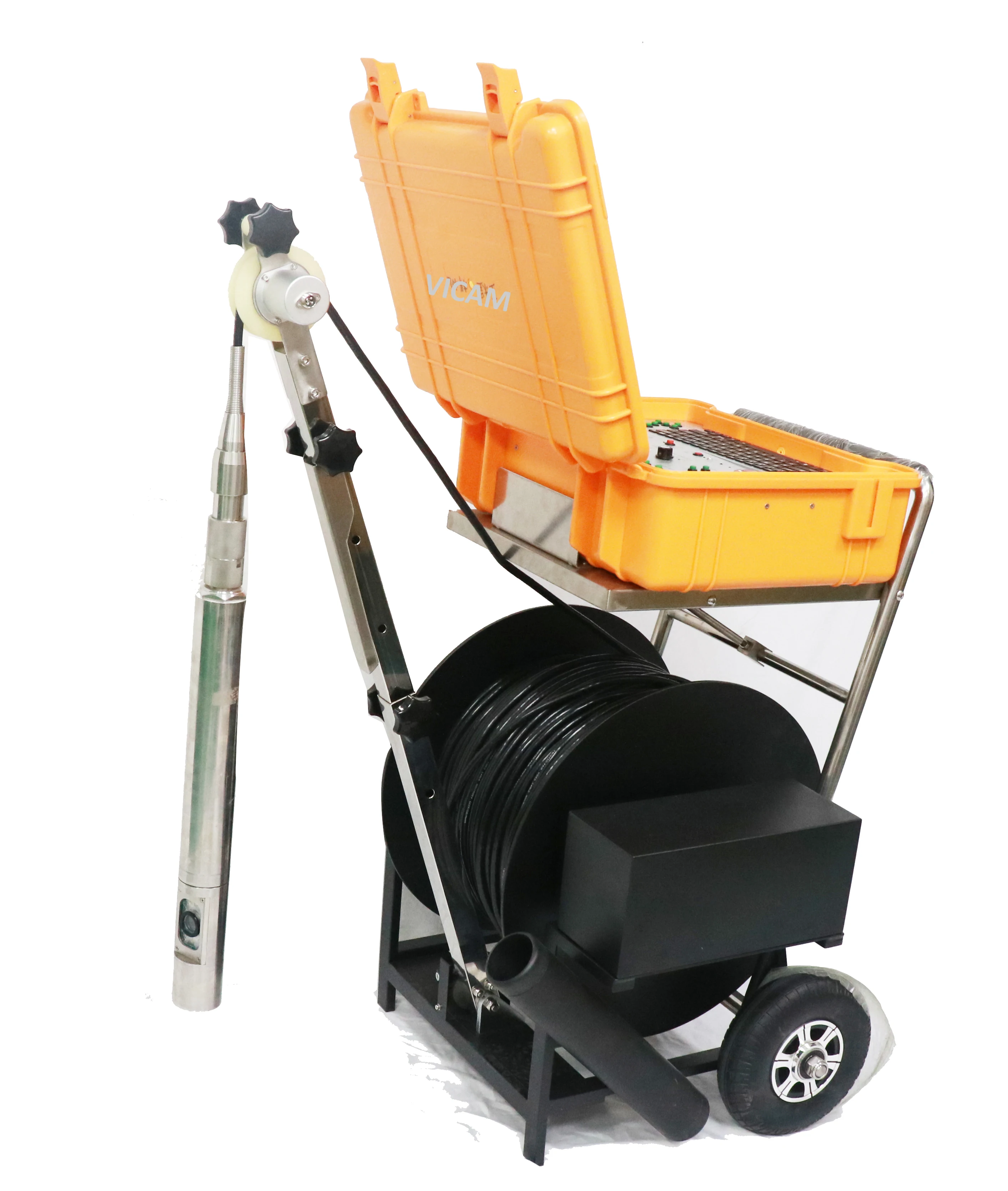

Electric Winch
Winding speed：0~20m/min
Cable speed adjustable
Φ10mm twisted pair cable (100m-500m option)
Power supply AC 110V to AC230V, DC12~24V
On screen depth encoder
Cable speed adjustable
Φ10mm twisted pair cable (100m-500m option)
Power supply AC 110V to AC230V, DC12~24V
On screen depth encoder
Electric cable rolling

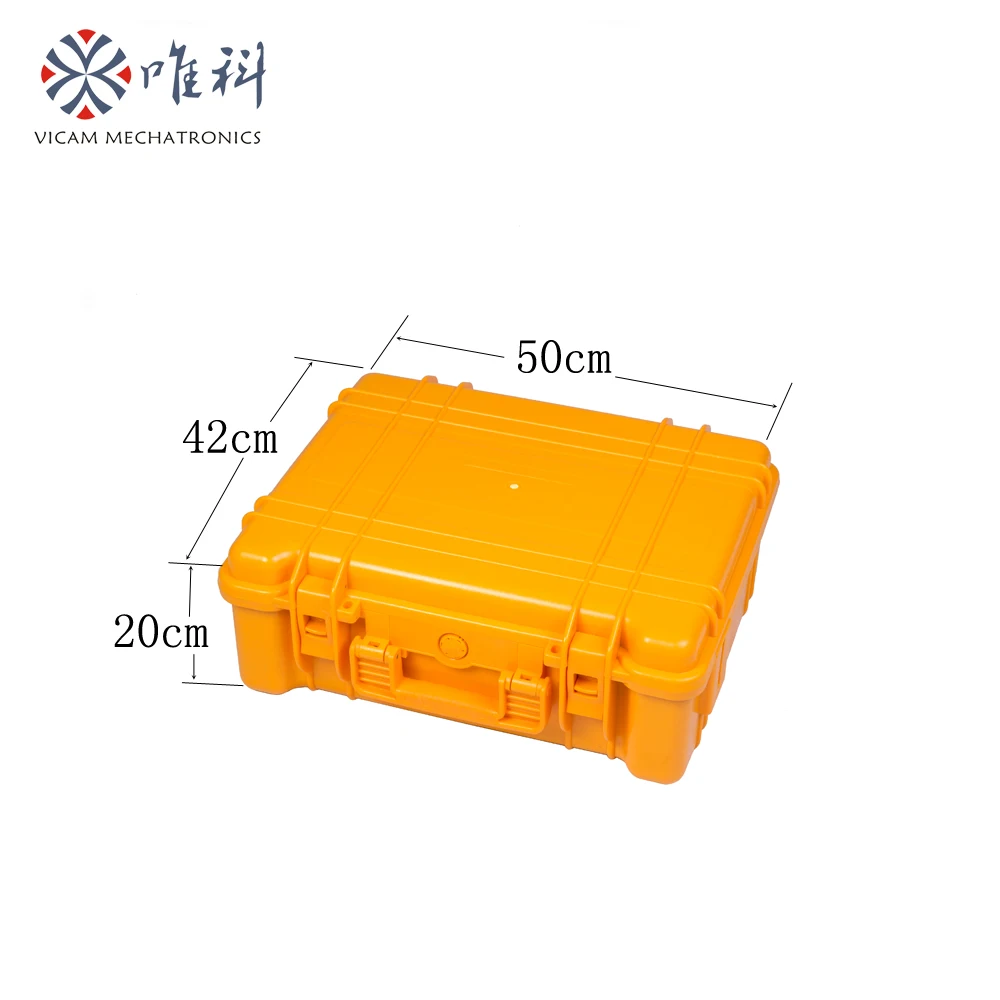

Packing
Certifications

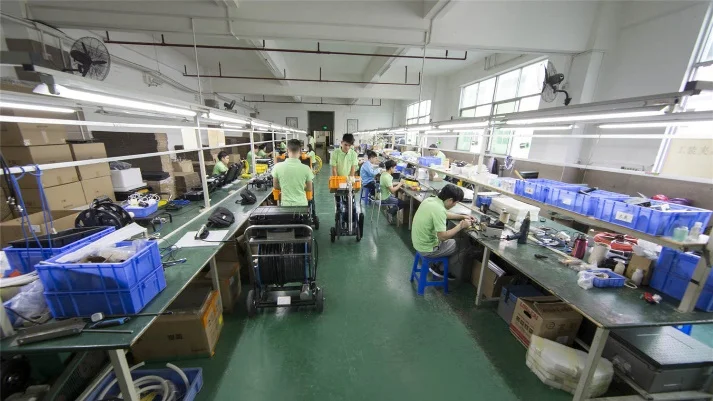

Company Profile
Our company is located at Shangxue Industrial Park in Shenzhen, South of China, specialized in the design, manufacture and assembly of video inspection systems. We have introduced the internationally advanced technology to design and produce various video inspection cameras. Most of our products are sold to Europe, America, Australia, Middle East, South Africa and South America market. In our company's developing process, we have got very important technical support from CYBERIA SAS, a world-class televisual inspection cameras provider and Shenzhen Institutes of Advanced Technology.
Our main products range includes portable pipeline video inspection system, industrial and city underground pipe video inspection system, special video inspection camera and CCTV robot for complex applications and hazardous area rated environment.
Our tenet is to rely on the advanced technology, meet the global market demands and provide good quality products and good service for all our customers!
Our main products range includes portable pipeline video inspection system, industrial and city underground pipe video inspection system, special video inspection camera and CCTV robot for complex applications and hazardous area rated environment.
Our tenet is to rely on the advanced technology, meet the global market demands and provide good quality products and good service for all our customers!
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010,sell to North America(30.00%),Western Europe(20.00%),Eastern Asia(10.00%),Northern Europe(10.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Domestic Market(5.00%),Africa(3.00%),Oceania(2.00%),Mid East(2.00%),Southern Europe(2.00%),Central America(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pipe inspection camera,Under water Inspection camera,Endoscope inspection camera,CCTV video inspection camera
4. why should you buy from us not from other suppliers?
Specialising in the design, manufacture and assembly of video inspection systems, we have introduced the international advanced technology, designed and produced various video inspection cameras.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Japanese,French
We are based in Guangdong, China, start from 2010,sell to North America(30.00%),Western Europe(20.00%),Eastern Asia(10.00%),Northern Europe(10.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Domestic Market(5.00%),Africa(3.00%),Oceania(2.00%),Mid East(2.00%),Southern Europe(2.00%),Central America(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pipe inspection camera,Under water Inspection camera,Endoscope inspection camera,CCTV video inspection camera
4. why should you buy from us not from other suppliers?
Specialising in the design, manufacture and assembly of video inspection systems, we have introduced the international advanced technology, designed and produced various video inspection cameras.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Japanese,French
