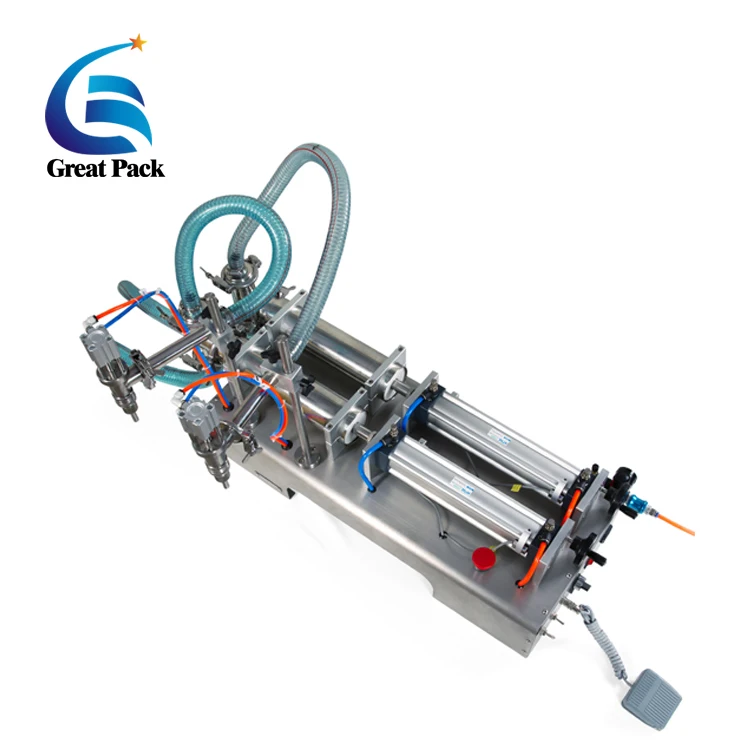

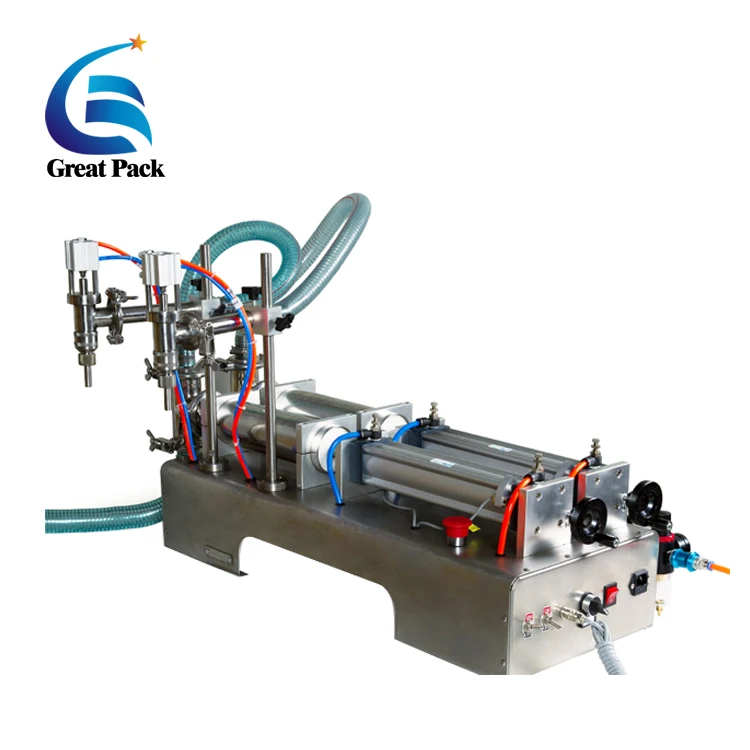

double filling nozzle soda drink filling machine

Product Overview

Description

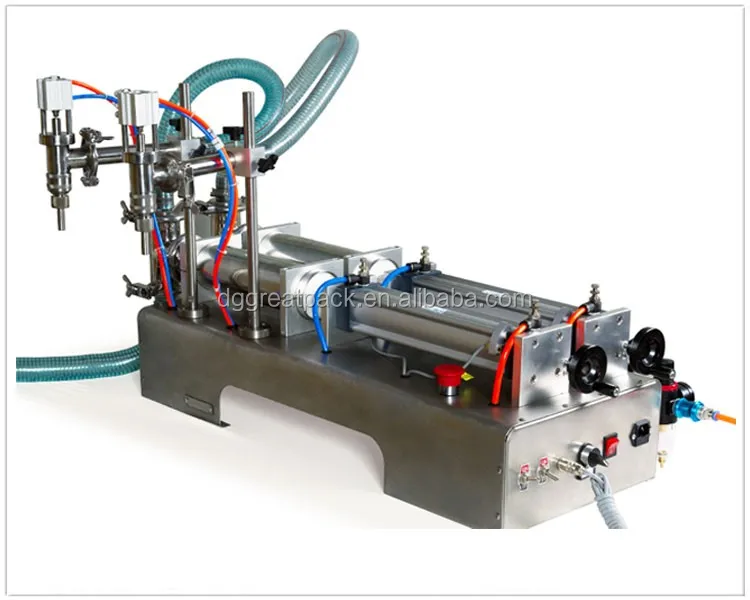

double filling nozzle soda drink filling machine

Introduction

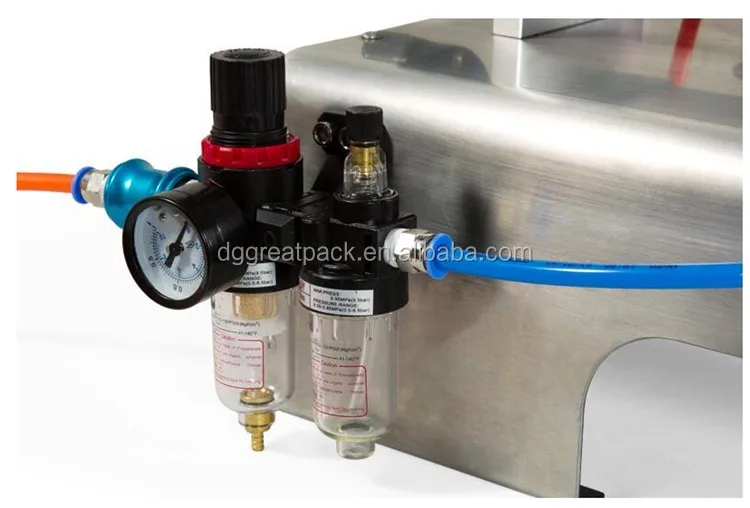

This filling machine is one kind of piston filling machines.It is driven by pneumatic and electric.Electrical and compressed air is needed to run machine. This series of filling machines are designed specially for filling good fluidity products such as water, shampoo, oil,milk, juice etc. There are several models of this kind filling machine basing on different volume. Different model has different filling range.Please select the best model below according to the volume of your bottles, jar or other containers.



Specification



Model	GSDLF-100	GSDLF-300	GSDLF-500	GSDLF-1000	GSDLF-2500	GSDLF-5000
Filling Range	10-100ml	30-300ml	50-500ml	100-1000ml	250-2500ml	500-5000ml
Filling Speed	10-20 Bottles/Min
Voltage	AC 220V 50Hz /AC 110V 60HZ
Dimension(cm)	86*23*24	86*23*24	89*23*25	94*27*29	109*27*35	120*27*35
Net Weight	30KG	35KG	45KG	50KG	70KG	80KG





Feature

1. All machine body is made of SUS 304. It is easier to clean and more hygeian.
2. High accuracy by using quality components such as cylinder.
3. Long working life with high quality o rings.
4. Filling range is wide and adjustable.
5. This filling machine can run automatically or operated by a pedal.

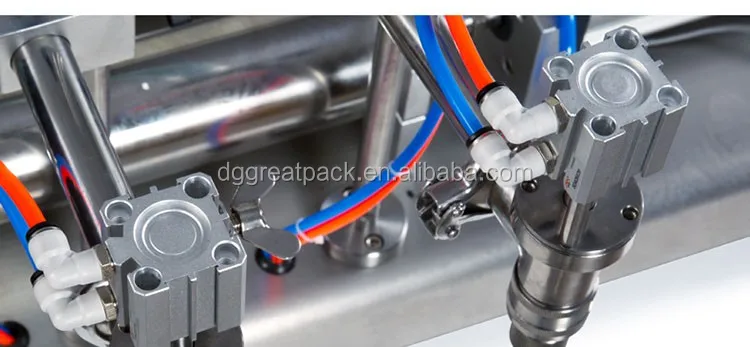

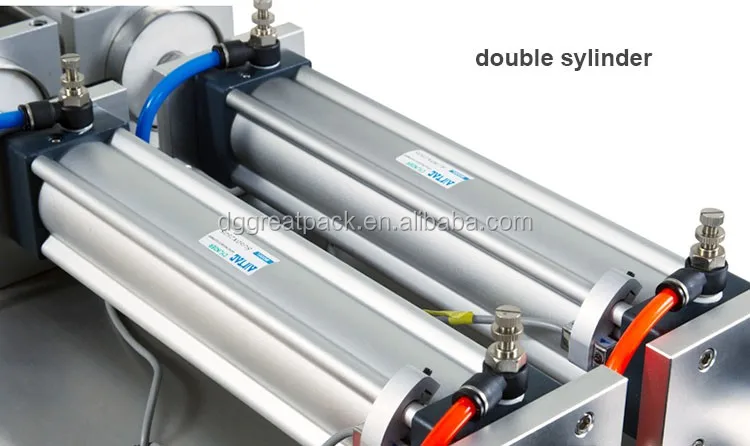

6. Two cylinders control two pistons seperately.

7, Either filling head can work alone. or both can be work together.

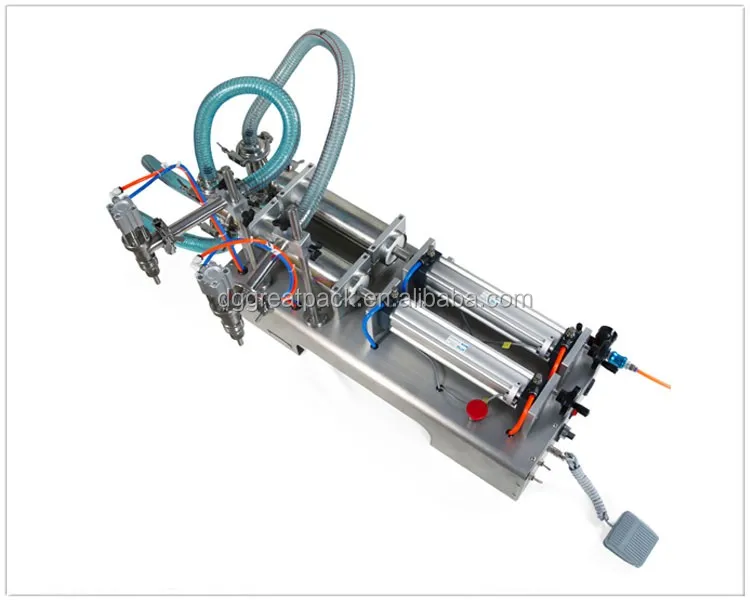

Pictures

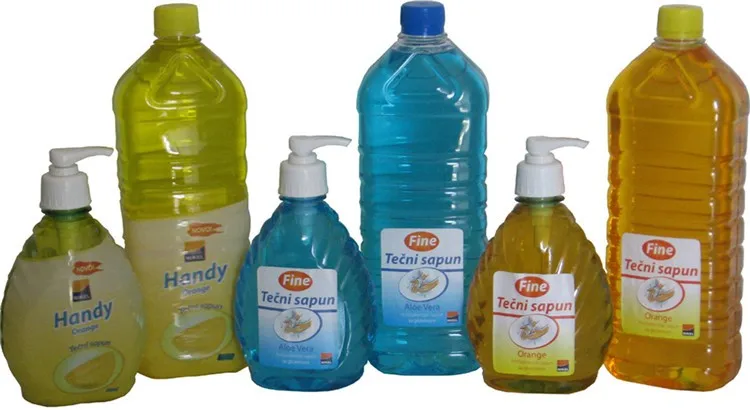

 Application
