Manual Pallet Jack 2500kg 2.5 ton Hand Hydraulic galvanized Pallet Truck

Product Overview

Description

Galvanized Pallet Truck Product Description

 ---Very Popular in Sea Food Market.



 Special size pallet truck can be produced as per customer's request.





NEW GALVANIZED PALLET TRUCK MODEL SBA-G

s



With overloading safety valve.



The first design of forging&casting integral pump, which prevents any loosening and leakage.



Fork frame"C"piece design ensure high capacity.



Chrome plate piston.











1.Pumps with three years warranty.



2.Galvanized pump,different models for options.

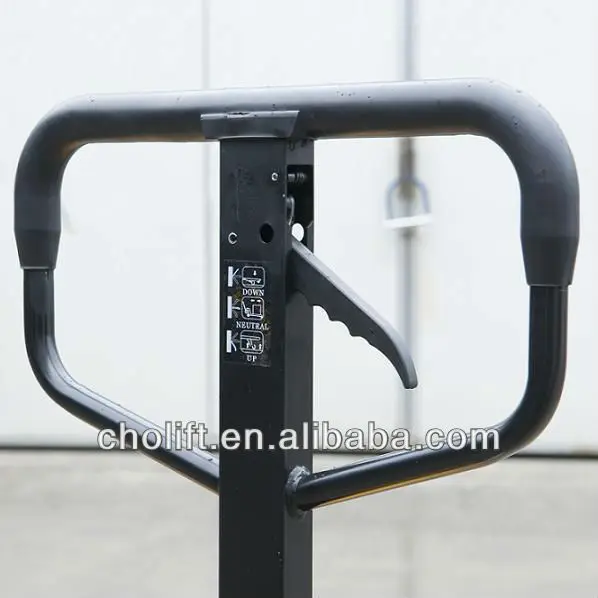

3. Rubber wrapped handle



 Production Line





Model	SBA-G
Load capacity/rated load	Q(kg)	2500	3000
Load centre distance	c (mm)	500	500
Net weight	kg	70-80	70-80
Tyre size,front	mm	Φ180*50	Φ180*50
Tyre size rear	mm	Φ80*70/Φ74*70	Φ80*70/Φ74*70
Lifting height	h 3(mm)	200/190	200/190
Height of tiller in drive position min./max.	h 14(mm)	1234/1224	1234/1224
Lowered height	h 13(mm)	85/75	85/75
Overall length	l 1(mm)	1534/1604	1534/1604
Fork dimensions	s/e/l	54/160/1150	54/160/1150
Distance between fork-arms	b 5(mm)	520/550/685	520/550/685
Aisle width for pallets 1000x1200 crossways	Ast(mm)	1733/1803	1733/1803
Aisle width for pallets 800x1200 lengthways	Ast(mm)	1783/1803	1783/1803
Turning radius	Wa (mm)	1249/1319	1249/1319









Our advantages:
1) More than 24 years experience team in manufacturing, service.



2) With ISO certificates service and quality is before profit



3) Sample order is welcomed



4) CE/TUV, ISO certificates



5) Free maintenance design



6) Fast delivery time within 30days



7) Optimized round fork tips ensures easy operation



8) 54mm fork thickness ensures high capacity



9) Curve design on the fork tips help pallets entry in/out





1.  Question: The forks can’t be lifted to the max. lift height?



           Cause: hydraulic oil is not enough



        Solution:  Add appropriate filtrated working oil.



 2.  Question: The forks can’t return to the lowest position?



      Cause  a): Too much hydraulic oil.



      Cause  b):  Some parts are deformed or blocked.



    Solution a):  Take out appropriate working oil.



    Solution b):  Replace the parts or repair.



3. Question: The forks can’t drop after lifted?



     Cause  a):  The control valve is abnormal.



     Cause  b):  The parts are deformed or damaged.



   Solution a):  Readjust the unloading device.



   Solution b):  Replace the damaged and deformed  parts.



 4. Question:  Hydraulic oil leakage?



     Cause  a):   The oil seal is unavailable.



     Cause  b):   The pump core and the surface of the plunger is damaged or worn.



      Cause c):   The coupled places become loosend.



   Solution a):   Replace the oil seal.



   Solution b):   Replace the core, plunger and the damaged parts.



   Solution c):   Fasten the loosened place again.



 5. Question:  The fork can’t be lifted



     Cause  a):   The viscosity of the working oil is too high, or there’s no working oil.



     Cause  b):   There’s impurity in the oil.



      Cause c):   The valve is abnormal.



   Solution a):   Check the hydraulic oil or replace it.



   Solution b):   Clear up and add new working oil.



   Solution c):   Readjust the unloading device







6. Question:  The forks drop immediately after they are lifted; the handle returns or the forks drop markedly after they are lifted



          Cause:   The valve of oil pump is blocked by abnormal matter.



        Solution:   Open the control valve and take out the parts. Then re-install the parts after they are cleaned.
