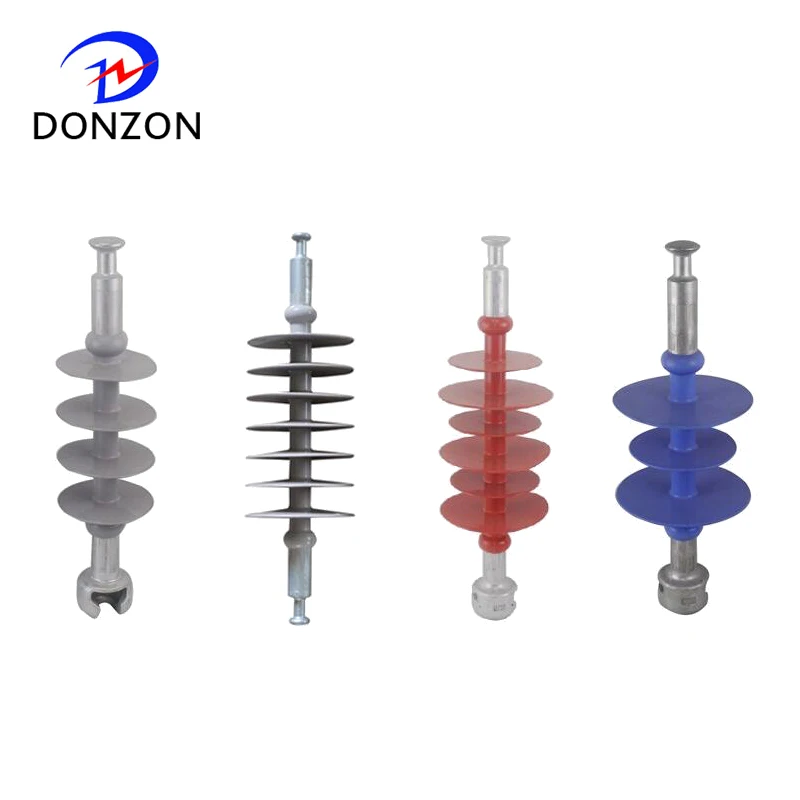

composite insulatorhigh tensile strength solid 36kv silicone insulator

Product Overview

Description

Product Description

Type	No. Of Sheds	“X” Length inches (mm)	Diameter Inches (mm)		Leakage Distance Inches (mm)	Dry Arc Distance inches (mm)	Lighting withstand voltage	Wet power frequency voltage	Coupling size	SML Pounds (kN)
			D	d
FXBW-10/70	4	310	105	75	350	152	90	40	16	70
FXBW-36/40	9	440	130	90	950	320	230	150	16	40
FXBW-36/100	9	483	130	90	950	320	230	150	16	100
FXBW-35/70	12	660	135	110	1600	526	230	150	16	70
FXBW-35/100	12	680	135	110	1600	526	230	150	16	100
FXBW-66/70	20	980	135	110	2500	826	410	185	16	70
FXBW-66/100	20	1000	135	110	2500	826	410	185	16	100
FXBW-66/120	20	1040	135	110	2500	826	410	185	16	120
FXBW-110/70	26	1190	135	110	3500	1050	550	250	16	70
FXBW-110/100	26	1210	135	110	3500	1050	550	250	16	100

1.  Shed connected with core by integral foring

2.  The thinkness of housing > 3mm,unifirm to IEC Standard

3.  Acid resistant,hight temperature resistant of epoxy fiberglass core

4.  Metal end fittings,core and sheds connected by new crimping process

5.  Hot galvanization and technology of rareearth aluminum coating to avoid coating

     shedding prolonging the service life











Product characteristics

1.No flaw,crack in the surface and interior  ,each bar color uniform(green or light yellow).

2.Can withstand the sawing,milling,planning,drilling,lathe and other mechanical processing.

3.Internal thread can be tapping with screw tap,external thread can be polished,but not allowed

   to bear overload.

4.It has good damping,creep resistance,fatigue resistance,fracture resistance ,high temperature

   resistance,stress corrosion resistance etc.
