Product Overview
Description

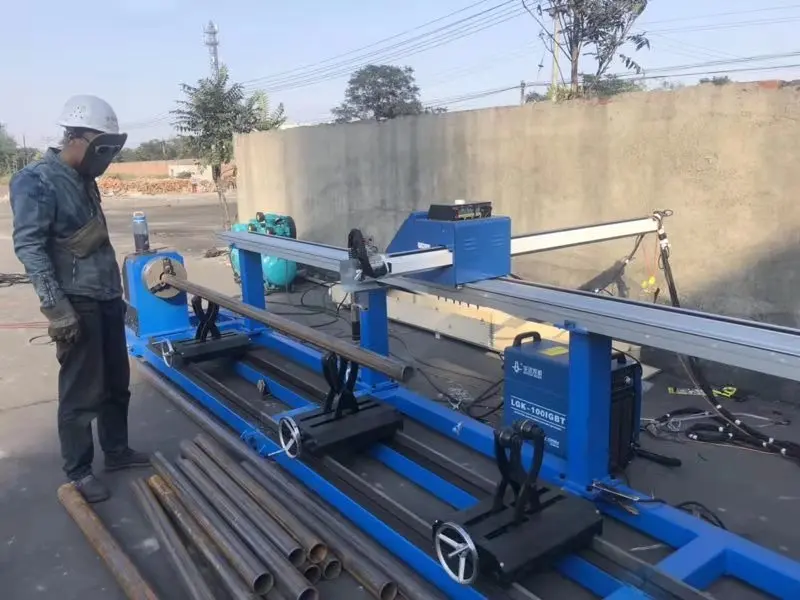

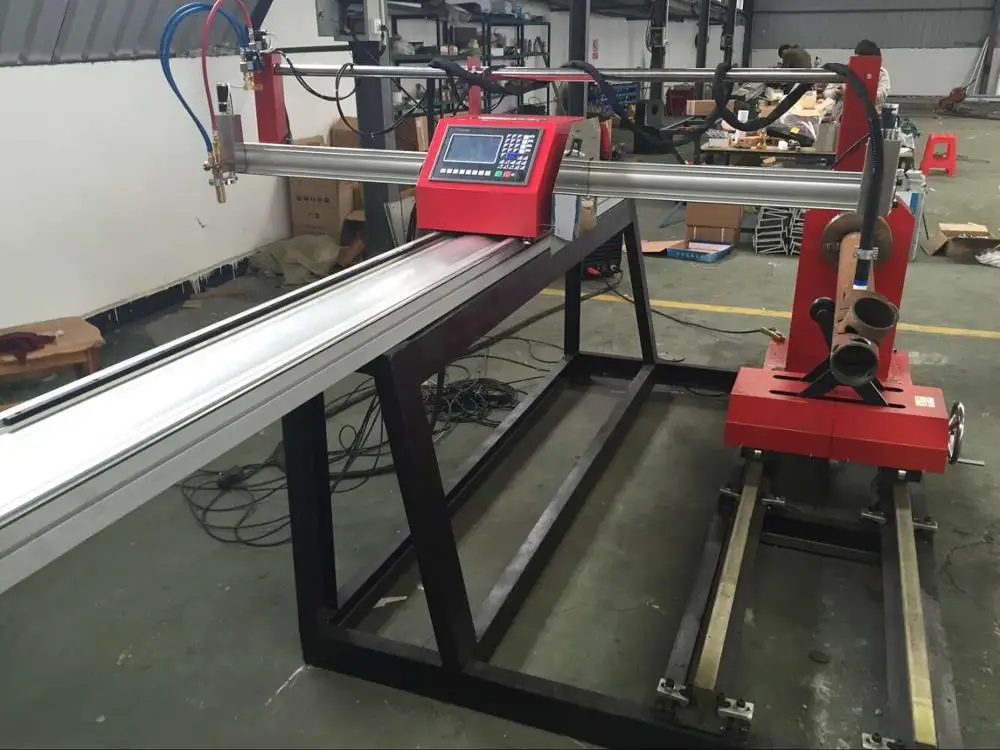

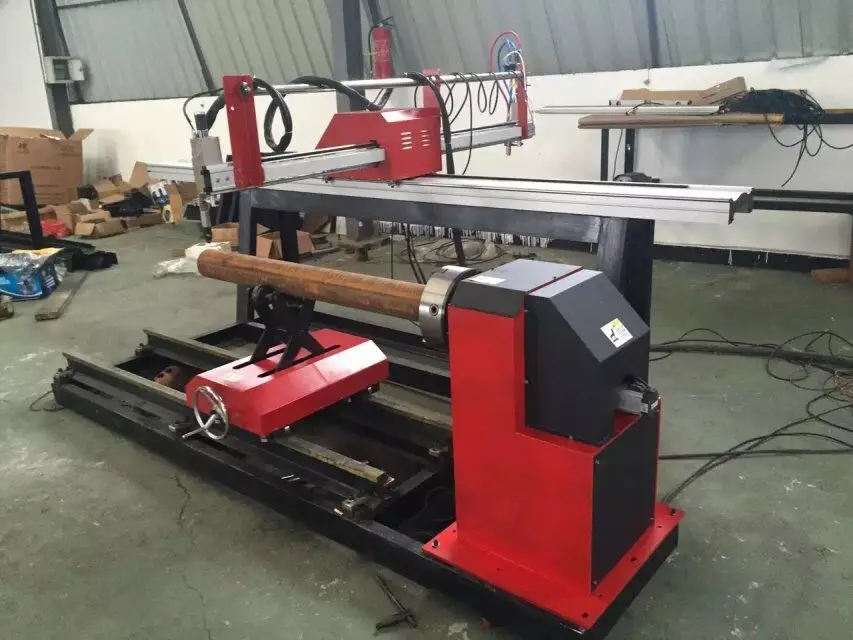

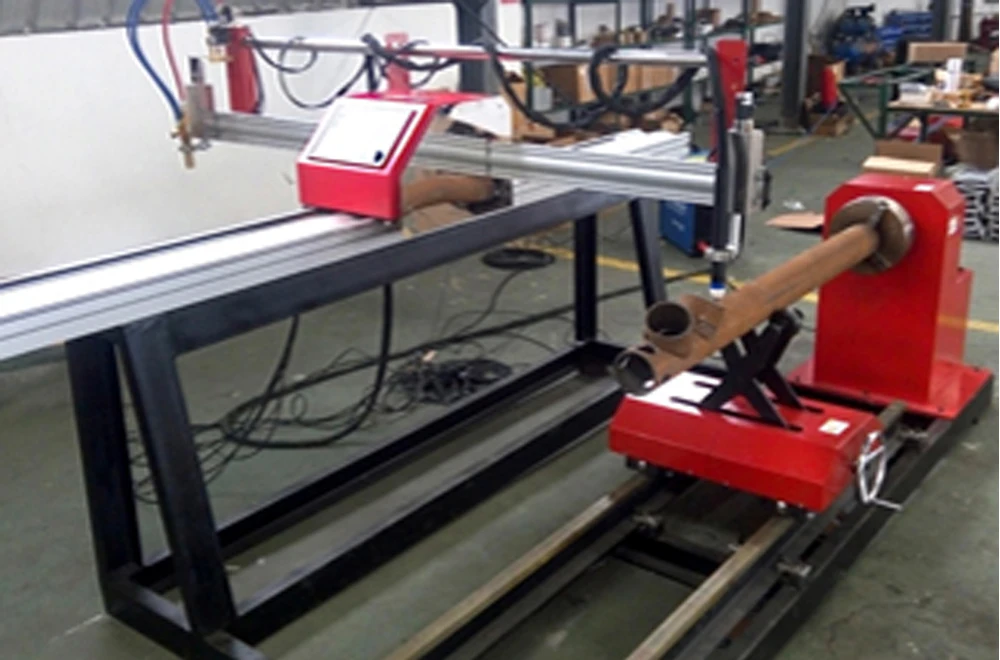

Automatic CNC Stainless steel pipe cutting machine Plasma cutting machine
Parameter
1 | Model | JX-1330GB |
2 | Power source | AC 220±10%VAC 50/60Hz |
3 | Cutting mode | O2/C3H8 or C2H2 |
4 | Effective cutting range(mm) | 1300*3000 for metal sheets, 40--300mm diameter for tubes |
5 | Input Voltage | 220V, 50HZ |
6 | Length of tubes | Max. 3000mm |
7 | The ovality of tubes | Less than 2% |
8 | Cutting speed(mm/min) | 0-8000mm/min |
9 | Cutting thickness(Flame) | 6-160 mm (O2/C3H8 or C2H2) |
Cutting thickness(Plasma) | According to plasma power source; | |
10 | Move precision | ±0.2mm/m |
11 | Cutting system | Shanghai Fangling control system |
12 | Plasma source | Huayuan brand 40A--160A |
13 | Gas pressure(Mpa) | Max.0.1 |
14 | Oxygen pressure(Mpa) | Max.0.7 |
15 | Type of gas | C3H8 C2H2 |
16 | Emergency stop | Yes |
17 | Working temperature | -5~45℃ |
18 | Power | 8.5kw |
19 | ARC | Untouched arc striking |
20 | Processing Materials | Iron, steel aluminum sheets, galvanized sheets, Titanium plates and other kinds metal |
Applications
This Portable Metal tube plasma cutting machine intersecting line cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.

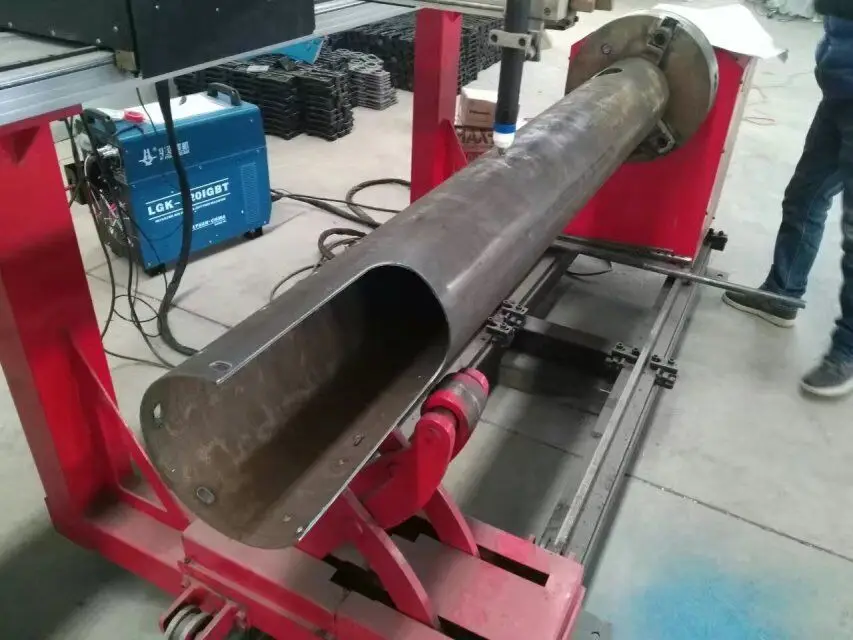

Samples show
Main produce process
Packaging & Shipping
Advantages
1.Smart design,can be moved everywhere you need.
2.can cut both thin and thick metal plate with fast speed and guarantee the cutting quality.
3.The CNC controller box is new design,this system is more stable when the machine working.
4.Smart cut,cut all shapes from AutoCad.
5.Control system is Fangling F2100B,which is very popular in China,with large graphics library,and easy to learn to operate.This software can support 8 languages(Chinese, English, Russian, Spanish, Portuguese,Nederlands, French, Japanese, Korean).
And the most important is it can be Expanded to 4 axis.
6.Prompt delivery with 3-7 days,operate video for installation.
China hot wholesale metal CNC Portable Plasma cutting machine
