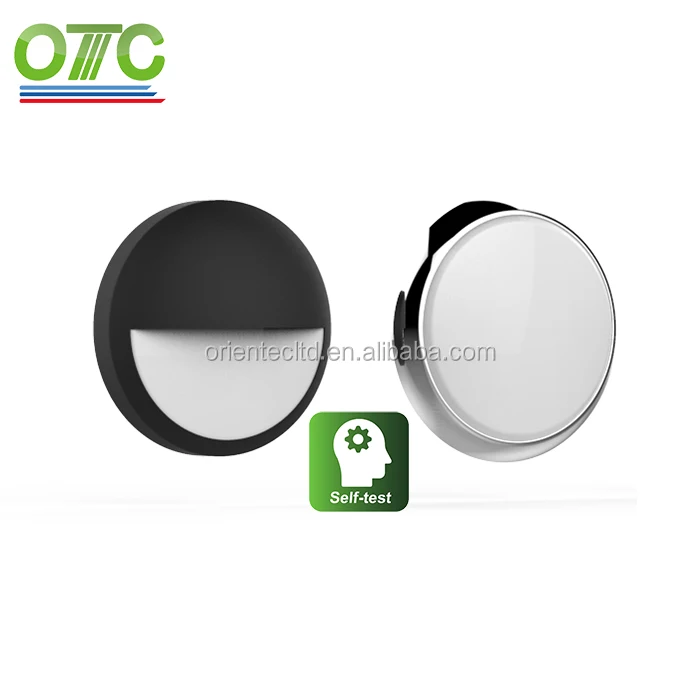

OT HPB96 EMC 4000K 20W LED emergency sensor IP65 led bulkhead light
- Category: >>>
- Supplier: OTC (Shaoxing) Electronic Co. Ltd.
Share on (60584537623):
Product Overview
Description
Details of emergency OT-HPB96-EMC 4000K 20W LED emergency sensor IP65 led bulkhead light
Bureau Certi
| Model | Art Nr. OT-HPB-*** | |||
| 96 | 96MC | 96EM-RST |
96EMC-RST Item in the page |
|

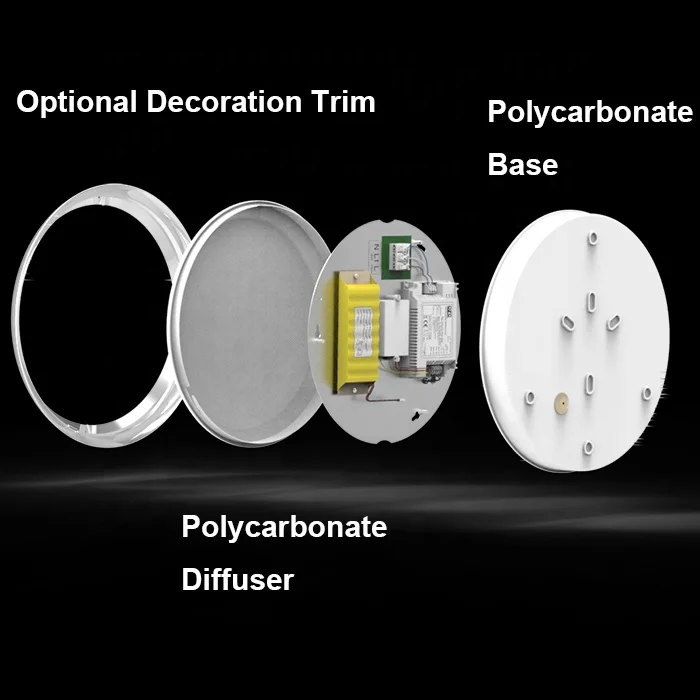

| Material | 100% PC case | |||

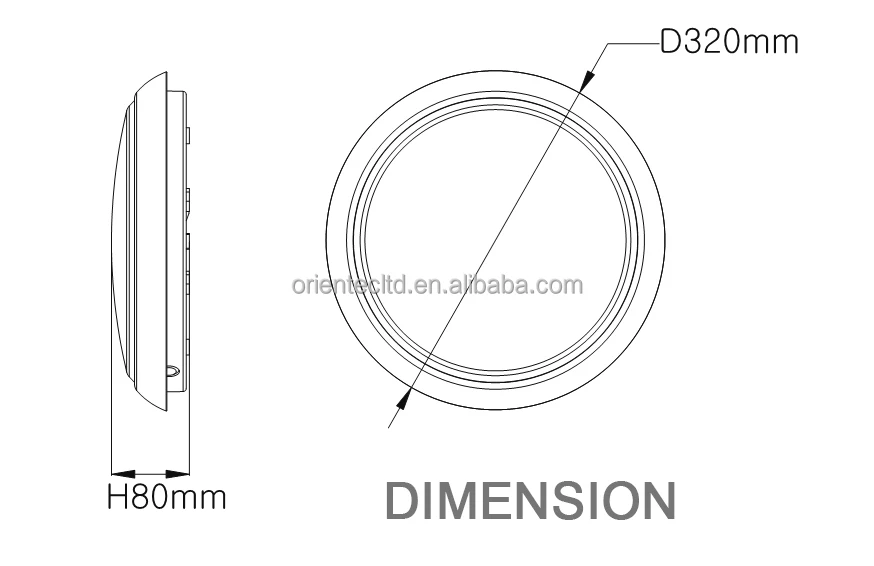

| Dimension | D320*H80mm | |||

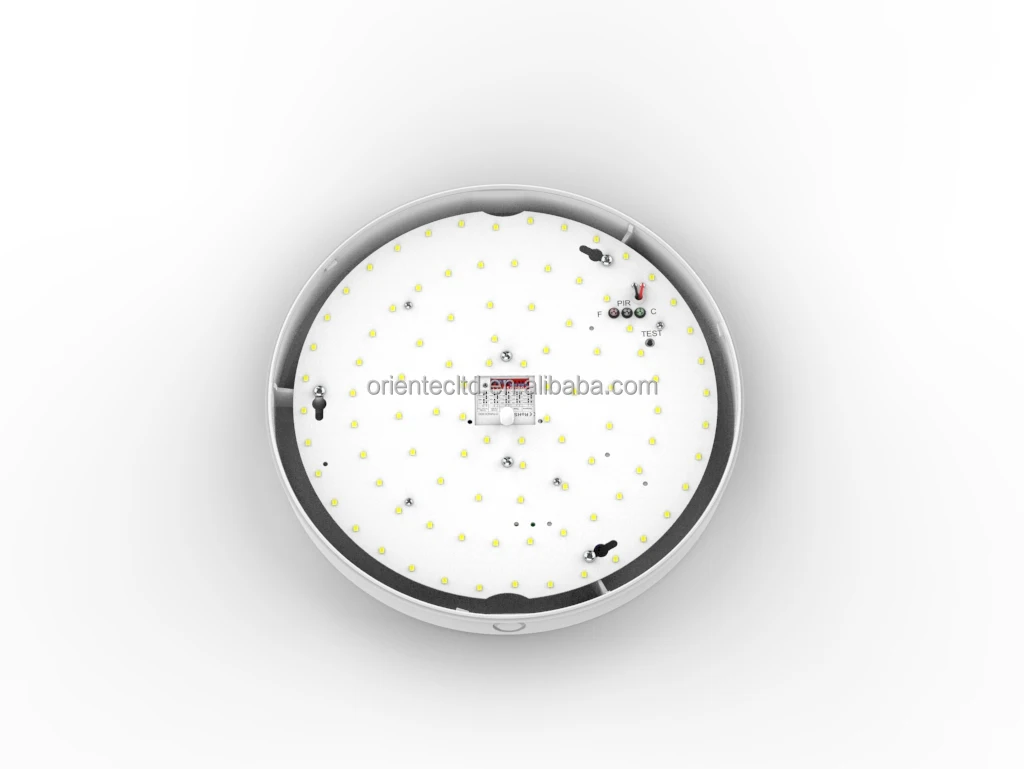

| LED Chips | 96 SMD 2835 | |||
| Color Rendering Index | >80 | |||
| Degree of protection | IP54 / IK08 | |||
| Input Voltage | AC200-240V 50/60HZ | |||
| Input power | 18W | 18W | 20W | 20W |
| Power factor | >0.9 | >0.9 | >0.8 | >0.8 |
| Luminous Flux(Mains) | 1800Lm | |||
| LED lifespan | 50,000 hrs | |||
| ↓Next are Emergency parameters↓ | ||||
| Emergency function | No emergency function | Yes | Yes | |
| Standard | 60598-2-22:2014 | |||
| Emergency change over | <0.5S | |||

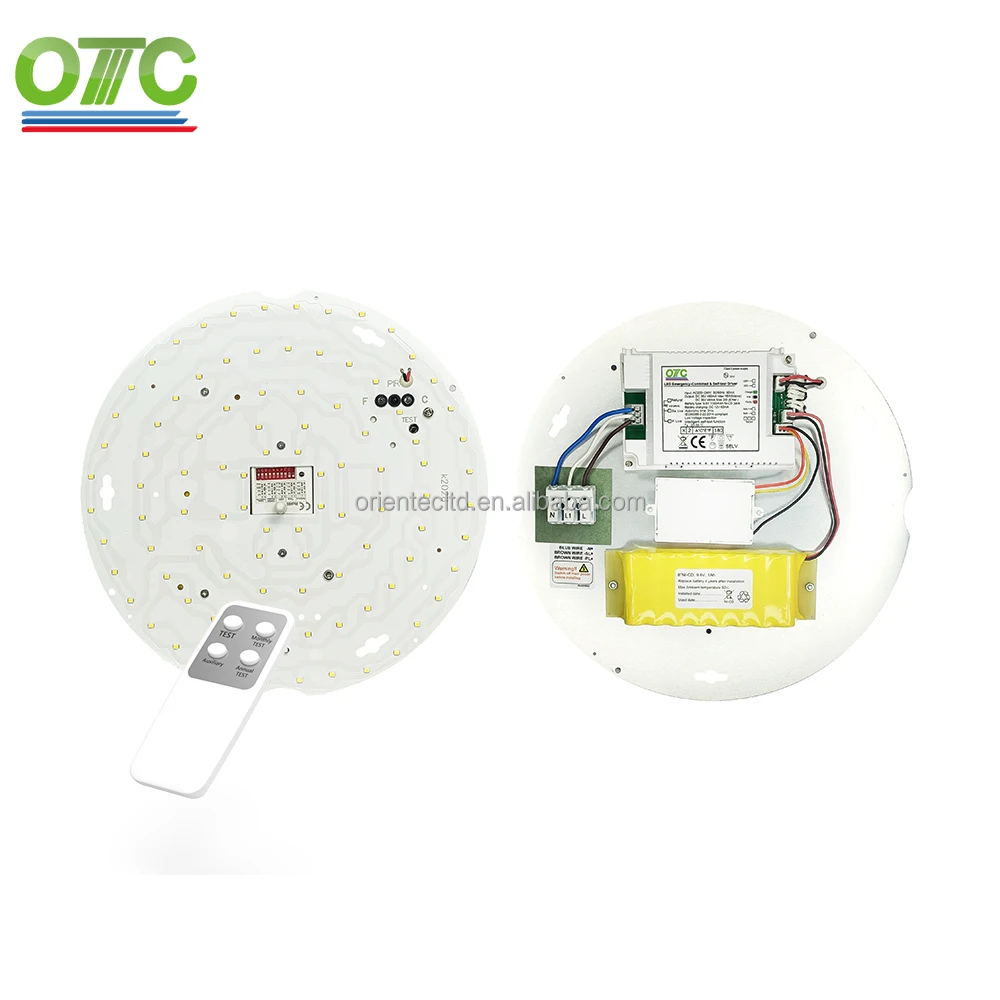

| Emergency Pack | 9.6V 1Ah | |||
| Emergency time | 3 Hours | |||

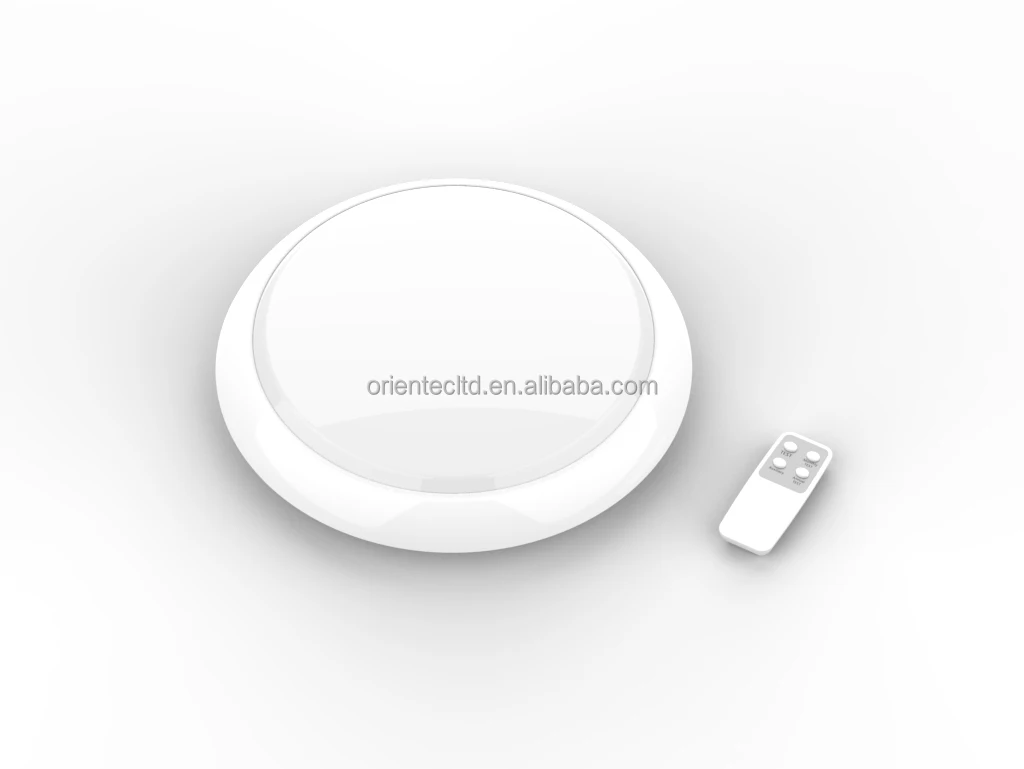

| Test | Manual + self + remote test | |||
| Charging indicator | Green | |||
| Faulty indicator | RED | |||
| Luminous Flux(EM) | 180LM | |||
| ↓Next are sensor parameters↓ | ||||
| Microwave Sensor | NO sensor | Yes | NO sensor | Yes |
| Detection range | 10m | 10m | ||
| Lux detector | 10/20/30/Disable | 10/20/30/Disable | ||
| Delay time | 10S~10min | 10S~10min | ||
| Corridor function | With | With | ||

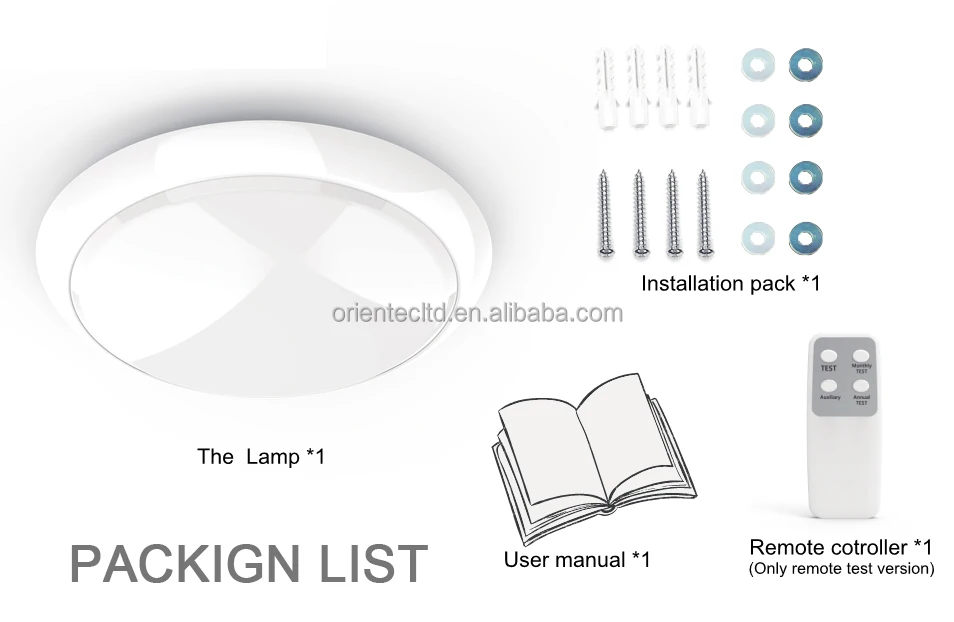

Packaging & Shipping
PACKING INFORMATION of this OT-HPB96-EMC 4000K 20W LED emergency sensor IP65 led bulkhead light
| Packing: | color box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 10pcS/CTN |
| Carton Size: | 33x66x40cm |
| G.W.: | 14KGS |
| N.W.: | 12KGS |
Our Services
1. Projects & Technology Creating
2. Professional Technology support
3. OEM & Stratage service
Company Information
General instruction of OTC Electronic:
1. OTC(Shaoxing) Electronic Co. is Branch of OTC IND. This branch just specialize LED lighting. It contains:
A. Low voltage version, EMC and RoHS compliant. For supermarket.
B. 220V/110V industerial lighting. EMC/ LVD/ RoHS compliant. We work with famous
C. Emergency light for project only. IEC60598-2-22:2014 full compliant. This used for bid government project.
D. OTC Own the patent of some item in this website.
2. Orientec Elec. with separate R & D depart. We apprecite you ideas about impove our current items.
A. The engin team in OTC proficent ProE, UG, Auto CAD and Protel.
B. The Marketing team will show you the trend in LED field.
C. You can sent inquiry as followed chart.
FAQ
1. Q: What is the quality standard?
ALL rhe emergency light in From OTC is full IEC compliant. Please don't try to persuade OTC use Li-ion battery as battery system.
PS: The engineer can remove your doubt based on IEC/ CE documents clause by clause.
2. Q: Does the R&D depart show solutons free of charge?
A: If just some doubt. Solutions are not needed. Free of charge.
eg. Why the sensor of my light run out so quickly, How yours can confirm 4 years guarantee?
Why the battery of our emergency light die just 50 cycles.
B: If you need new solutions.
Part 1; Draft solution sheet is free.
a. The construction solution sheet just with some Auto CAD 2D drawing.
b. The PCB solution just with general description.
Part 2; Formal solution sheet cost need confirm with sales manager.
a. The construction solution sheet together with 3D drawigns.
b. The PCB in protel and show you the sample to prove the function
C: If solution confirmed. and order placed. The solution cost will be refund.
3. Q: MOQ, main market
A: The MOQ is 200pcs
B, The main market of OTC is Western Europe(especially UK and DE) and US, AR, and AU.
