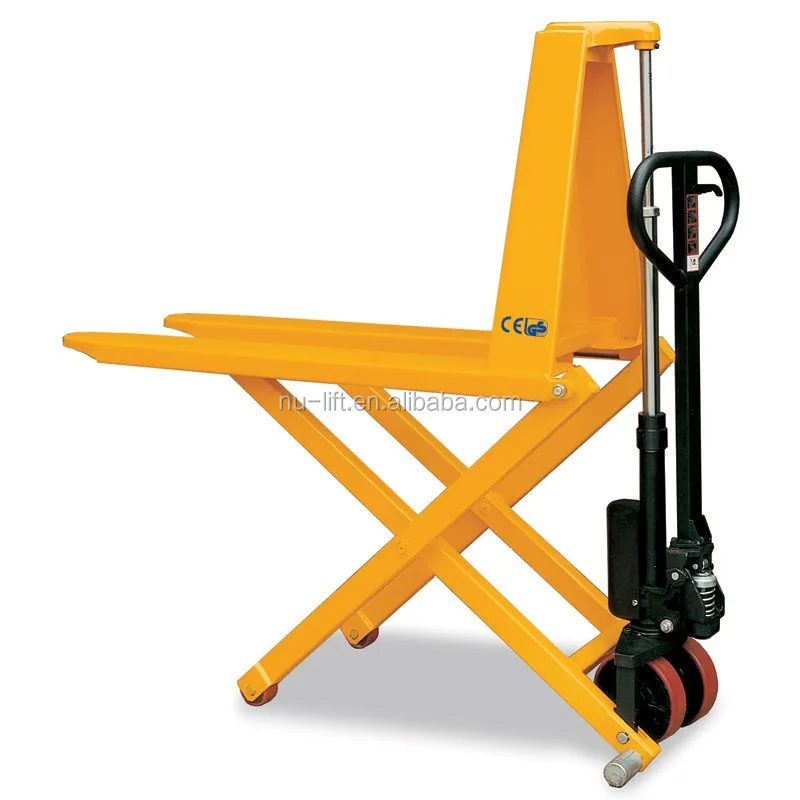

Hydraulic High Lift Pallet Truck HL.M series

Product Overview

Description

Manual

Capacity 1000kg(2200lbs)

Large piston offer real 1000kg full capacity.

Conforms to EN 1757-4.

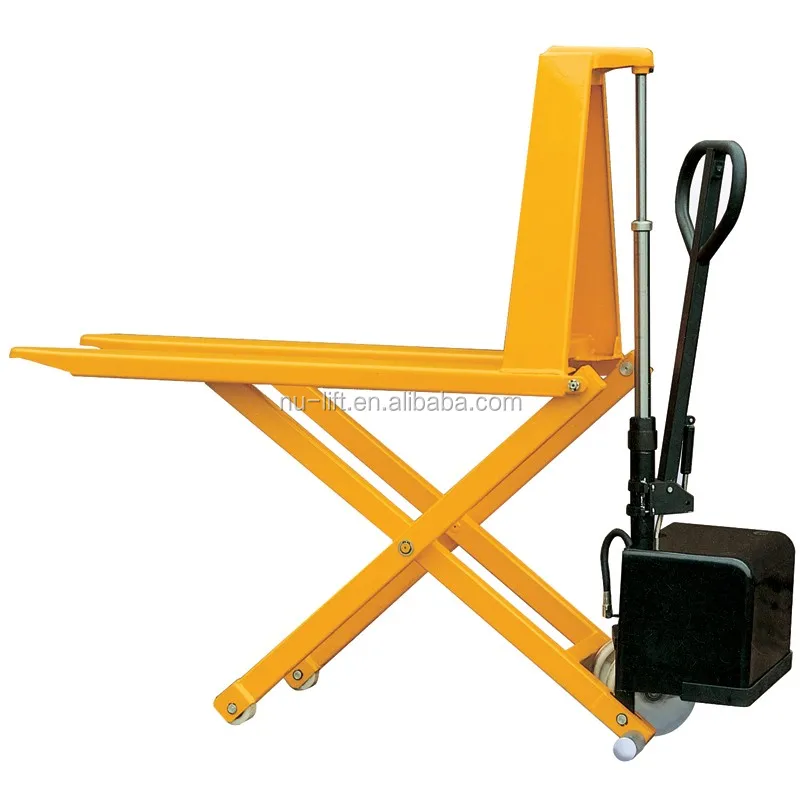

Electric

Capacity 1000kg(2200lbs)

High quality hydraulic motor.

Confirms to EN 1757-4.







	Model	Capacity	Max. Fork Height	Fork length	Overall Fork Width(B)	Battery	Battery Charger	Net Weight
		kg(lbs)	mm(inch)	mm(inch)	mm(inch)	V-Ah	V-A	kg(lbs)
Manual	HL-540M	1000(2200)	800(31.5)	1165(45.3)	540(21.3)			110(242)
	HL-680M	1000(2200)	800(31.5)	1165(45.3)	540(21.3)			125(275)
Electric	HL-540E	1000(2200)	800(31.5)	1165(45.3)	540(21.3)	12-54	12-10	150(330)
	HL-680E	1000(2200)	800(31.5)	1165(45.3)	540(21.3)	12-54	12-10	165(363)
