Насос для поднятия воды для железнодорожного пассажирского автобуса

Product Overview

Description

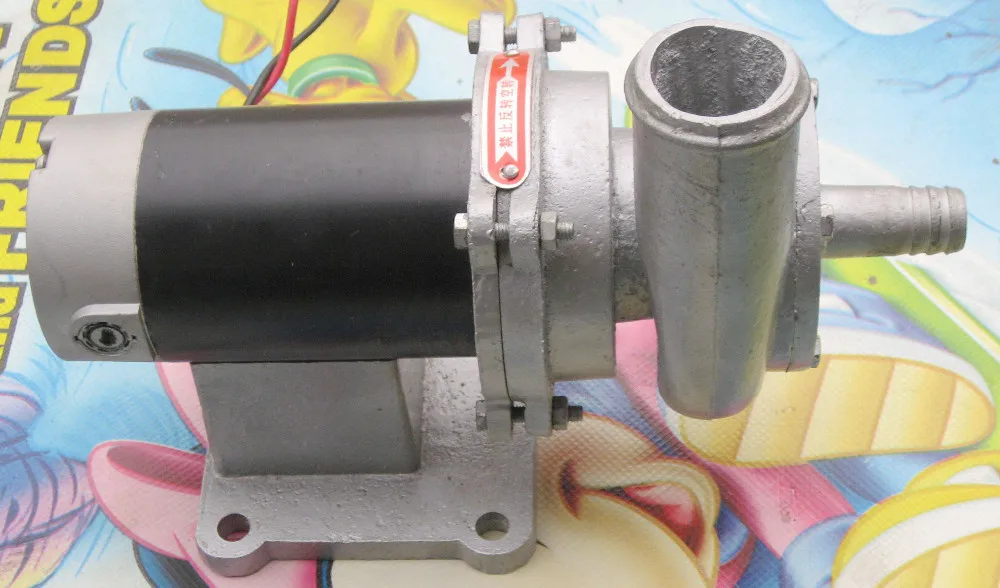

Water Raising pump for Railway passenger Coach:



Introduction:

The DC electric circulating pump is a single stage.single suction.boom type centrifugal pump. it's high efficient engergy-saving new products. it can be used for pumping clean water with temperature lower than 90℃ or liquids flow which are similar to water physicaily and chemically; it's specially suitable for heating system in passenger coach.



Type: Water Raising pump. Underfloor mounted

Capacity: Water delivery of about 32-36 litres/min at 24V DC from main tank underfloor to the ceiling tank, 4-5 meter height.

Pump:Horizontal certifugal type(countinuous rating)

Casting: cast steel

Shaft: Stainless steel

Impeller:Brass/stainless stell

Motor:DC shunt/compound motor

Operation voltage:24v

Operation rpm:1900-3000rpm

Guarantee period :2 years
