Battery Operated 20M Cable 1000TVL 23mm Lens Industry Endoscope 7 inch Monitor Handheld Sewer Pipe Inspection Camera System
- Category: >>>
- Supplier: Shenzhen Topwill Electronic Co. Limited
Share on (60584969747):
Product Overview
Description
Battery-Operated 20M Cable 1000TVL 23mm Lens Industry Endoscope 7 inch Monitor Handheld Sewer Pipe Inspection Camera System

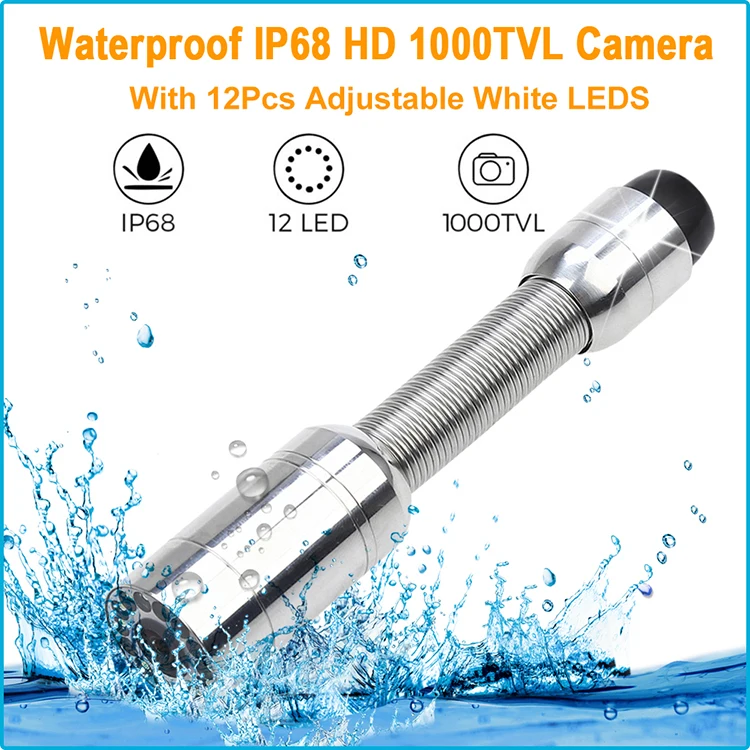

This Pipeline Inspection System is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants. The camera head itself contains 12 adjustable white LED lights to illuminate the inspection area with a flexible spring-coiled joint to easily navigate corners.
This product is suitable to inspect the pipeline, sewer, air duct, tank, underwater and others dark environment, check the internal cracks, corrosion, weld, plugs and other unusual circumstance.
Specifications
Model | TP9000 (without DVR ) | TP9000DVR (with DVR) |
SD card | × | √ |
Charger | AC100-240V DC12V | |
Battery | 12V 4000MAh | |
Use time for battery | About 5-8 hours | |
Investigation depth | 20M | |
Wire material | Fiberglass rod | |
Camera light source | 12 LED with high white light (adjustable) | |
Camera viewing angle | 120° | |
Camera size/material | 120MM* 23MM / stainless steel | |
Fiberglass diameter | 4.8MM | |
Fiberglass color | yellow | |
Camera picture | color | |
Operating temperature | -20-60° | |
Storage temperature | -50-60° | |
Aluminium box size | 460MM*360MM*190MM | |
Switchboard net weight | 9 KG | |

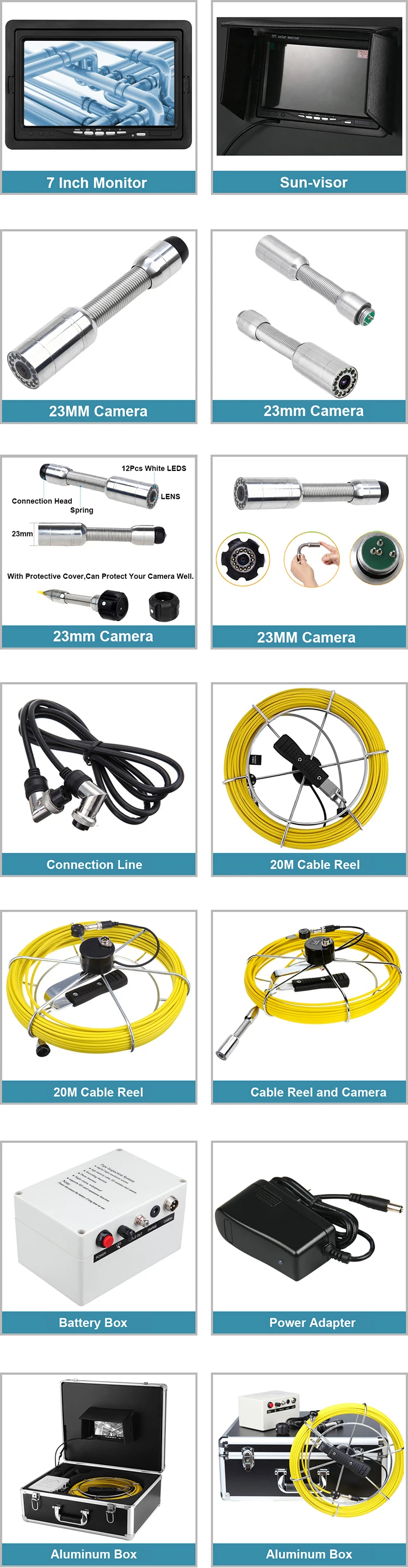

Package Include:

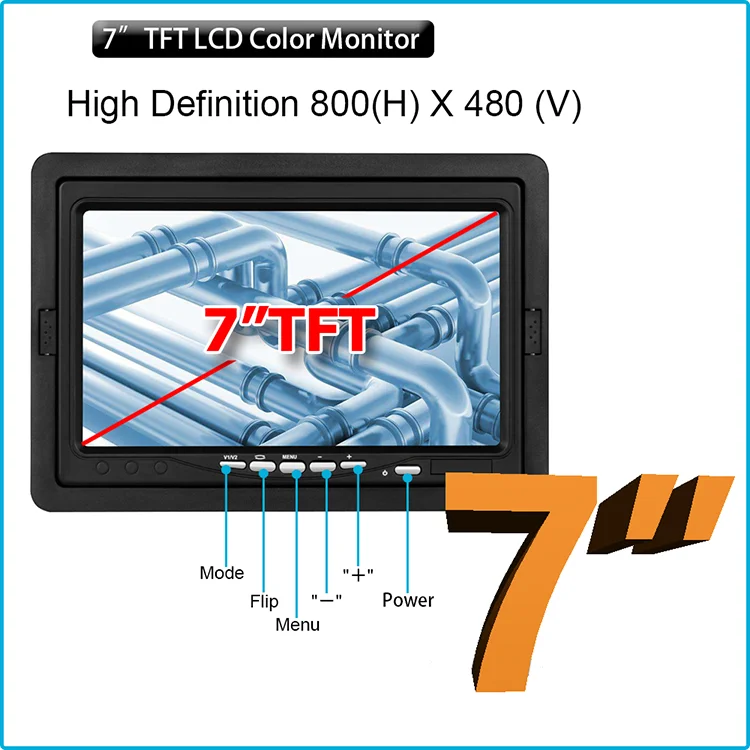

1 X 7" TFT Monitor
1 X Camera
1 X Charger

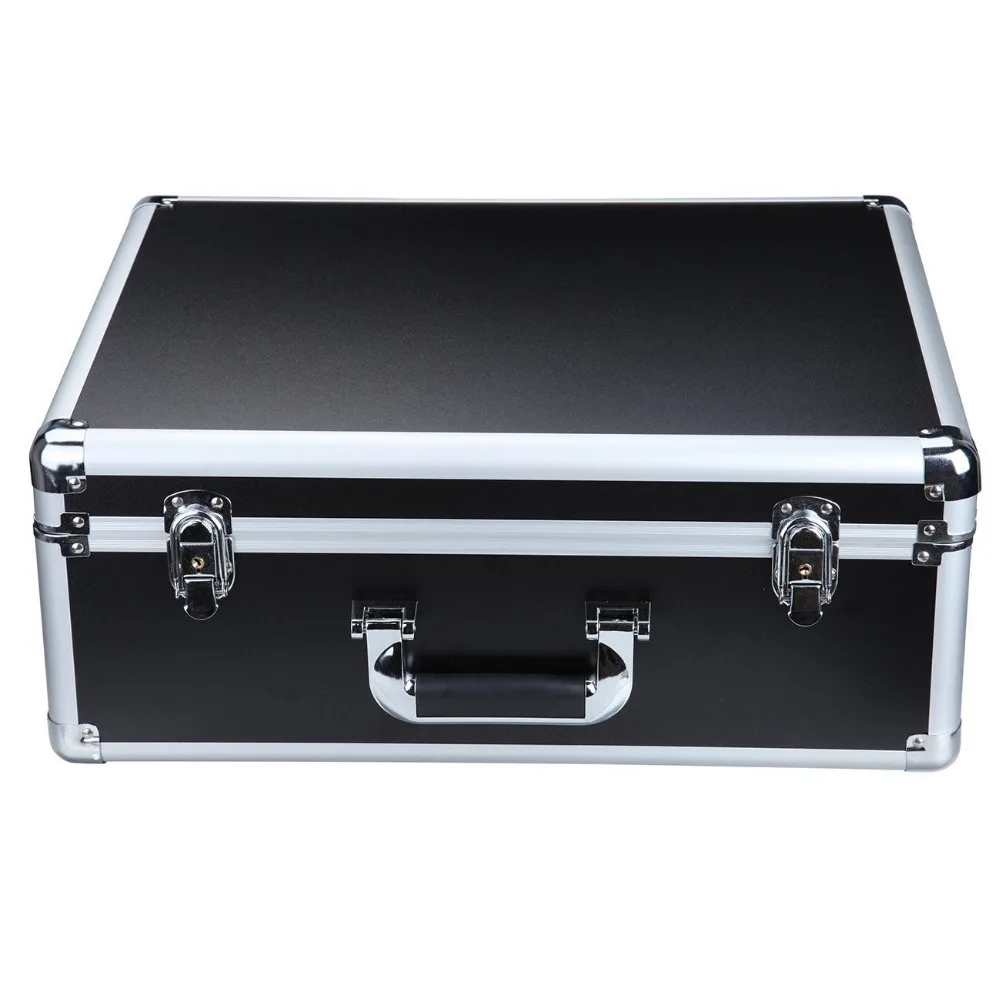

1 X Aluminum Box

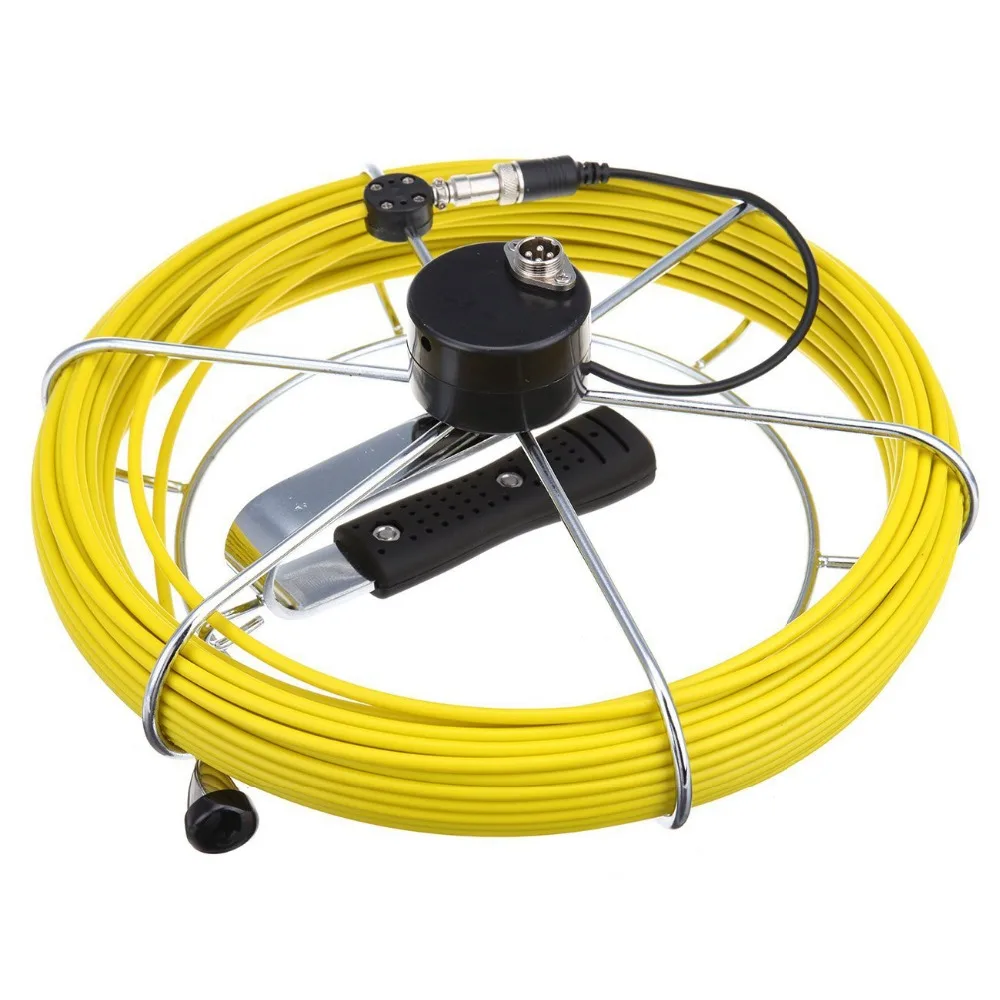

1 X Coil
1 X Instruction Manual
