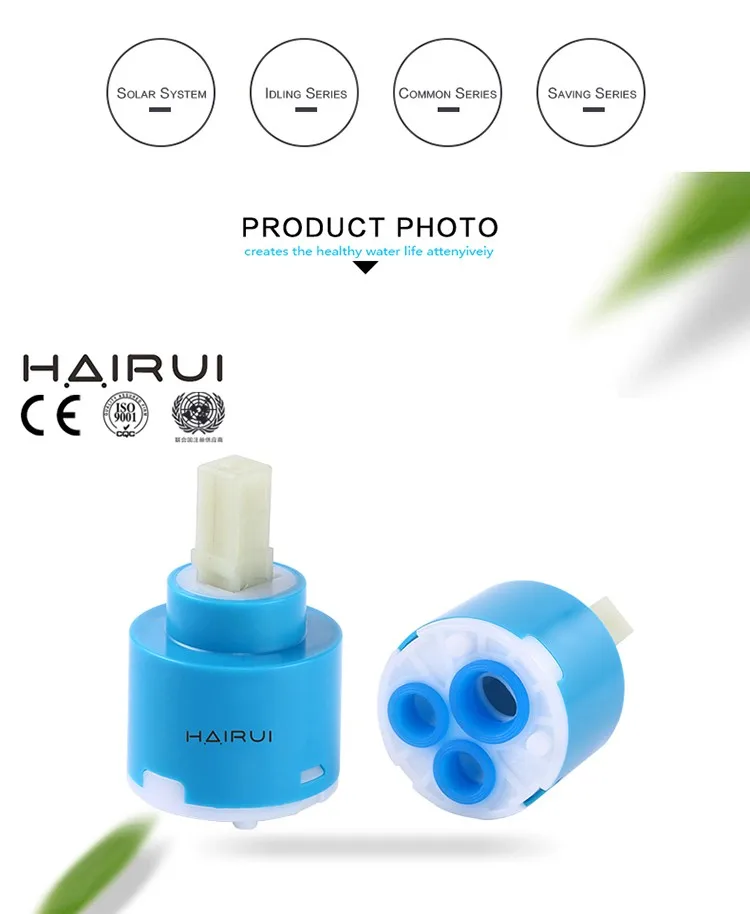

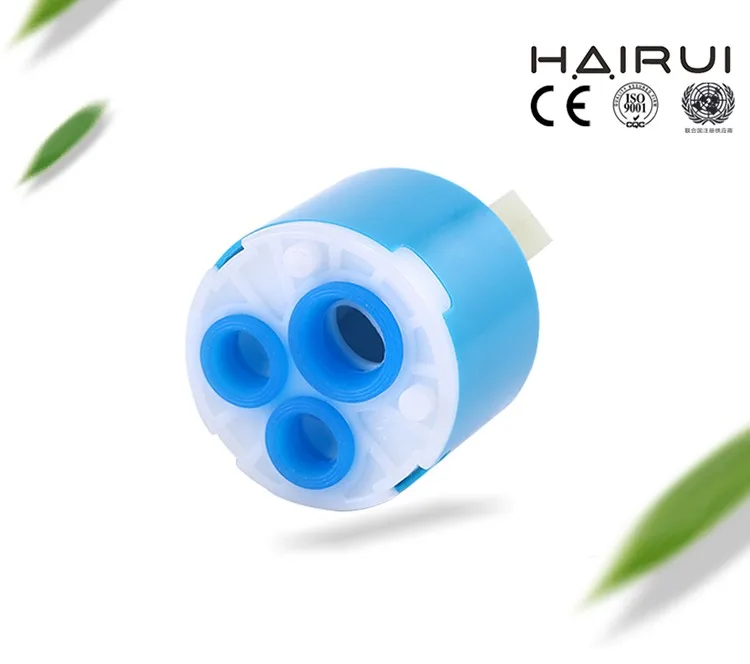

HAIRUI 40mm single sealing ceramic disc cartridge for Home hotel kitchen bathroom faucet&taps mixer HR40D 01 Japan PC Korea PPO
- Category: >>>
- Supplier: Wenzhou Hairui Ceramic Valve Co. Ltd.
Share on (60585022062):
Product Overview
Description
Product Description
| Parameter | |||
| Max.Opening Angle: | 23° | Max.Temperauture: | 100° |
| Min.Temperauture: | -23℃ | Lever Break Torque: | ≥100N.m |
| Max.turn Angle: | 110° | Glang Nut Torque: | 8-10N.m |
| Pressure(bar) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Average Flow Rate ( L/min) | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Angle (°) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperauture ( ℃ ) | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Testing Performance | ||||||||||
| Noise level | 18-19db(A)bar with filter | Noise Reducer | Selectable | |||||||
| Air-Leak Test | 8 bar | Ceramic Disc | Al2O3 95% | |||||||
| Burst Test | Staic water pressure at Max.35 bar, no deformation found on the cartridge | |||||||||
| Life Test | Min.70.000 Cycles ( EN817,GB1845-2003 ) | |||||||||
| Ceramic Cisc Data | ||||||||
| saeting Surface of Ceramic Disc | Hardness | 110HV5 | Flatness | ≤0.6um | ||||
| surface roughness | Ra≤0.25um | Porosity | 60~80% | |||||
