Product Overview


Heat Pipe Solar Collector Romania, Russia, Lithuania, Ukraine


Model No: HPB-8/9/10/12/14/15/16/18/20/21/22/24/28/30
Overheating solution, higher power output suitable less installation area, Industry heating applicable.



Product Description

 Product Description

OS-HPB Solar Collector is a kind of solar collector, It used with heat preservation water tank, solar power workstation and the pipe. The solar collector is consisted of super conducting vacuum heat collecting tube and header, so it's of great efficiency of heat collecting. The absorbing percentage of the glass vacuum collector is more than 94%. OS-HPB Solar Collector In the sunny days of spring or autumn, each collecting tube could make the water up to 90 degrees centigradeonly in 2.5 hours.



Material of Manifold: Aluminum
Material of Frame : Aluminum
Material of header pipe; Copper
Insulation Material : Rock Wool
Best Working angle : 20 degree to 70 degree
Max. Operating Pressure : 8 bar
Best Flux: 0.15liter/min/tube
Performance : Transferring : ho=0.715
Max. Stagnation Temp: 245 C/ 477 F
Absorber type: ALN/ALN-SS/SU on glass



ModelNet Absorbing Area ( m2)Gross Area (m2)(empty) Gross Weight ( KG )Head fluid content ( L )17MJ/M2 day warm up 45 C hot water output ( L)


HPT-58x1800mm evacuated heat pipe vacuum tube


Size of Condenser24*70mm/14*70mm
Length of glass tube1800mm
Outer tube diameter58mm
Inner tube diameter47mm
Glass thickness1.6mm
Glass materialBorosilicate Glass 3.3
Absorptive coatingALN/ALN-SS/CU
Absorption coefficient>92%
Emission  coefficient<8%
VacuumP<3.5*10 -3 Pa
Freezing resistance-35 C
Stagnation temperature>220 C
Net Weight2.24 kg
Hot Water Output (17mj/m2. Day =45 °C)10 L



How to Produce a high quality solar collector


01.Vacuum Tube :


1).58*1800mm  ALN/ALN-SS/CU three targets coating;

2).Wall thickness :1.6/1.8/2.0mm;

3).Coating time:60 minutes; Absorption ratio: ≥94%.




02. Heat copper pipe :


1).Best TU1 copper

2).Wall thickness:0.6/0.7mm;


4).Anti high temperature:250 °C ; ANti-cold: -35°C (-50 °C  is optional);

5).Diameter of condeser:14/24mm

6).10 years thermal quality guarantee.



03. Aluminium fin :

1).Best quality compact type.


Aluminum fin.jpg


04. Seal plug of vacuum tube:

SUS304 stainless steel with Silicone ring.

Ring plug.jpg

05.Header flow Channel:



3).Wall thickness:1.0/1.2mm


06.Insulating layer:

1).Material:High density rockwool,

2).Thickness 35mm.


07.Manifold & Bracket:

1). Material: Aluminium Alloy

2).Color:Aluminium alooy/Black

3). Thickness:2.0mm

manifold & frame.jpg

08.Screw and nut:

SUS304 Stainless steel, never rust.


09. Tube holder:

1).Santi-dust seal and side cover

2).Best nylon PA66 ,and silicone.

Tube holder.jpg


 Sample Showcase









Are there different kinds of solar water heaters

 Solar water heaters are divided into two kinds of systems: active or passive. Active solar systems rely upon moving mechanical  parts in order to transport heat, while passive units simply use the sun to accomplish this action. The bulk of systems  installed  are active because they are considered to be more efficient and attractive. However, most of the systems installed  worldwide are passive because they are simple and need no auxiliary power (electricity) to operate.


What is a solar water heater ?

 A solar water heater uses the sun’s energy to pre-heat household water before it enters the conventional gas (or electric)  water heater.  a solar water heater could generate up to 90% of your annual water heating needs.

Which soalr collector is the best value for money ?

Rather than looking at just peak efficiency levels when comparing solar soalr collectors, installed cost per unit of energy  produced is much more logical. For example: Although soalr collector A may be 20% more efficient than soalr collector B, if  soalr collector A is 30% more expensive, then in fact soalr collector B may be a better choice, as per kWh of energy  produced per day it is cheaper.


Company Information

Company Information


Company Overview    Haining Ousikai Industrial And Trading Co.,Ltd
  Owns a factory covering an area of 9,000 square meters
Certificates  CE/TUV rheinland
Capability     Total annual sales volume reaches above US$4.5 million
  Able to source across multiple industries
  OEM&ODM service for more than 20 brands, 24 countries
Techniques  Professional in most kinds of solar water heaters and accessories
Service  Strongly support our clients in sourcing, sample development, merchandising follow up, shipping handling, etc.


osk 6_

Packaging & Shipping

Package and shipping details


1. Packing: Standard export carton with foam or wooden box,  Wooden Box Packing for Sample

2. Shipping:  7 days for sample, 15 days for 20/40 container.
3. MOQ: 20'GP container (Sample is available)
4. Warranty: 10 years guarantee for whole set solar water heater
5. Port of departure: Shanghai or Ningbo

6. Supply ability: 8000 sets per month

We promise:

Your reply will be replied within 12 hours.

We offer you professional service in fluent English.

Keep the mass production as the sample in high quality

Freight forwarder: faster, safer, and convenient.

Quality: we have QC on each process.

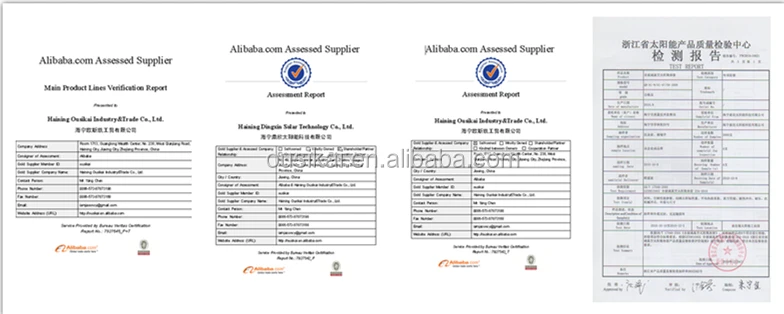

Test Report.jpg
