Rubber Kneader Mixer 35L / 55L / 75L / 110L / 150L

Product Overview

Description

                               Rubber Kneader Mixer

                Whatsapp & Wechat: 0086 13963993705



Specifications:

rubber kneader, used for mixing rubber, with main type: 10 L, 20L, 35L, 55L, 75L,110L,150L

Type		X(S)N-10X32	X(S)N-20X34	X(S)N-35X30	X(S)N-55X30	X(S)N-75X30	X(S)N-110X30
Pinching total cubage	L	25	45	75	125	175	250
Dense smelting total cubage	L	10	20	35	55	75	110
Main motor power	KW	22	22	55	75	110	185
Overturn motor power	KW	1.1	1.5	2.2	2.2	3.0	7.5
Overturn angle	0	140	140	140	140	140	140
Rotate speed of rotor oxis(front/back))	r/min	32/25	34/28	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressing air	Mpa	0.5~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Pressure of cooling water	Mpa	0.2~0.4	.0.2~0.4	.0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
Pressure of heating vapor	Mpa	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Overall size (L x W x H)	mm	2640x1650x2350	3100x1300x2450	3200x1900x2945	3300x1900x2900	3760x2143x3135	4075x2712x3580
Weight	kg	3300	4500	6500	7800	10230	14970

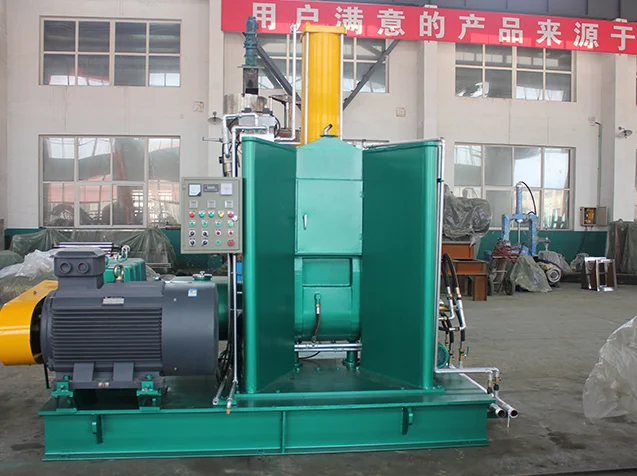

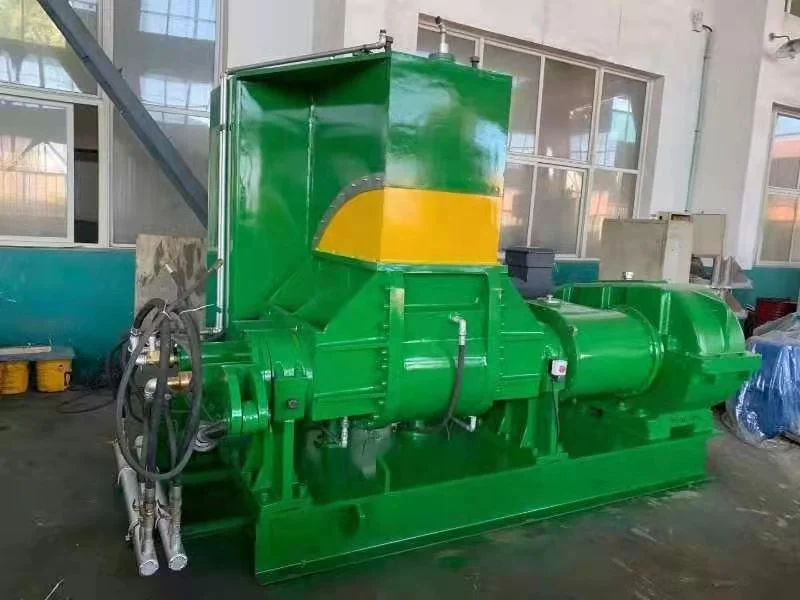

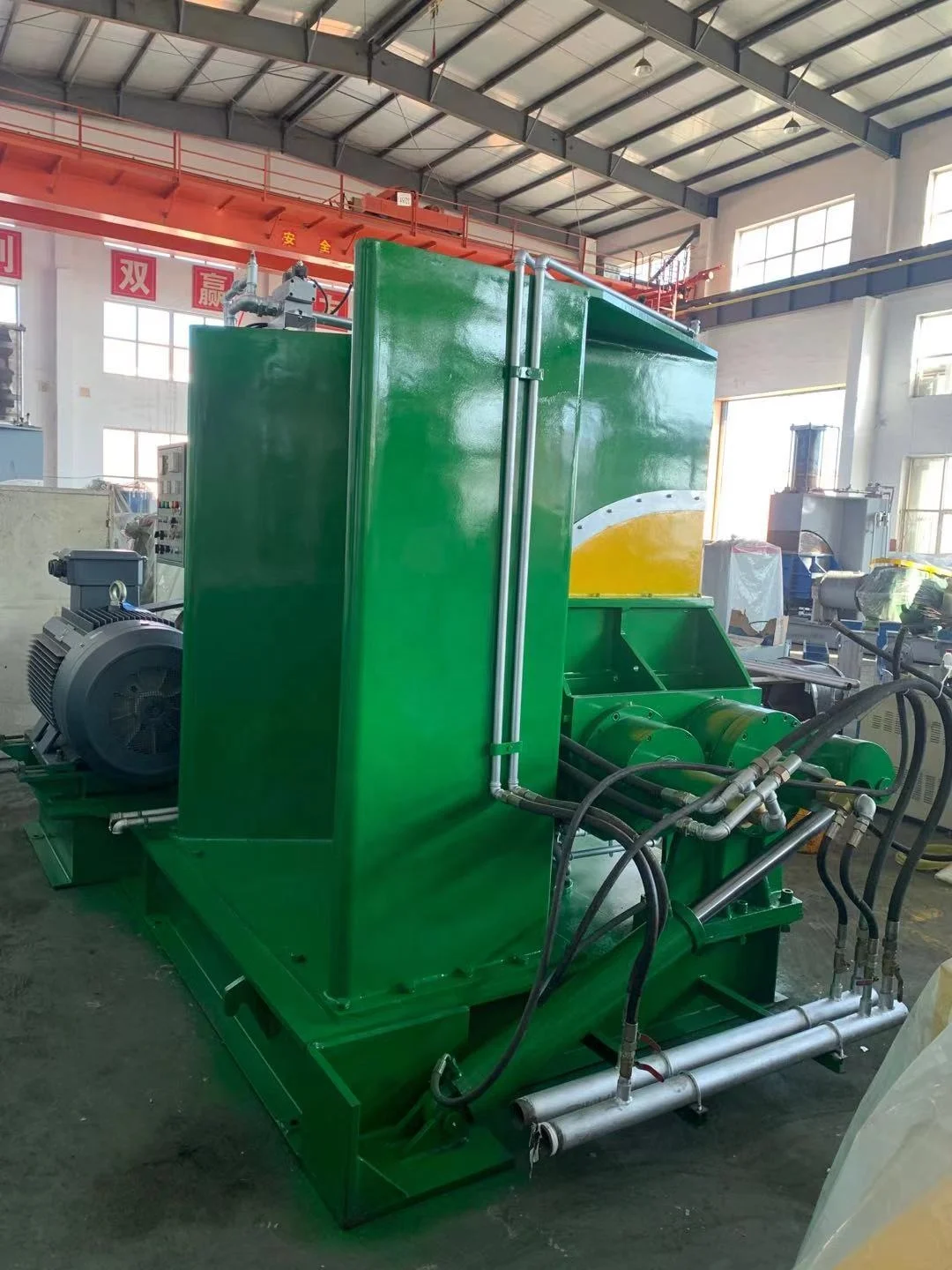

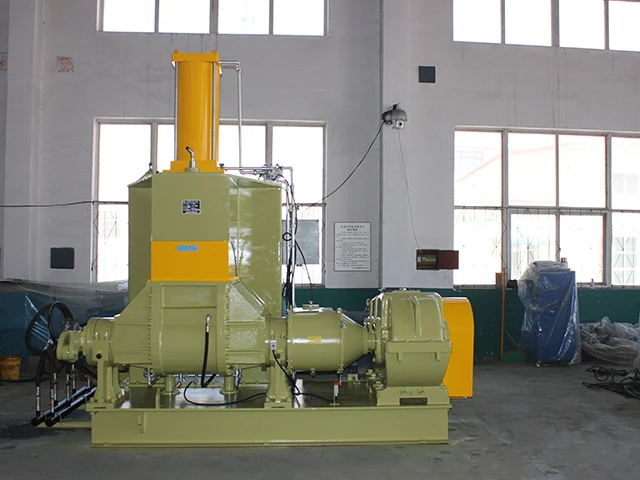

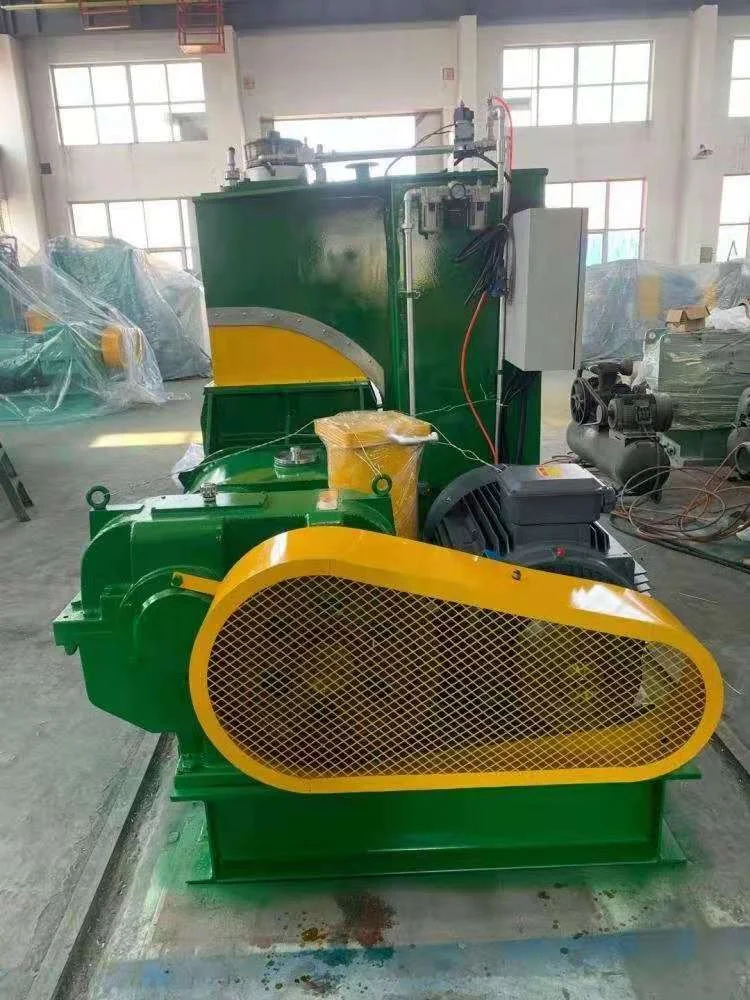

Reference Pictures:
