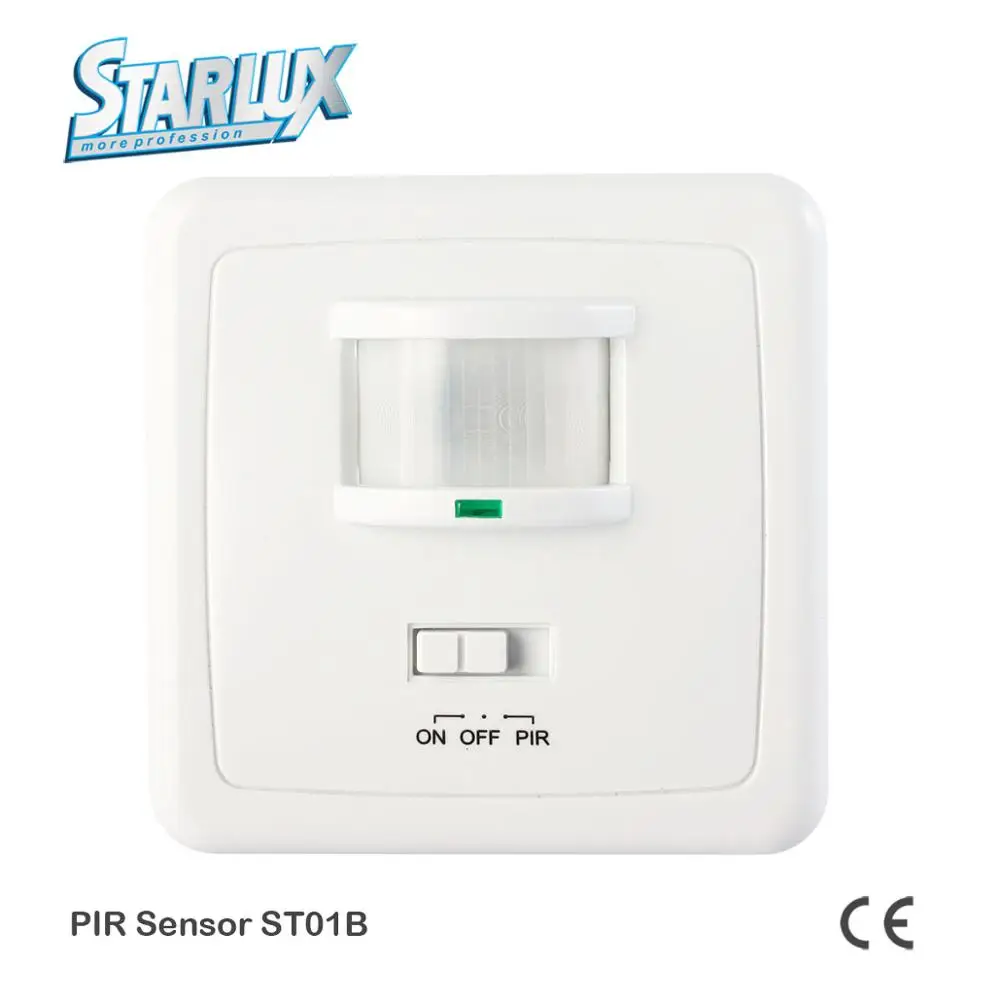

High quality Product Automatic Small ST01B PIR motion sensor switch stair use

Product Overview

Description



FUNCTIONS:

Ø  Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.

Ø  Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.

Ø  The switch: “ON”,“OFF”,“PIR”.



CONNECTION:

Ø  Unload the faceplate of sensor and adjust the time and LUX knob.(refer to figure 1)

Ø  Loose the screws in the connection terminal, and then connect the power to connection terminal of sensor according to connection-wire diagram.

Ø  If you want to install it in circular hole, put the sensor into the hole and tighten the splay bolt on both sides (refer to figure 2). If you want to install in quadrate hole, put the sensor into the hole, fix the screw through the mounting hole (refer to figure 3).

Ø  Install back the faceplate, switch on the power and then test it.



CONNECTION-WIRE DIAGRAM:  (See the below figure)



PRODUCT CAPACITY:

Our company adopts automatic machines,such as:SMD,auto component inserter,wave solder,auto injection machine and so on.And the daily output is up to 20000~30000pcs.





CERTIFICATE:

The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification.
