SUGOLD SW CJ 1FD Vertical Air Supply Stainless Steel Laminar Flow Hood
- Category: >>>
- Supplier: Zhejiang Fuxia Medical Technology Co. Ltd.
Share on (60585474517):
Product Overview
Description

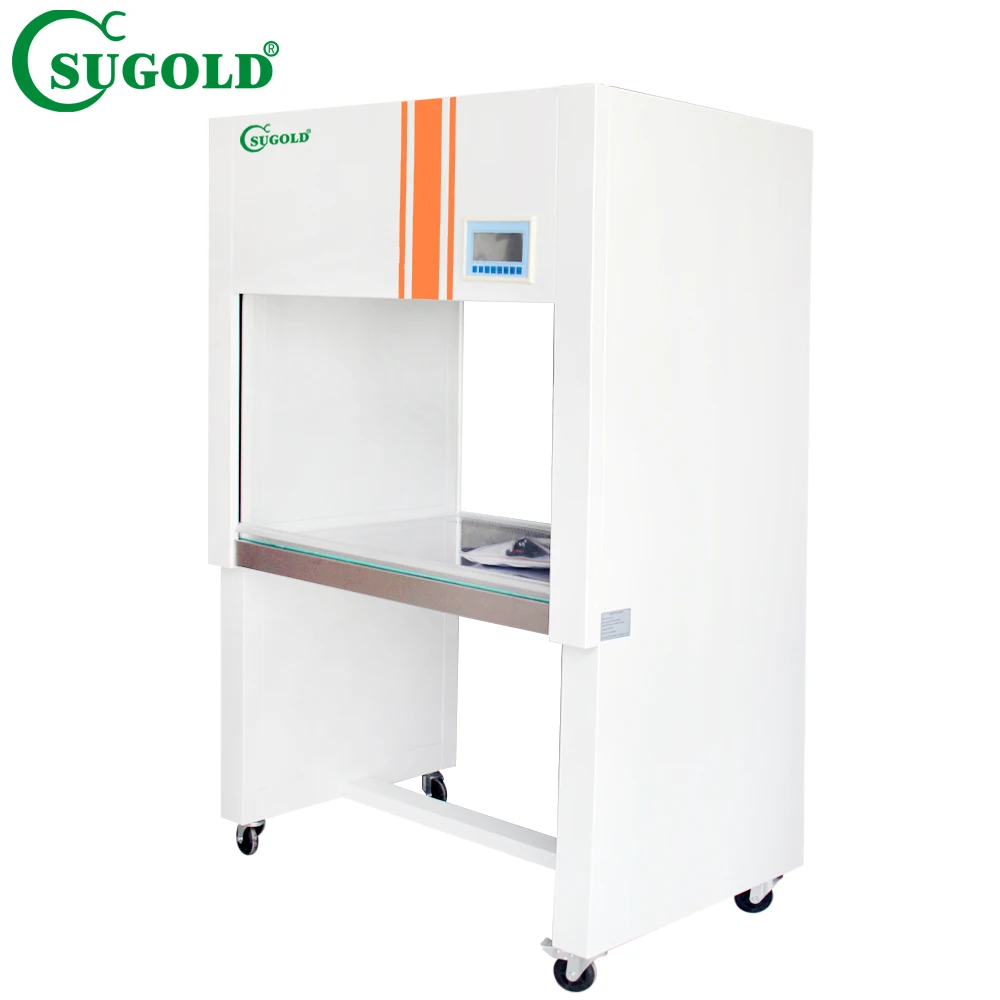

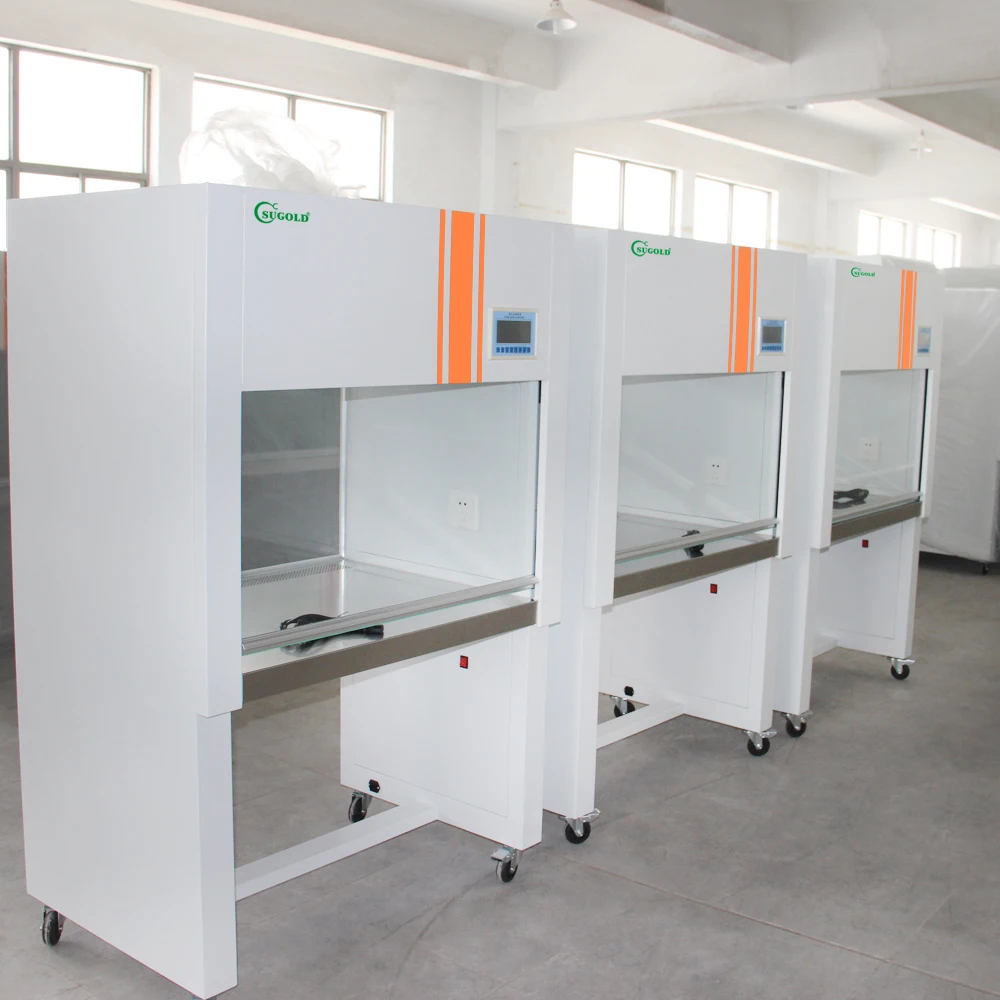

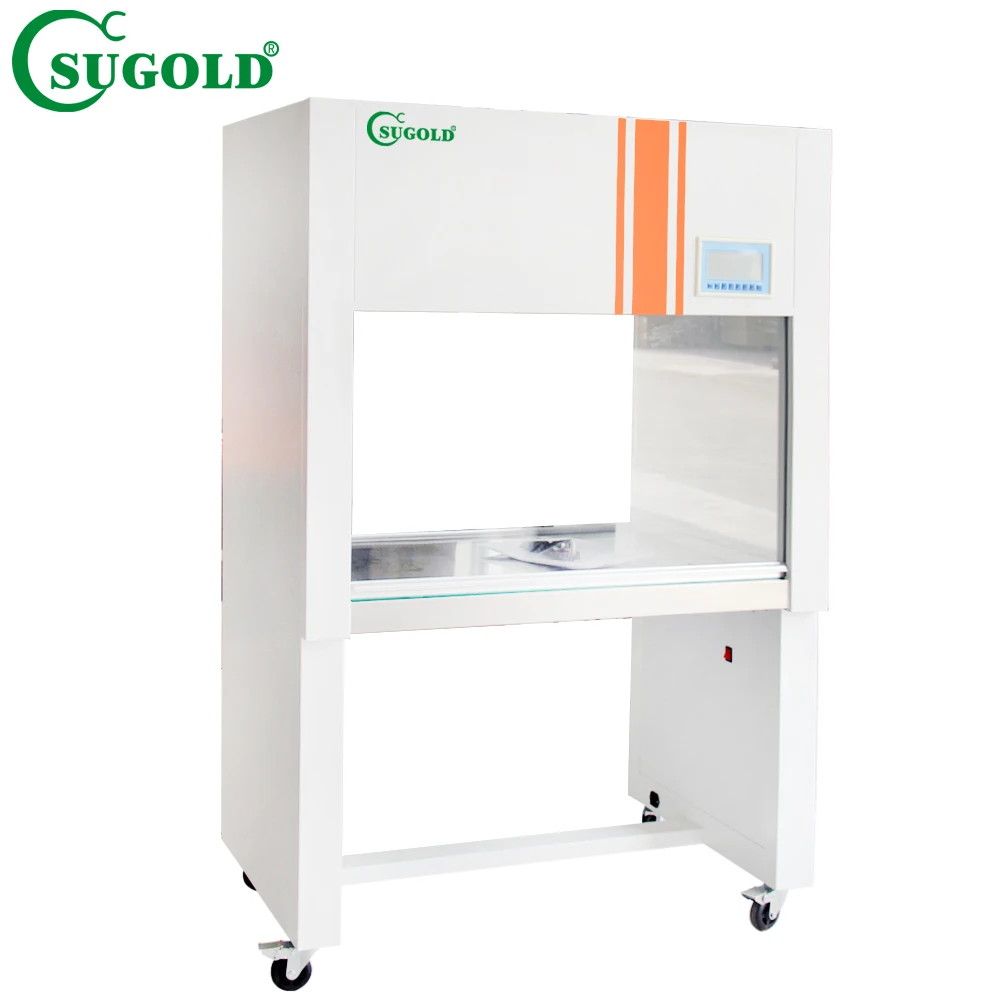

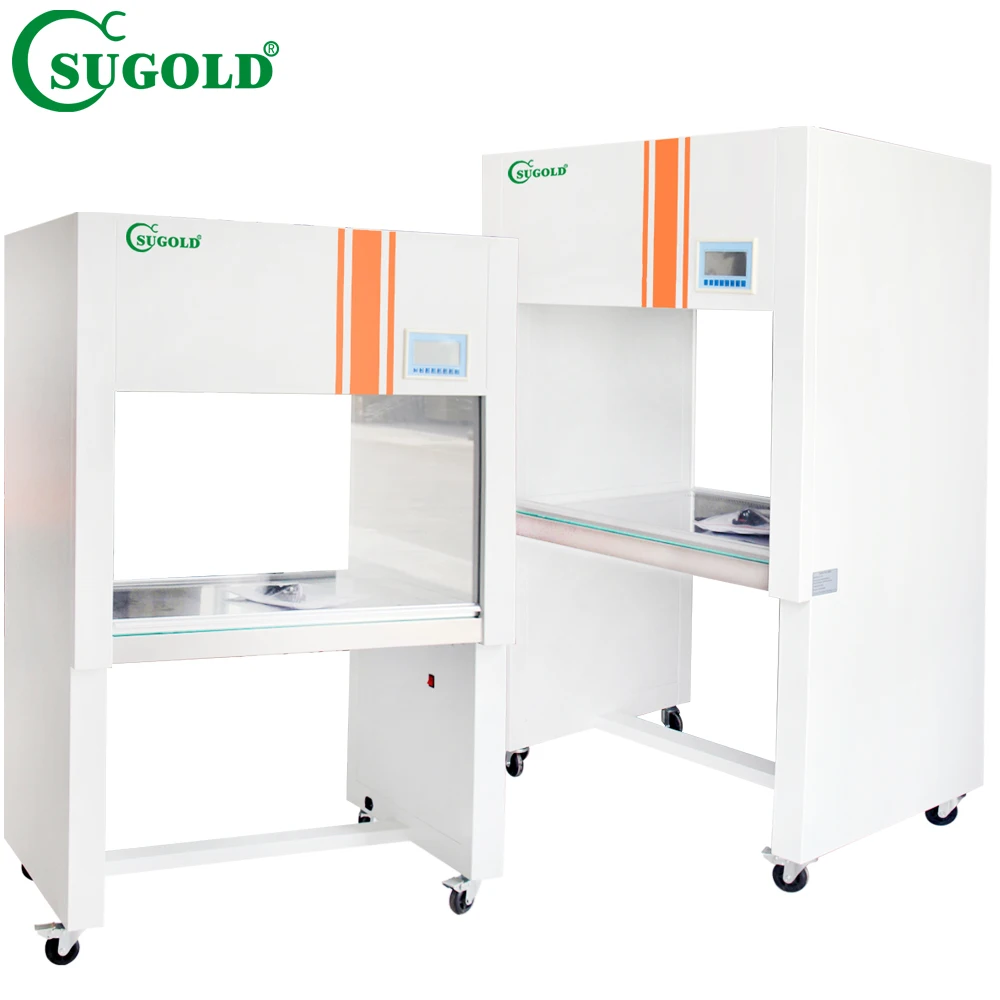

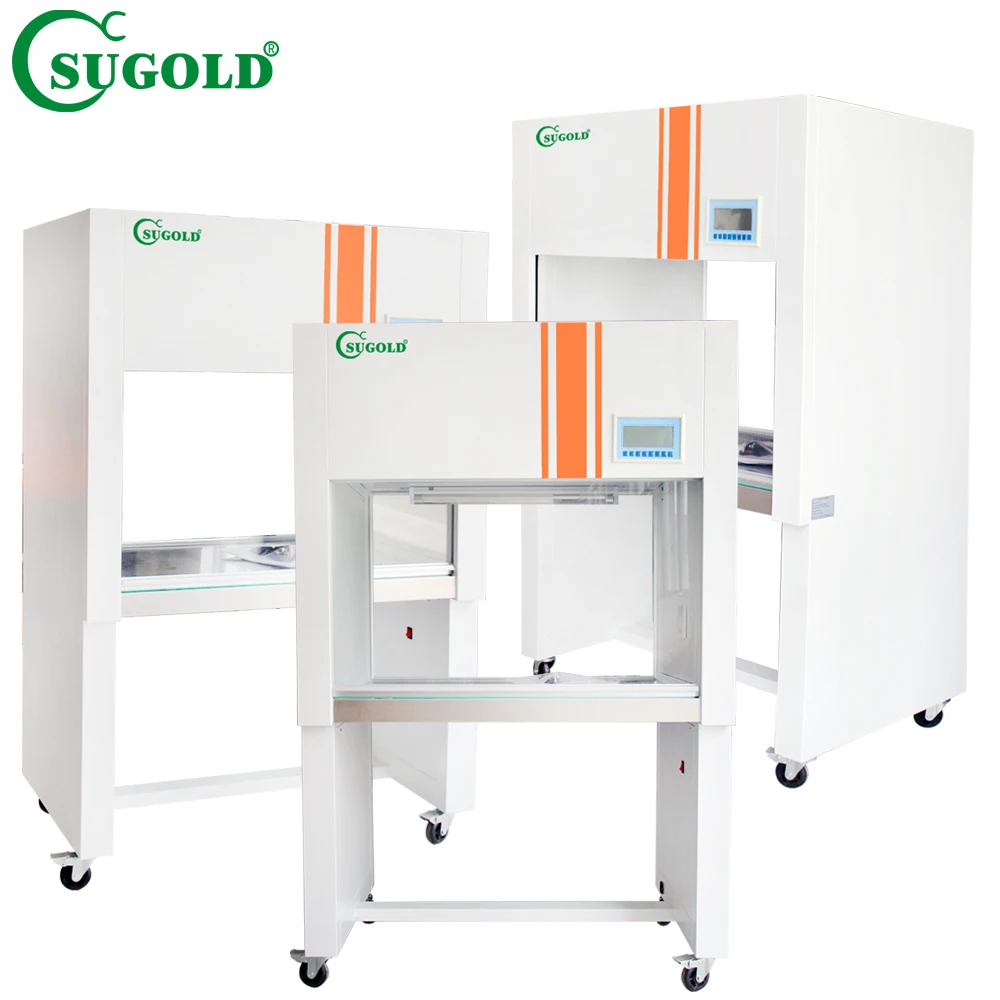

SUGOLD SW-CJ-1FD Vertical Air Supply Stainless Steel Laminar Flow Hood
Working Principle
First, the air is inhaled through the fan and then filtered by the HEPA filter through the static pressure box. After that the filtered clean air is sent out in the state of vertical or horizontal air flow, so that the operation area continues to reach the 100-level cleanliness under the control of clean air and to ensure the production of environmental cleanliness requirements.
Application Range
The vertical flow clean bench is noisy than horizontal clean bench because its fan is installed at the top. The wind blowing vertically so it is often used in medical engineering to ensure the operator’s health.
Vertical laminar flow clean bench is widely used in areas requiring partial cleaning, laboratories, biopharmaceuticals, optoelectronics, microelectronics, hard disk manufacturing and other fields.
Characteristics
1. Adopt Arbitrary positioning sliding door system
2. The shell is made of steel plate with powder coating, and the worktop is SUS304 brushed stainless steel, which is corrosion resistant and easy to clean
3. Lighting and sterilization system safety interlock
4. LED display controller
5. Vertical quasi-closed table, air curtain stroke of downdraft in the operation room, which can effectively prevent external gas input to keep the operation area clean
6.Equipped with HEPA filter. With primary filter for preliminary filtration, which can effectively extend the life span of HEPA filter
First, the air is inhaled through the fan and then filtered by the HEPA filter through the static pressure box. After that the filtered clean air is sent out in the state of vertical or horizontal air flow, so that the operation area continues to reach the 100-level cleanliness under the control of clean air and to ensure the production of environmental cleanliness requirements.
Application Range
The vertical flow clean bench is noisy than horizontal clean bench because its fan is installed at the top. The wind blowing vertically so it is often used in medical engineering to ensure the operator’s health.
Vertical laminar flow clean bench is widely used in areas requiring partial cleaning, laboratories, biopharmaceuticals, optoelectronics, microelectronics, hard disk manufacturing and other fields.
Characteristics
1. Adopt Arbitrary positioning sliding door system
2. The shell is made of steel plate with powder coating, and the worktop is SUS304 brushed stainless steel, which is corrosion resistant and easy to clean
3. Lighting and sterilization system safety interlock
4. LED display controller
5. Vertical quasi-closed table, air curtain stroke of downdraft in the operation room, which can effectively prevent external gas input to keep the operation area clean
6.Equipped with HEPA filter. With primary filter for preliminary filtration, which can effectively extend the life span of HEPA filter
Model | SW-CJ-1FD |
Clean grade | Grade 100(209 E U.S. Federal) |
Noise | ≤62dB |
Power | 220V/50HZ |
wind speed | 0.25-0.45m/s (slow,medium and fast 3 speeds) |
illumination | ≥300LX |
Working area dimension(W*D*H) | 880*650*580mm |
Overall dimension(W*D*H) | 1040*690*1600mm |
Operator | one person |
