Product Overview

Description





Click to see more>>                                                                         Click to see more >>

Click to see more>>                                   Click to see more >>                              Click to see more >>

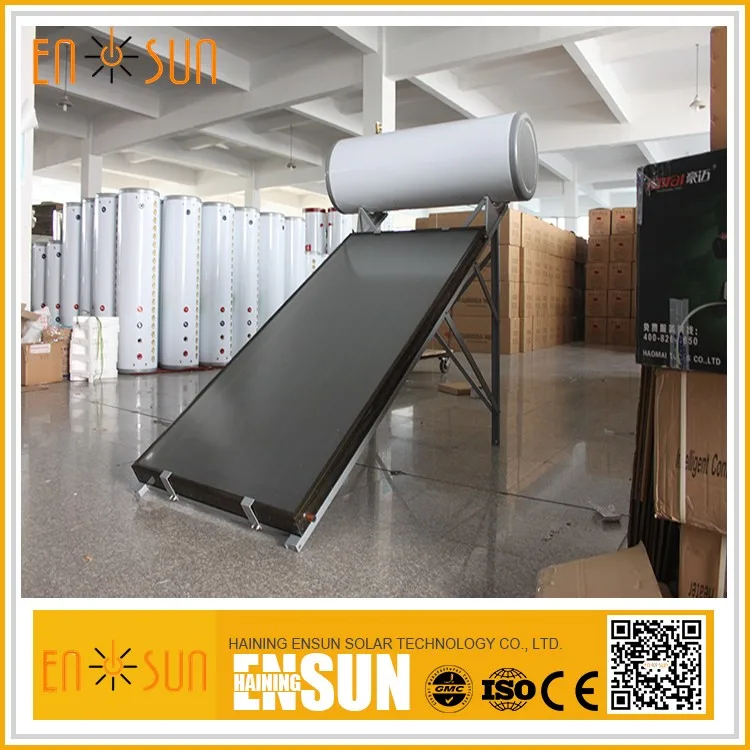

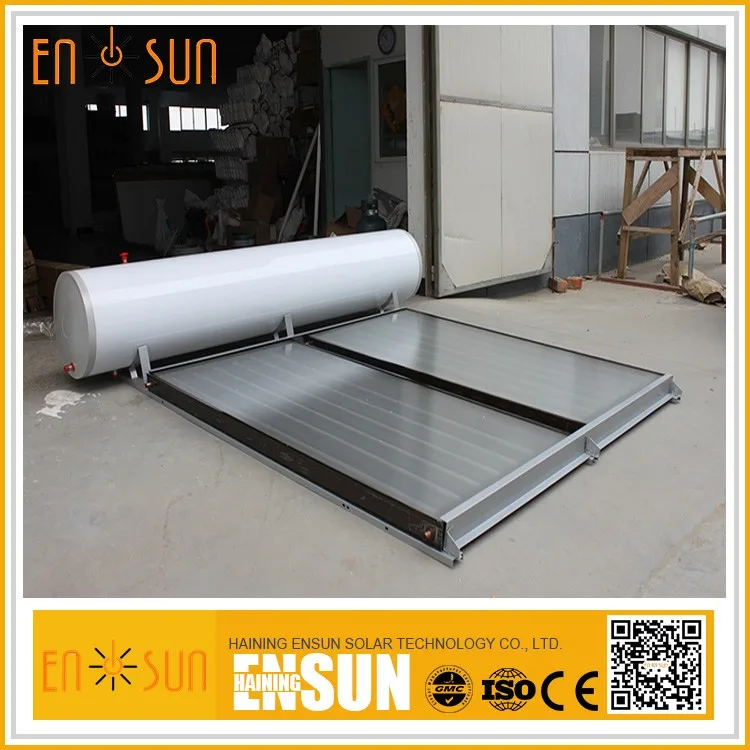

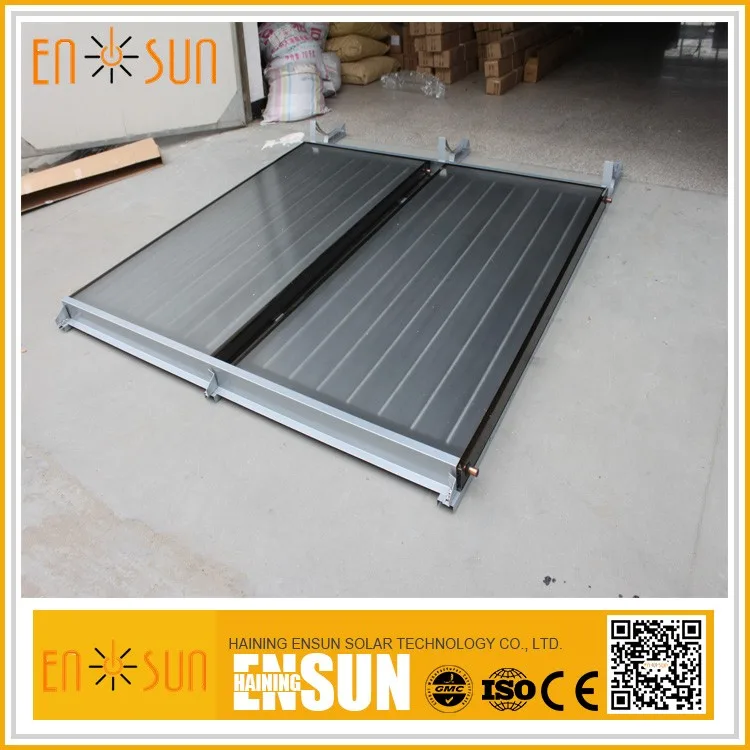

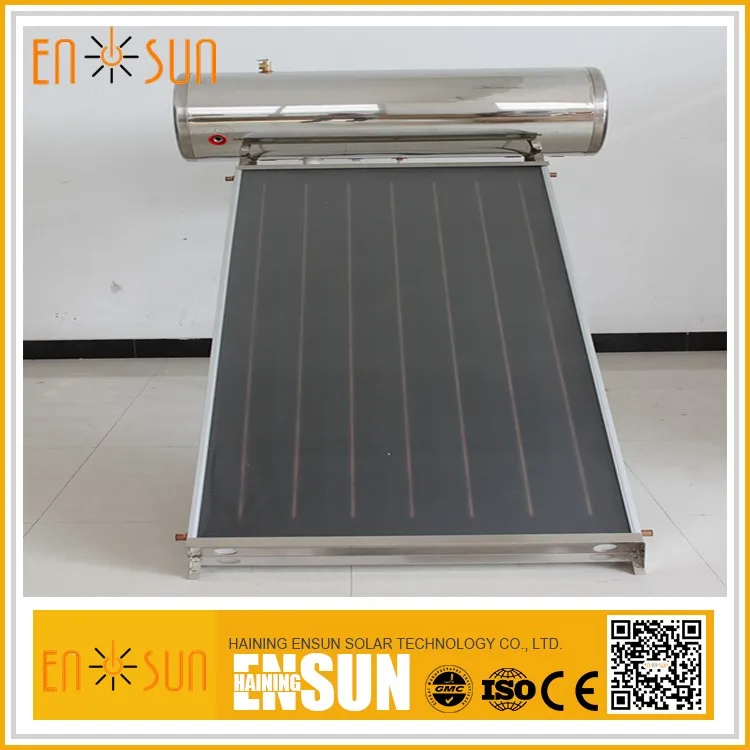

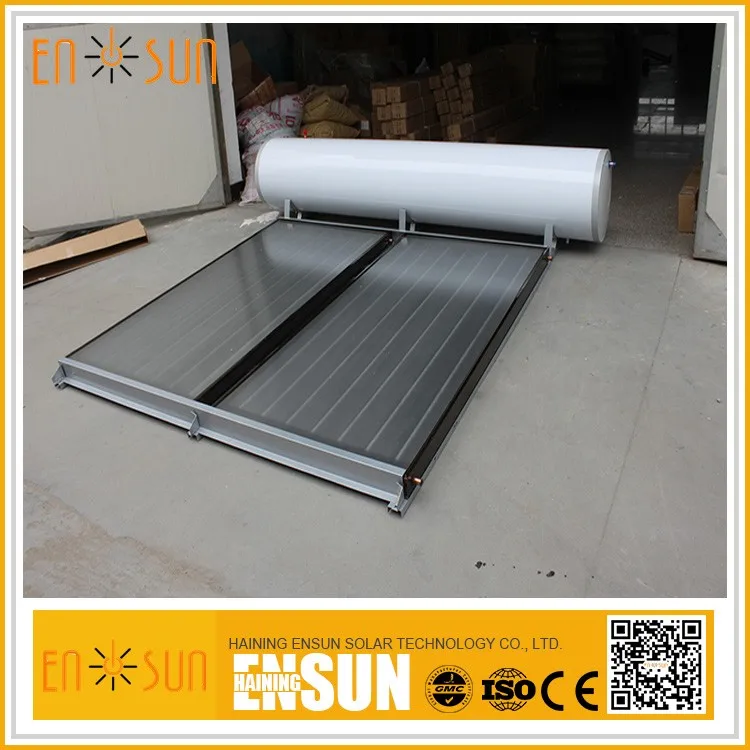

Pictures Of Flat Plate Solar Water Heater

Description Of  Flat Plate Solar Water Heater

The Date Of FPC Type

Model No.	ENSUN-FPC01	ENSUN-FPC02	ENSUN-FPC03	ENSUN-FPC04
Dimension L×W×T(mm)	2000×1060×70	2000×1000×80	2000×1000×90	2000×1000×100
Gross Area(m2)	2.0	2.0	2.00	2.00
Efficiency Area (m2)	1.82	1.82	1.82	1.82
Gross Weight of Collector(kg)	47±3	55 ±3	47 ±3	55 ±3
Transparent Cover
Number of Cover(pc)	1	1	1	1
Dimension L×W(mm)	1975 × 975	1975 × 975	1975 × 975	1975 × 975
Cover Material	Float Glass/Low-iron Glass	Float Glass/Low-iron Glass	Float Glass/Low-iron Glass	Float Glass/Low-iron Glass
Cover Thickness(mm)	4	4	4	4
Cover Transmission	89%-91.4%	89%-91.4%	89%-91.4%	89%-91.4%
Absorber
Dimension L×W(mm)	1840 × 956	1840 × 956	1840 × 956	1840 × 956
Material	Red Copper	Red Copper	Red Copper	Red Copper
Surface Treatment	Galvanized Chromium Coating	Blue Tech	Galvanized Chromium Coating	Blue Tech
Construction Type	Fin and Tube	Fin and Tube (Ultrasoni Welding)	Fin and Tube	Fin and Tube
Header Material	T2 Copper tube	Copper TP2	T2 Copper tube	Copper TP2
Header Tube Size(mm)	Ø25 × 1060 × 0.6     2pcs	Ø25 × 1060 × 0.6     2pcs	Ø25 × 1060 × 0.6     2pcs	Ø25 × 1060 × 0.6     2pcs
Rise Material	T2 Copper tube	Copper TP2	T2 Copper tube	Copper TP2
Rise Tube Size(mm)	Ø10 × 1886× 0.5    8pcs	Ø10 × 1886× 0.5    8pcs	Ø10 × 1886× 0.5    8pcs	Ø10 × 1886× 0.5    8pcs
Fill Capacity	1.8L Including Header Pipe	1.8L Including Header Pipe	1.6L Including Header Pipe	1.8L Including Header Pipe





Model No.	ENSUN-FPC01	ENSUN-FPC02	ENSUN-FPC01	ENSUN-FPC01
Thermal Insulation
Insulation Material	16KRock wool(back)EPS plate Polyurethane(side)	16KRock wool(back)EPS plate Polyurethane(side)	60k•50mm rock wool Polyurethane(side)	60k•50mm rock wool Polyurethane (side)
Insulation Thickness	40mm(back)/25mm(side)	50mm(back)/30mm(side)
Conductivity(W/mK)	≤0.032 under 75°c	≤0.042 under 75°c	≤0.032 under 75°c	≤0.032 under 75°c
Casing
Frame	Aluminium alloy frame(Rectangular)	Aluminium alloy frame(Rectangular)	Aluminium alloy frame(Rectangular)	Aluminium alloy frame (Rectangular)
Frame Color	Bronze color	Bronze color	Bronze color	Bronze color
Back Plate	0.3mm Galvanized Steel	0.3mm Galvanized Steel	0.5mm Galvanized Steel	0.5mm Galvanized Steel
Max Operation Temperature	180°c	200°c	180°c	200°c
Maximum Pressure(Mpa)	0.6	1.4	0.6	1.4
Sealing Gasket	EPDM	EPDM	EPDM	EPDM
Limitation of Operation
Max.Working Temperature	120°c	120°c	120°c	120°c
Max.Working Pressure	0.5Mpa	1.2Mpa	0.5Mpa	1.2Mpa
Recommended Circulation Flow	Water	Propylene glycol&water mixture	Water	Propylene glycol&water mixture
Resistance to Freezing	≥0°c	≥-40°c	≥0°c	≥-40°c



Trade Items Of Product

Payment	L/C,T/T,
MOQ	1 Set
Port	Shanghai/Ningbo
Package	Standard carton
Delivery	7days after deposit received.
Supply Ability	100000  Set/Sets / Year



Our Service For YOU

Pre-sale Service

1. Sample can be offered with sample charge and courier fee by buyer's side.

2. We have full stock,and can deliver within short time.Many styles for you to choose.

3. OEM and ODM order are accepted, Any kind of logo printing or design are available.

4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you

5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.

After you choose

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment,

3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale service

1. We are very glad that customer give us some suggestion for price and products.

2. If any question,please contact with us freely by E-mail or Telephone.



Company Introduction

Haining ENSUN Solar Technology Co.,Ltd. is a professonal manufacturer of solar water heater with big scale which specializes in research and development of solar enrgy application.

The main products of our company: Non-pressurized solar water heater;Heat pipe solar water heater;Separate pressurized solar waer heater;Heat pipe solar collector;Non-pressurized solar collector;Air source water heater;Centralized engineering system;Pool solar collector system;Solar hot water system;Supporting solar energy. Welcome to ENSUN solar!

Why Choose Us?

A.Our Advantages:

1.Our Product is economic and environmental;

2.Our Product is durable and has a long service life; 3.We have rich production experience.The quality of Product is reliable; 4.We have a perfect production process and strict quality control system; 5.We have perfect service system and will give you the best service.

B.Professional Production Line
