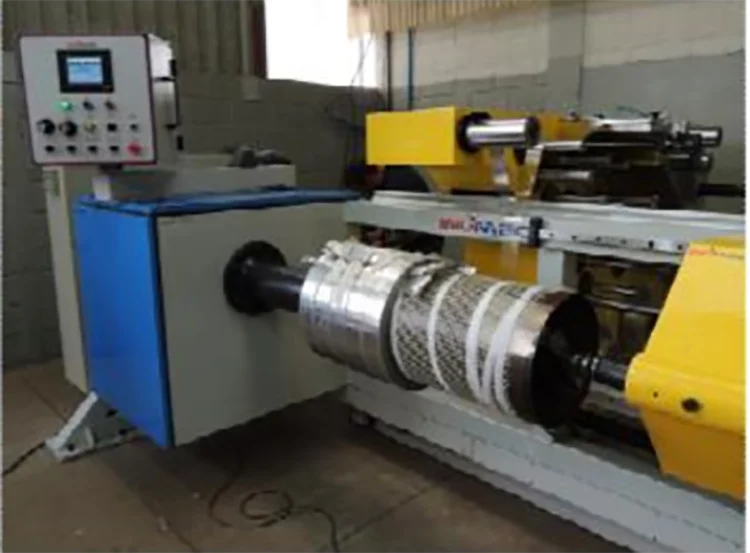

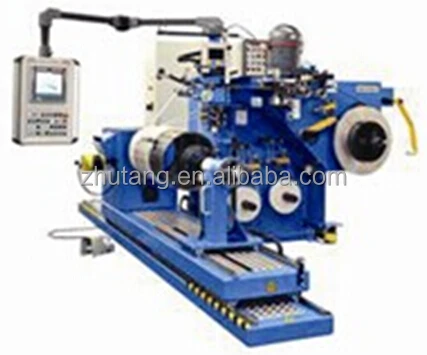

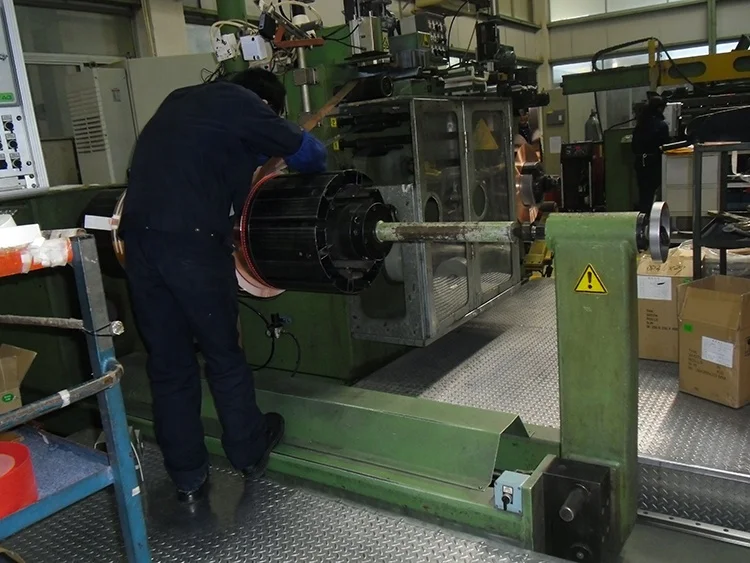

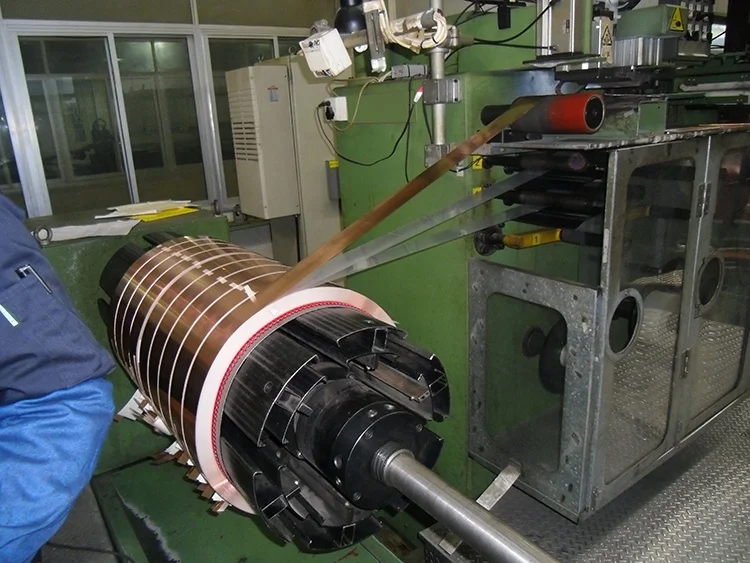

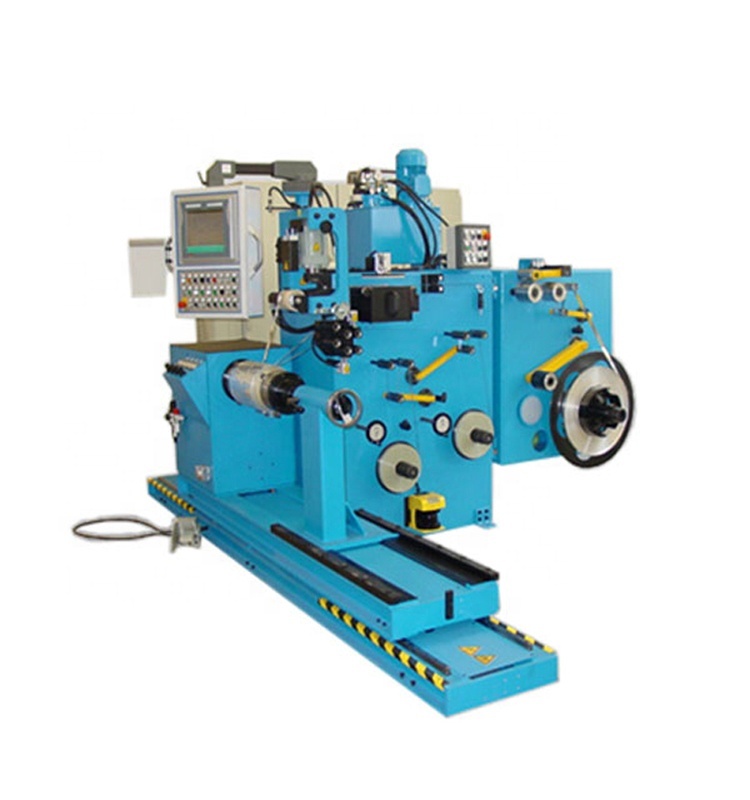

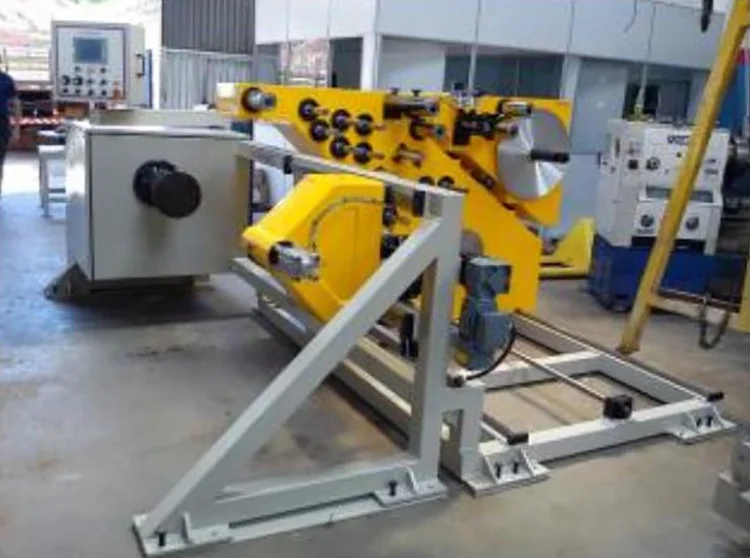

Full Automatic High Voltage Transformer Foil Winding Machine:
1. Functional features
1)Constant tension with setting of two tension sections: low and high and automatic deflection correction is achieved in the winding process. 2)Preset stop point and pre-welding of the outgoing block can be achieved. 3)The coil can be positioned via the accurate axial movement according to the setting and has the function of infrared laser positioning.
2.Components of the device
1) Decoiling machine
2) Cleaning device
3)Burr pressing device
4)Interlayer insulation device
5)Automatic welding apparatus
6)Coiling machine
7)Moving mechanism of the coiling machine
8)Electrical control system
3.Main technical parameters of Automatic High voltage foil winding machine
Parameters of the foil roll
Parameters of the insulation roll
Parameters of the coil
Foil width
20-200mm
Length
25-250mm
Length
20-1400mm
Foil thickness
0.2-3.0mm
Thickness
0.015-0.250mm
Tension
0-10N/m m2
Foil thickness
0.1-2.5mm
Tension
10-250N
Outer diameter of the coil
100-1000mm
Foil tension
50-3,000N
Dilatationshaft (76mm)
74-78mm
Weight of the coil
Max.1,000kg
Diameter of unreeling machine
280-330mm
Outer diameter of the roll
Max.400mm
Torque
Max.1,800Nm
Outer diameter of the roll
Max.1,000mm
Winding speed
Max.90rpm
Weight of the roll
Max1,000kg
Motor power
18.5kw
Warranty
Good after sale services are provided for the machine. The warranty period of the machine is 12 months. During the warranty period, if there is anything wrong with the machine, we will guide you how to eliminate the problem and provide you with components if needed, and all is for free. Beyond the warranty period, we also provide technology support for the machine, if some components are needed, we will provide and charge according to the cost of the components.
