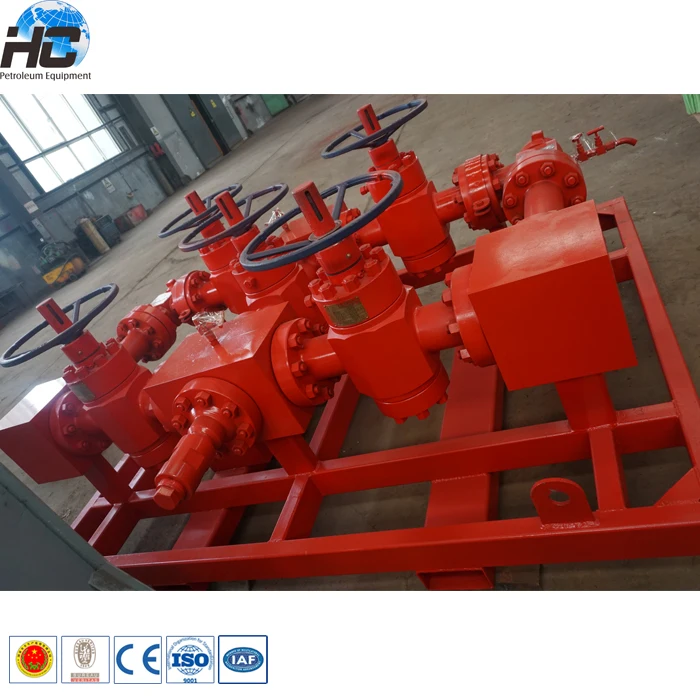

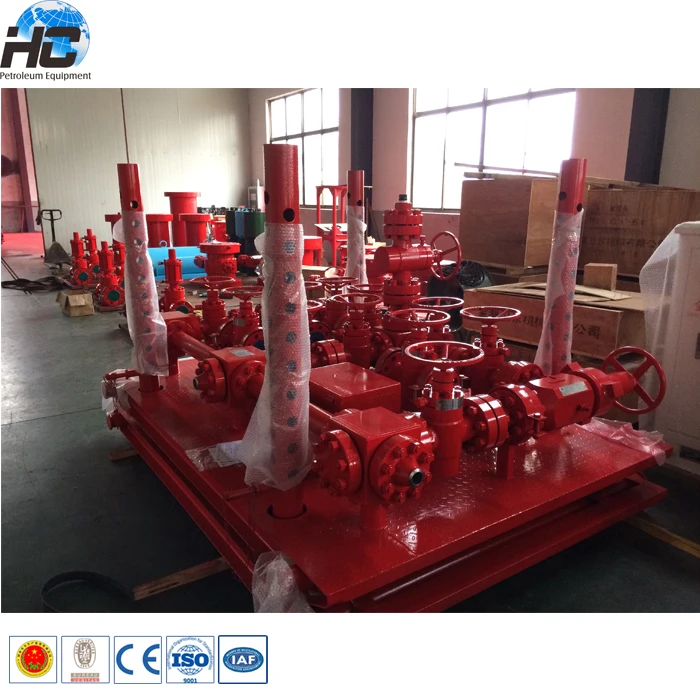

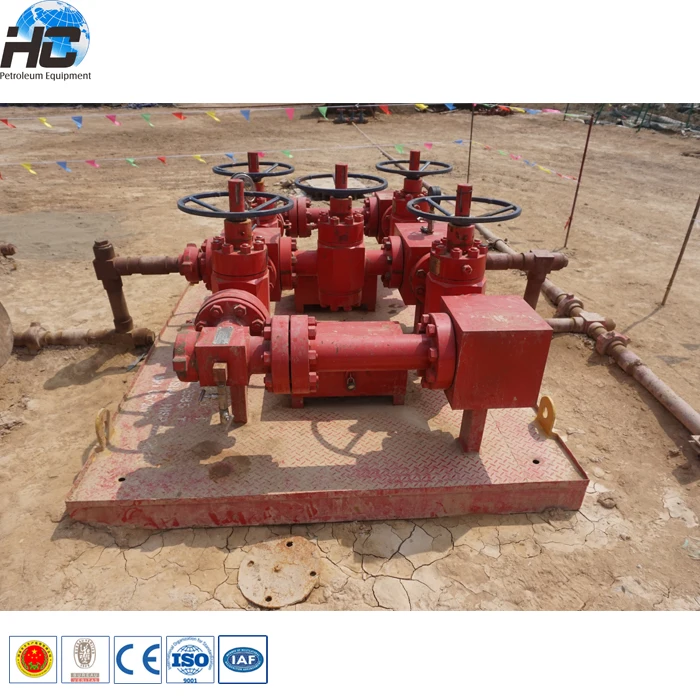

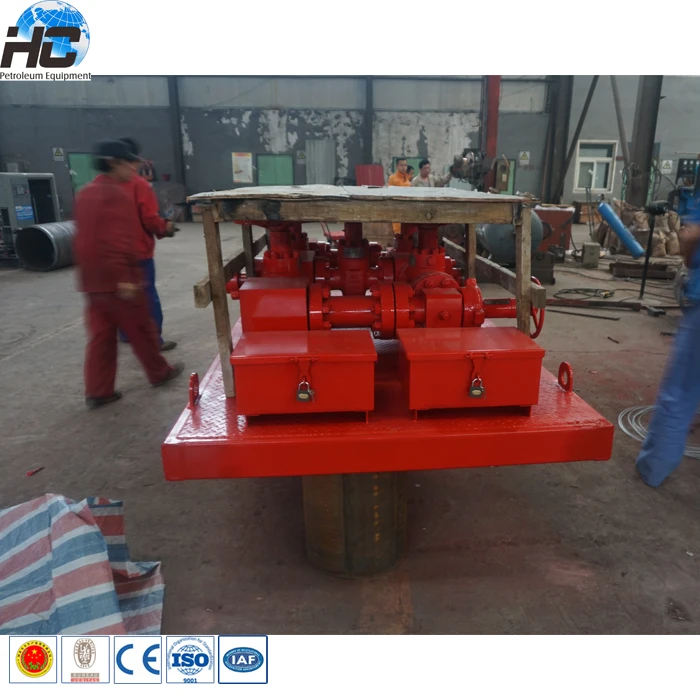

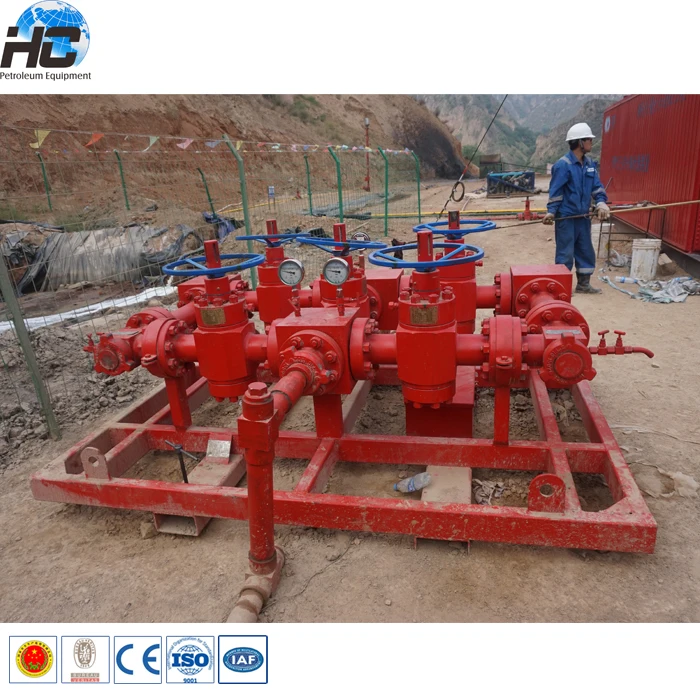

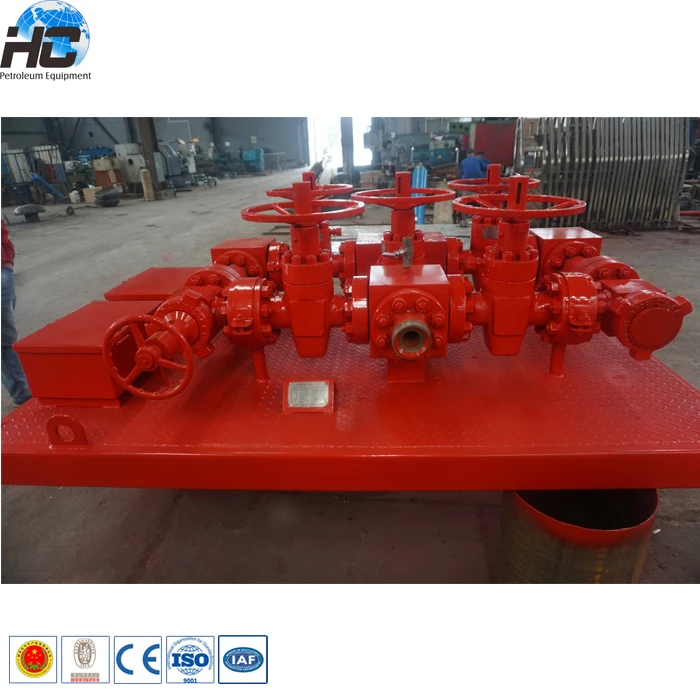

Wellhead control choke manifold / oil kill&choke manifold / drilling choke manifold of hot selling

Product Overview

Description

Wellhead control choke manifold / oil kill&choke manifold / drilling choke manifold of hot selling







The thchnical paramerers about our choke manifold / oil kill&choke manifold / drilling choke manifold:

Pressure	35MPa(5000psi)	70MPa(10000psi)	105MPa(15000psi)
Color	Blue	Yellow	Red
Model	JG/S52-35	JG/S78-70	JG/S78-105
Design Pressure	35MPa	70MPa	105MPa
Weight	2530kg(5578lb)	3580kg(7892.5lb)	4630kg(10260lb)
Dimension(L×W×H)	1802×1339×680mm	2516×1824×799mm	3270×2371×1038.7mm
Material Level	EE	EE	EE
Product specification level	PRL3	PRL3	PRL3
Working Temperature	PU(-29℃~121℃)	PU(-29℃~121℃)	PU(-29℃~121℃)
Product performance level	PR1	PR1	PR1
Nozzle	Fixed and adjustable nozzle	Fixed and adjustable nozzle	Fixed and adjustable nozzle
Characteristics	Five gate design	Five gate design	Five gate design
work medium	Mud,oil and drilling fluid	Mud,oil and drilling fluid	Mud,oil and drilling fluid
Connection type	Flange	Flange	Flange







Main features of our choke manifold / oil kill&choke manifold / drilling choke manifold as below:

1.Control the well fluid flow

2.Built-in Cameron style gate valves which can be redressed on pipeline

3.Standard two flow system: one through a positive choke and the other through an adjustable choke that can be converted into a positive choke

4.Provides a means for fluid sampling, real-time pressure and temperature monitoring, and chemical injection

5.Metal-to-metal, double seal to ensure reliability in harsh environments

6.15000psi adjustable nozzle adopts gear handle,which can reduce the operating torque
