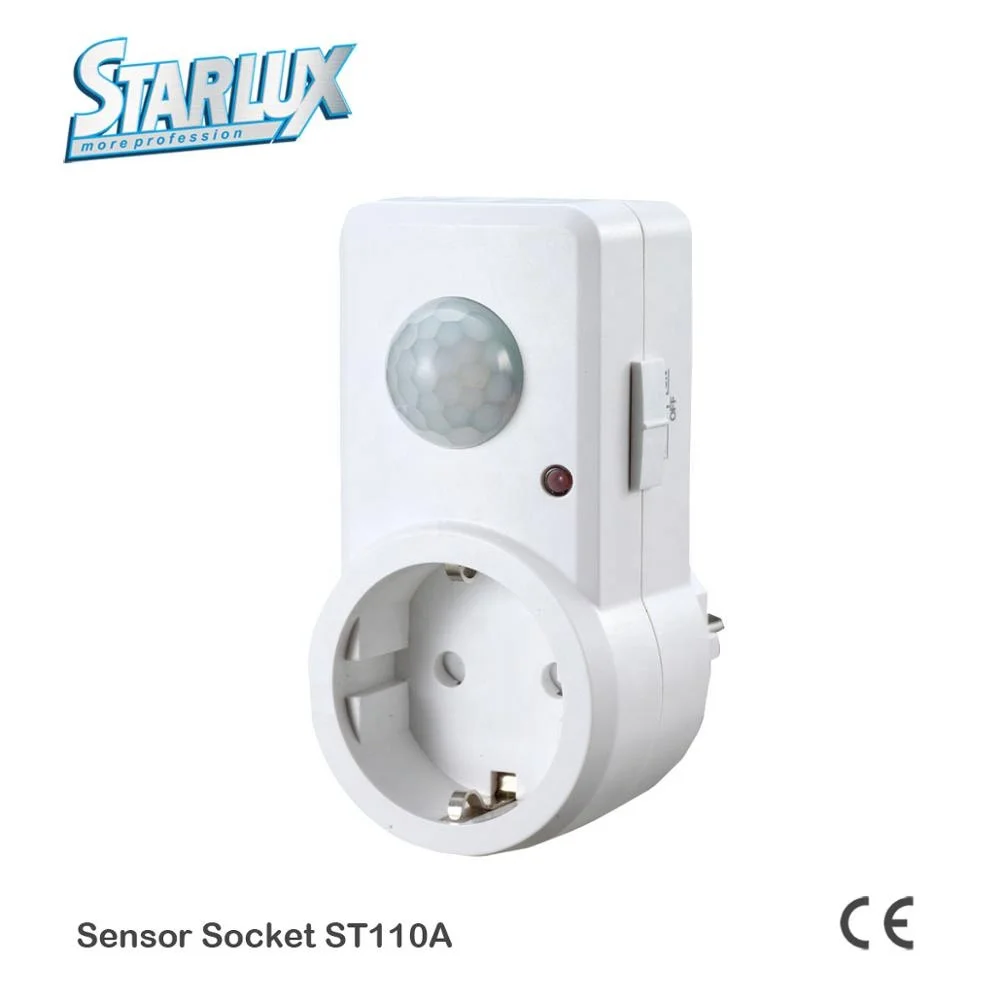

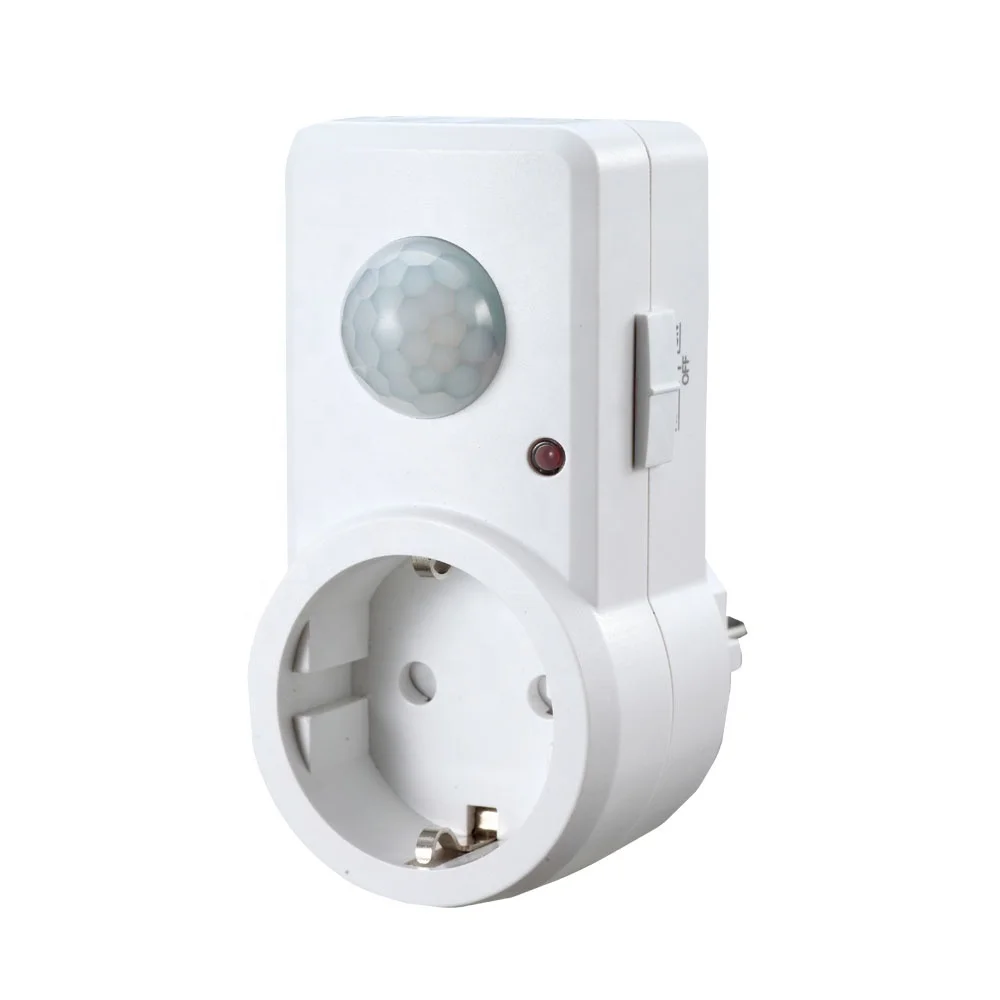

ST110A Excellent performance Smart Home Socket German style Design Infrared Motion Detector Timer PIR Switch Sensor Socket

Product Overview

Description

Welcome to use ST110A German Sensor Socket!

ST110A Excellent performance Smart Home Socket German style Design Infrared Motion Detector Timer PIR Switch Sensor Socket

The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.



SPECIFICATION:

Power Source: 220-240V/AC                                     Detection Range: 120°



Power Frequency: 50/60Hz                                        Detection Distance: 2-9m(<24℃) adjustable



Ambient Light: <3-2000LUX (adjustable)                   Working Temperature: -20~+40℃



Time Delay: Min.10sec±3sec                                     Working Humidity: <93%RH



                    Max.7min±2min                                      Power Consumption: approx 0.5W



Rated Load: Max.1200W(incandescent lamp)           Endurance Test: 25E3



                            300W(energy-saving lamp)           Detection Moving Speed: 0.6-1.5m/s



Lifetime and Warranty:

Lifetime(hr)	26000-45000 at least
Warranty	3 years



FUNCTION:

Ø  Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.

Ø  SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 2m and high sensitivity could be 9m which fits for large room.

Ø  Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.



INSTALLATION ADVICE:

As the detector responds to changes in temperature, avoid the following situations:

Ø  Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc.

Ø  Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc.

Ø  Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.



CONNECTION:

Ø  Fix the sensor socket in the place where you will want to install according to right figure.

Ø  After installation of the sensor socket, connect it with lamp, then you could test it.





TEST:

Ø  Turn LUX knob clockwise to the maximum (SUN). Turn TIME knob anti-clockwise to the minimum (-).Turn the SENS knob clockwise on the maximum.

Ø  Switch on the power; the sensor and its connected lamp will have no signal at the beginning. After Warm-up 30sec, the sensor can start work .If the sensor receives the induction signal, the lamp will turn on. While there is no another induction signal any more, the load should stop working within 10sec±3sec and the lamp would turn off..

Ø  Turn LUX knob anti-clockwise on the minimum (moon). If the ambient light is more than 3LUX, the sensor would not work and the lamp stop working too. If the ambient light is less than 3LUX (darkness), the sensor would work. Under no induction signal condition, the sensor should stop working within 10sec±3sec.



Note: when testing in daylight, please turn LUX knob to (SUN) position, otherwise the sensor lamp could not work! If the lamp is more than 60W, the distance between lamp and sensor should be 60cm at least.



PRODUCT CAPACITY:

Our company adopts automatic machines,such as:SMD,auto component inserter,wave solder,auto injection machine and so on.And the daily output is up to 20000~30000pcs.



CERTIFICATE:

The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification.
