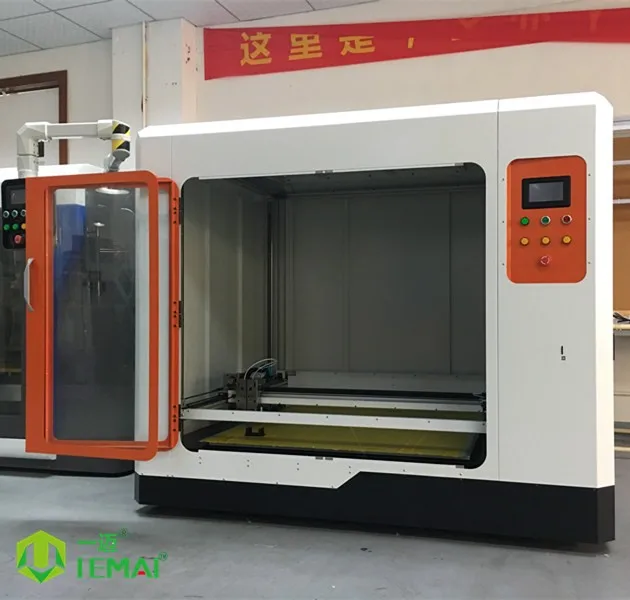

1000*1000*1000mm industrial 3 D printing equipment Figure ABS/PLA/PETG Filament 3D Printer
Product Description
The 3D printing equipment adopts technology of fused deposition modeling.
Below are the main advantages:
1. Large print size: print size 1000*1000*1000mm, color and logo can be customized .
2. Support most normal temperature filaments, including most PLA and its compound filaments, modified ABS, PVA, TPU, PETG, etc.;
3. Single layer metal plate enclosed keeping-warm structure, normal temperature nozzle(maximum temperature 260℃), hotbed maximum temperature 110℃, and inner chamber maximum constant temperature 50℃(error±5℃);
4. Stable structure and industrial transmission parts: the XYZ axis adopt industrial linear guide rail and professional drive motor, fixed hotbed plate, single-layer metal enclosed structure and 30*30mm aluminum profile frame;
5. Effectively decrease printed model’s edge warping: it adopts silicone heating plate, which can be heated to maximum 110 ℃, and that ensure filaments can stick to hotbed tightly. Most of all, the plate can heat inner chamber to maximum constant temperature 50℃, which obviously relieve effect of thermal expansion and cold shrinkage, consequently, printed model’s edge warping is effectively decrease;
6. Customized special functions: print resuming, filament-supply detecting, automatic shutdown, air filter, WIFI control, etc.;
7. Machine structure design: metal plate paint spraying(white and orange color), opaque smooth surface, chassis has pulley, built-in white LED lighting, chassis design is convenient for forklift, built in double filaments supply.
8. Automatic bed leveling system;

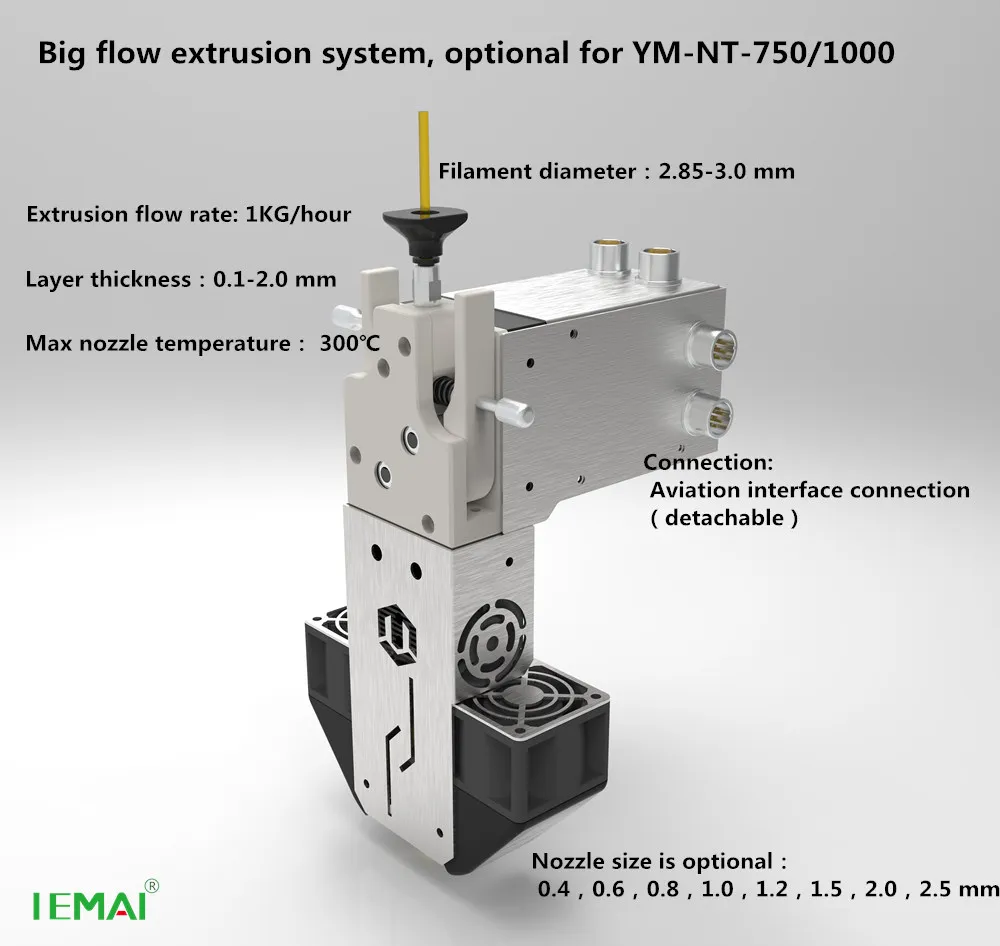

9. High flow 2.85mm extrusion head is optional, max extrusion rate is 1kg per hour.
Technical Parameter
Hotbed max temp: 120℃ | Hotbed type: fibre plate/ glass plate |
Nozzle max temp: 265℃ | Nozzle material: stainless steel, aluminum, copper, PTFE throat tube |
Inner chamber max constant temperature: 50℃(erro ±5℃) | Nozzle diameter: 0.4-0.6mm |
Nozzle quantity: dual nozzle(fast detachable type) | Print size: L1000*W1000*H1000mm |
Max print speed: 120mm/s | Software format: stl obj dae amf |
Max motion speed: 250mm/s | Print layer thickness: 0.05mm-0.3mm |
XY axis guideway: Industrial linear guideway | XY positioning accuracy: 0.005mm |
XY axis motor: 57 stepper motor | Transmission: industrial belt + synchronizing wheel |
Z axis motor: 86 stepper motor | Z axis threaded rod: Industrial ball threaded rod |
XYZ axis and nozzle motor drive: Professional expansion drive | E axis motor: 42 stepper motor(4 units) |
Z axis positioning accuracy: 0.0025mm | Print technology: Fused deposition modeling |
Work temp: 15-40℃ | Screen: 5 inch English full color touch screen |
Filament supported: 1.75mm PLA, modified ABS, PETG, WOOD, TPU, Carbon PLA, etc. | Control software: CURA, SIMPLIFY 3D |
SD card off-line printing & USB on-line printing & Wifi | Frame: metal plate + aluminum profile frame(full closed type |
Structure & Parts

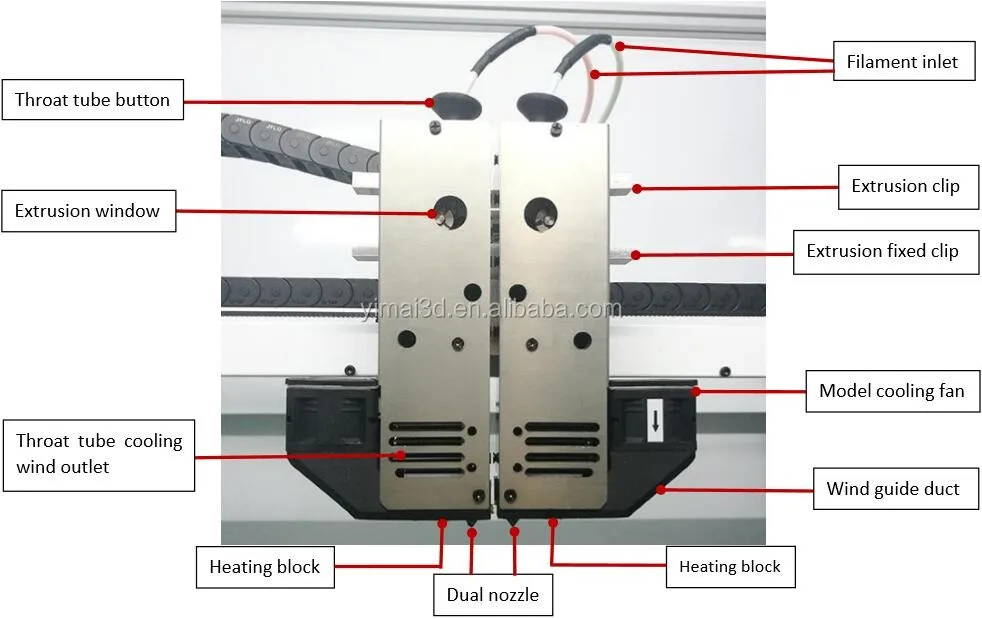

Fast detachable type dual nozzle

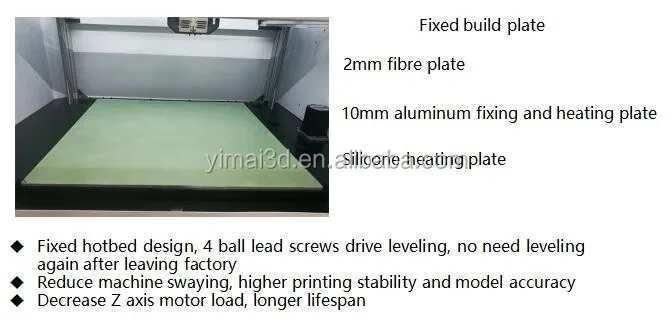

Fixed build plate

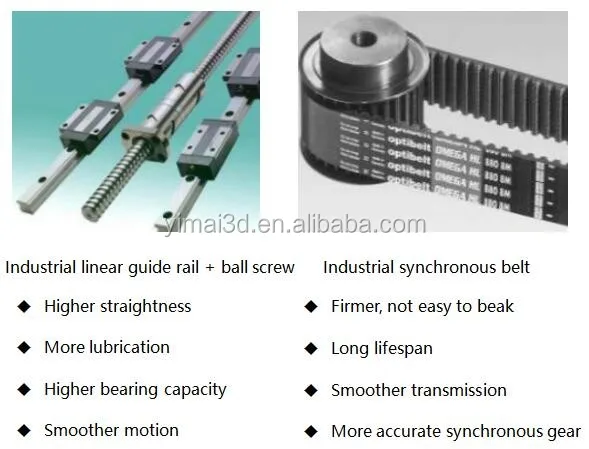

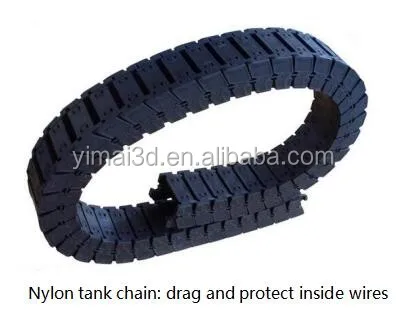

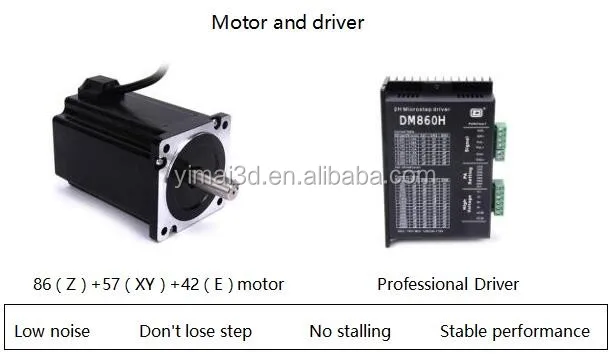

Transmission parts

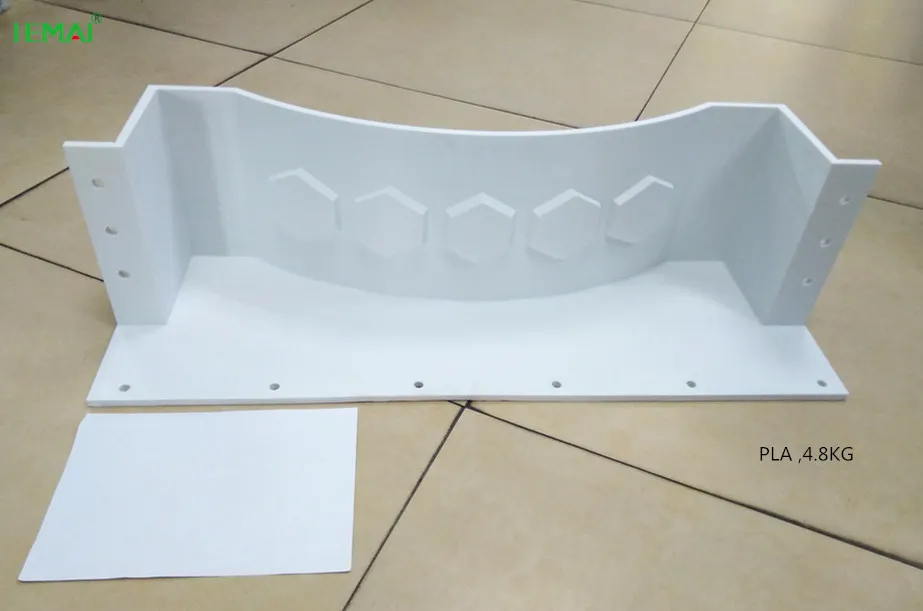

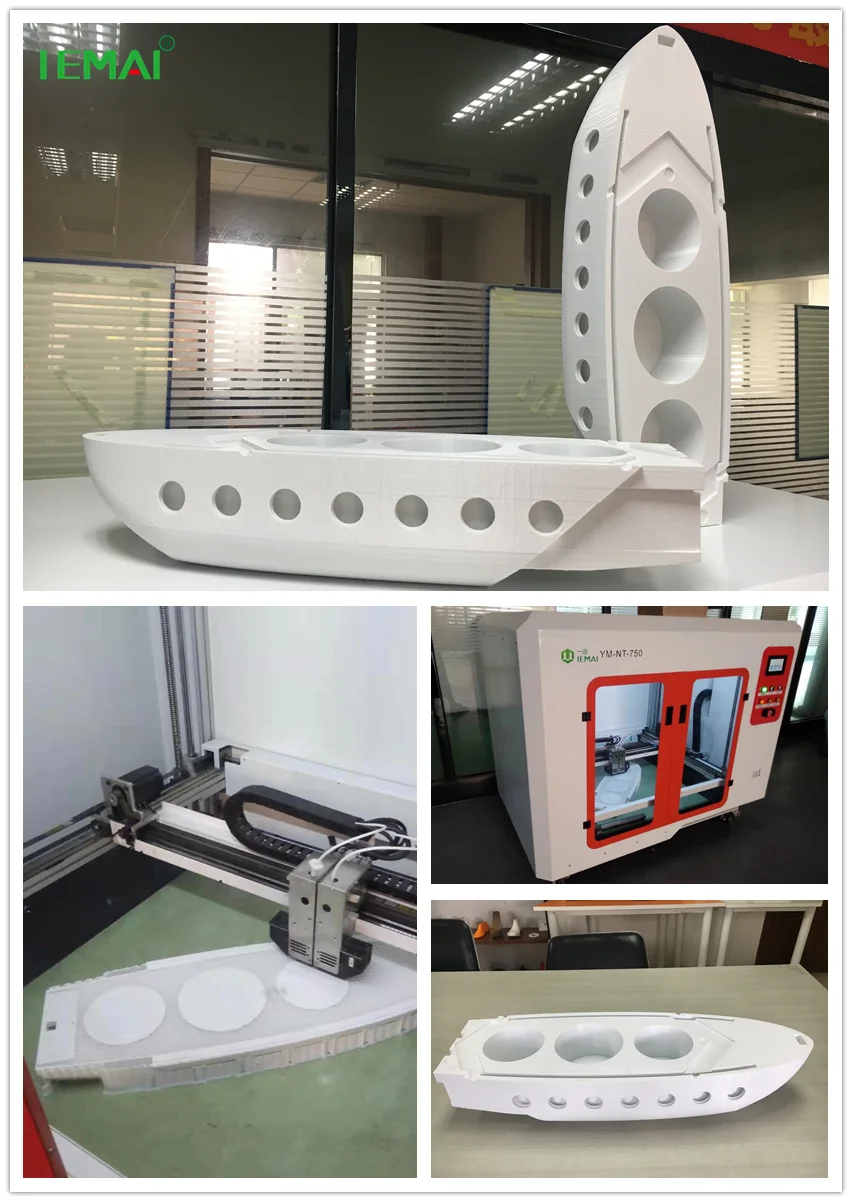

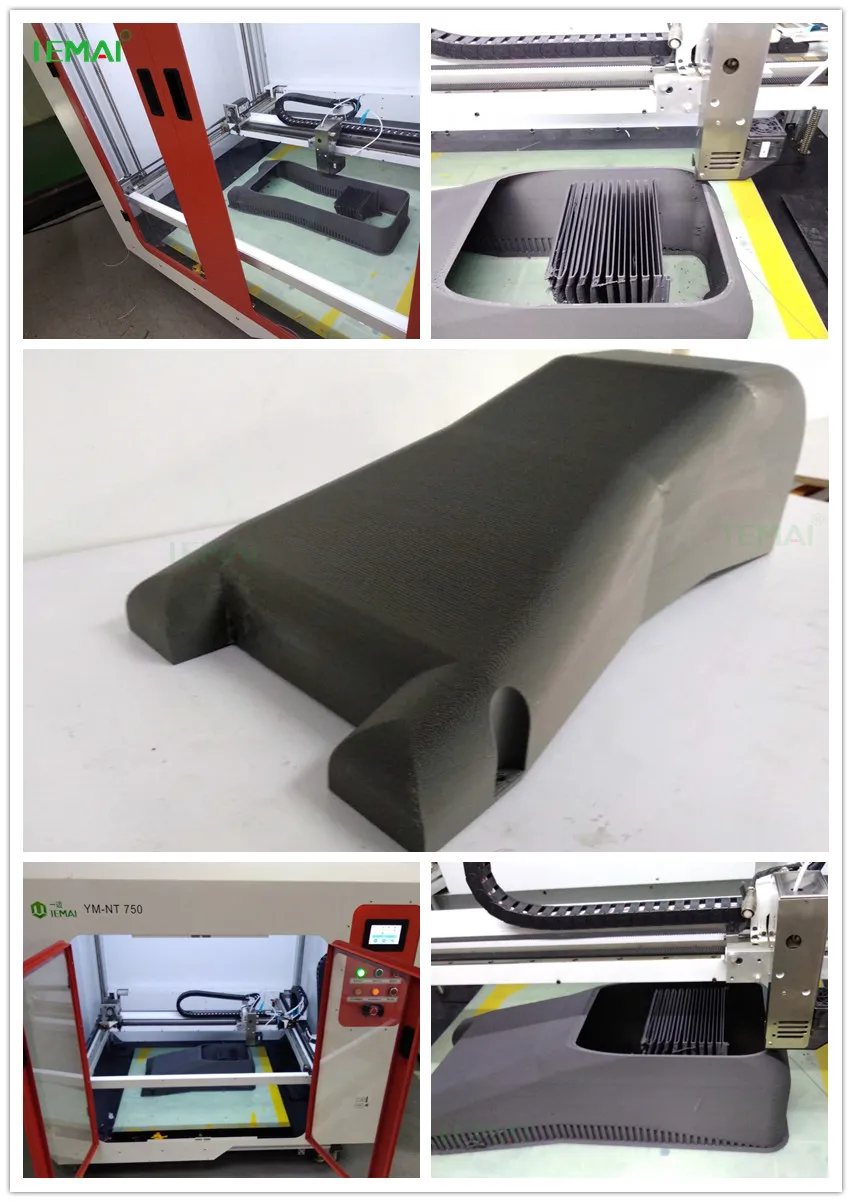

Printing samples
Large size TPU sheet
YM-NT-750/1000 is good at flexible materials printing, like TPU, TPE, Flexible PLA, etc.. Because they adopt double feed motors, Guaranteed stable feeding, no deformation of the material, to ensure the precision of printing.
Large size artwork flower
YM-NT-750/1000 adopt power off resume function, precision closed-loop step motor,and durable industrial linear guides,so it can do long-lasting printing, fit for large size model 3D printing.
Big size CARBON FIBER PLA printing
YM-NT-750/1000 With the quick-release print head, the print head can be quickly replaced, and different materials are used with corresponding nozzles.

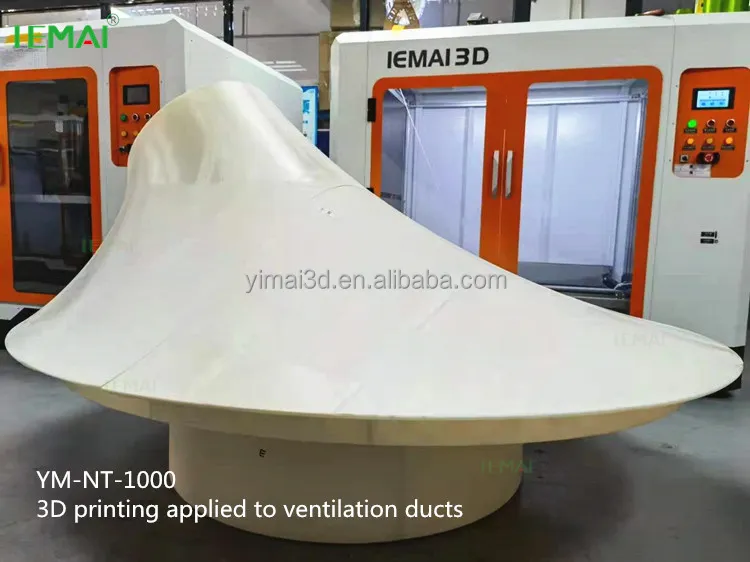

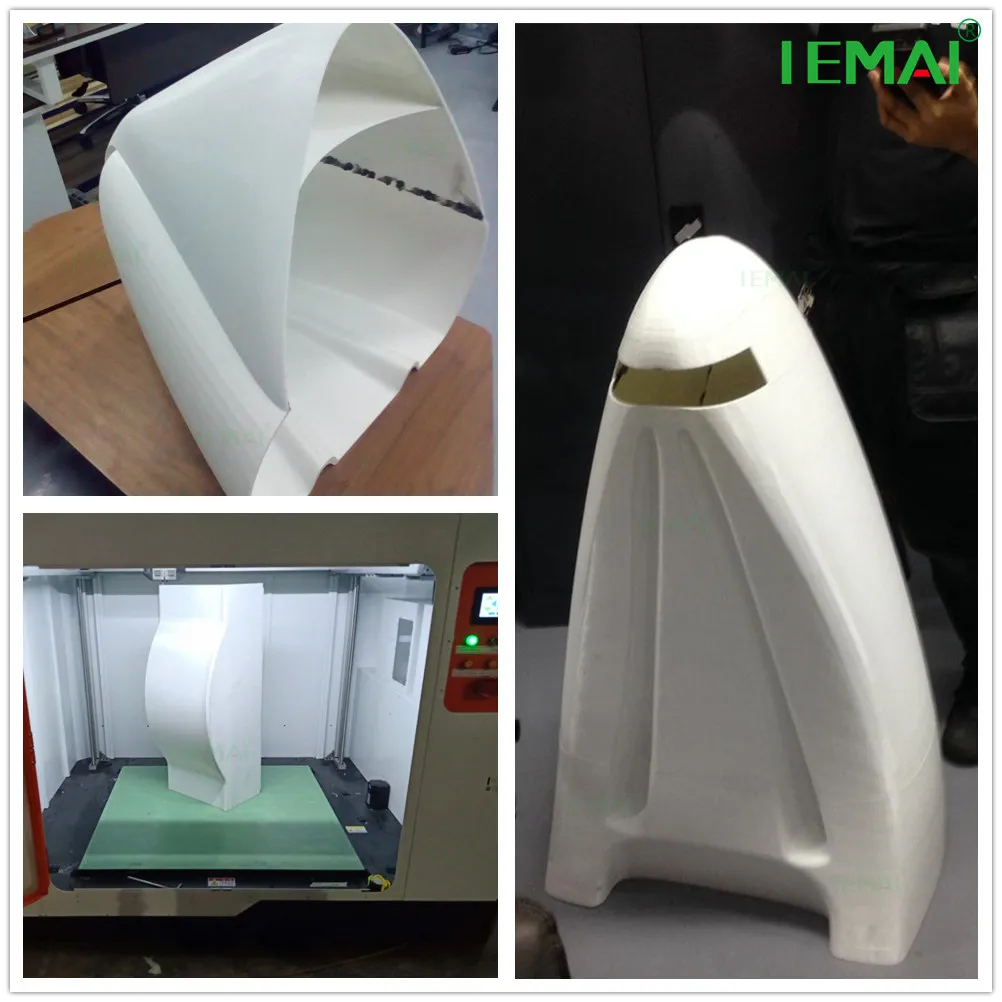

The model below is printed by our customers, using the YM-NT-1000 for full-size printing, which is stitched together after printing. If you need to print a model over 1 meter, it is recommended to refer to the following method.
Company Information
Dongguan Iemai Intelligent Technology Co.,Ltd is a high technological enterprise which specialized in producing 3D printers and 3D filaments in the Pearl River Delta of China. IEMAI 3D develops, manufactures, and sells high performance functional materials and Industrial 3D printing solutions.
IEMAI is committed to the highest manufacturing design and quality standards where all 3D printers have received ROHS and CE certifications. IEMAI is committed to the research and development of core technology, and we have software copyright and invention patents.
Today, IEMAI's 3D printing solutions cover the aerospace, automotive, oil and gas, medical, dental and electronics manufacturing industries.
Our Main products:

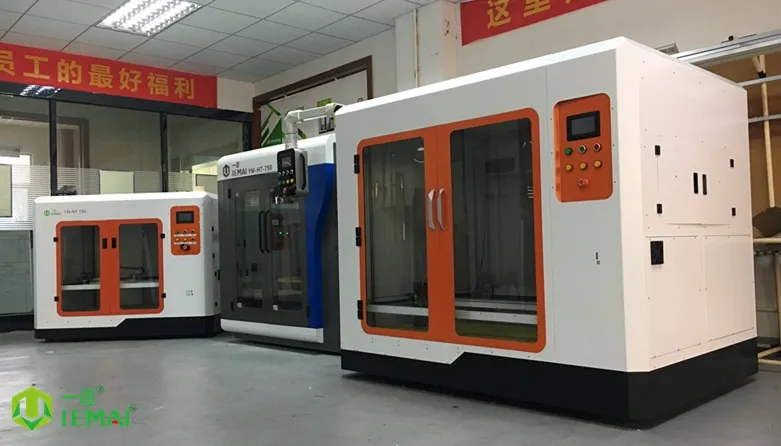

1. Large printing size industrial series: YM-NT-750, YM-NT-1000.
