LC Brand Infrared paint dryer hot air curing machine shrink tunnel IR drying shrinking tunnel
- Category: >>>
- Supplier: Luen Cheong Printing Equipment Ltd.
Share on (60586175925):
Product Overview
Description
Infrared paint dryer hot air curing machine shrink tunnel IR drying shrinking tunnel
Product Description
Description:
IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.
Features:
1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.
2. adopt hot circulating system,save energy effectivly.
3. Famous screen belt , customers' designs are welcome
4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
5.Adjustable belt speed and tunnel temperature controls.
Parameters:
1. | Conveyor length :7000 |
2 | Conveyor width:600mm |
3 | machine size: (L)7100x(W)1050x(H)1260mm |
4 | working power: AC 380V 50HZ |
5 | Temperature adjustment: 0-200 Centigrade |
6 | constant temperature will be 5º C more or less |
7 | temperature resolution: 1º C |
8 | Belt speed adustment: 0-10M/MIN |
9 | Gross weight: 600 KG |
Warranty | For all our machines, we provide one-year warranty. |

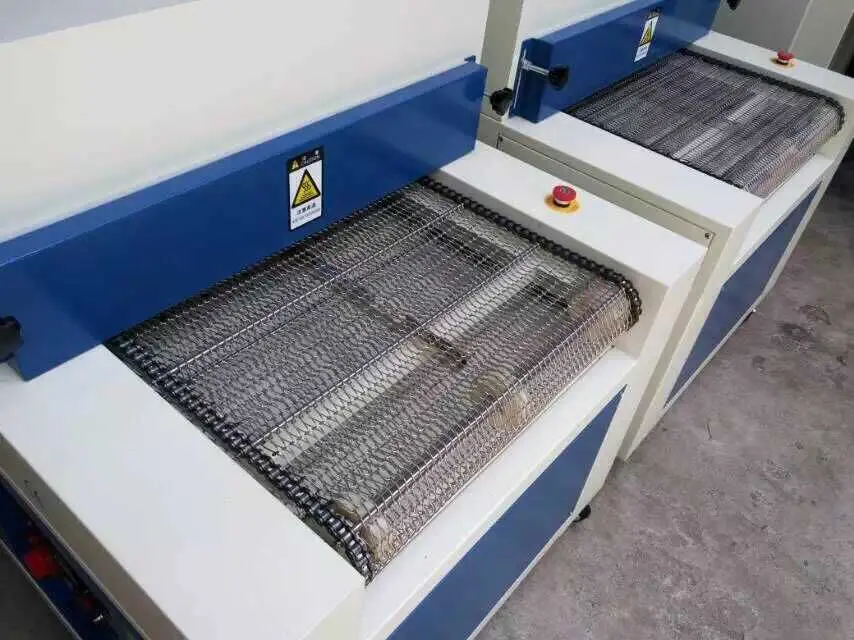

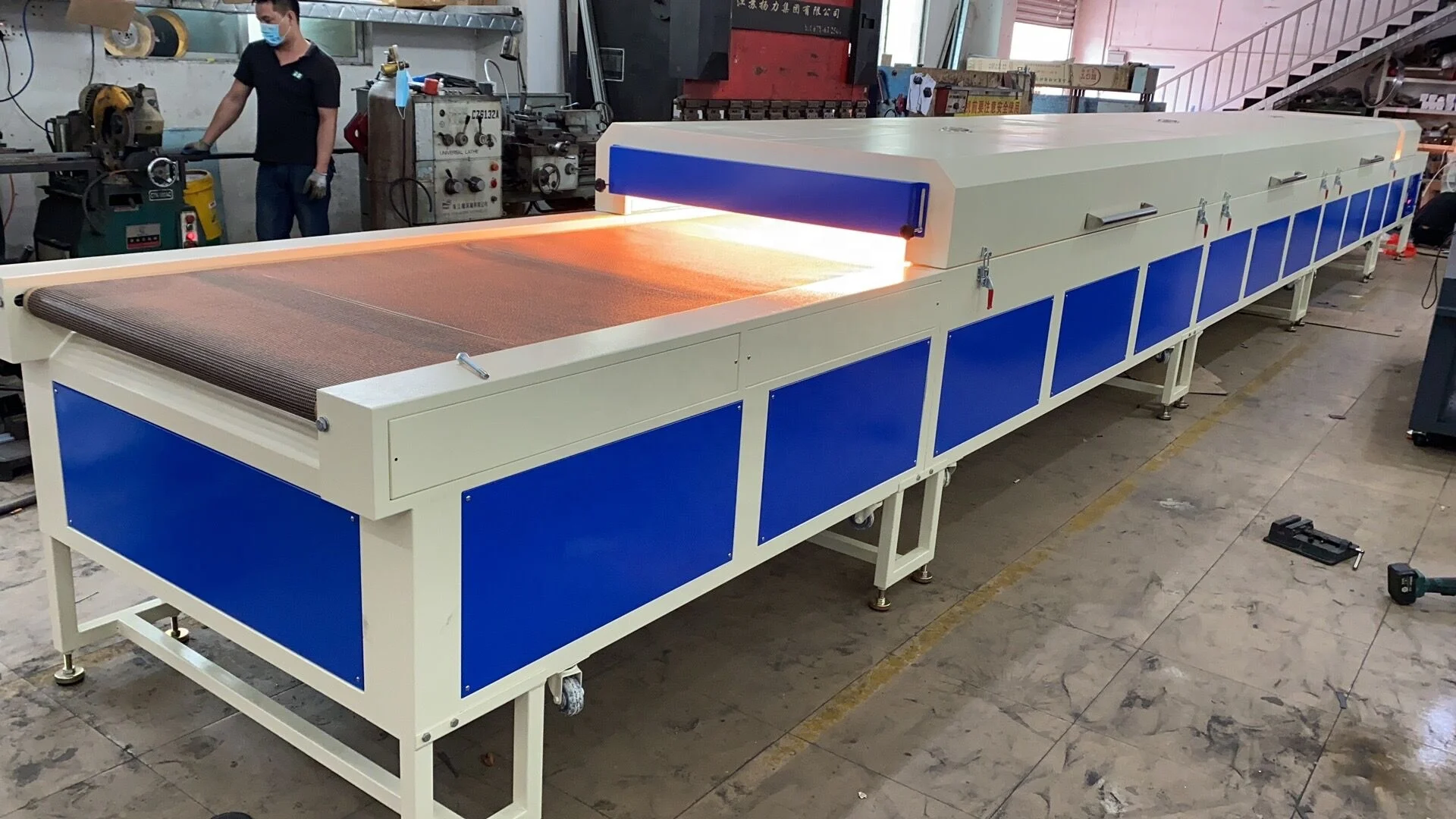

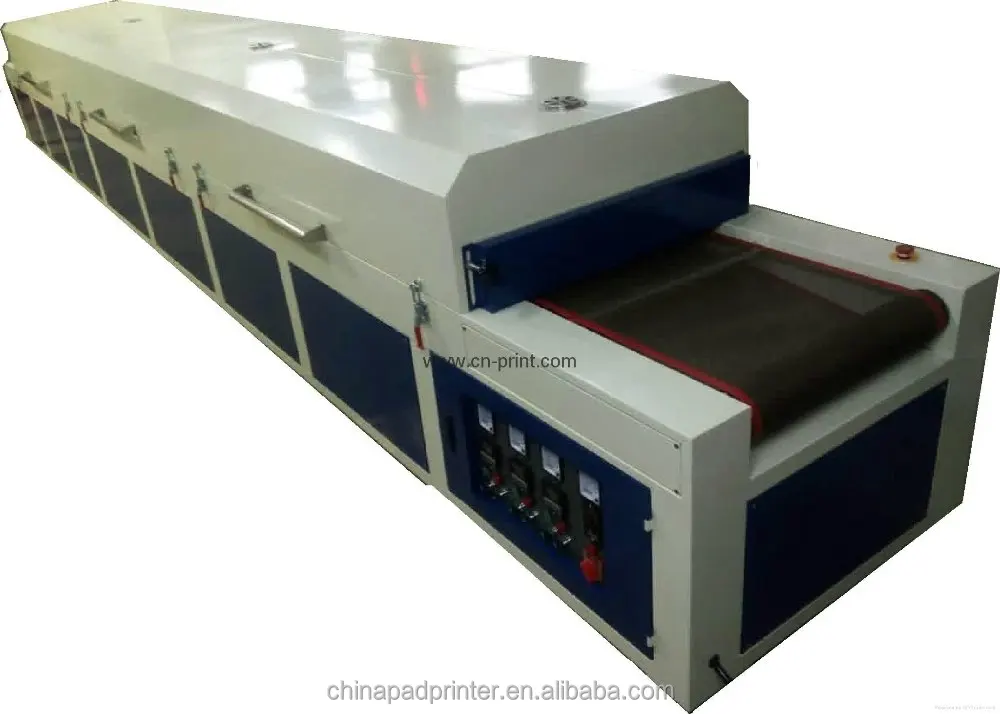

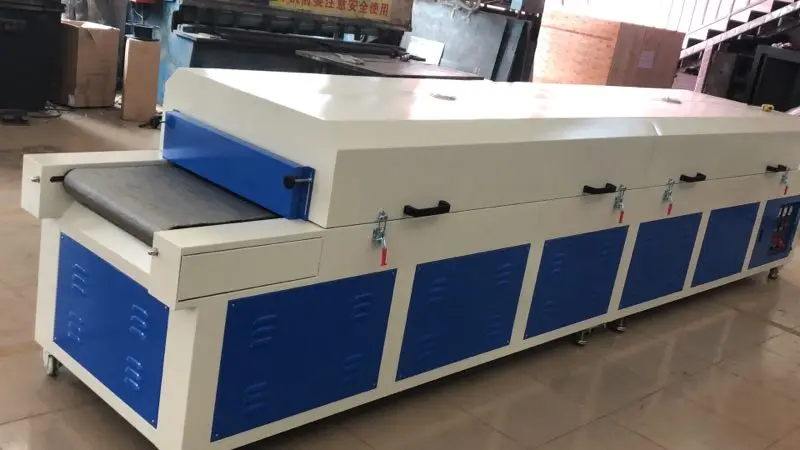

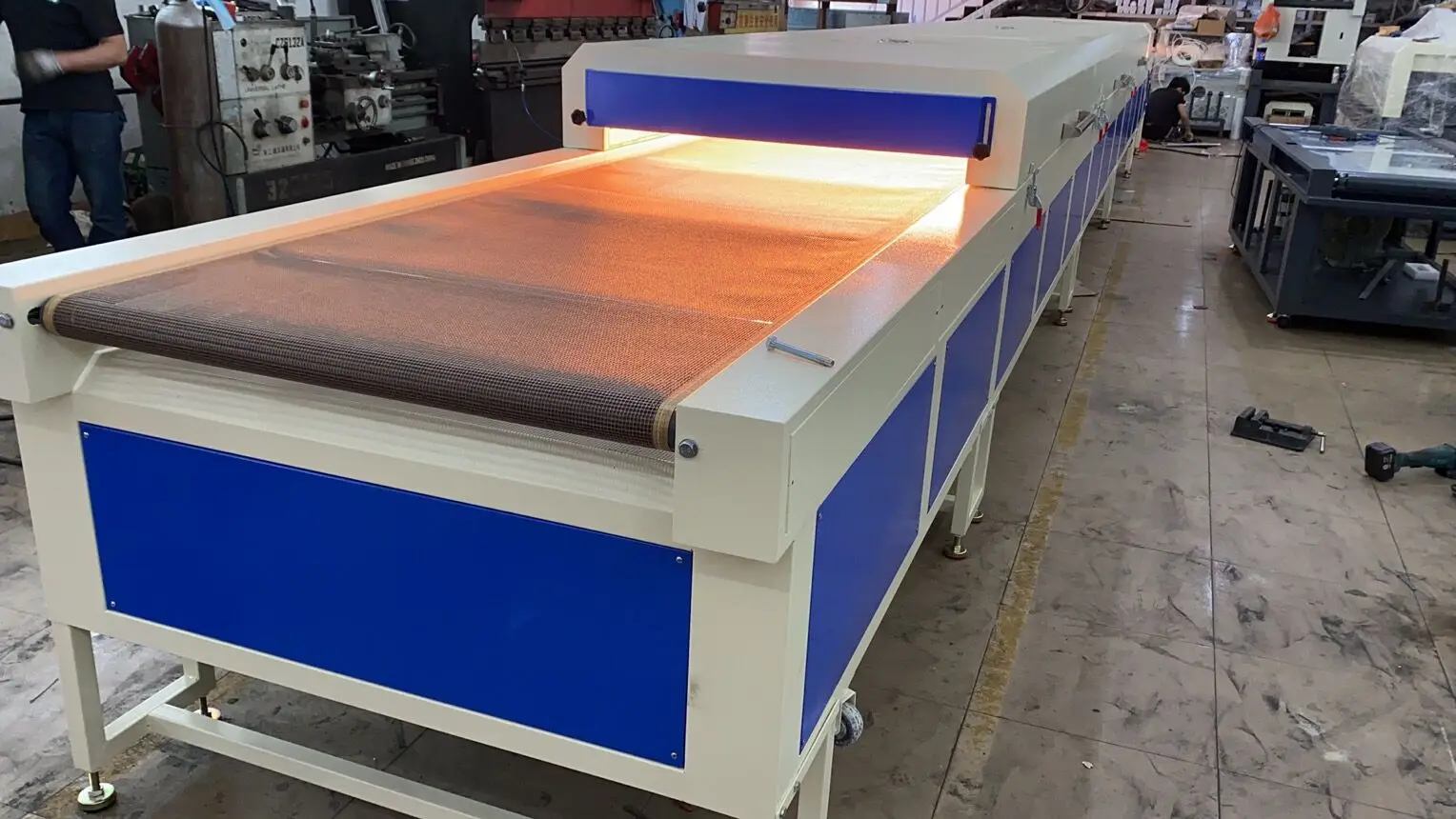

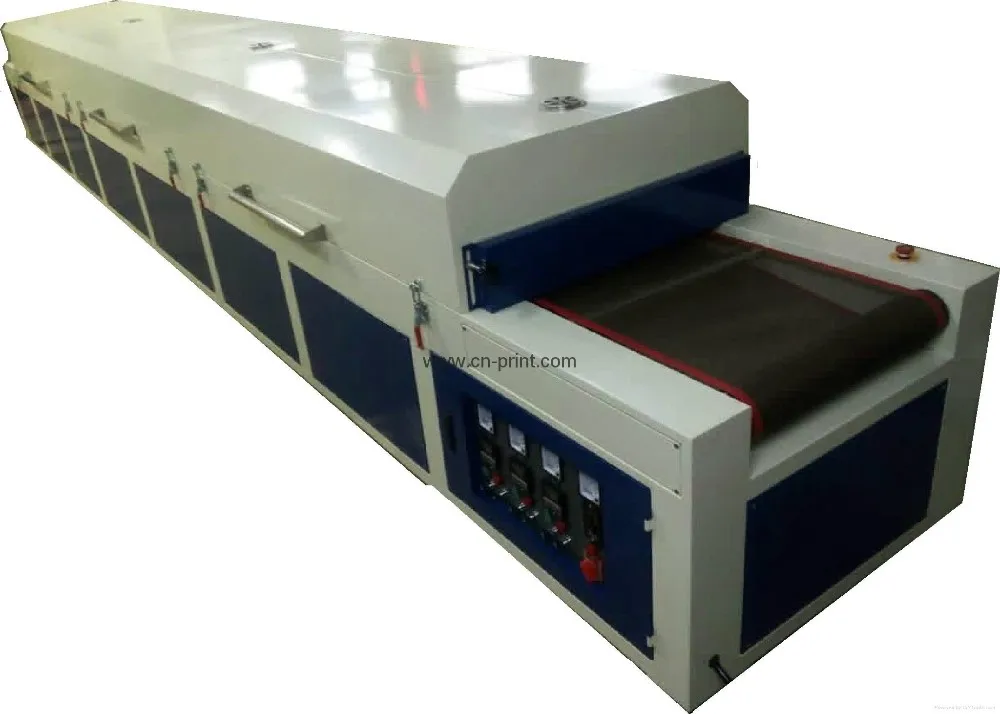

Machine pictures
Infrared paint dryer hot air curing machine shrink tunnel IR drying shrinking tunnel
Infrared paint dryer hot air curing machine shrink tunnel IR drying shrinking tunnel
Infrared paint dryer hot air curing machine shrink tunnel IR drying shrinking tunnel
Infrared paint dryer hot air curing machine shrink tunnel IR drying shrinking tunnel
Company Information
Luen Cheong Printing Equipment Limited has manufactured LC brand color printing machines for more than 30 years, including various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines and cliche making machine and pre-post printing machine.We have passed ISO-9001-2000 certification in 2001 and are a member of SGIA and all of our industrial printers have EURO'S CE standard.

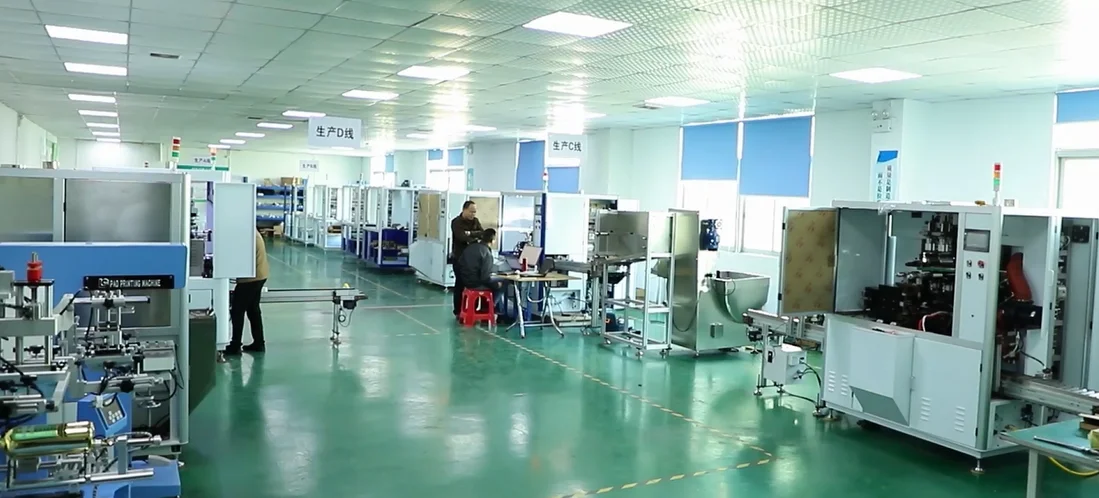

our factory
Our Services
1.The guarantee time is 1 years, and maintain is lifelong. During this time, if any work piece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, but the carrier cost must be in buyer's side. And the machines have matched an urgent foot switch.
2.The supplier must sure the machine all work well before package.
3.we will provide the working video after delivery the machines.
4.Welcome your engineers to come to our factory for training.
FAQ
Our CE Certificate
Q1: Are you a factory or a trading company?
A: we are factory manufacture of printing machine and we provide perfect OEM and after-
sale service.
Q2: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q2: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q3: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition.
Q4: How can I know your machine is designed for my product?
A: You can send us product samples, we test it on machine.
A: Before delivery, we shall test the machine working condition.
Q4: How can I know your machine is designed for my product?
A: You can send us product samples, we test it on machine.
