| ---Product Description--- |
This product is automatic induction control of doppler radar products.High sensitivity, long distance detect, high reliability, big detect angle. Also the power supply voltage is range.It is a widely used in all kinds of human body induction lighting, anti-theft alarm situations.
HW - M10 USES planar antenna is the transmission and reception, as the active sensor. The sensor transmit high frequency electromagnetic wave (10.525 GHz) and receive echo. HW - M10 detecting changes in the echo inside even small movement. Then microprocessor triggers, executes instruction . Signal can be detected through glass, doors or thin wall.
|
| 1.Strong anti-interference ability, stable performance, not influenced by environmental
temperature.
2 .Small size, simple installation. Quick response and high sensitivity.
3. Induction distance can also customize, the detection angle is 180 x 360
4 .Radar wave can penetrate non-metallic objects, such as wood, glass, plastic, fabric, etc |
| Technical Parameters: | Part number | HW-M10 |  | | Product Name | Microwave Module | | Dimension | 30*20*6mm | | Distance | 1-30m | | Angle | 180*360 | | Operating temp. | -20~+80degree | | Transmission power | <2mW | | Delay time | default 3 s (3-200 s adjustable) | | Blocking time | The default 0 s (adjustable) | | Trigger way | Repeat(default) | | Level of output | High-5/low-0V | | Current | <1uA | | Supply voltage | DC 12V (6-22V) | | Load power | 1.By adding relay as a trigger
signal. 2.Maximum power 1000
w | | Installation | Hanging install, such as install
suction a top;T8 is built |
Warm note:
a, Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an
electric shock.
b, Avoid installed in the hot sun rain, to prevent damage or affect the lifetime.
c: Better install far away from the place of the magnetic field or the conductor to avoid wrong
actions Product Photos

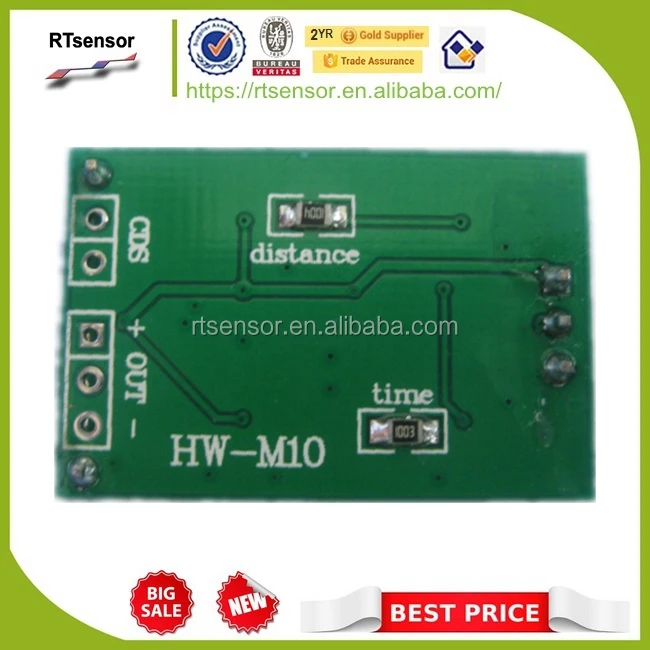

Note:
The resistor value more,the distance larger.
The resistor value more,the delay time longer. As following is the adjustment version of time and distance | Resistance (Ohm) | Distance(m) | | 3M | 30 | | 2M | 20 | | 1M | 15 | | 820K | 10 | | 750K | 8 |
| Resistance (Ohm) | Time(sec) | | 2.2K | 1s | | 10K | 5s | | 100K | 30s | | 330K | 60s |
|
| Oour customized packing is available . | Packing | Bulk; 100pcs/small package, 1000pcs/ big package | | Shipping | By express ; <100KG By Air : >100KG By Sea : >300KG |
|
