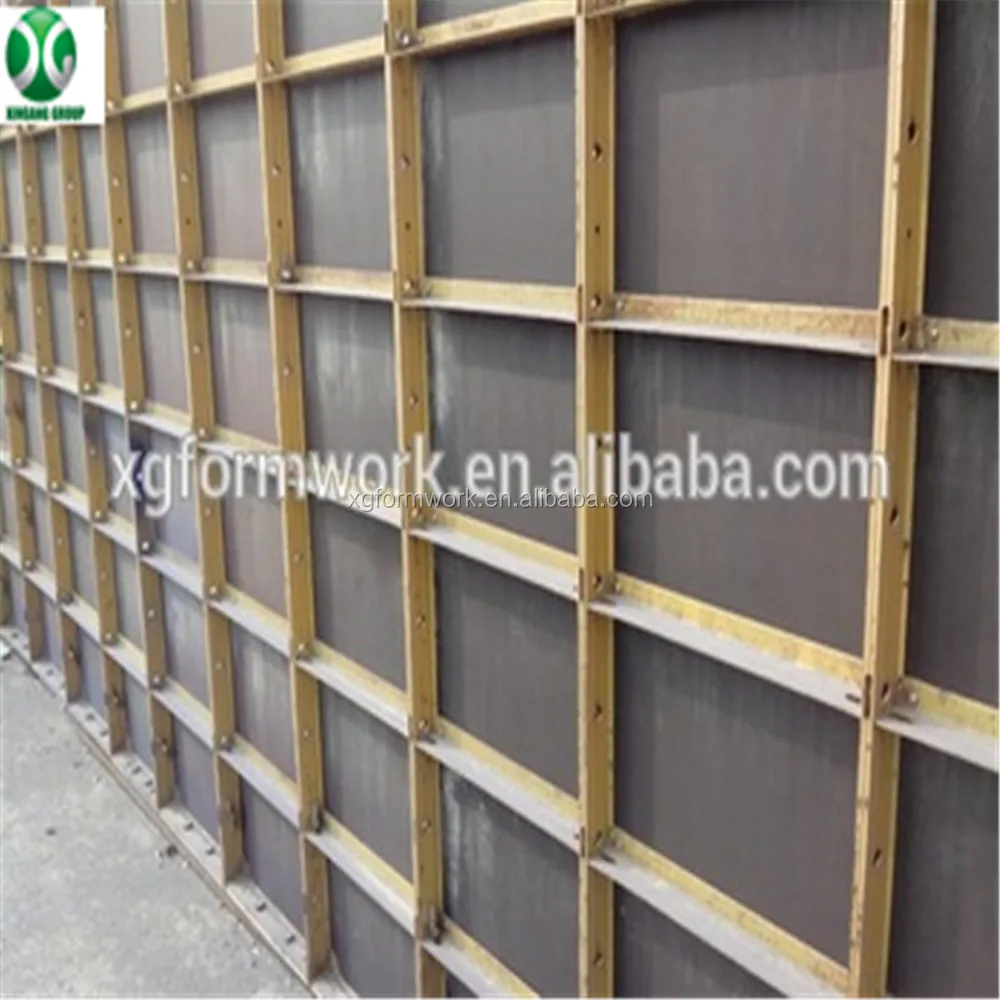

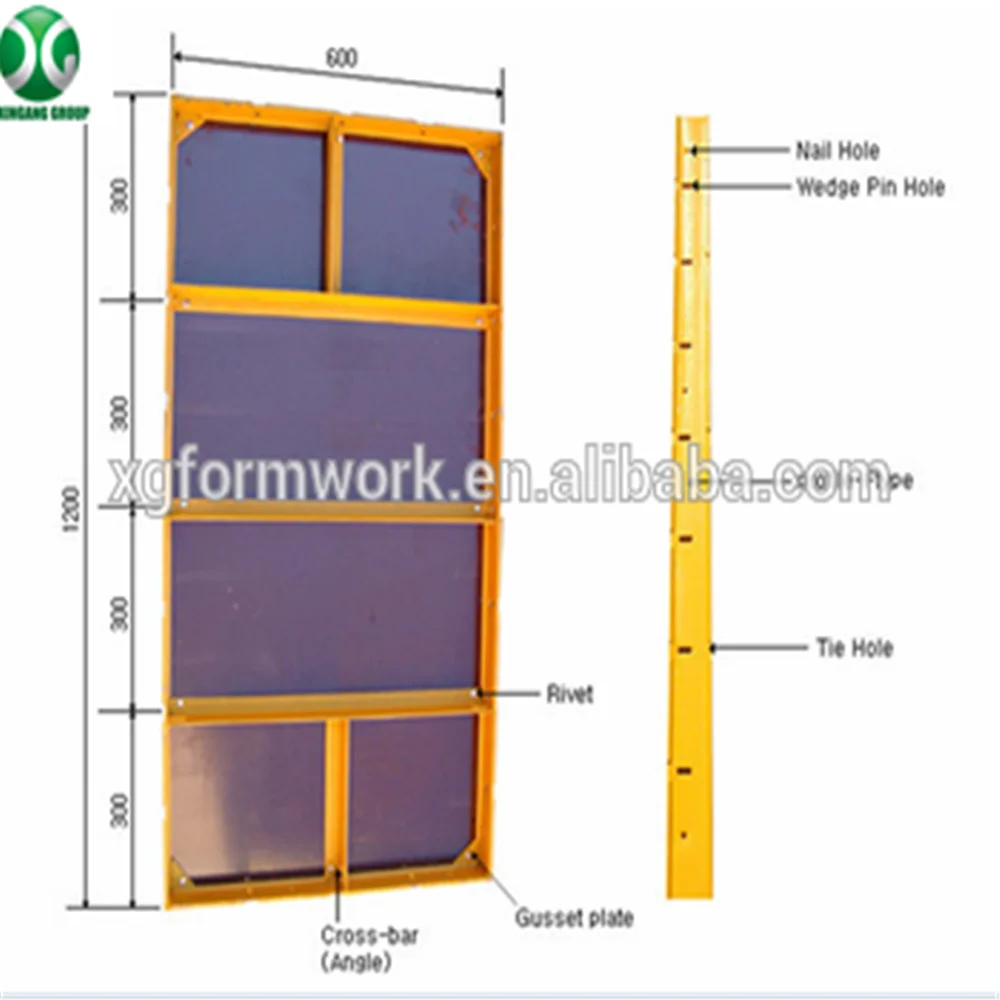

construction paint plywood steel frame euro formwork

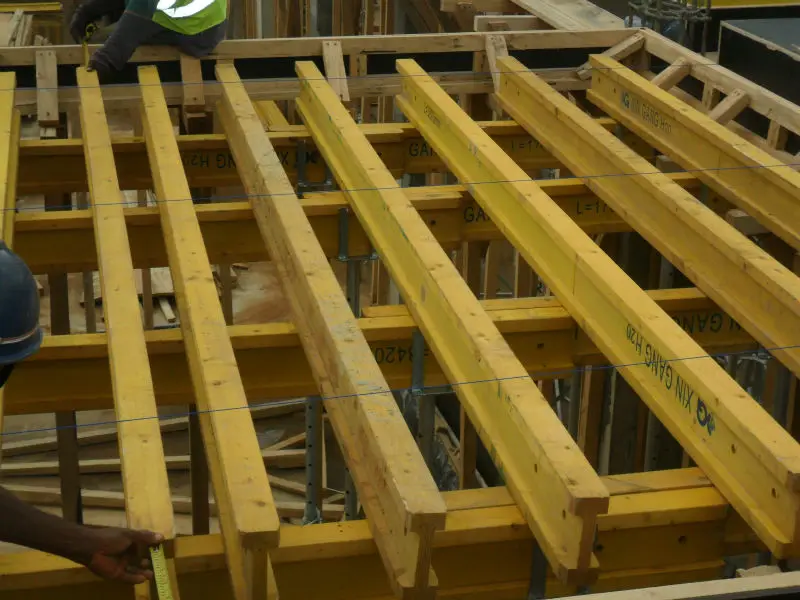

H20 TIMBER BEAM

For construction use, carryfilm faced plywood.

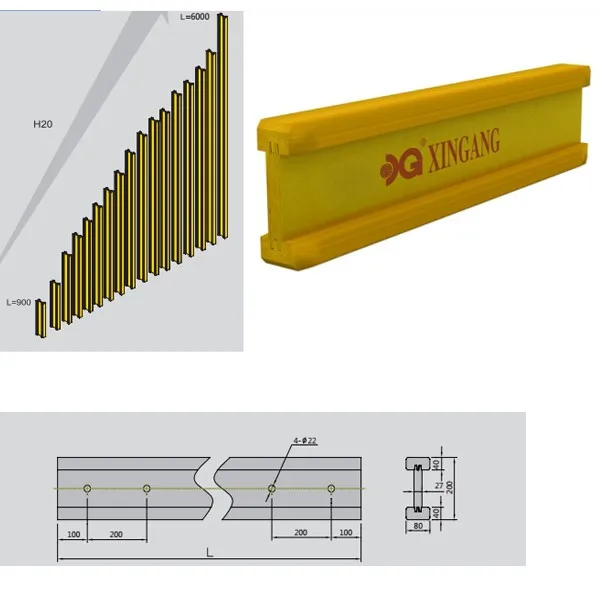

tandard H-20 model

Weight: 4.8 kg per running meter.

Bending moment-max: 5kN/m

Shear force-min: 11.0kN

Bending-max: 1/500

Liveload(Bending stiffness):1.5kN/m2

Length: 1 .9m-5.9m

Standard Size: 20cm(height) x8cm(width)x4cm(flangethickness)x27mm(web thickness)

Flange: Sawed-Pine or Spruce, Web: birch or poplar orlarch plywood as web.

Treated by WBP glue exterior used weather& water-proof

Coated by antiseptic& water-proof yellow painting

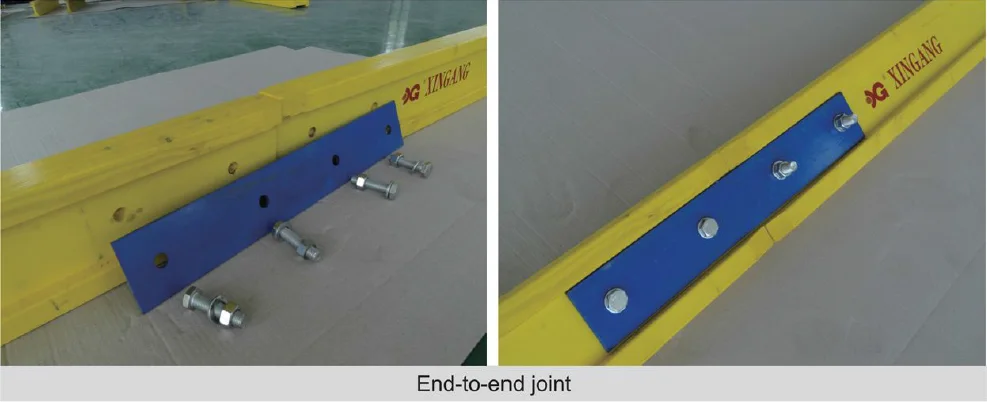

END TO END JOINT

As required, standard holes can be driIled in thetwo ends of timber beams. We can lengthen the timber beam by end-to-end joint. According to customers' demand, wecan produce timer beams with any length.

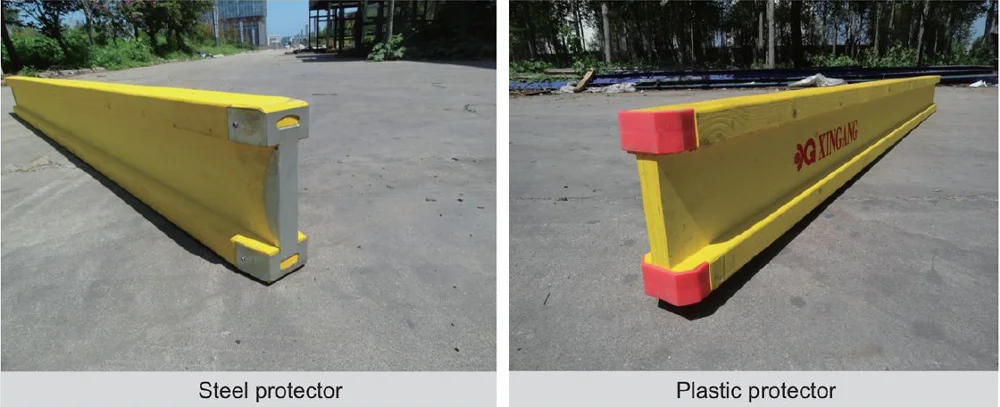

in order to protect the end of the timber beam,end protectors-caps are designed

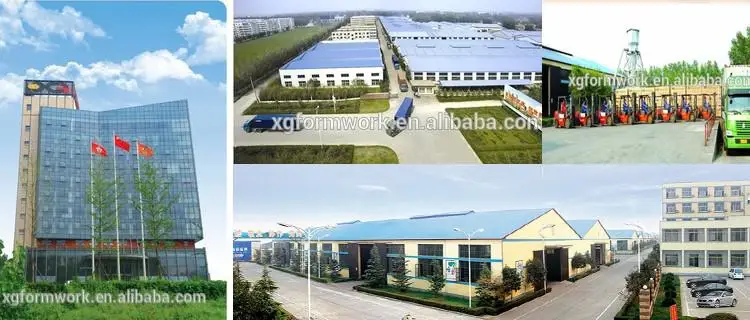

Shandong Xingang Formwork Co.,Ltd is one subsidiary of Shandong Xingang Group whis was founded inthe year 1993, As a professional formwork company,it dedicates to the development,design,manufacture and supply of formwork and scaffolding systems.

Xingang Formwork was founded in the year 2010.It successfully listed on March 11,2015,become the first list company in China formwork industry, stock code 832109.

Xingang Formwork has strong technical force, and has developed a product system with the international advanced level.We have first-rate production line of timber beam and large scale steel structure plants.Strict process control can ensure the quality of machining and precision. Our engineers have abundant experiences in formwork and scaffolding construction and have finished a lot of large projects in China and abroad.During the long term business cooperation, we have established good relationship with many famous contractors.

With new concept and scientific management,Xingang formwrok will continue to offer more advanced technology, better products and best services to all customers.

1. Consultancy

            Offer you a general idea about formwork & scaffolding

2. Technical Planning

   Customized forming & shoring solution proposal according to your structural drawing by Auto-cad

3. Logistics

             Fast to your site with proper packages & well organized loadings

4. On-site supervision

             Shop drawing, assembly drawing, and even send our supervisor to your site for training and supervision

1.why choose us?

 We are a more than 10 years professional manufacturer in formwork with high quality and competitive price.

2. What's your auto fastener guarantee?

Strictly complying with quality management systems of ISO 9001 and SGS. If you have any problems concerning quality, we will offer you a refund or a replacement.

3. How long is the date of delivery?

If inventory goods, we will delivery within 7 working days. For a customized order, within 20 days.

We can make plan of everything needed according to the project's structural drawing in Automated format or blueprint. In the CAD design, it clearly shows how to install every item with exact quantity.
