3.5m 600kg load hot dip galvanized boat trailer
| QINGDAOP TRANSEA TRAILER SPECIFICATION(CE VERIFIED) | ||||||||||
| ITEM | RIB MODEL | LENGTH(MM) | WIDTH(MM) | TYRE MODEL | Axle | LOAD(KG) | WEIGHT(KG) | Axial length(MM) | winch | Idler bracket |
| 1 | RIB-TMG350 | 3580 | 1550 | 155R12 | uniaxial | 500 | 200 | 1470 | 600 pounds | 400*4 |
| 2 | RIB-TMG390 | 3950 | 1550 | 155R12 | uniaxial | 500 | 205 | 1470 | ||
| 3 | RIB-TMG430 | 4380 | 1750 | 155R12 | uniaxial | 500 | 210 | 1650 | ||
| 4 | RIB-TMG480 | 4880 | 1750 | 155R12 | uniaxial | 600 | 216 | 1670 | ||
| 5 | RIB-TMG520 | 5280 | 1850 | 155R12 | uniaxial | 800 | 265 | 1770 | ||
| 6 | RIB-TMG550 | 5600 | 1850 | 155R12 | uniaxial | 900 | 280 | 1770 | 2500 pounds | 400*2 500*2 |
| 7 | RIB-TMG580 | 5850 | 2080 | 175/80R13 | uniaxial | 1000 | 297 | 2000 | ||
| 8 | RIB-TMG650 | 6580 | 2180 | 175/80R13 | uniaxial | 1000 | 328 | 2100 | 400*4 500*2 | |
| 9 | RIB-TMG680 | 6850 | 2180 | 185R14 | uniaxial | 1200 | 348 | 2100 | ||
| 11 | RIB-TMG730 | 7380 | 2280 | 185R14 | uniaxial | 1500 | 500 | 2200 | ||
| 12 | RIB-TMG760 | 7680 | 2280 | 185R14 | uniaxial | 1500 | 510 | 2200 | ||
| 13 | RIB-TMG830 | 8580 | 2700 | 185R14 | biaxia | 2000 | 585 | 2480 | ||
Hot dip galvanized trailer, galvanized boat trailer, galvanized steel trailer frame

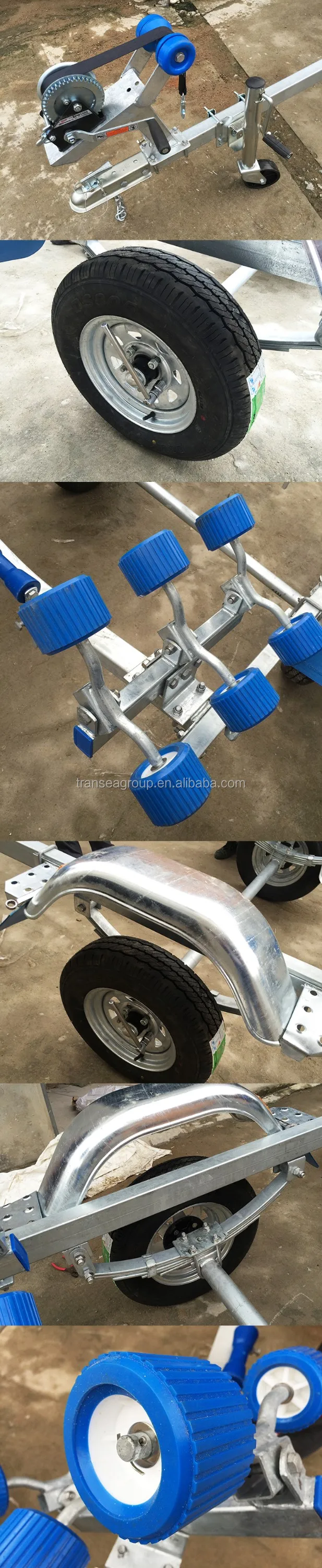

1: Hot dip galvanized trailer frame+wheel
2: Mechanical brake, with swivel jockey wheel
3: Led rear light with ADR certification
4: AS4177 coupler with wire harness
5: 75*50*3mm pipes
6: Double row wobbly to protect boat








1. Excellent service before purchasing
TRANSEA know what the best cost-effective products are. According to clients’ circumstances, we will offer most suitable products for them.
2. Guaranteed quality
Most products which NNHB offered are with high quality and also provide warranty to security benefits.
3. Rich experience and Customized Products
We has enormous resources of various marine equipment. All of our products are customized. We can offer products according to your detail equipment and drawing.
