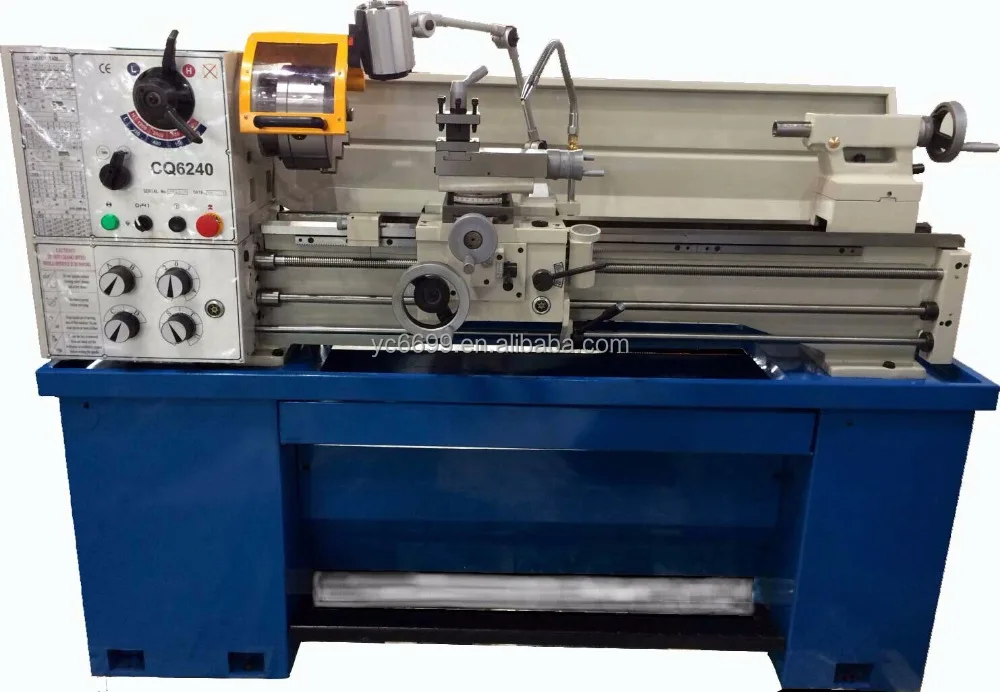

Bench Lathe CQ6240 Manual Engine Lathe

Items

CQ6240

Swing over bed

400mm(15.7")

Swing over cross slide

540mm(21.2")

Center height

198mm(7.7”)

Admits between

550mm(22")750mm(30") 1000mm(40")

Bed width

218mm

Bed length

1248mm(49-1/8") 1655mm(65-1/8") 1363mm(53-2/3")

Spindle bore

38mm or 51mm

Spindle nose

D1-4" or D1-5"

Taper in sleeve

NO.3 Morse

Speeds number

8 or 16(pole changeable motor) (optional)

Speeds range

70-2000r.p.m.or 35-2000r.p.m.(2 speed motor)

Cross slide travel

170mm(6-11/16")

Compound rest travel

95mm(3-9/16")

Lead screw thread

8T.P.I. or 3mm or 4mm

Feed rod diameter

19mm(3/4")

Cutting tool max section

16mm×16mm(5/8"×5/8")

Threads imperial pitches

36 Nos.8-112 T.P.I. or (34 Nos.4-56T.P.I)

Threads metric pitches

28 Nos.0.2-5mm pitch or (26 Nos.0.4-7mm pitch)

Longitudinal feeds imperial

36 Nos.0.0019-0.0273"/Rev.or (32 Nos.0.002-0.548"/Rev)

Longitudinal feeds metric

36 Nos.0.050-0.696"/Rev.or (32 Nos.0.052-0.392mm/Rev)

Cross feeds imperial

36 Nos.0.0006-0.0094"/Rev.or (32 Nos.0.007-0.0187"/Rev)

Cross feeds metric

36 Nos.0.013-0.188"/Rev.or (32 Nos.0.014-0.380mm/Rev)

Quill diameter

32mm(1-1/4")

Quill travel

100mm(3-15/16")

Quill taper

NO.3 morse

For main motor

1.5KW 3PH or 1PH
