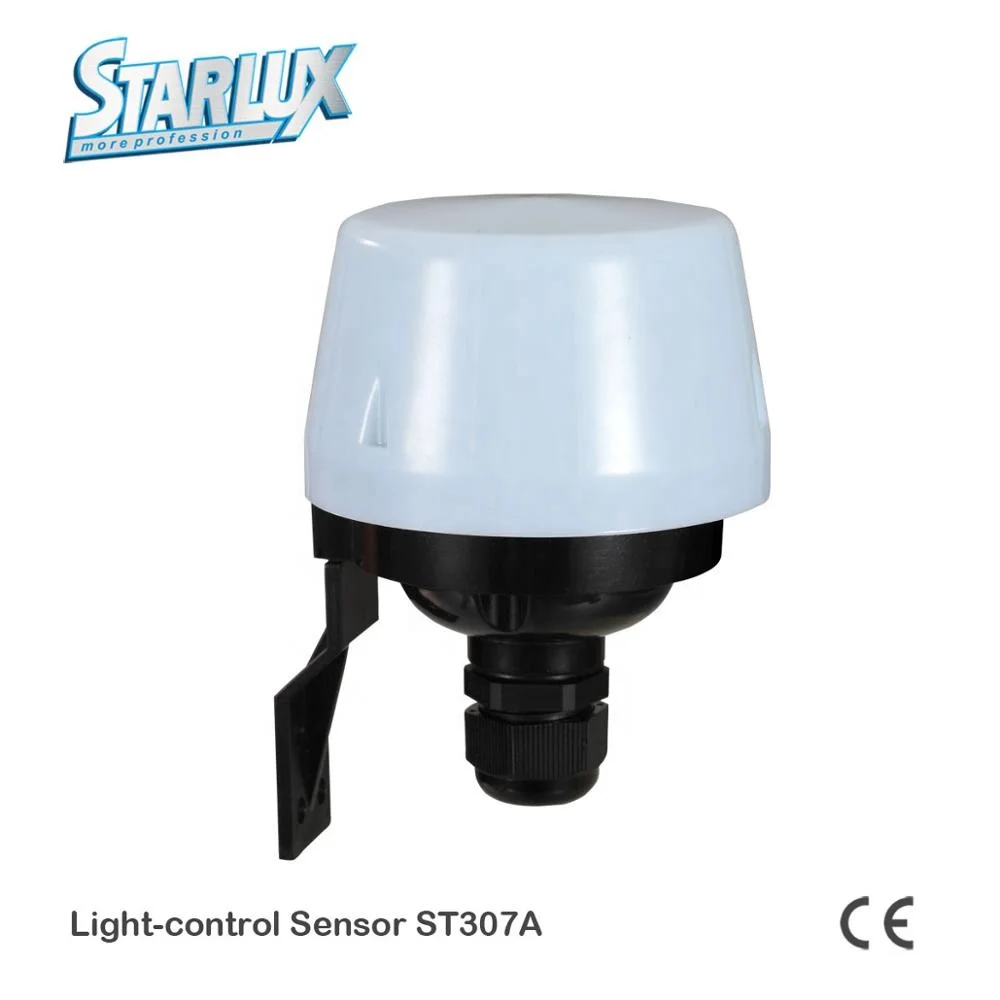

Professional Light Adjustable 220V 10A ST307A ambient light control LED sensor day night light sensor switch

Product Overview

Description

Welcome to use ST307A light-control sensor!

Professional Light Adjustable 220V ST307A ambient light control LED motion sensor day night light sensor switch

The product can turn on or turn off light automatically according to ambient-light. Ambient temperature and humidity can’t affect it. It is not only convenient but also practical; it can control the load working only at night. It is used for road light, garden light etc.



SPECIFICATION:

Power source: 220-240V/AC              Power Frequency: 50/60Hz



Rated Current: 10A                             Ambient Light: <5-50 LUX (adjustable)



Working Temperature: -20~+40℃      Working Humidity: <93%RH



INSTALLATION:

Ø  Loosen two screws in the bottom and unload the black knob and plastic cover.

Ø  Pass the wire through the black knob and plastic cover and connect the wire as per the Connection-wire diagram. And then install back the black knob and plastic cover.                 FIGUER    INCORRECT  CORRECT

Ø  Please install the photocell in the correct orientation with the plastic bracket and according to the correct installation place, install the photocell with the enclosed inflated screws. (See the figure on the right).



CONNECTION-WIRE DIAGRAM:





TEST:

Ø  Slide the LUX knob to position (-) and switch on the power.

Ø  When you test in daytime. You should cover a black opaque cloth on the product.

Ø  When the cloth mantles the detection window of the photocell, the ambient light of the photocell is less than 5 LUX, the lamp will be on.

Ø  When you take off this cloth, the lamp will be off automatically.

Ø  When you slide the LUX knob to position (+), the lamp could be on in the ambient light less than 50LUX.



NOTE:

Ø  In front of the photocell, it should be no obstruction affecting to accept natural light;

Ø  In front of the photocell, it should be no swaying object.

Ø  Don’t install the photocell under the light or in the place where the light will be irradiated to the photocell.



PRODCUT CAPACITY:

Our company adopts automatic machines,such as:SMD,auto component inserter,wave solder,auto injection machine and so on.And the daily output is up to 20000~30000pcs.



CERTIFICATE:

The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification.
