Product Overview
Description
BGA Rework station is divided into 2 kinds.
One is basic modle, it is composed of hot air and infrared heaters, totally 3 heaters, top and bottom hot air heaters and 3rd infrared heater. It’s top selling for personal workshop of economical!
The other modle is BGA rework station with optical alignment vision system, its feature is, clearly observe all the BGA chip point, and make BGA chip match with motherboard precisely.
Apply to repair chipsets in laptop , mobile phone, TV, Satellite receiver , MID, CCD camera,xbox360, xbox360, PSP, PS2, PS3,etc. The main user is repairing shops and factory to provide the after-sales service and rework.
We offer kinds of BGA Chips temperature parameters for your reference.
Product Description

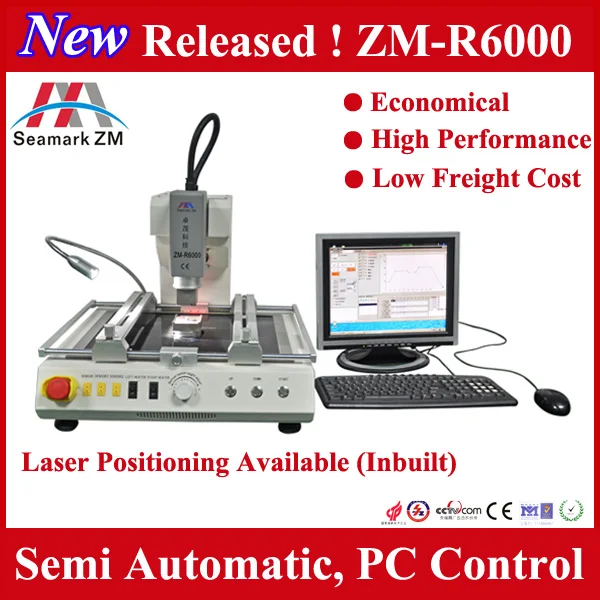

Global sourcing automatic bga rework station zm-r6000 and manual bga reballing machine zhuomao zm r5830

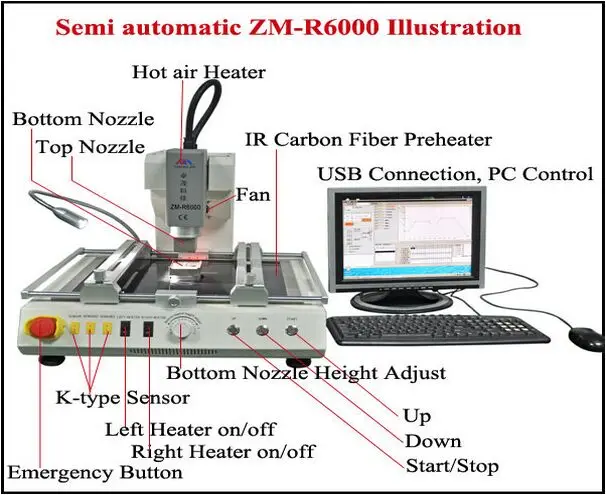

1, Main Features:
- Widely used to Rework CPU GPU of laptop,PS3,PS4,XBOX360, etc.
- Soldering, Desoldering, Romoving and Mounting the BGA Chip by Manual operation
- Up / Bottom Hot air heaters, and Bottom Infrared Heating Plate
- User-friendly Touch Screen Operation Interface
- Rework BGA, CCGA, QFN, SMD, etc
- Precise Temperature Control, accuracy within 3℃
- Superior Safety Functions, with Emergency protection
2, Specification:
Total Power | 4000 W zhuomao zm r5830 |
Top Heater | 800 Wzhuomao zm r5830 |
Bottom Heater | 2nd heater 800 W,3rd IR heater 2400 Wzhuomao zm r5830 |
Power Supply | AC 220V±10% 50/60 Hzzhuomao zm r5830 |
Hot air Temperature | 400℃(Max)zhuomao zm r5830 |
Bottom preheating size | 400mm×300mmzhuomao zm r5830 |
Positioning | V-groove, PCB support can be adjusted in any direction and with external universal fixturezhuomao zm r5830 |
PCB Size | Max 410×370 mm Min 10×20 mmzhuomao zm r5830 |
Preheating Size | 370mm×270mmzhuomao zm r5830 |
Chip Type | BGA, QGN,CSP,POP,QFN, Micro SMD,LED lamp beads |
Available BGA chip | 2×2~60×60 mmzhuomao zm r5830 |
Electrical Selection | Intelligent programmable temperature control system |
Temperature Control | K-type thermocouple (Closed Loop), heating independently, temperature precision within ±1 degreezhuomao zm r5830 |
Dimension | L520×W520×H550 mm (LCD stand not included) |
Communication | USB Connection, PC Controlzhuomao zm r5830 |
External temperature sensor | 3 pcszhuomao zm r5830 |
Net weight | 25 kgzhuomao zm r5830 |
3, Operation DEMO
https://www.youtube.com/watch?v=EuTshJp8QKk&feature=youtu.be
https://www.youtube.com/watch?v=zRPSprqiUAQ&feature=youtu.be
4, BGA Reballing Kit and Accessory Available
BGA Solder Ball, Flux, Solder Wick,etc Reballing Stencils and Tools
Company Information
ZhuoMao Technology is based in Shenzhen, China, We are manufacturer for 12 years, and has been the Biggest Factory in the BGA Rework field in China. All material is of high quality under inspection and control,and all BGA Station go through 2 times of test before shipment. High Quality Assurance is our task and also what we are doing now.
Customer Visiting
Zhuomao Technology started from 2004, and support thousands of customers around the world.Big company, like Samsung & Sony also use our BGA Rework machine for their repair service. Below are only some customers and feedback on our machine, hope we can also have a chance to support you well.
FAQ
1. How about the package ? Is it safe during the delivery ?
All BGA Rework Station is packed Safely, by standard strong wooden carton with foam inside.
Global sourcing automatic bga rework station zm-r6000 and manual bga reballing machine zhuomao zm r5830
2. What is the delivery way ? How many days will the machine arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.
Global sourcing automatic bga rework station zm-r6000 and manual bga reballing machine zhuomao zm r5830
3. Do you provide the Warranty ? How about the after sales service ?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
Global sourcing automatic bga rework station zm-r6000 and manual bga reballing machine zhuomao zm r5830
4, This machine is easy to use ? if I have no experience, I can also operate it well ?
Do you provide the user manual and operating videos to support us ?
Yes, our BGA Station is designed to use easily, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free , and the operation video is available.
Global sourcing automatic bga rework station zm-r6000 and manual bga reballing machine zhuomao zm r5830
5, If we come to your factory, if you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Global sourcing automatic bga rework station zm-r6000 and manual bga reballing machine zhuomao zm r5830
6. What is the payment way ?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.
