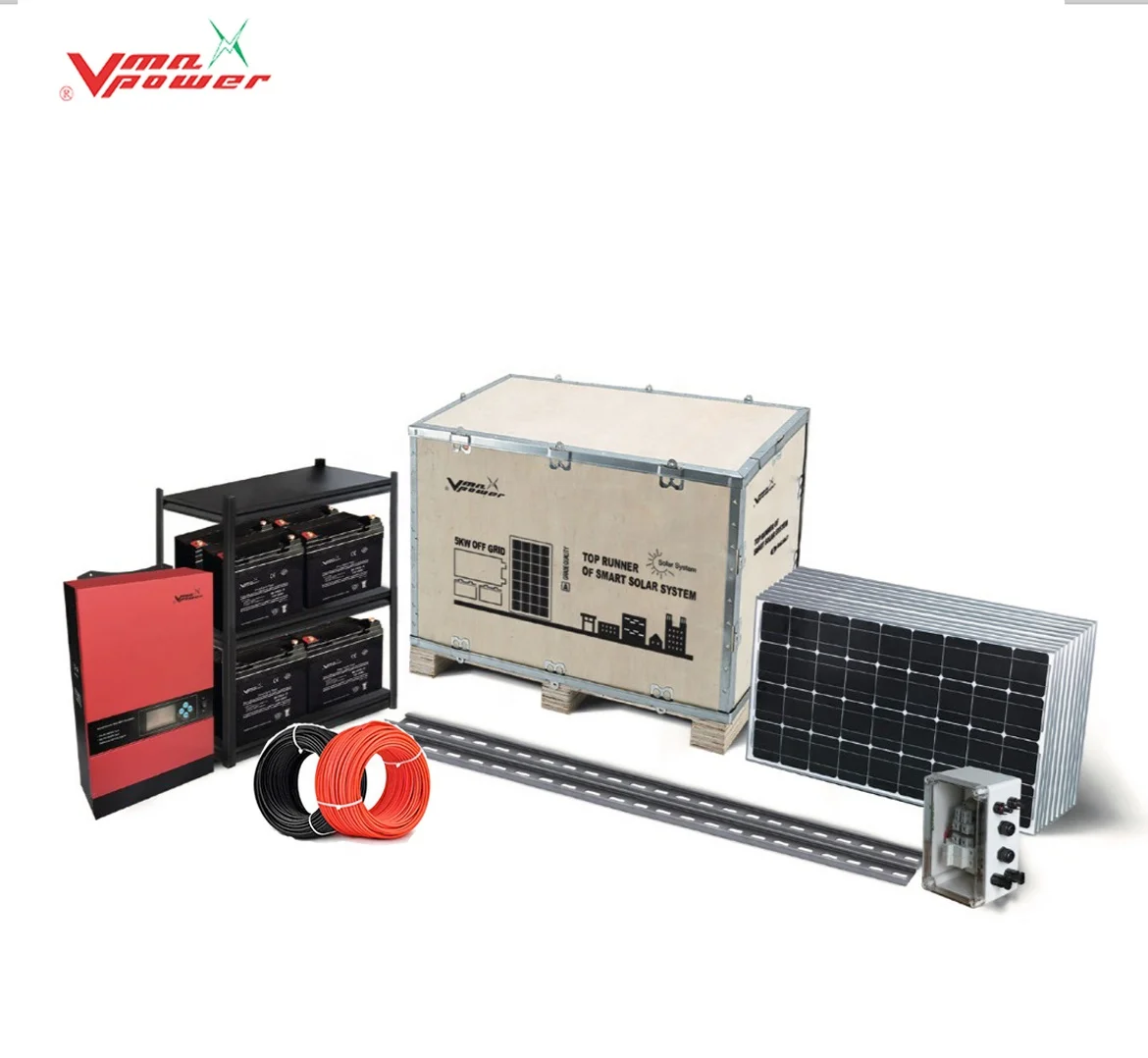

Vmaxpower 280W poly crystallinr solar cells, solar panel 265W transparent solar panel for 5KW solar energy system PV Price
- Category: >>>
- Supplier: Beijing Multifit Electrical Technology Co. Ltd.
Share on (60586921605):
Product Overview
Description
Product Parameter

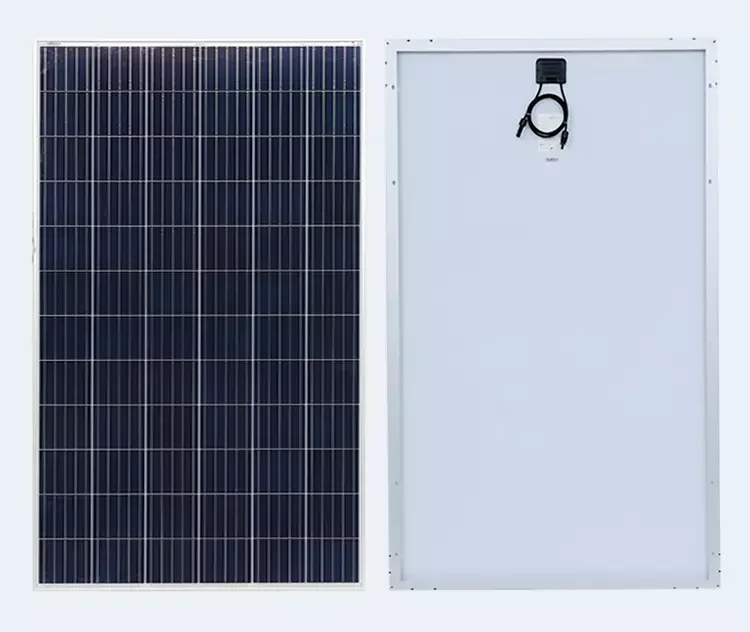

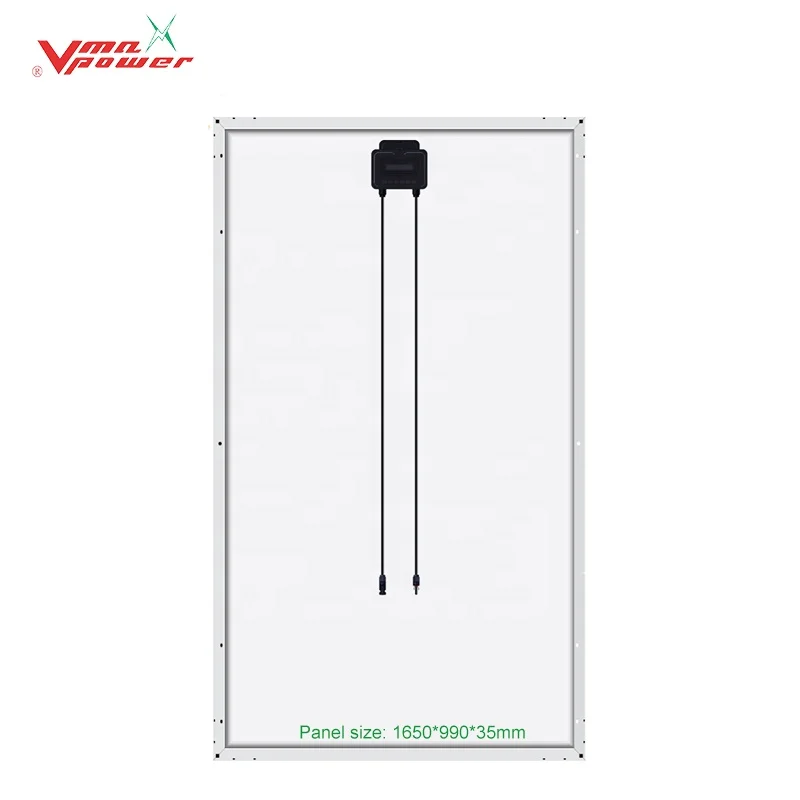

Vmaxpower solar panels
Solar panel/modules Vmaxpower 250W 260W 270W 280W 290W
Module | MULxxxP-60 xxx = Peak Power Watts | ||||||||
Peak Power Watts(Pmax/W) | 260 | 265 | 270 | 280 | 290 | ||||
Power Output Tolerance(W) | ±5W | ||||||||
Maximum Power Voltage(Vmp/V) | 30.4 | 30.6 | 30.8 | 31.0 | 31.2 | ||||
Maximum Power Current(Imp/A) | 8.55 | 8.72 | 8.77 | 8.95 | 9.01 | ||||
Open Circuit Voltage(Voc/V) | 37.5 | 37.7 | 37.9 | 38.1 | 38.3 | ||||
Short Circuit Current(Isc/A) | 8.79 | 8.88 | 8.98 | 9.07 | 9.07 | ||||
Module Effciency(%) | 15.9 | 16.2 | 16.5 | 16.8 | 17.1 | ||||
Vmaxpower solar panel
STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring Tolerance: ±3%.NOCT:Irradiance 800W/m2,Ambient Temperature 20°C,Wind Speed 1m/s.
*Measuring Tolerance: ±3%.NOCT:Irradiance 800W/m2,Ambient Temperature 20°C,Wind Speed 1m/s.

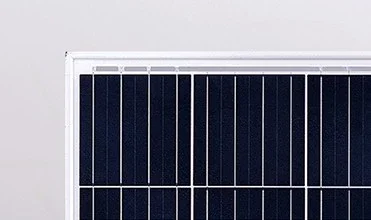

Grade A Materials
Solar Cell
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

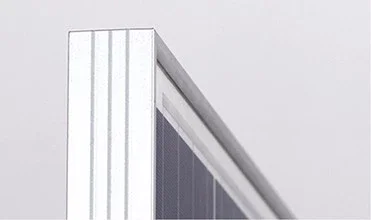

Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection120N Tensile Strength Frame
110% Seal-lip Design Glue Injection
(Black/Silver Optional)
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection120N Tensile Strength Frame
110% Seal-lip Design Glue Injection
(Black/Silver Optional)

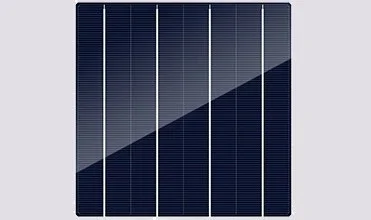

Solar Cells
> 16-22% High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

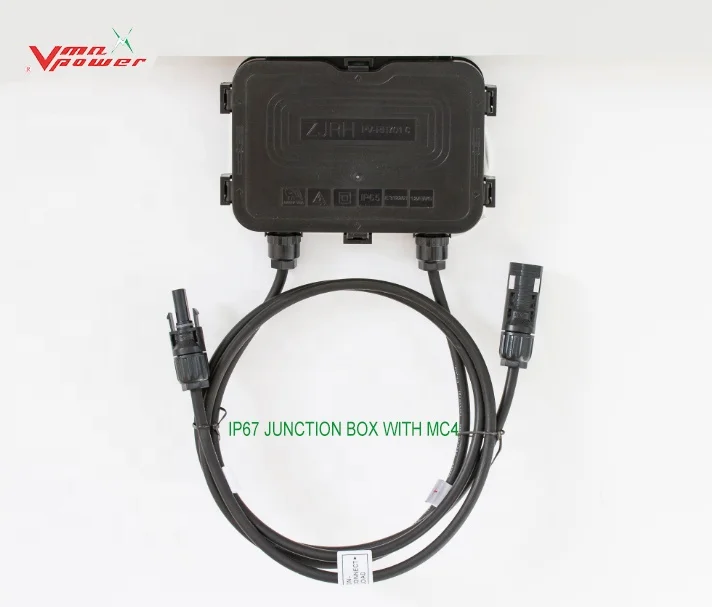

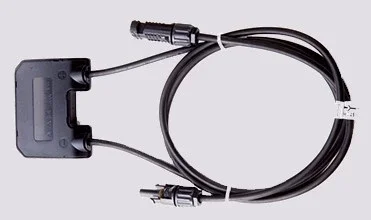

Junction box/Cable and Conectors
engineering custom edition
> Quality diode ensures module running safety
> IP68 protection level
> Heat dissipation
> Long service life
> Quality diode ensures module running safety
> IP68 protection level
> Heat dissipation
> Long service life

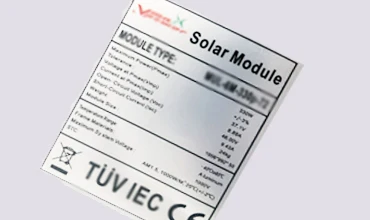

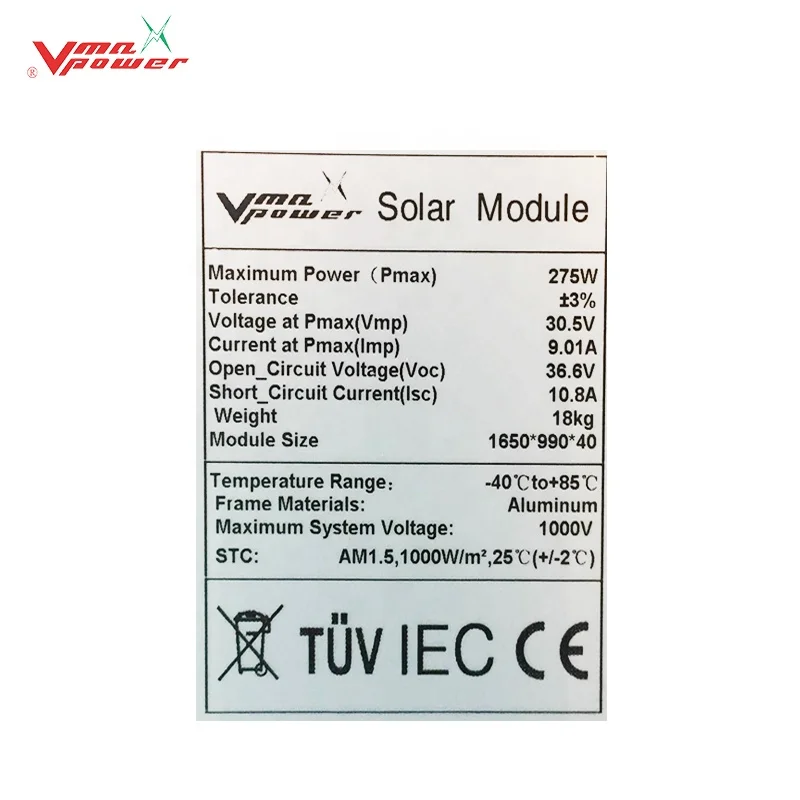

Lable
Waterproof Labels
OEM LOGO Optional
OEM LOGO Optional
Applications
Vmaxpower solar projects

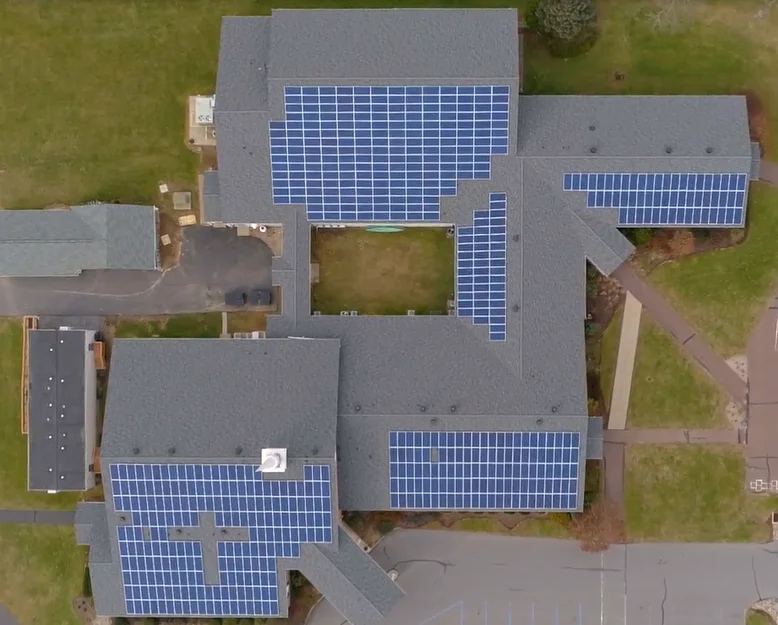

175KW Project in Pennsylvania, USA, Totally 612 Piece MUL285P-60 Solar Panels.
4.7MW,14760 pcs Solar panels in Iran
3.5KW Solar off grid system in Philippines

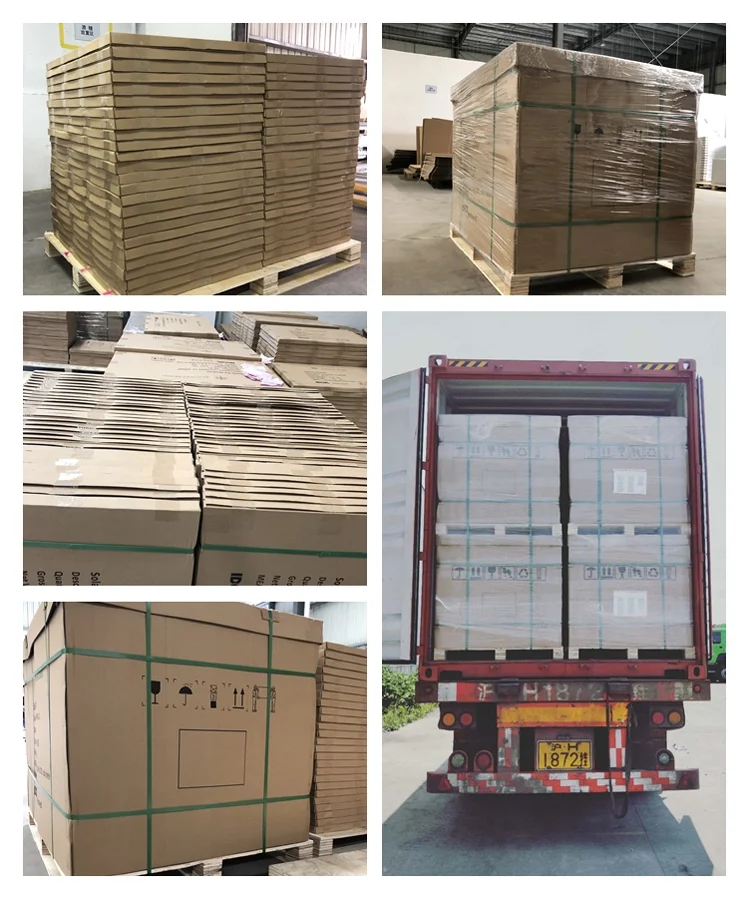

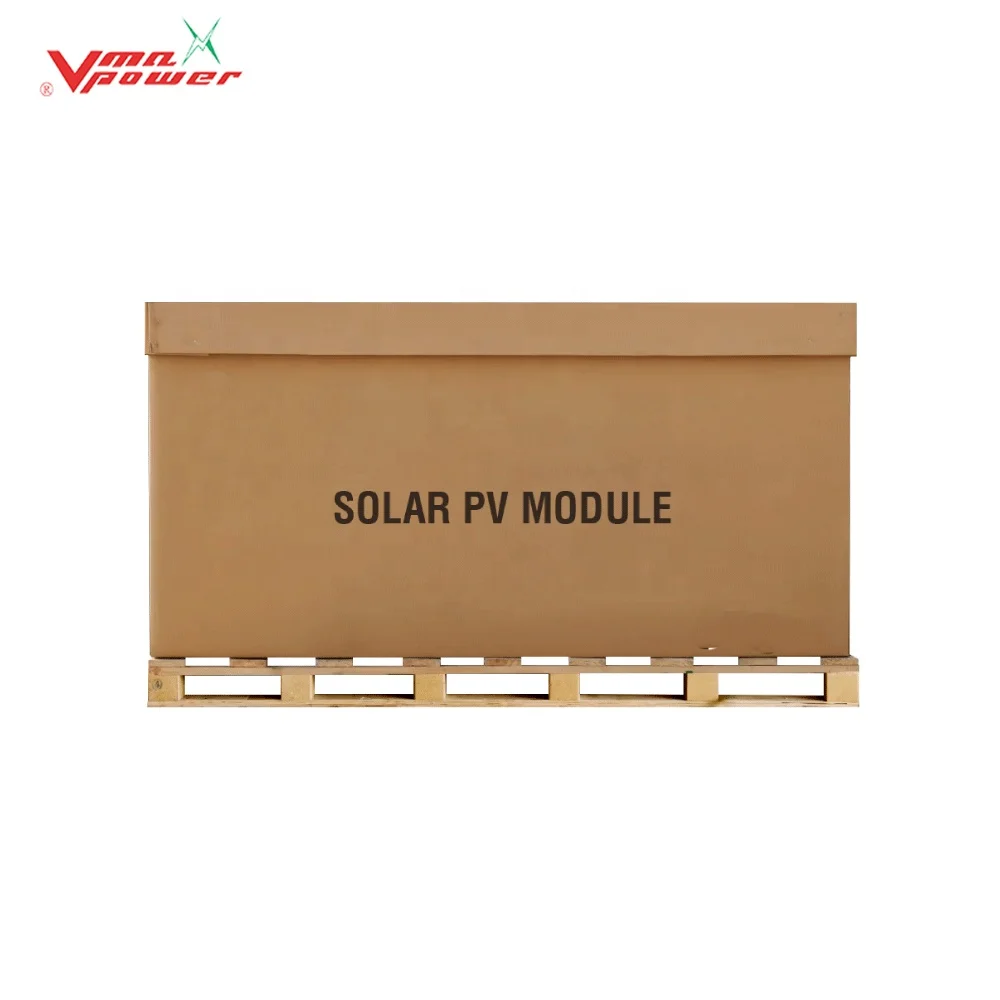

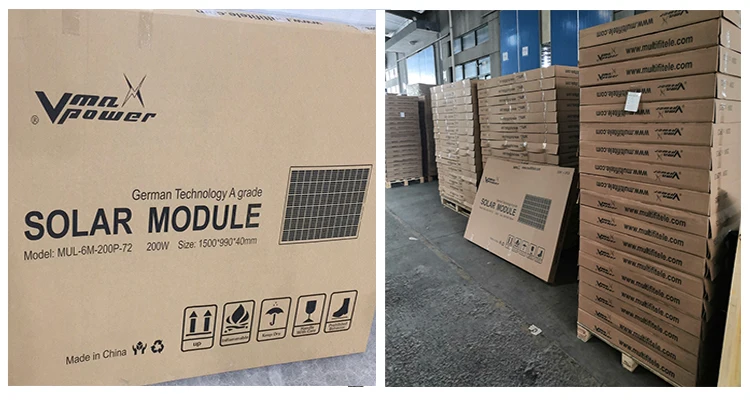

Production & Delivery
Success with Multifit
Conact us
Mob/Whatsapp/Wechat: +86 18713555779
Email: admin@multifitele.com
Web: www.multifitele.com
Email: admin@multifitele.com
Web: www.multifitele.com
www.multifitsolar.com
