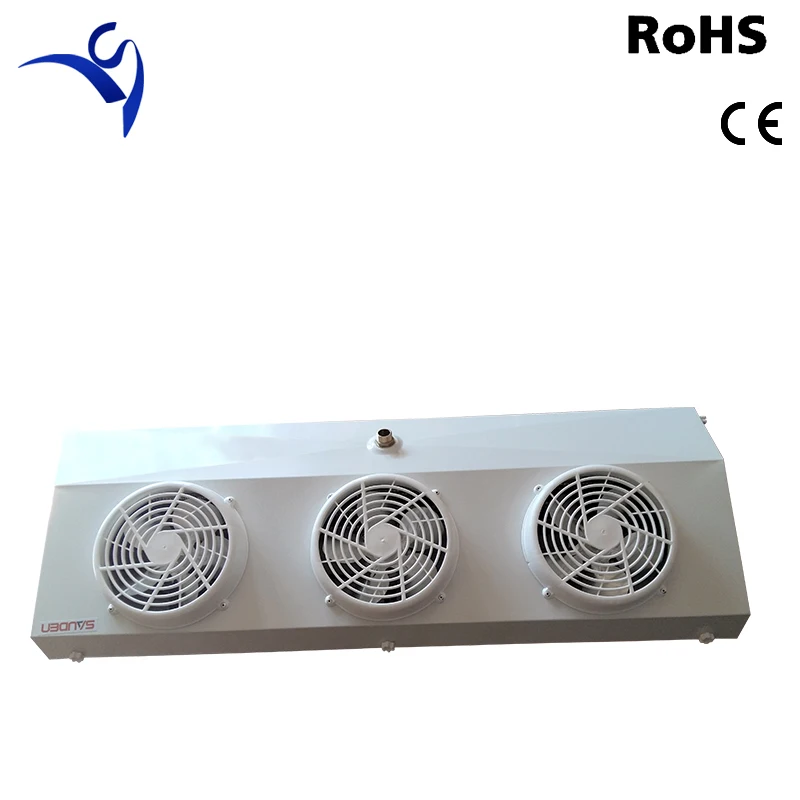

J series ceiling type upright freezer freon air cooler

Product Overview

Description

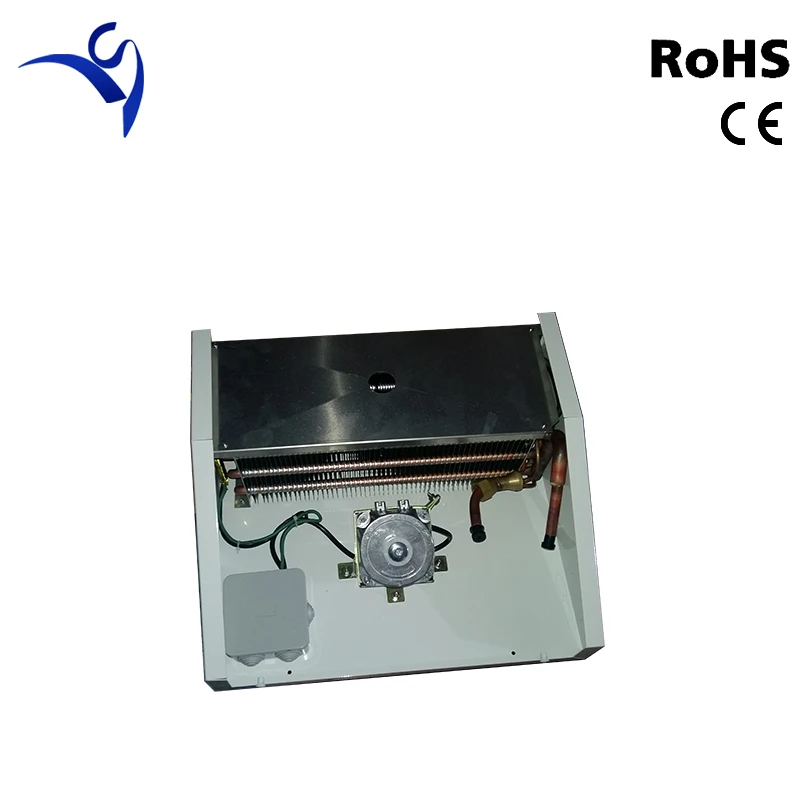

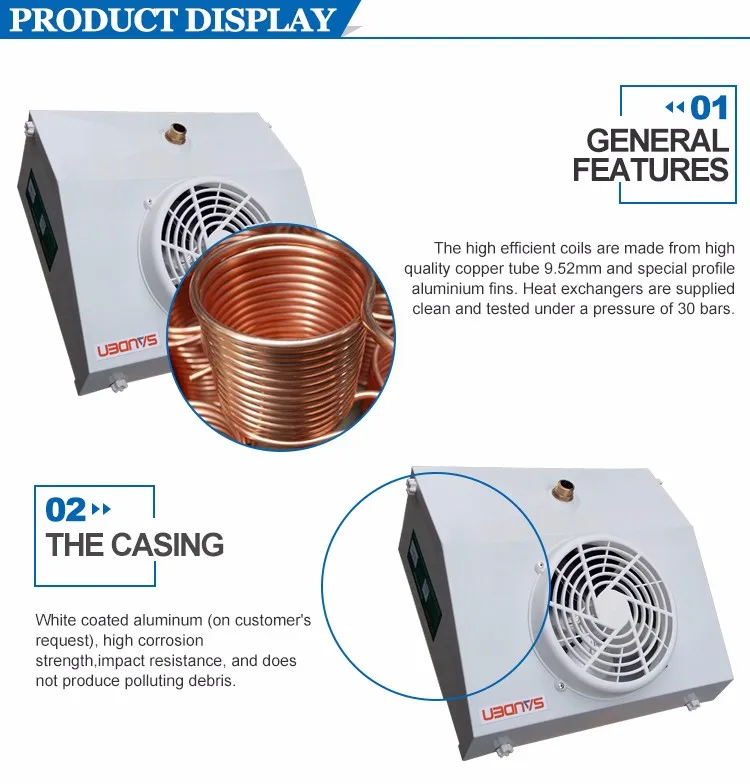

J series ceiling type cold room unit air cooler (Fin type, diameter 9.52 copper tube, diameter 200mm shaded-pole fan, low profile, aluminum casing with white painting, ceiling install for cold room & refrigerated cabinet, with Electric heater for electric defrost, optional fans)



Fin spacing 3.2/6.4 mm, with S.S heater

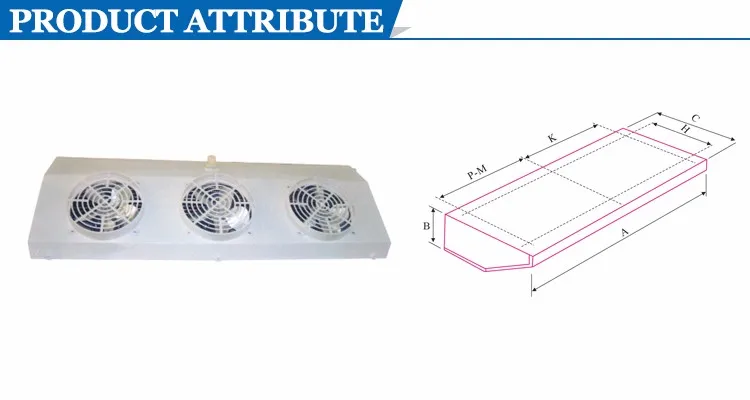

Model	Capacity		Surface	Tube Volume	Dimensions			Mounting				N.W.	Connection
	(R404A/R507A)		(m2)	(dm3)	(mm)			(mm)				(kg)	(Φ ")
	(KW)
	te= -8°C	te= -25°C			A	B	C	No	H	P-M	K		Inlet	Outlet
	DT1=8K	DT1=7K
J-1	0.82	0.6	3.3	0.95	410	160	365	2	340	-	250	6	0.375	0.375
J-2	1.62	1.18	6.5	1.75	735	160	365	2	340	-	575	10	0.5	0.5
J-3	2.43	1.77	9.8	2.5	1060	160	365	3	340	450	450	13	0.5	0.5
J-4	3.23	2.36	13	3.4	1385	160	365	3	340	612	612	18	0.5	0.625



Electric data

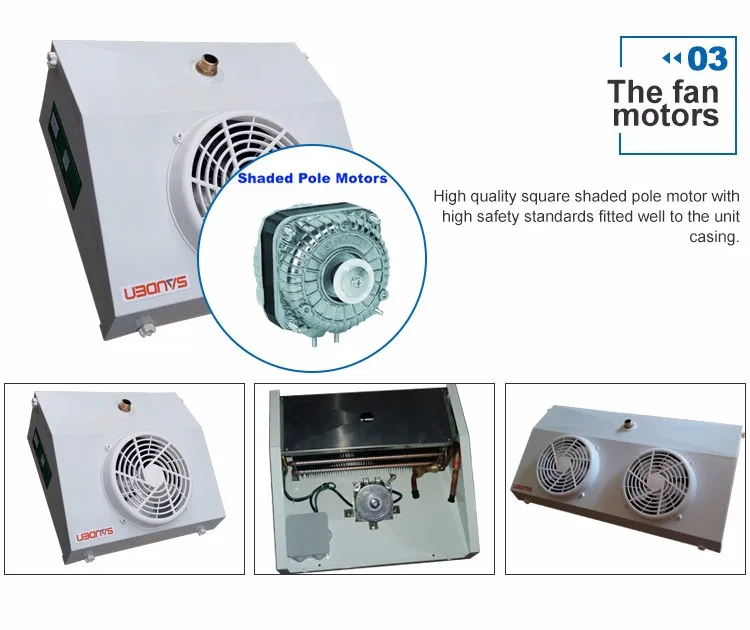

Model	Shaded-pole Fans							Electric Defrost
	(Φmm)	No	Power	Input	Current	Air Flow	Air Throw	Coil	Total
			(V, 50/60Hz)	(W)	(A)	(m3/h)	(m)	(W)	(W)
J-1	200	1	220	31	0.23	480	4	1 x 500	500
J-2	200	2	220	62	0.46	960	4	1 x 800	800
J-3	200	3	220	93	0.69	1440	4	1 x 1200	1200
J-4	200	4	220	124	0.92	1920	4	1 x 1500	1500
