New products First Grade vertical copper coil strap machine

Description of vertical copper coil strap machine:

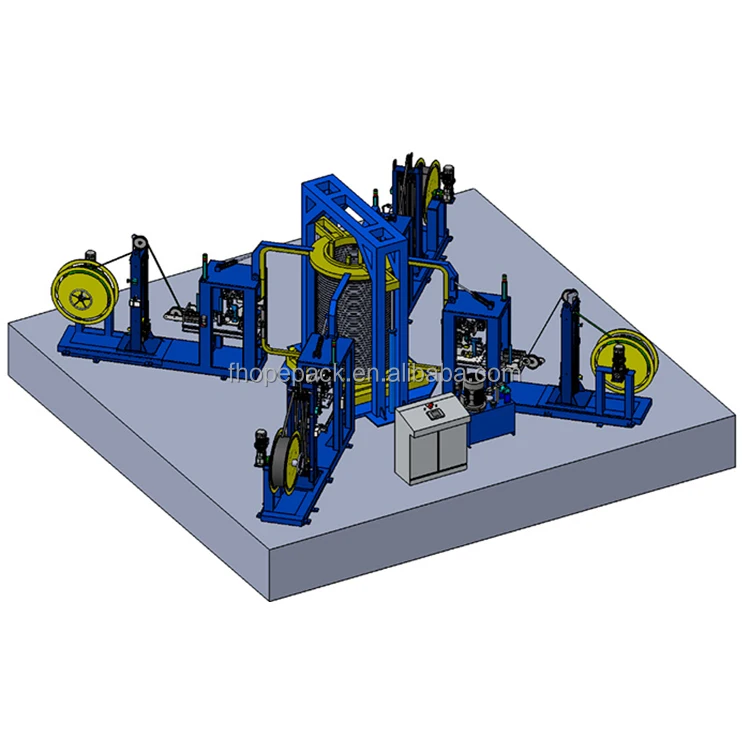

·       This Strapping & Compacting Line has frames, electric cabinet, pneumatic and hydraulic installation. This line will be fully automatic with manual operations possible.

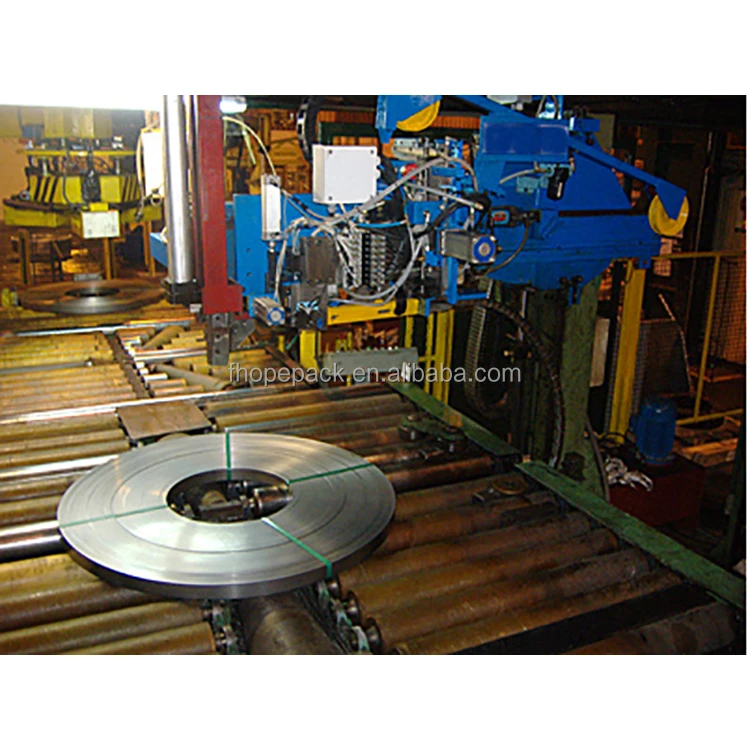

·       The Automatic Strapping Machine performs all the straps in different strapping positions. The wire coil along with the basket should be positioning on table and the compactor system at the strapping position.

    Strapping material:

q  Strap width                             19mm

q  Strap thickness                      1,00 / 1,27mm

q  Type of strap                          Polyester

q  Strap quality                           Smooth /High quality polyester strap

   Sealing features:

q  Type of joint                            By friction - vibration

r  Joint location                         The strapping is performed in the front part of the wire coil.

q  Joint efficiency                        Approx. 75-80% of the breaking load of the strap (mentioned quality).

       Speeds and strength

q  Strap. Tension                            300N - 800N (adjustable depending the material)

q  Strap feed & Take –up speed     Approx. 1,5m / second (adjustable)

q  Tension speed                            4 m / minute

Hydraulic features

q  Maximum pressure           105 bar

q  Work pressure                 100 bar

q  Type of oil                        Hydraulic oil (for example: VESTA HLP – 46)

q  Work temperature             < 45ºC

vertical copper coil strap machine
