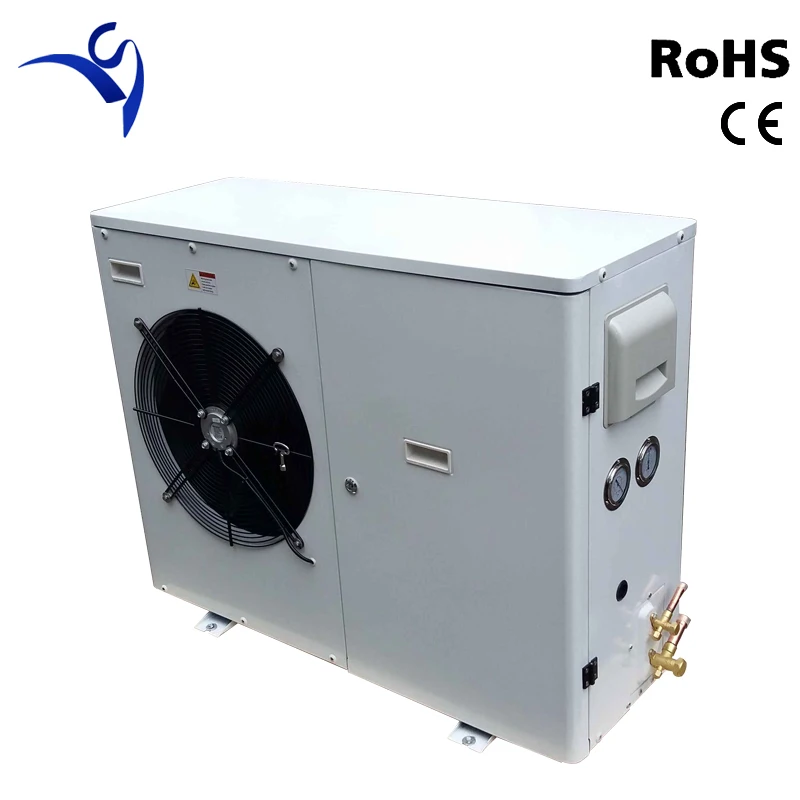

2HP outdoor Tecumseh hermetic compressor roof mounted cold room refrigeration unit

Product Overview

Description

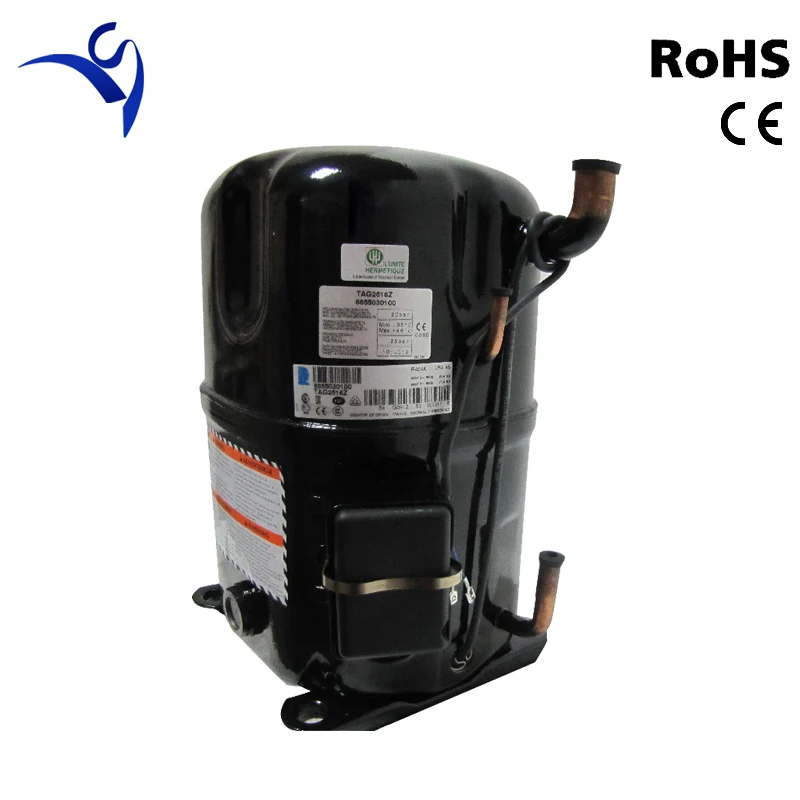

LKPG series refrigeration unit with Tecumseh hermetic compressor

R404a,R407F

Low temperature

Model	HP	Compressor	Voltage	Cooling capacity(W)					Axial Fans	Dimensions(mm)			Noisy	Connection
				Evaporating temperature(°C)
			(V-Ph-Hz)	-15	-10	0	7.2	15	N°x Diameter	W	H	D	10m(db)	Inlet	Outlet
LKPG048	1/2	CAE9460Z	220-1-50	553	715	1134	1514	2000	1 x 400	800	380	660	33	1/2"	3/8"
LKPG075	3/4	CAJ9480Z	220-1-50	774	1009	1607	2172	2943	1 x 400	800	380	660	35	1/2"	3/8"
LKPG100	1	CAJ9510Z	220-1-50	970	1252	1972	2650	3563	1 x 400	800	380	660	36	5/8"	3/8"
LKPG150	1.5	CAJ4519Z	220-1-50	1769	2353	3756	5030	6735	1 x 400	800	380	660	41	5/8"	3/8"
LKPG150S	1.5	TAJ4519Z	380-3-50	1769	2353	3756	5030	6735	1 x 400	800	380	660	41	5/8"	3/8"
LKPG200	2	FH4524Z	220-1-50	1835	2570	4361	5977	8101	1 x 400	800	380	660	42	5/8"	3/8"
LKPG200S	2	TFH4524Z	380-3-50	1835	2570	4361	5977	8101	1 x 400	800	380	660	42	5/8"	3/8"
LKPG250S	2.5	TFH4531Z	380-3-50	2382	3300	5706	7782	10222	1 x 450	1050	380	830	48	7/8"	3/8"
LKPG300S	3	TFH4540Z	380-3-50	3388	4425	7276	9814	13056	1 x 450	1050	380	830	48	7/8"	3/8"
LKPG400S	4	TAG4546Z	380-3-50	2806	4292	7956	11297	15719	2 x 450	1050	380	1220	52	7/8"	1/2"
LKPG500S	5	TAG4561Z	380-3-50	4363	5895	10452	14772	20227	2 x 450	1050	380	1220	52	7/8"	1/2"
LKPG600S	6	TAG4568Z	380-3-50	5322	7077	11973	16636	22760	2 x 450	1050	380	1220	53	7/8"	1/2"
LKPG700S	7	TAG4573Z	380-3-50	5788	7710	13123	18228	24806	2 x 450	1050	380	1220	53	7/8"	1/2"
TEST CONDITION: Condensing Temperature: 54.5°C



LKPG series refrigeration unit with Tecumseh hermetic compressor

R404a,R407F

Medium and high temperature

Model	HP	Compressor	Voltage	Cooling capacity(W)					Axial Fans	Dimensions(mm)			Noisy	Connection
				Evaporating temperature(°C)
			(V-Ph-Hz)	-15	-10	0	7.2	15	N°x Diameter	W	H	D	10m(db)	Inlet	Outlet
LKPG048	1/2	CAE9460Z	220-1-50	553	715	1134	1514	2000	1 x 400	800	380	660	33	1/2"	3/8"
LKPG075	3/4	CAJ9480Z	220-1-50	774	1009	1607	2172	2943	1 x 400	800	380	660	35	1/2"	3/8"
LKPG100	1	CAJ9510Z	220-1-50	970	1252	1972	2650	3563	1 x 400	800	380	660	36	5/8"	3/8"
LKPG150	1.5	CAJ4519Z	220-1-50	1769	2353	3756	5030	6735	1 x 400	800	380	660	41	5/8"	3/8"
LKPG150S	1.5	TAJ4519Z	380-3-50	1769	2353	3756	5030	6735	1 x 400	800	380	660	41	5/8"	3/8"
LKPG200	2	FH4524Z	220-1-50	1835	2570	4361	5977	8101	1 x 400	800	380	660	42	5/8"	3/8"
LKPG200S	2	TFH4524Z	380-3-50	1835	2570	4361	5977	8101	1 x 400	800	380	660	42	5/8"	3/8"
LKPG250S	2.5	TFH4531Z	380-3-50	2382	3300	5706	7782	10222	1 x 450	1050	380	830	48	7/8"	3/8"
LKPG300S	3	TFH4540Z	380-3-50	3388	4425	7276	9814	13056	1 x 450	1050	380	830	48	7/8"	3/8"
LKPG400S	4	TAG4546Z	380-3-50	2806	4292	7956	11297	15719	2 x 450	1050	380	1220	52	7/8"	1/2"
LKPG500S	5	TAG4561Z	380-3-50	4363	5895	10452	14772	20227	2 x 450	1050	380	1220	52	7/8"	1/2"
LKPG600S	6	TAG4568Z	380-3-50	5322	7077	11973	16636	22760	2 x 450	1050	380	1220	53	7/8"	1/2"
LKPG700S	7	TAG4573Z	380-3-50	5788	7710	13123	18228	24806	2 x 450	1050	380	1220	53	7/8"	1/2"
TEST CONDITION: Condensing Temperature: 54.5°C
