Excellent performance with 120-130lm/w and CRI>80,
Taiwan Meanwell LED driver, 3030 LED chips, for 7 year warranty.
With mature LED heat sink technology, CLS UFO LED high
bay light series are CLS domestically developed products.
We are always devote to offering best products and good
service for you.
Products Feature:
1. Integrated heat sink design, die-casting
aluminum,excellent heat dissipation
2.120-130lm/w,Ra>80,LM80 standard
3. Taiwan Meanwell LED driver for 7 year warranty
4.Tempered glass, better lighting efficiency
5. Working temperature: -30℃~+50℃
Other feature.

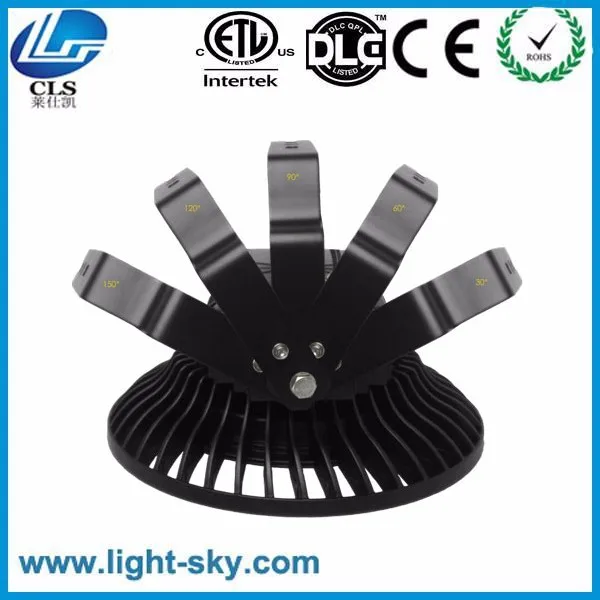

6. Angle for flexible Bracket: 30°60°90°120°150°

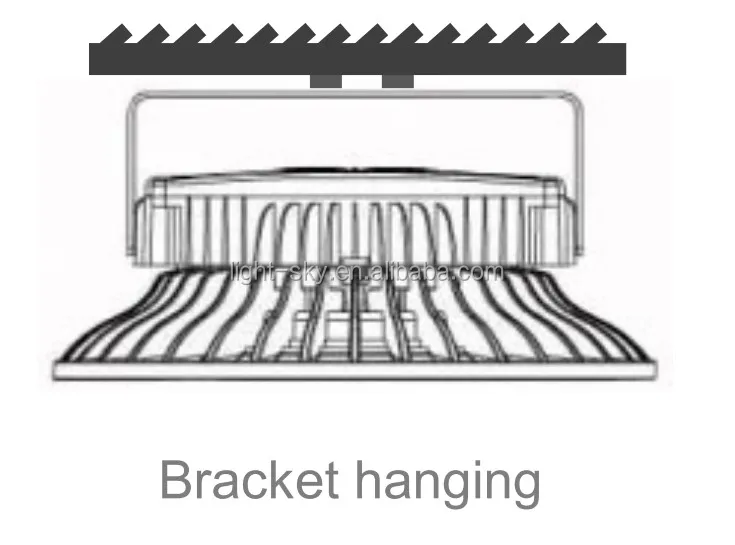

7. Installation: Bracket hanging(Hook hanging)
8. IP65 protection level.
Detail drawings:
Detail drawings for square housing UFO LED high bay light.

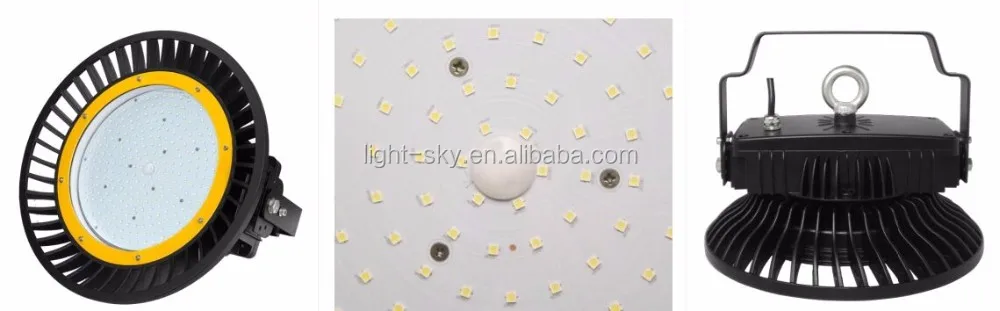

Front picture, the PCB plate and Back picture of UFO LED high bay light.

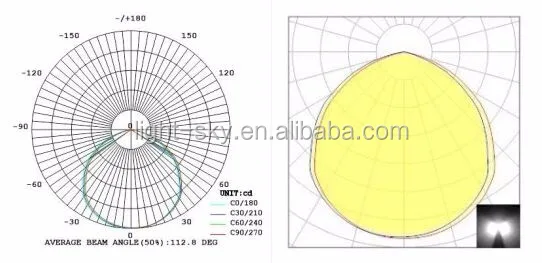

Lighting distribution Curve for UFO LED high bay light.

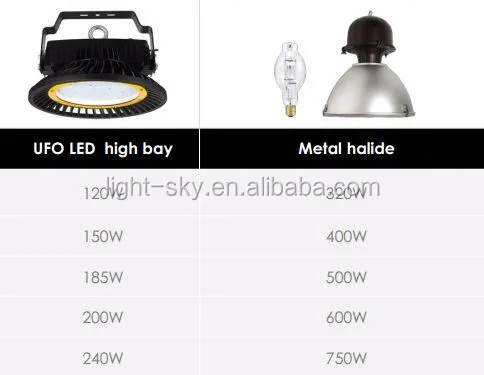

Replacement table
UFO LED high bay light
vs
traditional Metal halide high bay light
Item No,
CLS-HBU-150W
Power(Light Watt)
150W
Input Voltage
AC90-305V，50/60HZ
Power factor
0.98
Luminous Efficiency
120-130 lm/w
Lumen
18000-19500 lm
CRI
Ra>80
CCT
2700-7500Kelvin
LED driver
Taiwan Meanwell
Working temperature
-30℃~+50℃
Beam Angle
110° & 120°
Lifetime
70 000 hours
Housing color
Black(White)
Housing material
Aluminum
IP grade
IP65
Certificate
DLC ETL CE(EMC LVD) ROHS
Warranty
7 year

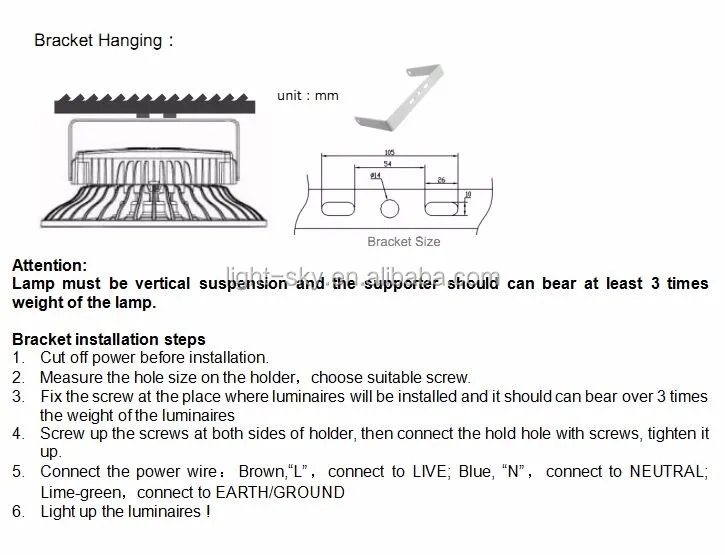

Installation Process
Applications

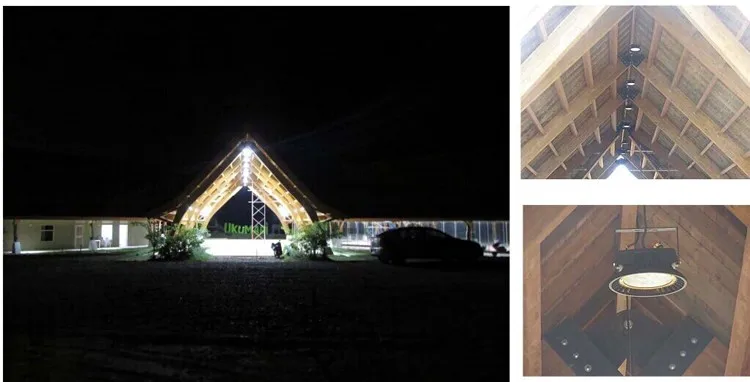

Application for UFO led high bay light

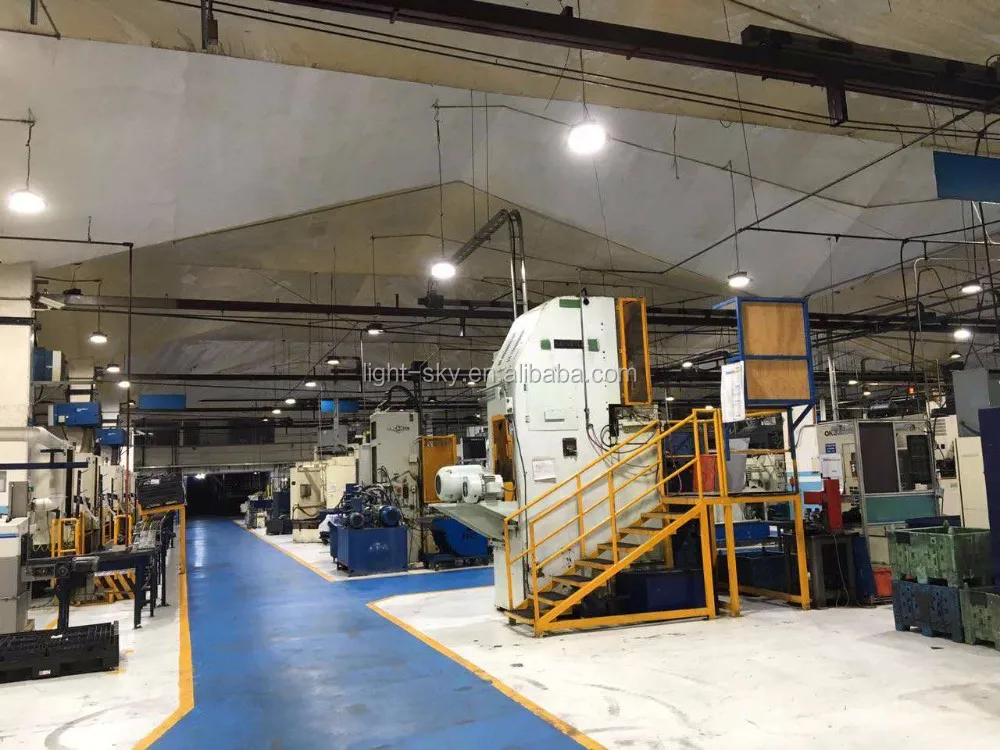

Factory lighting: UFO LED high bay light in Mexcio

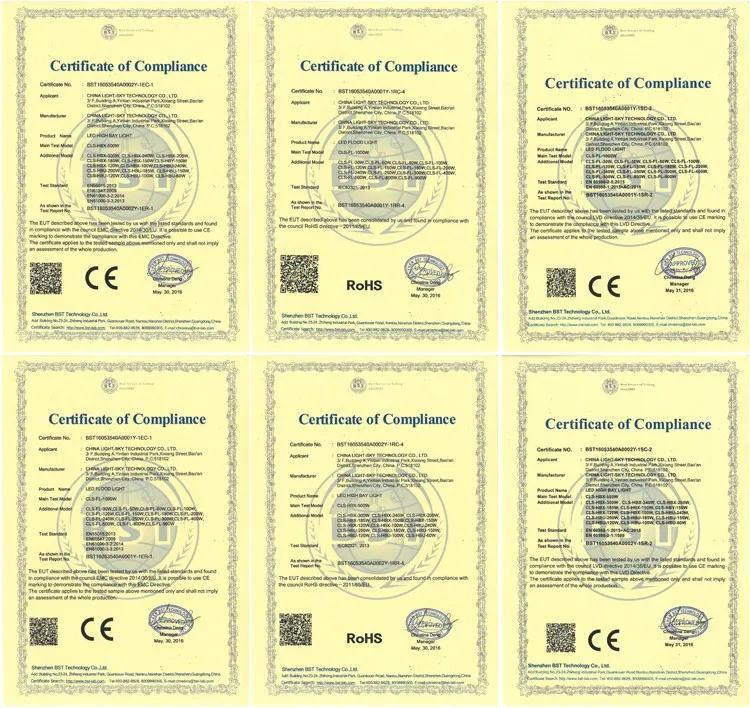

Certifications
Most of our LED light have approved CE ROHS.

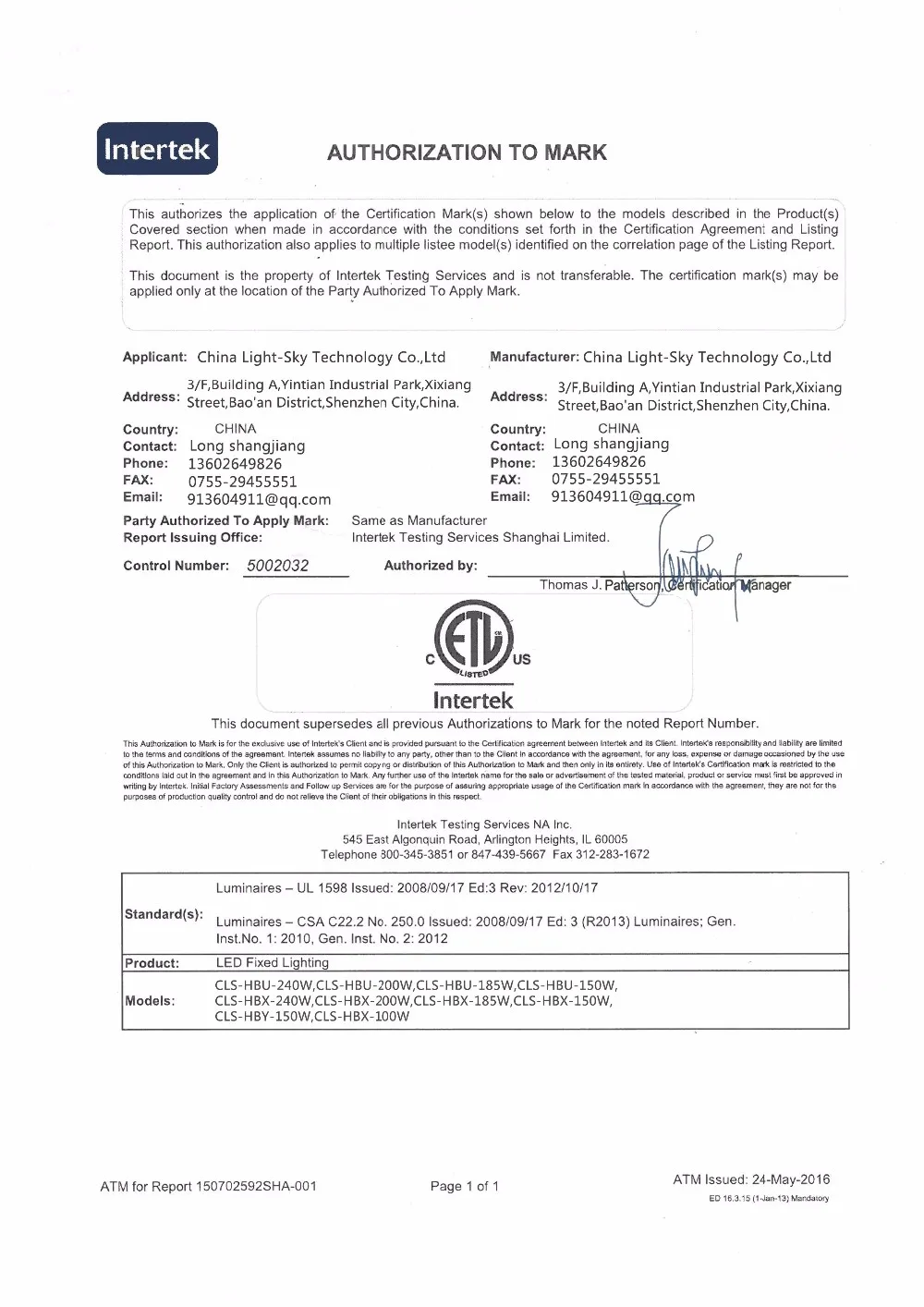

ETL certificate.
CLS UFO LED high bay light have approved ETL certificate on May 24th, 2016

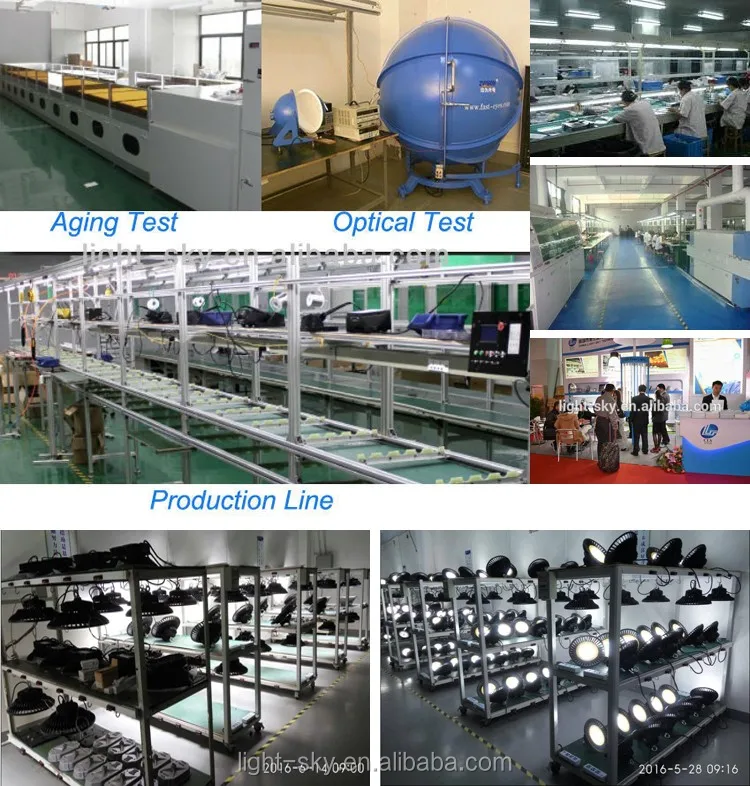

Company Information
Our factory:
Except advanced manufacture equipment and measurement instruments and talents, CLS also build close relationship with academy department and professors to R&D new technology and lighting solutions. CLS will always insist on "Customers Foremost,Quality First,People-Oriented and Team Work",sincerely offer high quality and excellent after sales service to customers.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution
