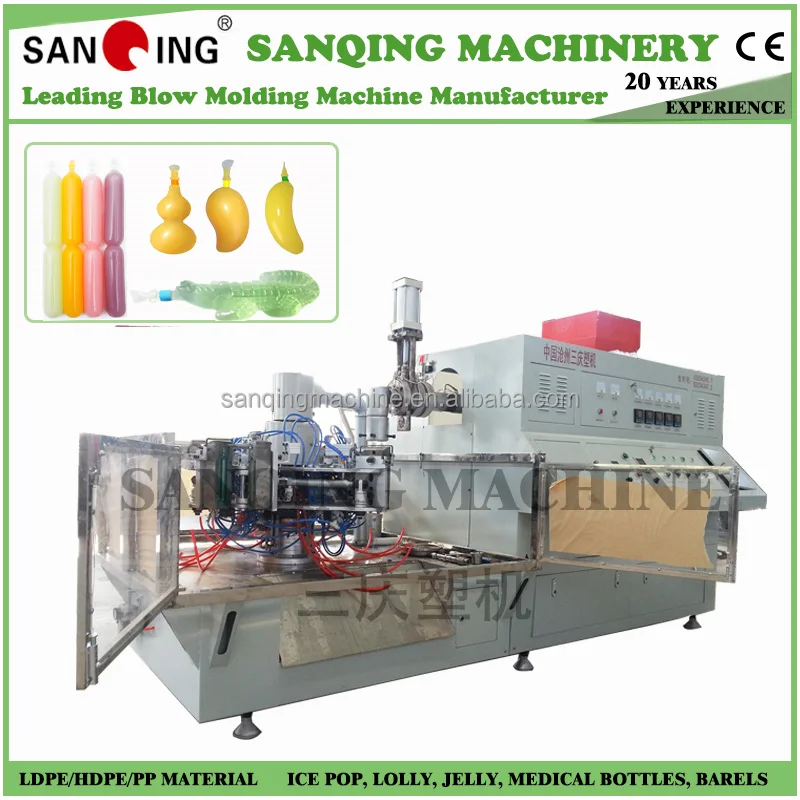

automatic ice stick tube bottle blow molding machine/ice pop plastic tube machine/lolly pop bottle blow machine
In case customer needs different weight of product, our machine have device to adjust weight follow customer requirement.
Our rotational machine is the fastest machine to produce LDPE products, because our machines are using 4 molds, 6 molds, 8 molds, 10 molds, 12 molds to produce at the same time. The production capacity of 6 molds machine could reach 3000 pieces per hour.
We provide different level of price to cater customer demand, we have connected type(extruder and blower), separate type(extruder and blower not connected), full automatic type, semi-automatic type of machines. We also have devices to de-flashing the waste part of bottle.
Main Components:
1. Gear Box
2. Frequency Control Inveter
3. Pneumatic Power
4. Temperature Controller

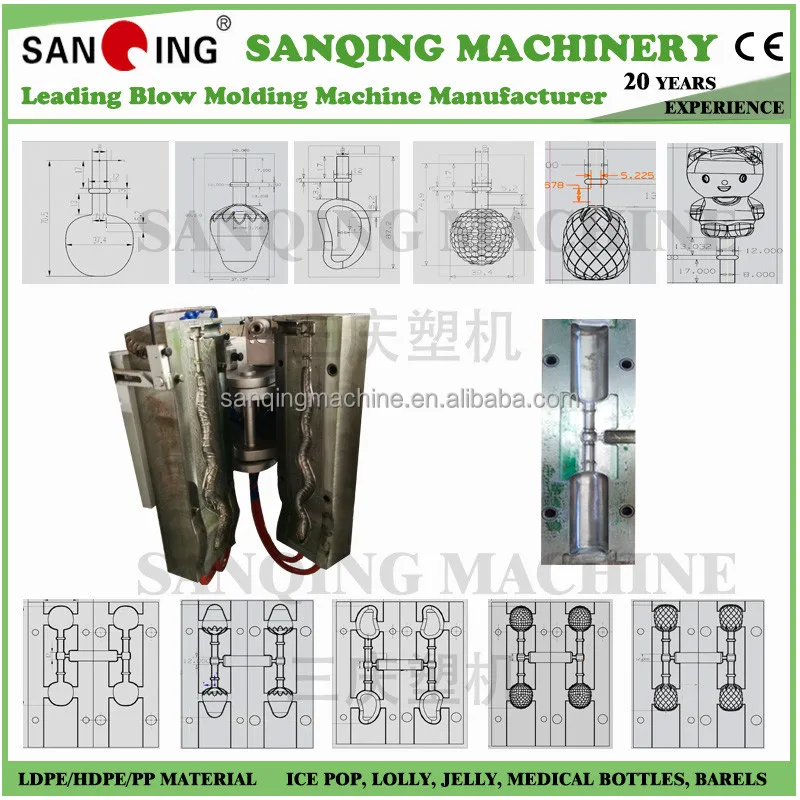

5. Moulds
6. Proximity Switch
7. Air Cylinders
8. Motors for extruder and Rotator
9. Screw from extruder
Production Flow
Parameter
Model
Parameters
4 work station
6 work station
8 work station
Max. Volume of Bottle(ml)
1000
1500
1500
Max. Dia. Of Bottle(cm)
7
10
10
Productive capacity(pcs/hour)
500-7000
1000-8000
1500-8000
Mould Size (L, W, H) (mm)
118x120x350
118x120x350
118x120x350
Motor Power(KW)
0.75
1.1
1.5
Air Consumption(m3/Min)
0.4
Product Weight(KG/Hour)
400
800
1000
Dimension(L, W, H)(mm)
1400x1000x1400
1600x1200x1500
1900x1700x1400
Applicable Raw Material
PE, PP, PVC
Speed regulating method
Frequency control of motor speed
Packaging & Shipping
Main Components
For the most important part: Inverter and temperature controller, we use OMRON brand to ensure the machine quality. Therefore the machine life time is couple of years.
Our Services
We have engineer available to install machines overseas.
We have 24 hours sales service, please contact us any time.
