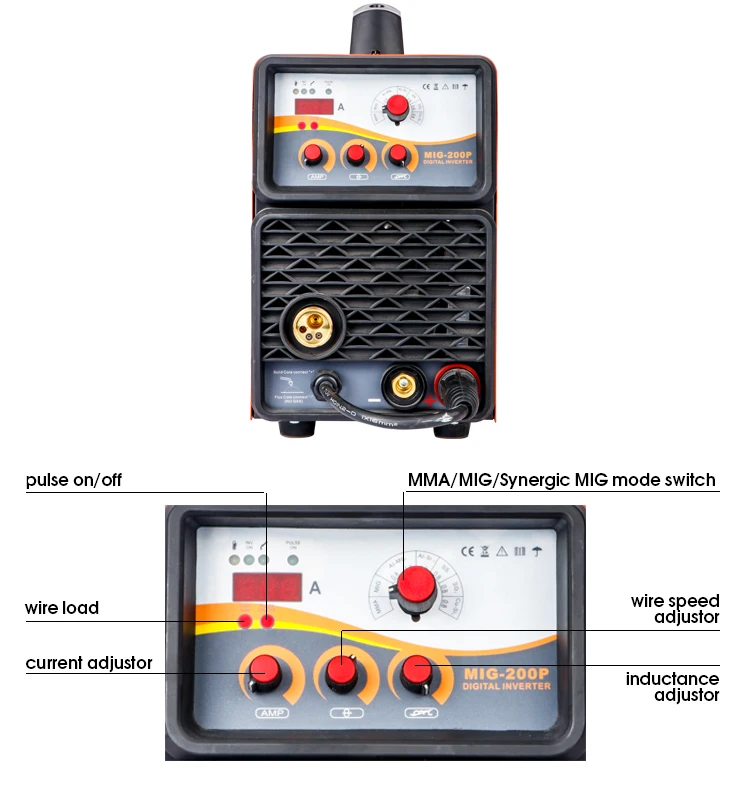

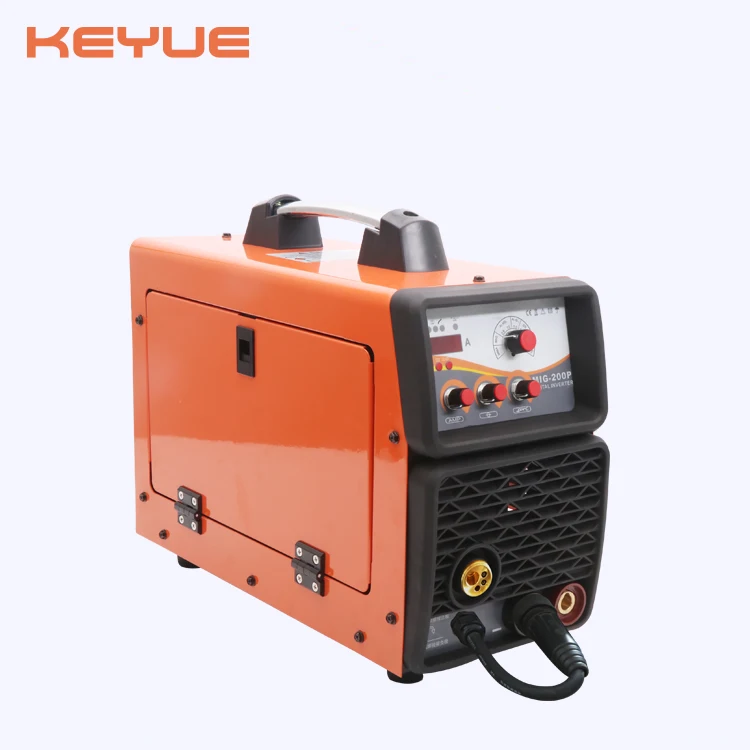

Single phase 220V 200A 5kgs feeder Digital/synergic pulse stocked MMA/MIG/MAG/CO2 IGBT DC inverter aluminium welder MIG 200P
- Category: MIG Welders >>>
- Supplier: Keyue Welding Equipment Co. Ltd.
Share on (60587307962):
Product Overview
Description
Product Description
Product feature
- Support: MIG, TIG (Lift TIG) and MMA
- Wire: 0.8-1.0mm solid cored wire and flux-cored wire
- Protection: over-heat and over current.
- Material: Stainless steel, Carbon steel and so on
| Model | MIG-200P |
| Input voltage(V) | 1PH AC220V±15% |
| Input power(KVA) | 6.2 |
| Input current (A) | 28 |
| Rated output | 22V/160A |
| Output current(A) | 5-185 |
| No-load voltage (V) | 56±5 |
| Duty Cycle% (40℃ 10min) | 185A 30% |
| 101A 100% | |
| Efficiency (%) | 70 |
| Protection grade | IP21 |
| Insulation grade | F |
| Net weight (KG) | 13 |
| Gross weight (KG) | 18.1 |
| Dimension of machine (mm) | 496*212*380 |
| Dimension of package (mm) | 730*290*440 |
Performance
Material | Sheet thickness (mm) | Stick diameter (mm) | Current range(A) | Model |
Carbon steel Stainless steel Low alloy steel
| ≥0.8 | 0.8/1.0 | 50-200 | MIG-200 |
≥0.8 | 0.8/1.0 | 50-250 | MIG-250 | |
≥0.8 | 1.0/1.2 | 60-350 | MIG-350 | |
≥0.8 | 1.0/1.2/1.6 | 60-500 | MIG-500 | |
Carbon steel Stainless steel Low alloy steel Aluminum
| ≥0.8 | 0.8/1.0 | 5-185A | MIG-200P |
≥0.8 | 2.5/3.2/4.0/5.0 | 25-350 | MIG-350H | |
≥0.8 | 5.0/6.0/8.0 | 25-500 | MIG-500H |

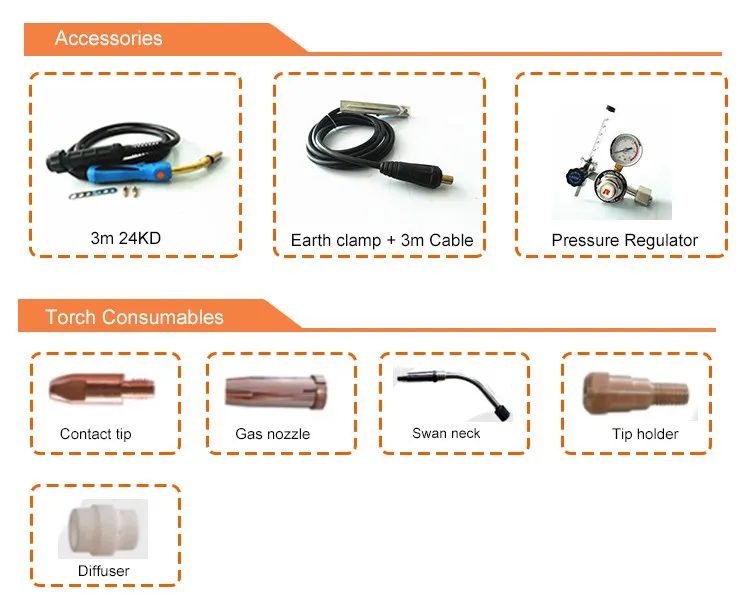

Accessories
Package
