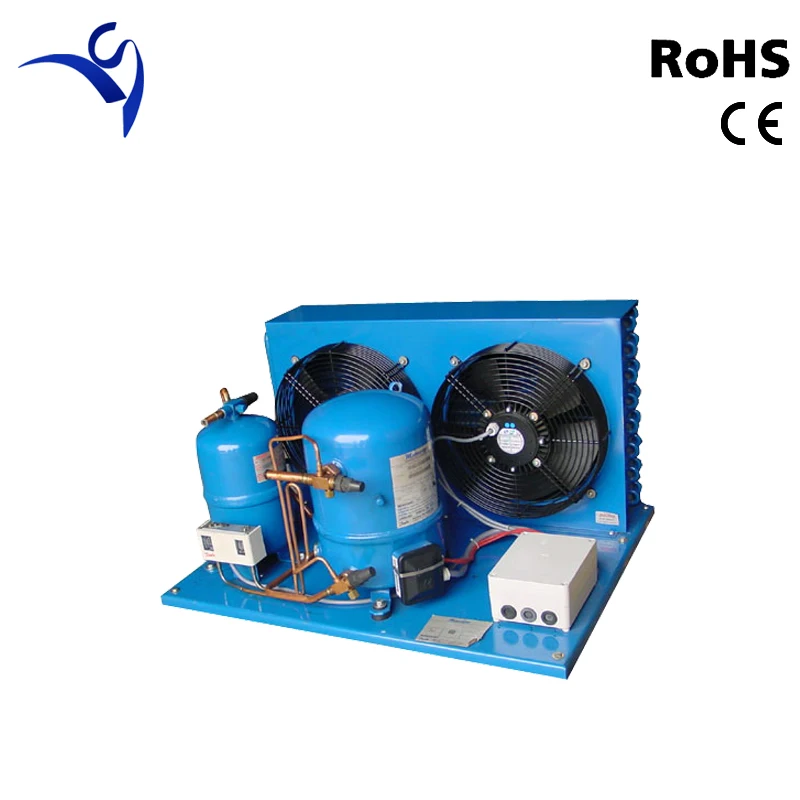

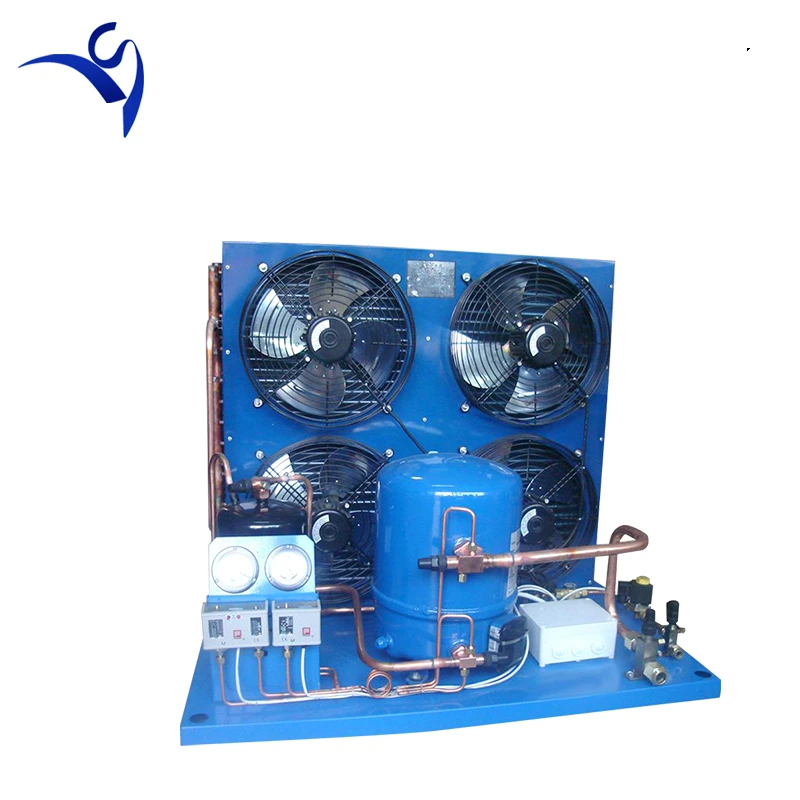

3.5HP Maneuop hermetic compressor cold room refrigeration condensing unit

Product Overview

Description

3.5HP Maneuop hermetic compressor cold room refrigeration condensing unit

Features

* Compact and sophisticated outlook

* Fully assembled and ready to be installed to save on assembly and applied cost

* Wide operating range

   - LT and MT from -30℃ to +10℃ evaporating temperature

  - Same unit for either MT or LT cold room application

  - Reduce inventory for distributors and contractors

 *  Suit for R404a and R407F refrigerant.





Maneurop reciprocating compressor for Medium and low temperature                    R404a,R407F

Nominal data

Model	HP	Compressor	Voltage	Cooling capacity(W)					Axial Fans	Dimensions			Connection
				Evaporating temperature(°C)
			(V-Ph-Hz)	-30	-25	-20	-15	-10	N°x Diameter	L	W	H	Inlet	Outlet
LKPG150	1.5	MTZ18	230-1-50	341	600	924	1329	1829	1 x 350	620	600	470	12	10
LKPG150S	1.5	MTZ18	380-3-50	341	600	924	1329	1829	1 x 350	620	600	470	12	10
LKPG200	2	MTZ22	230-1-50	565	969	1441	1992	2633	1 x 350	620	600	520	16	10
LKPG200S	2	MTZ22	380-3-50	565	969	1441	1992	2633	1 x 350	620	600	520	16	10
LKPG250	2.5	MTZ28	220-1-50	827	1298	1863	2539	3344	1 x 400	680	620	570	16	10
LKPG250S	2.5	MTZ28	380-3-50	827	1298	1863	2539	3344	1 x 400	680	620	570	16	10
LKPG300	3	MTZ36	220-1-50	1316	1872	2554	3389	4404	2 x 350	680	620	470	16	10
LKPG300S	3	MTZ36	380-3-50	1316	1872	2554	3389	4404	2 x 350	680	620	470	16	10
LKPG350S	3.5	MTZ40	380-3-50	1219	1934	2781	3783	4962	2 x 350	680	620	520	16	10
LKPG450	4.5	MTZ50	220-1-50	1619	2399	3380	4608	6132	2 x 400	1010	710	520	22	12
LKPG450S	4.5	MTZ50	380-3-50	1619	2399	3380	4608	6132	2 x 400	1010	710	520	22	12
LKPG500S	5	MTZ56	380-3-50	2366	3581	5053	6823	8928	2 x 400	1010	710	520	22	12
LKPG550S	5.5	MTZ64	380-3-50	1974	3154	4560	6233	8216	2 x 400	1010	710	570	22	12
LKPG600S	6	MTZ72	380-3-50	3518	5025	6851	9042	11646	2 x 400	1010	710	680	28	12
LKPG700S	7	MTZ80	380-3-50	2581	4144	5978	8126	10633	2 x 400	1010	710	680	28	12
LKPG900S	9	MTZ100	380-3-50	3081	4702	6686	9111	12055	2 x 450	1220	850	970	28	12
LKPG1000S	10	MTZ125	380-3-50	4501	6590	9116	12171	15841	4 x 400	1220	850	970	28	16
LKPG1200S	12	MTZ144	380-3-50	5294	7692	10587	14078	18266	4 x 400	1220	850	1070	28	16
LKPG1350S	13.5	MTZ160	380-3-50	6146	8820	12038	15907	20531	4 x 400	1220	850	1070	28	16
TEST CONDITION: Ambient Temperature: 32°C, Condensing Temperature: 40°C
