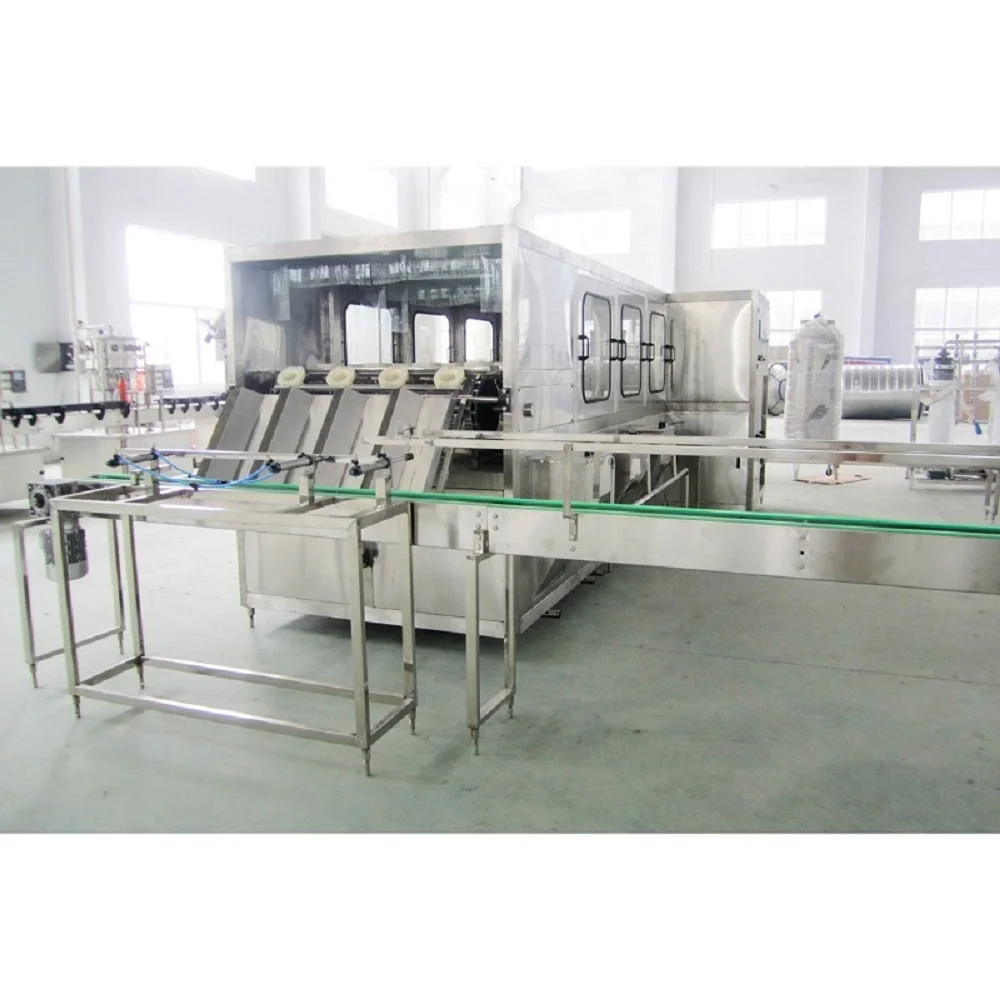

Full automatic 5 gallon/19L/ 20L bottle/ jar drinking mineral /pure water bottling filling machine plant / production line
Product Description
This 5 gallons, 19L, 20L jar water filling machine specially produces 3 gallons to 5 gallons jar drinking water.

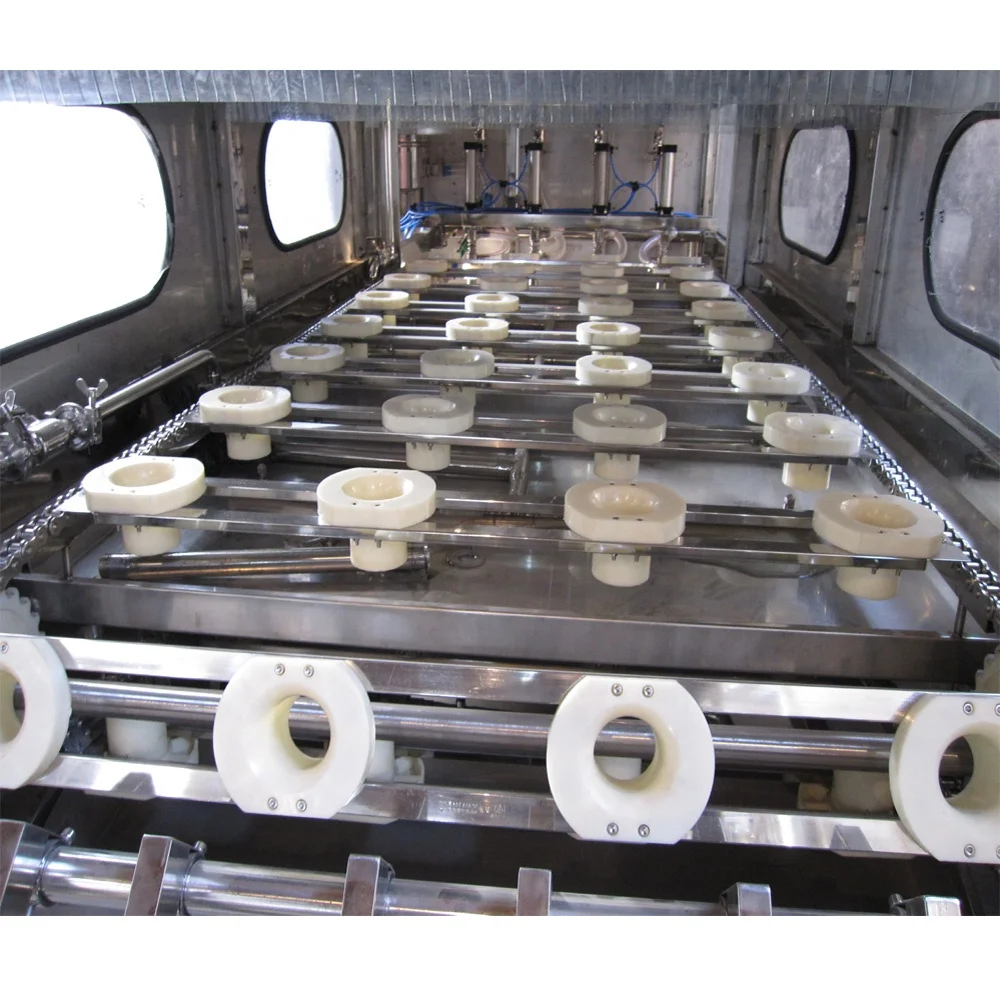

In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly.
The sealer can seal barrel caps automatically.
The line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging.
Technical Parameter:
Model
QGF-100
QGF-150
QGF-300
QGF-450
QGF-600
QGF-900

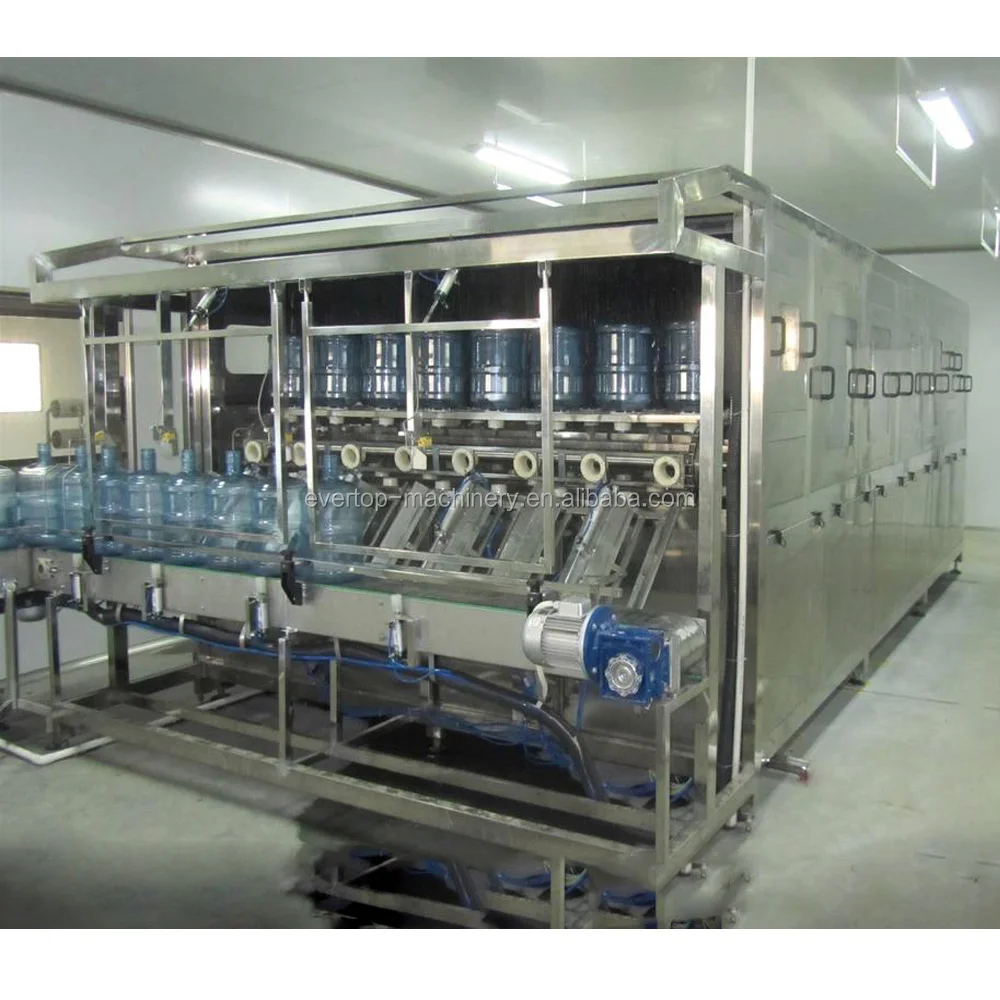

QGF-1200
Filling heads
1
1
2
3
4
6
12
Volume(L)
18.9
18.9
18.9
18.9
18.9
18.9
18.9
Barrel size(mm)
D270×490
D270×490
D270×490
D270×490
D270×490
D270×490
D270×490
Capacity
100B/H
150B/H
300B/H
450B/H
600B/H
900B/H
1200B/H
Gas pressure
0.4-0.6MPa
0.4-0.6MPa
0.4-0.6MPa
0.4-0.6MPa
0.4-0.6MPa
0.4-0.6MPa
0.4-0.6MPa
Gas consumption
0.37
0.37
0.6
0.8
1
1.5
1.8
Motor power(KW)
1.38
1.75
3.8
3.8
7.5
9.75
13.5
Rated voltage
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
380V/50HZ
Weight(KG)
680
800
1500
2100
3000
3500
4500
Technological Flow Sheet (5 Gallons Drinking Water Production Line): 1. PET Preform Injection Molding System PET material→ Dehumidify→ Load material→ Injection machine→ Preform
2. PE/PP Cap Compression Molding System PE material→ Dehumidify→ Load material→ Compression machine→ Cap
3. PET Bottle Blowing System PET Preforms→ heat preform→ stretch→ blowing→ bottles
4. Water Purifying System Raw water→ Multistage centrifugal stainless pump→ Quartz sand filter→ Active carbon filter→ Water softner→ Micro filter→ Reverse osmosis→ Ozone generator→ Water tank→ Pump

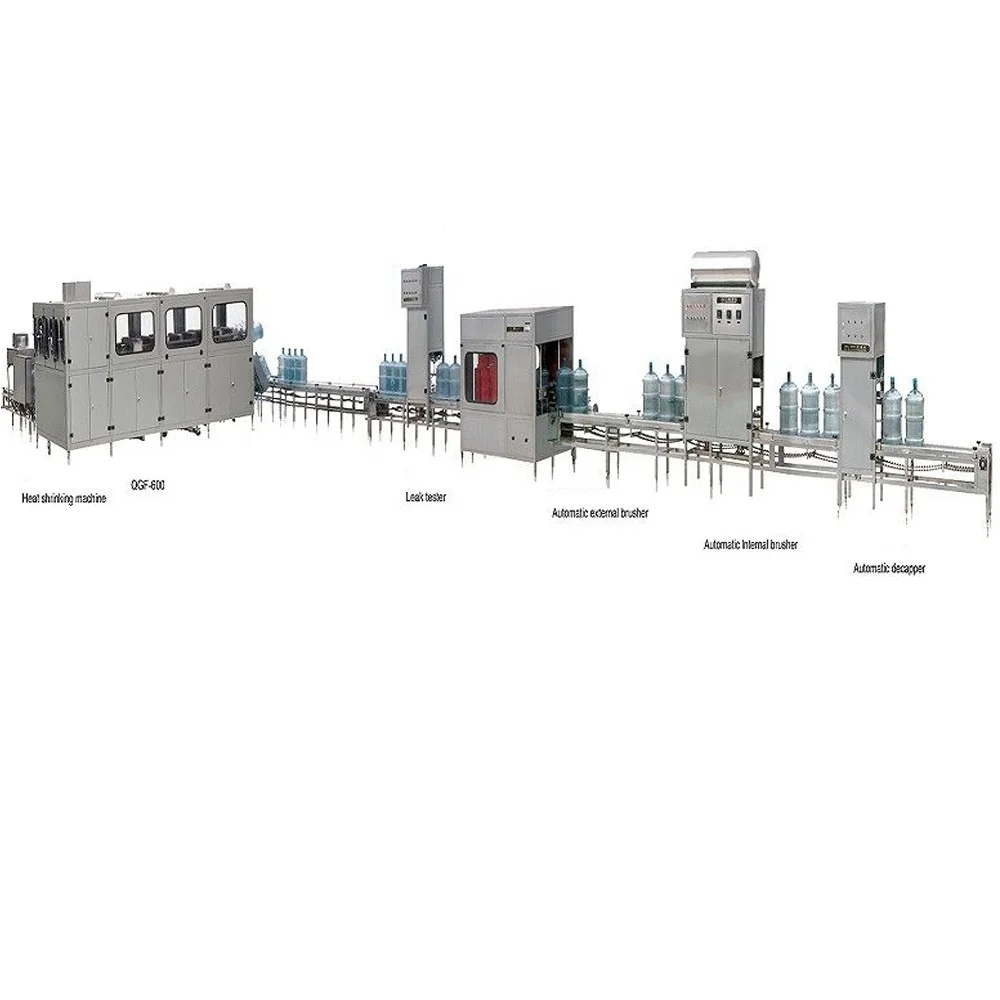

5. Water Filling Packing System Automatic de-capper→ Automatic outside brusher→ Automatic bottle loader→ Rinsing/Filling/Capping Machine→ Lamp inspection→ Cap film shrinking machine→ Date Printer→ Bottle output conveyor→ Stock
Packaging & Shipping
Our Services
1. The plant layout To provide customers with pre-project workshop planning, design.
2. Commissioning services Send experienced engineers and technicians to be responsible for equipment installation and commissioning, to ensure customers' factory normal production.
3. Spare parts With one year of wearing parts when the device is shipped. In addition, we prepare adequate equipment spare parts in stock. Customers ever need spare parts to repair and maintain quipment, we can supply to them quickly.
4. Technical training To ensure that your technical staff to become familiar with the performance of the equipment, to master the equipment proper operation and maintenance procedures, we provide on-site technical training, in order to facilitate customers faster and more comprehensive access to technology.
Company Information
Zhangjiagang Evertop Machinery Co., Ltd., which has the function of research, development and manufacture, is specialized in beverage packaging machinery.
We are providing the following products: liquid filling machine (bottle water, juice/tea, carbonated drink, oil, milk, wine etc.), 3 to 5 gallons water filling production line, water treatment machine, labeling and packing machine, automatic/semi-automatic bottle blow molding machine, injection molding machine and automatic batching, mixing system, a variety of sterilization equipment etc.
Since foundation, we devote all the strength to the new field of beverage packaging machine technology and absorb the advanced technology from German and Italy. Company insists the management ideas of market-oriented, technology-first, quality of life, faith-based, service paramount, and has established perfect quality assurance system.
FAQ
Q What is your trade clause? A We mainly handle it by FOB, CFR, CIF, EXW, FCA. It depends on the client’s need.
Q What is your payment term? A 30% by T/T in advance as deposit, balance 70% by T/T or irrevocable L/C at sight before shipment
Q What is the valid of your price? A Because the cost and exchange rate changes rapidly, so all of our quotation for you is with 30 days valid. If you need any update price, please feel free to contact us.
Q How could I know if your products' specification is suit for our country power? A All the machines are custom made. We will make suitable voltage and frequency products according to your need.
Q How long can you arrange delivery? A About 30 days after we received the deposit payment, all the machines will be ready. You are welcomed to test the machine in my factory or we send you video of your machine running. Then you arrange the balance payment and we will pack the machines with wooden case and arrange the shippment by sea or by train.
