MECO 30 high pressure fog machine,anti drip fine mist cooling system

Product Overview

Description

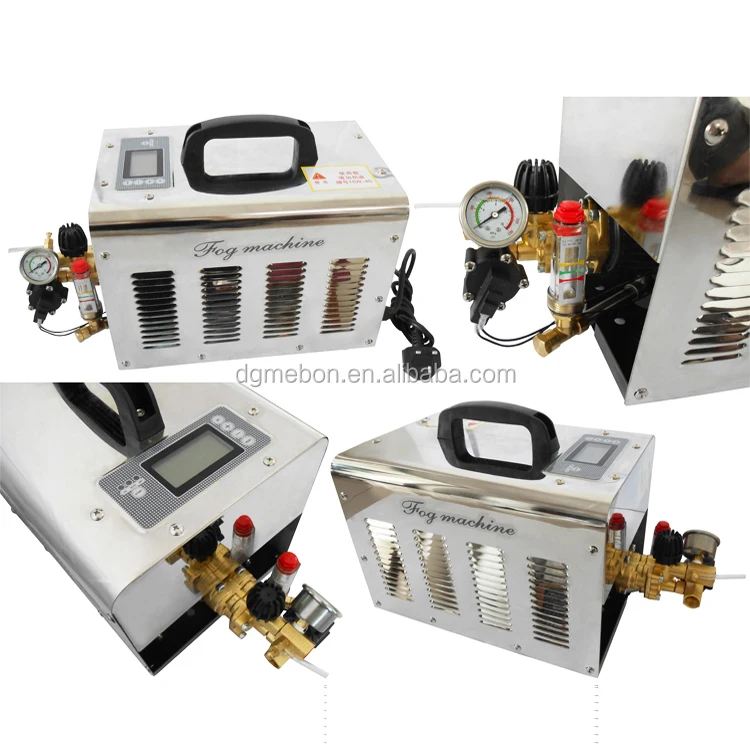

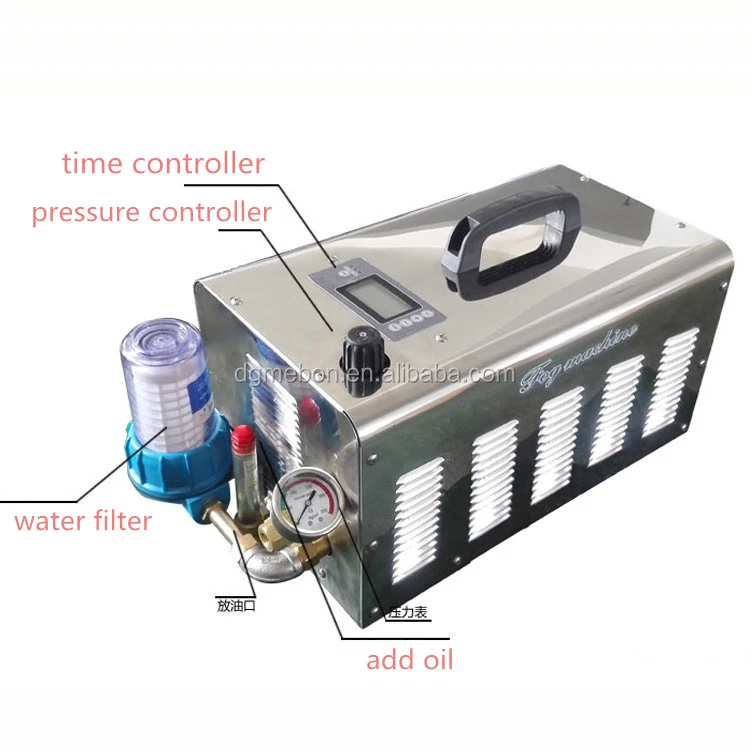

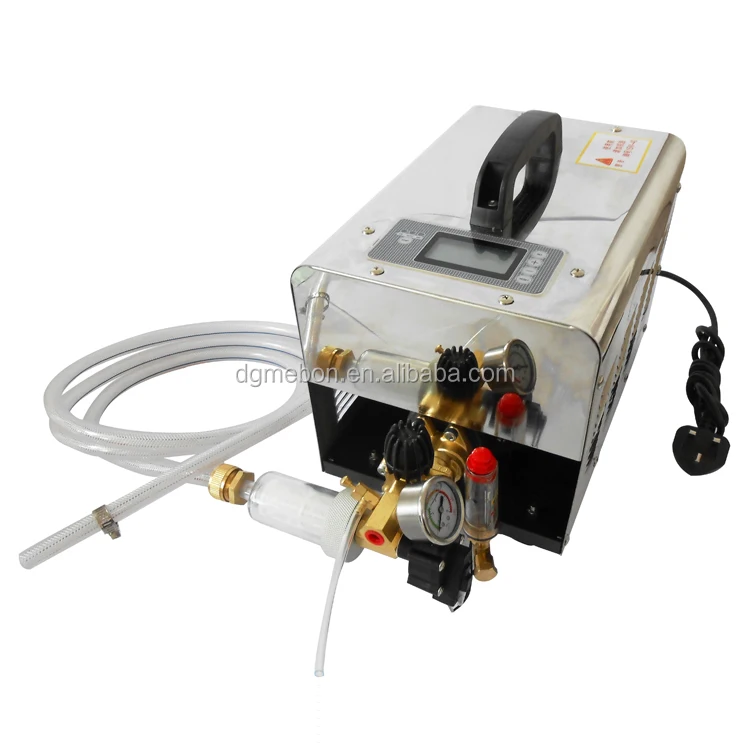

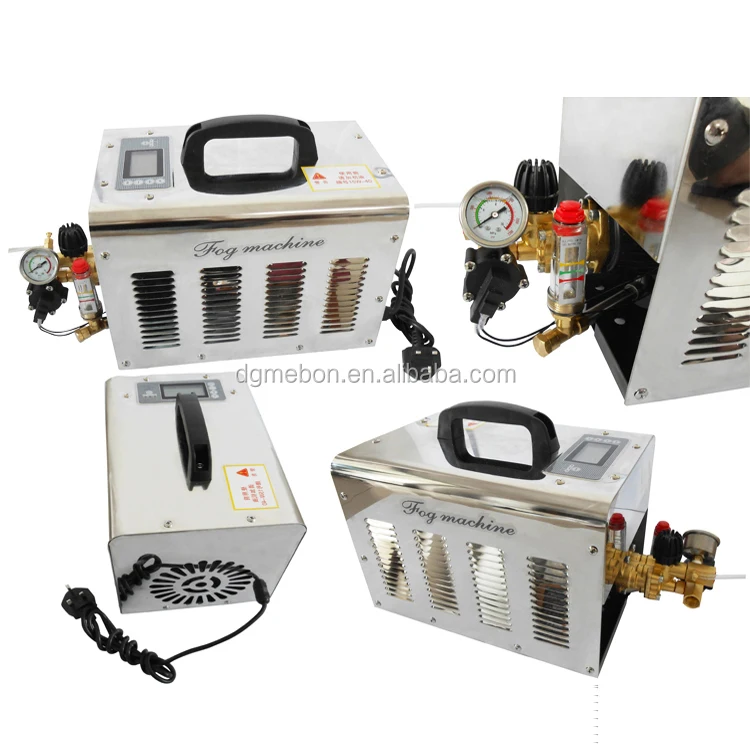

MECO-30 high pressure fog machine,anti-drip fine mist cooling system

The misting pump can be applied for various functions, such as cooling ,humidfying, landscaping dedusting, lowering the temperature ,especiallly for chemical spraying and seed raising in the field of Agriculture. The following is the distinguishing feature of the misting system.



Moist fog: The high pressure misting system can produce 5 billion droplets. the thread of the drop is 3~10um,which  looks  like mist covering mountain, forming water vapor and  targeting the excellent humidification and cooling effect .



Energy saving: Misting one kilogram water just need 6w electrical energy ,which consumes only 1/100 of the traditional electric steam humidifier or the 1/10 of the centrifugal humididfier.



Reliability: The high misting pump apply the newest technology into the process of producing . It can work for 24 hours sustainablely without destorying other parts like the misting nozzles ,fittings,and pipes,even in the air environment of high concentrations of dust.



Environment health: The high pressure misting system use the non-circulatiuon water so that there is no threat of  the reproduction of bacteria.



Volume spraying: high  sprayer distribution and easily adjustable.

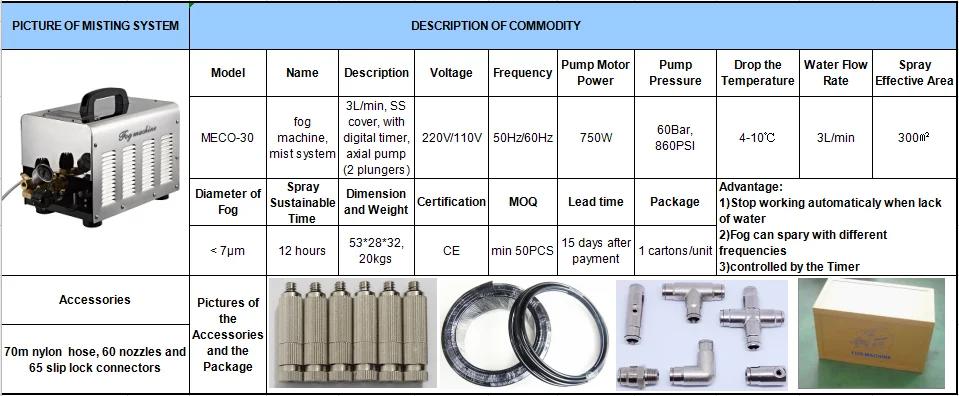

Specification

Item NO.	LPM	Power	Size	Working pressure	Voltage	The number of nozzles used	Frequency
MECO-03	0.3L	120W	40*20*27cm	60bar	220V/110V	8 nozzles	50/60HZ
MECO-10	1L	300W	43*22*29cm	60bar	220V/110V	20 nozzles	50/60HZ
MECO-20	2L	550W	47*25*32cm	60bar	220V/110V	40 nozzles	50/60HZ
MECO-30	3L	750W	47*25*32cm	60bar	220V/110V	60 nozzles	50/60HZ
MECO-70	7L	1800W	70*36*35cm	60bar	220V/110V	120 nozzles	50/60HZ
MECO-110	11L	2200W	69*35*33cm	60bar	220V/110V	200 nozzles	50/60HZ
MECO-154	15.4L	3000W	69*35*33cm	60bar	220V/110V	260 nozzles	50/60HZ

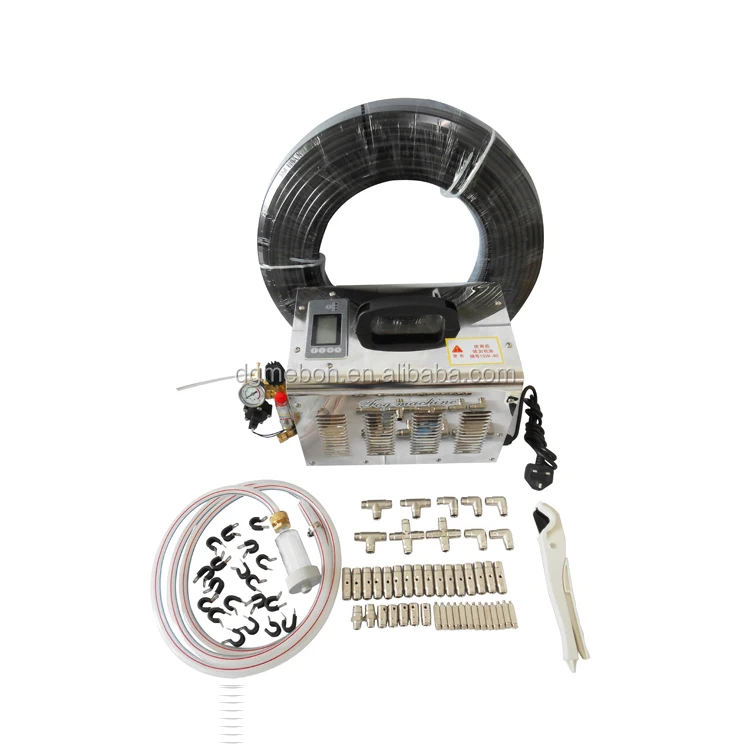

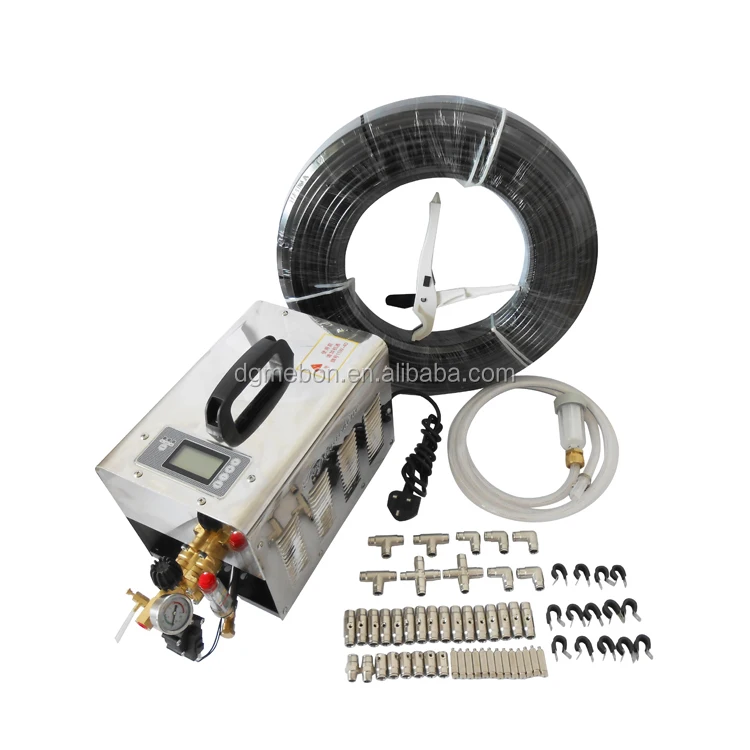

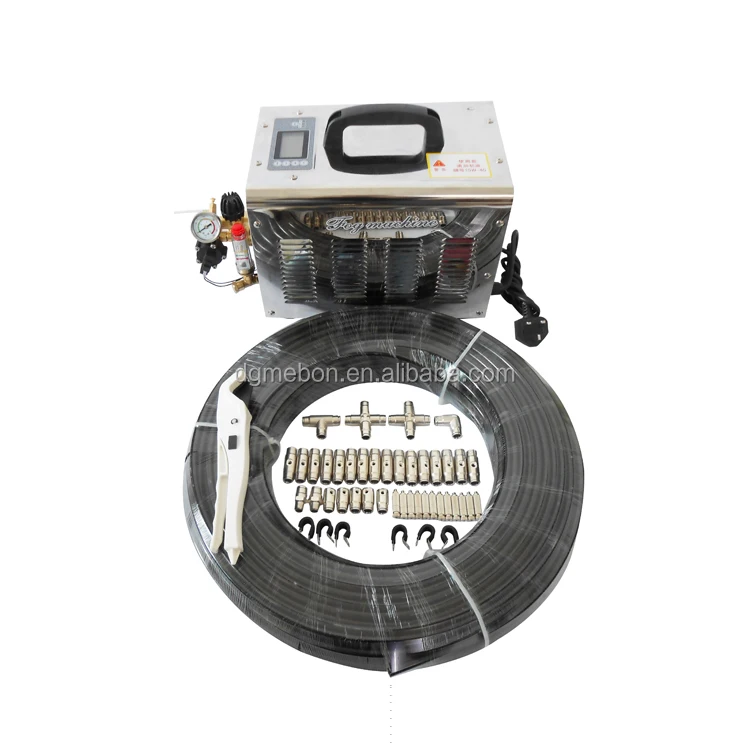

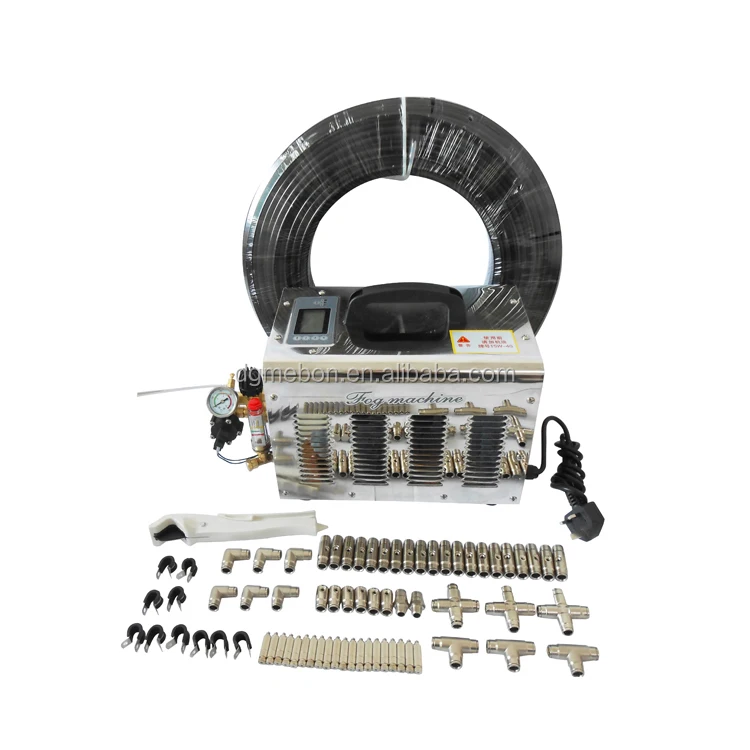

The whole set of the equipment includes

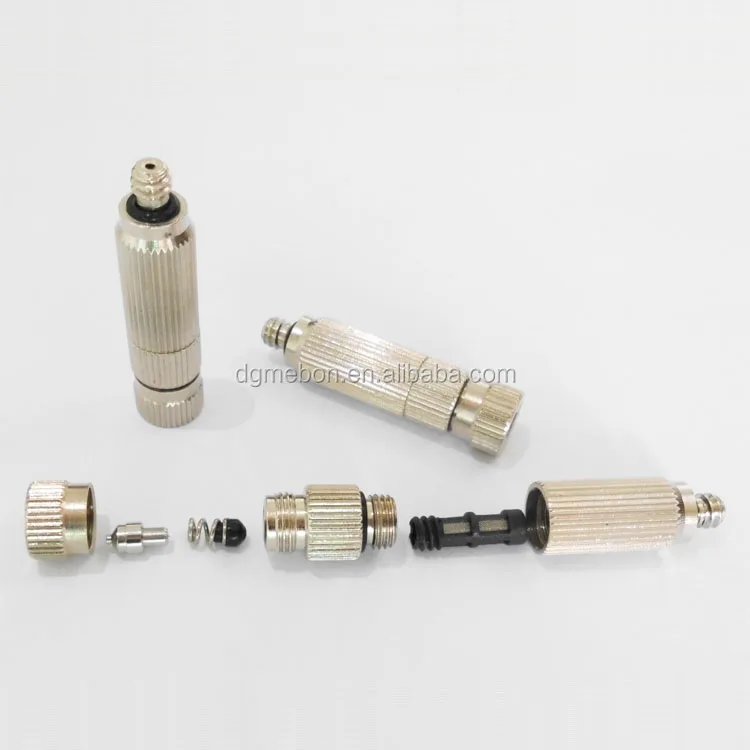

misting nozzle :   0.1mm,0.15mm,0.20mm,0.30mm,0.40mm,0.50mm

                             high pressure

                             Thread:10/24unc

                              washable filter

                              brasss with nickel plated

                              stainless steel orifice

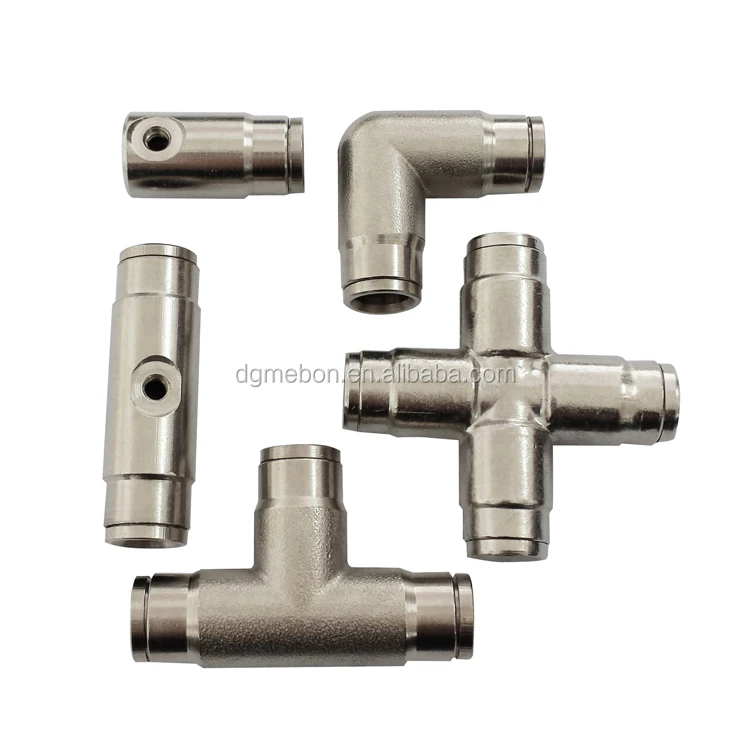

misting fitting:

cross connector,slip-lock union,slip-lock male connector,slip-lock Tee connector,elbow connector,etc( 1/4",3/8",10/24unc)





tubing: nylon tubing

tubing cutter,tubing clamp, filter



Application

This pump can be applied into farming usage,such as cooling,humidification,dedusting,deodorization,insect control etc. It can be operated easily and simplely. with such kind of pump machine, user can save lots of energy and time to manage their farming place .Beside, the pump can be used for other functions mentioned flike follows:



1. Cooling



 Residential cooling, outdoor cooling, commercial place cooling



2. Humidification



Industrial, agricultural and horticultural: green house, garden, livestock farming



3. Dedusting and Deodorization



Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process



4. Insect Control



garden or agriculture , kill the insect effenciently.



Mist System



Fog Effect
