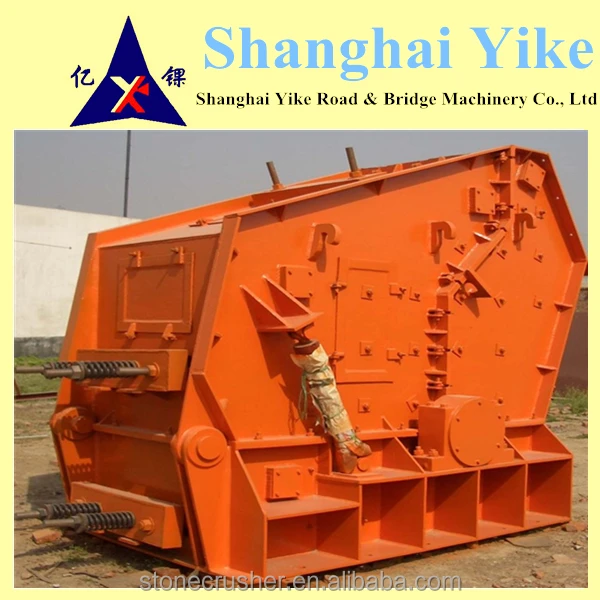

1.Impact Crusher picture
2. 2.impact crusher mpact Crusher Specifications:
Model | Rotor Spec(mm) | Feed Opening Size(mm) | Max Feed Edge(mm) | Capacity (t/h) | Motor Power(kw) | Weight (t) | Dimensions (L×W×H) (mm |
PF- 1007 | 1000×700 | 400×730 | 300 | 30-70 | 45 | 12 | 2330×1660×2300 |
PF- 1010 | 1000×1050 | 400×1080 | 350 | 50-90 | 55 | 15 | 2370×1700×2390 |
PF- 1210 | 1250×1050 | 400×1080 | 350 | 70- 130 | 110 | 17.7 | 2680×2160×2800 |
PF- 1214 | 1250×1400 | 400×1430 | 350 | 100- 180 | 132 | 22.4 | 2650×2460×2800 |
PF- 1315 | 1320×1500 | 860×1520 | 500 | 130- 250 | 220 | 27 | 3180×2720×2620 |
3. Stone Impact Crusher Description:
The Impact Crusher manufactured by Shanghai Yike Road & Bridge Machinery Co.,Ltd has widely exported to Middle East(Saudi Arabia, Oman), America(Canada), Africa(Algeria, Rwanda, Cameroon etc.), Southeast Asia(Vietnam, Philippine, Indonesia, India etc.), and our brand "YK" has won a good reputation from our clients all over the world by good quality, satisfied service and continuous and timely supply at competitive prices for wearing parts. Because of Impact Crusher simple structure and reliable operation, easy maintenance and low operating cost, they have been widely applied to Mining, Metallurgy, Building Materials, Road, Railway, Water Conservancy, Chemical Industry field etc. to process Granite, Basalt, Bank/River Gravel, Limestone, Marble, Bauxite, Silicon Carbide, Iron Ore, Concrete Aggregate, Cement Clinker, Quartz, Slag etc.

4.stone Impact Crusher Working Principle:
This PF Series Impact Crusher is used in Secondary Crushing. The Impact Crusher can crush material whose compression strength is not more than 350Mpa. The detailed specification is like below for your selection.

5.stone Impact Crusher Features and Benefits:


7. We also supply impact crusher wear parts and fastener parts with good quality and good price in China and overseas.
