ZGH Automatic cnc steel pole seam welding machine
- Category: Seam Welders >>>
- Supplier: Jiangsu Tewei Machine Tool Manufacturing Co. Ltd.
Share on (60587722383):
Product Overview
Description
Product Description
ZGH automatic welding and seaming integrated machine
The device is a universal tube cone, polygon the tube and polygon taper pipe automatic seam submerged arc welding special equipment, fixed welding torch, workpiece linear movement, the commissure and welded into one, side seam side welded function on the equipment, so that the work efficiency is greatly improved, weld automatic adjustment function to ensure that the torch of accurate, welding can automatically.Device and the side of the top of the commissure device with roll formed workpiece longitudinal seam closed, to ensure that the smallest gap, the commissrue device driven by a hydraulic system, the commissure pressure automatically control, wheel the workpiece clamping point are structure, reduce the motion of friction with the workpiece to reach the top of the commissure welding state.
The flux recovery transporting one machine to complete the automatic recovery of the submerged arc welding Pharmacy, automatic transmission, the addition of impurities.
The device has a forming beautiful, stable performance,easy operation and high efficiency. Selection of the machine can not only impr4ove labor productivity, and improve the working environment, but also improve the stability of the product quality, reliability, ideal specialized production equipment.

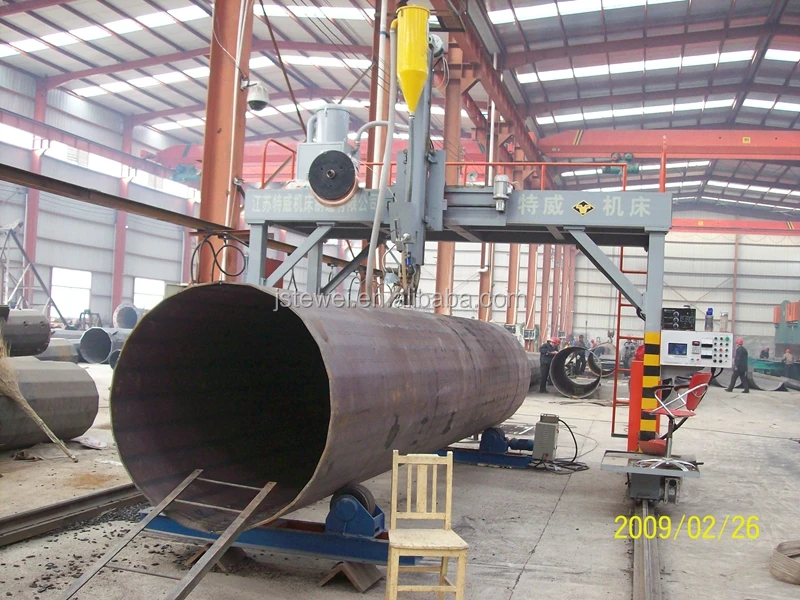

LMHZ-2500-12000 Gantry Large Diameter Submerged Arc Welding Production Line
Description
The Machine Adopt Submerged Arc Welding, The Welding Power Is From Shanghai Welding Company, Automatic Recovered Flux. The Welding Is Continuous And Beautiful, Strong Penetration, Forming One Time, High Efficiency. The Speed Is 1-3m/Min, Is The Three Times To Gas Welding. It's The Best Machine With Fastest Welding Speed, Good Effect And Lowest Price.
The Machine Adopt Submerged Arc Welding, The Welding Power Is From Shanghai Welding Company, Automatic Recovered Flux. The Welding Is Continuous And Beautiful, Strong Penetration, Forming One Time, High Efficiency. The Speed Is 1-3m/Min, Is The Three Times To Gas Welding. It's The Best Machine With Fastest Welding Speed, Good Effect And Lowest Price.
SN | Name | Value | Unit |
1 | Welding Length | 12 | M |
2 | Welding Thickness | 5～24 | MM |
3 | Welding Diameter | Ø300～Ø2500 | MM |
4 | Welding Current | 1000 | A |
5 | Welding Speed | 1～2 | M/MIN |
6 | Weight | 4500 | KG |

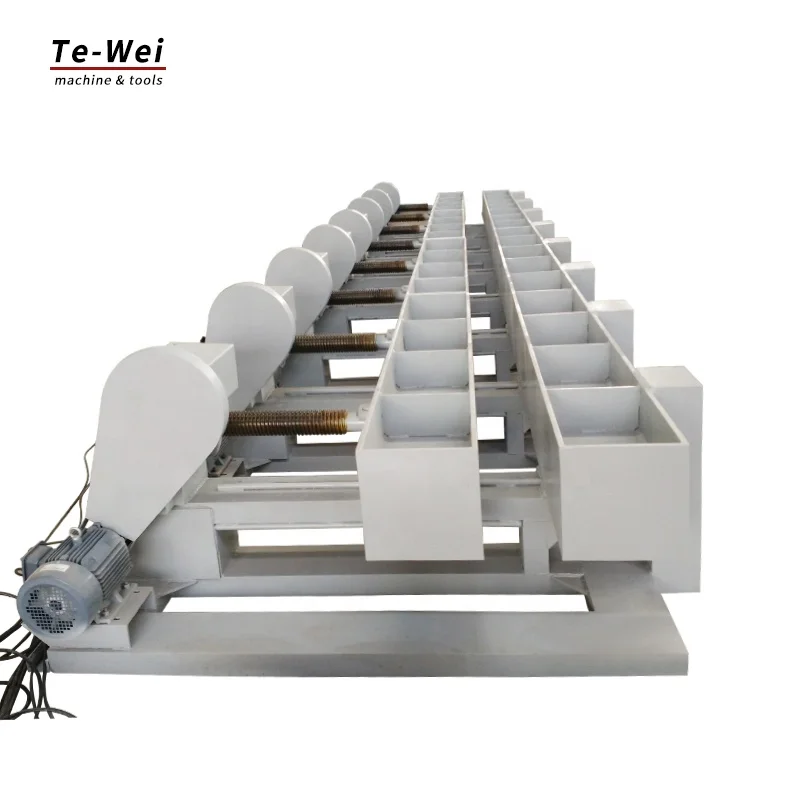

HF650*8-6000 Mechanical Seam Machine
Description
This Machine Is A Kind Of Completion Of The Poles Commissure Of Specialized Equipment, Machinery By 14 Groups Of Worm-Driven Commissure Die Movement, And Can Operate Linkage, But Also Single-Action Operation, And Manual Spot Welding Shape, High Efficiency.
This Machine Is A Kind Of Completion Of The Poles Commissure Of Specialized Equipment, Machinery By 14 Groups Of Worm-Driven Commissure Die Movement, And Can Operate Linkage, But Also Single-Action Operation, And Manual Spot Welding Shape, High Efficiency.
SN | Model | Value | Unit | ||
1 | Seaming Length | 6000 | MM | ||
2 | Seaming Tube Diameter | Ø650 | MM | ||
3 | Seaming Tube Thickness | 8 | MM | ||
4 | Motor Power | Model | Y100l-4 | ||
Power | 6*2.2 | KW | |||
Rev | 1460 | RPM | |||
5 | Size | L | 6000 | MM | |
W | 2300 | MM | |||
H | 850 | MM | |||
6 | Machine Weight | 4500 | KG | ||
Packing & Delivery
Recommend Products
Certifications
Customer Photos
Company Profile
Our company is located in Jiangdu of Yangzhou City, on the side of Jianghang Channel, the cross point of Jinghu and Ningtong Expressway. We are engaged in forging machinery manufacturing industry. We specialize in producing plate benders, plate bevel shearing lines, mechanical scribing machines, hydraulic scribing machines, pipe straighteners, pipe benders, semi-automatic submerged arc welding lines, hydraulic plate cutting machines, mechanical plate cutting machines, three-roll bending machines, and large milling machines, as well as common type plate processing in the fields of light pole, electrical pole, machinery, electron, automobile, shipbuilding, electrical home appliance, cooking equipment, and building decoration.
Our company has a strong technical force and advanced processing equipment, and attained ISO9001 international quality system certification in 2003. All our products are manufactured according to the national advanced standards. Our technicians develop many new products meeting the needs of markets, and fill in our national gaps, especially in the fields of light poles and electrical poles manufacturing equipment.
Our aim is "quality competition, price competition, and service competition". Sincerely welcome you to negotiate and cooperate with us.
Our company has a strong technical force and advanced processing equipment, and attained ISO9001 international quality system certification in 2003. All our products are manufactured according to the national advanced standards. Our technicians develop many new products meeting the needs of markets, and fill in our national gaps, especially in the fields of light poles and electrical poles manufacturing equipment.
Our aim is "quality competition, price competition, and service competition". Sincerely welcome you to negotiate and cooperate with us.
FAQ
Q: Are you a factory or trading company ?
A: We are a factory with export licence.
Q: Where is your factory located ? How can I visit your company ?
A: In Yangzhou City, Jiangsu Province, China. There is airport in our city, about half an hour's drive. And our factory is near
Nanjing and Shanghai. Transportation is very convenient.
Q: If I want to start a light pole factory, can I get a whole machine line from you ?
A: Yes, we can make the whole light pole production line.
Q: What is your machine price level ?
A: Price is reasonable with good quality.
Q: What is your machine warranty ?
A: One year.
Q: Is engineer available to provide service abroad ?
A: Yes, we will provide free installation and commissioning, also free training.
A: We are a factory with export licence.
Q: Where is your factory located ? How can I visit your company ?
A: In Yangzhou City, Jiangsu Province, China. There is airport in our city, about half an hour's drive. And our factory is near
Nanjing and Shanghai. Transportation is very convenient.
Q: If I want to start a light pole factory, can I get a whole machine line from you ?
A: Yes, we can make the whole light pole production line.
Q: What is your machine price level ?
A: Price is reasonable with good quality.
Q: What is your machine warranty ?
A: One year.
Q: Is engineer available to provide service abroad ?
A: Yes, we will provide free installation and commissioning, also free training.
