full automatic puffed rice cracker making machine
- Category: >>>
- Supplier: Jinan Saibainuo Machinery Co. Ltd.
Share on (60587783938):
Product Overview
Description
Product Description
1.Description of full automatic puffed rice cracker making machine:
Puffed rice cracker making machine adopts corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.

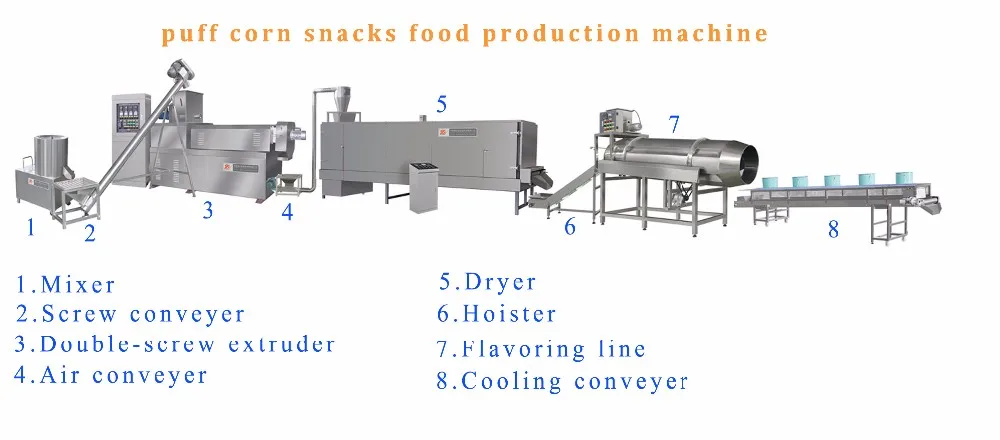

2.puffed rice cracker making machine flow chart: Mixing system---Extrusion system---- -Drying system----Flavoring system(oil sprayer)---Packing system.
3. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
4.Machines Materials: All the machines are made by stainless steel.
5.Saibainuo is a big factory, which has nearly 20000 square meters production base assembly, active introduction of high-end peoduction equipment, using advanced computer design software, has the industry leading research and development, testing and analysis equipment and test conditions.
6.Specification of the puffed rice cracker making machine:
Model | SLG65 | SLG70 | SLG85 |
Install Power | 65KW | 110KW | 190KW |
Consumption Power | 42KW | 77KW | 133KW |
Output | 120-150KG/H | 220-260KG/H | 500-600KG/H |
Dimension | 19000×1300×2200M | 22000×1300×2200M | 30000×1300×2500M |
Jinan Saibainuo Machinery Co., Ltd for food machine manufacutrering in China since 2004, offer competitive advantage machines, so with us your money in safe, your business in safe.
this is small capacity production line:150kg/h and 250kg/h.

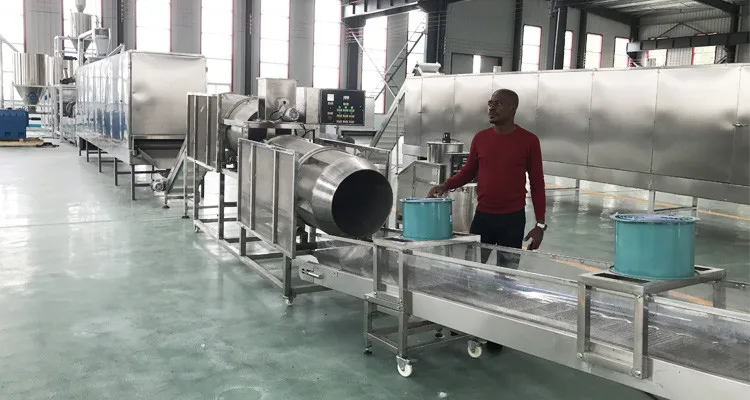

This is our puff snacks food whole line.
This is the dryer to dry the puff snacks.
Detailed Images
Name: high speed mixer
Dimension(m): 1.1×0.8×1.4
Motor Power: 4KW
Speed: 400rpm
Throughput: 25kg per loading (5-6 minutes per loading)
Functions:
mix raw powder material with water
Features:
1. material stainless:steel (1.5mm).
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.
Name: screw conveyor
Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter:\tΦ141mm
Function:
Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable.
Features:
stainless steel material(1.5mm) and advanced surface spraying handle.

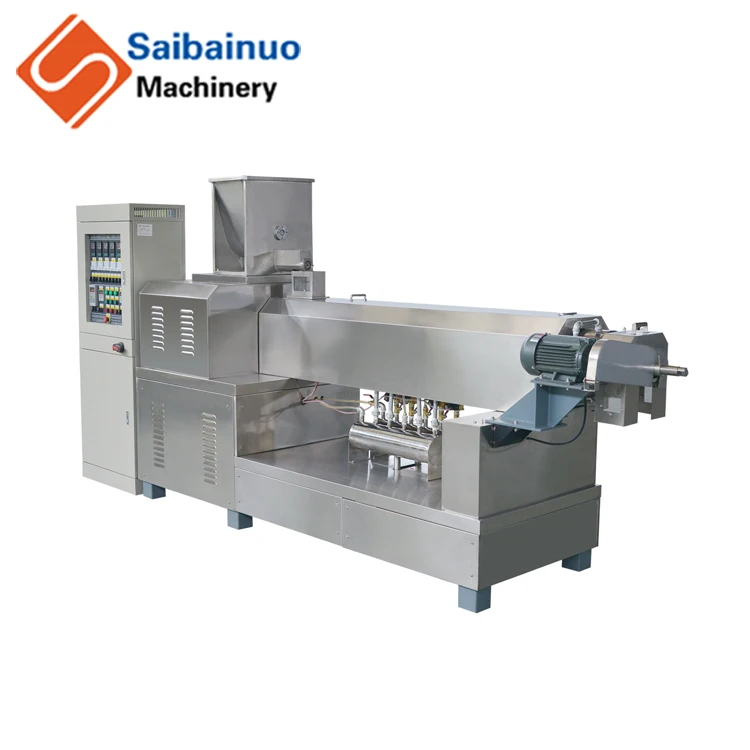

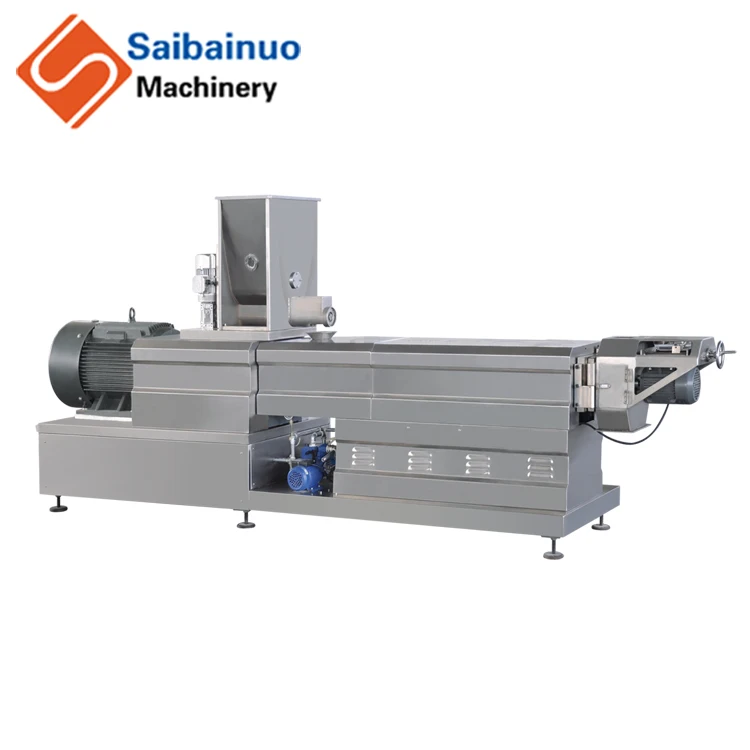

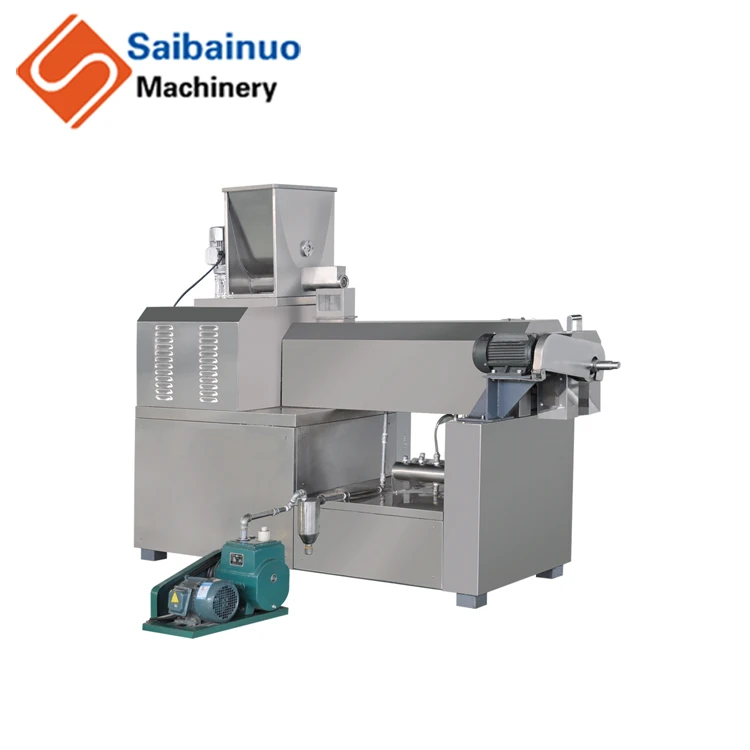

Name: twin screw extruder
Dimension(m): 2.4×1.0×1.3
Main Motor Power:22KW
Feeder motor:0.75kw
Cutting motor: 1.5kw
Heating power:10kw
Extruder diameter:Φ65 mm
Function:
Extrude and cook raw material into different size and shapes
Features:
Screw material is 38CrMoAl with nitriding treatment, the
hardness is 60HRC.. The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different molds to produce different Shapes product.
Name: dryer(we also have gas/diesel/steam dryer for your selection)
Dimension(m): 5.4×1.3×1.8
Heating Power:27kw
Motor power:0.75kw
Belt speed:0.1-10M/minute
Temperature: 20-200℃
Function:
There are three layer inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
Features:
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel
Name: flavoring line
Dimension(m): 3.8×0.8×1.8
Motor Power: 1.5KW
Function:
Scatter the powder seasoning on the food, The roller will mix the fat and seasoning powder evenly. Make food nice taste.
Feature:
Stainless steel material(1.5mm thickness)
Name: cooling conveyor
Dimension(m): 5.0×0.7×1.1
Motor Power:1 KW
Function:
Cool the pet food after flavoring ,make the pet food suitable for packing.
Feature:
Stainless steel material
Have fan and baffle,better cooling and no leakage.
